UTi712S
Ga direct naar de productinformatie
UTi712S

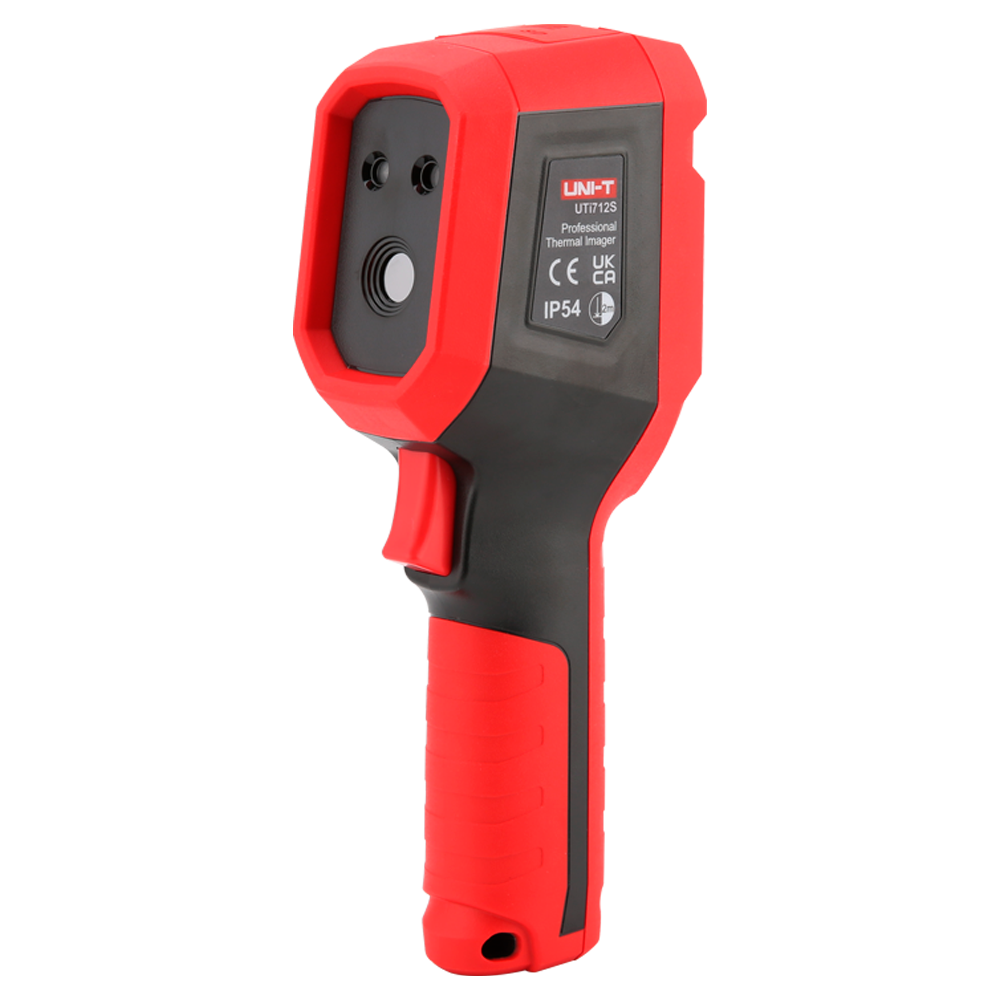

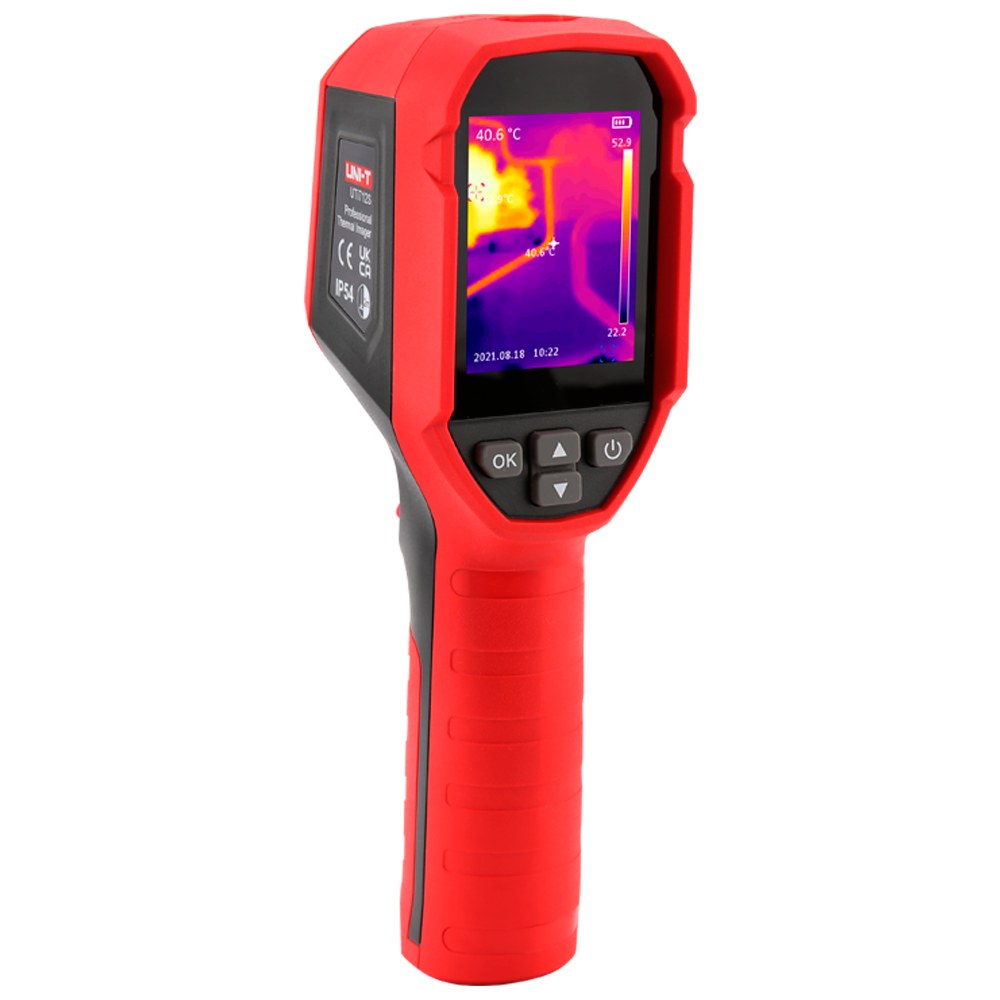

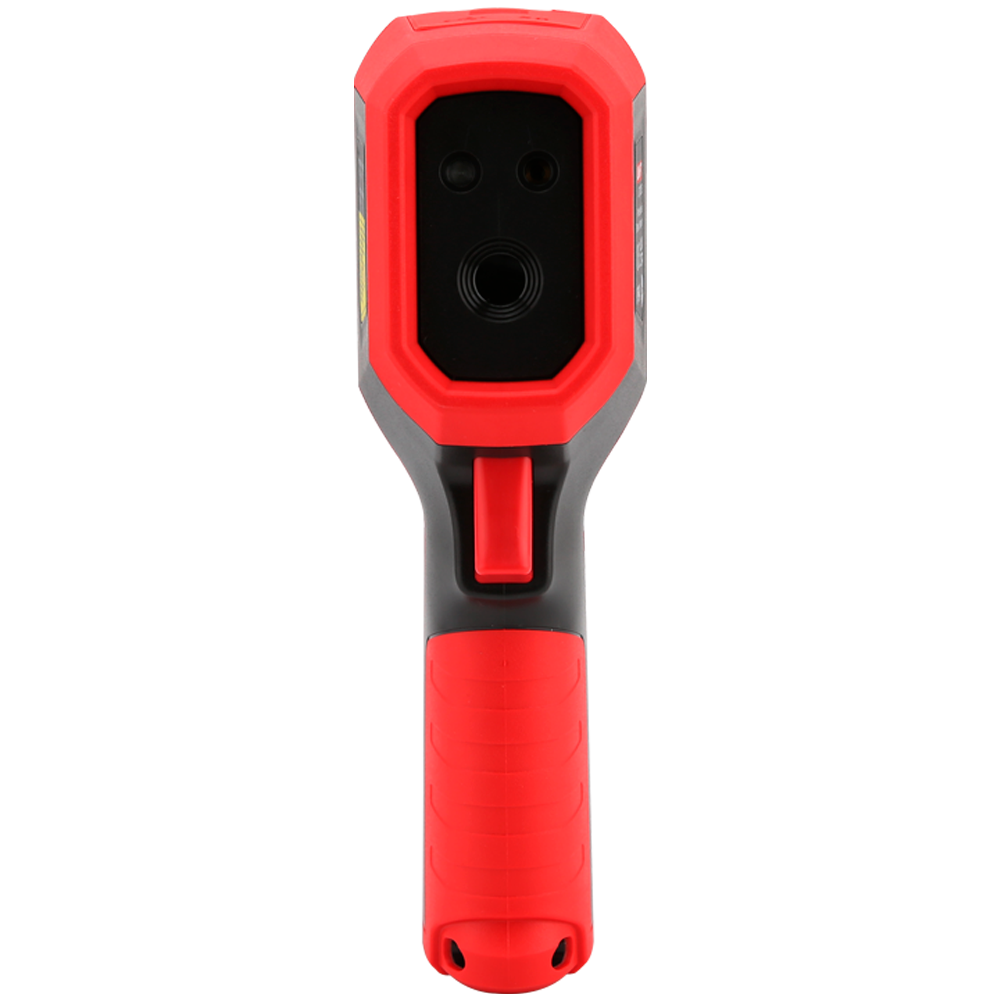

- Portable thermographic camera 120x90
- Real-time temperature measurement
- Measurement range -20ºC ~ 400ºC (±2ºC or ±2%)
- TFT 2.4" LCD display
- Monitoring on external monitor through PC
- Portable Thermographic Camera
- Real-time temperature measurement
- Thermal resolution 120x90
- NETD ≤60mK
- Accuracy ±2ºC or ±2%
- Temperature measurement range -20º ~ 400ºC -Display resolution 320x240
- Possibility of installation on tripod - PC software monitoring with alarm events
Specifications
| Thermal sensor | 120x90 Vox |
| Field of view (thermal) | 50º x 38º |
| Accuracy | ± 2ºC or ±2% |
| Thermal sensitivity (NETD) | ≤ 60mK |
| Spectral range | 8~14um |
| Intelligent functions | Temperature measurement |
| Measurement Range | -20ºC ~ 400ºC |
| Usage Modes | Center point, Maximum and minimum temperature measurement, ROI function |
| Image Modes | Thermal |
| Image captures | Manual (trigger) / Automatic (in case of alarm) |
| Internal memory | Micro SD card up to 16 GB (included) |
| Light / Flashlight | Manual activation / Activation due to increase or decrease in temperature |
| Notification | Sound: Buzzer on the device itself or PC software / Visual: On the camera display or in PC software |
| Display | 2.4" TFT LCD Display (320x240) |
| PC Software | Live Image, Event History, Audible Alarm Notification |
| Installation | Tripod (Not included) or handheld |

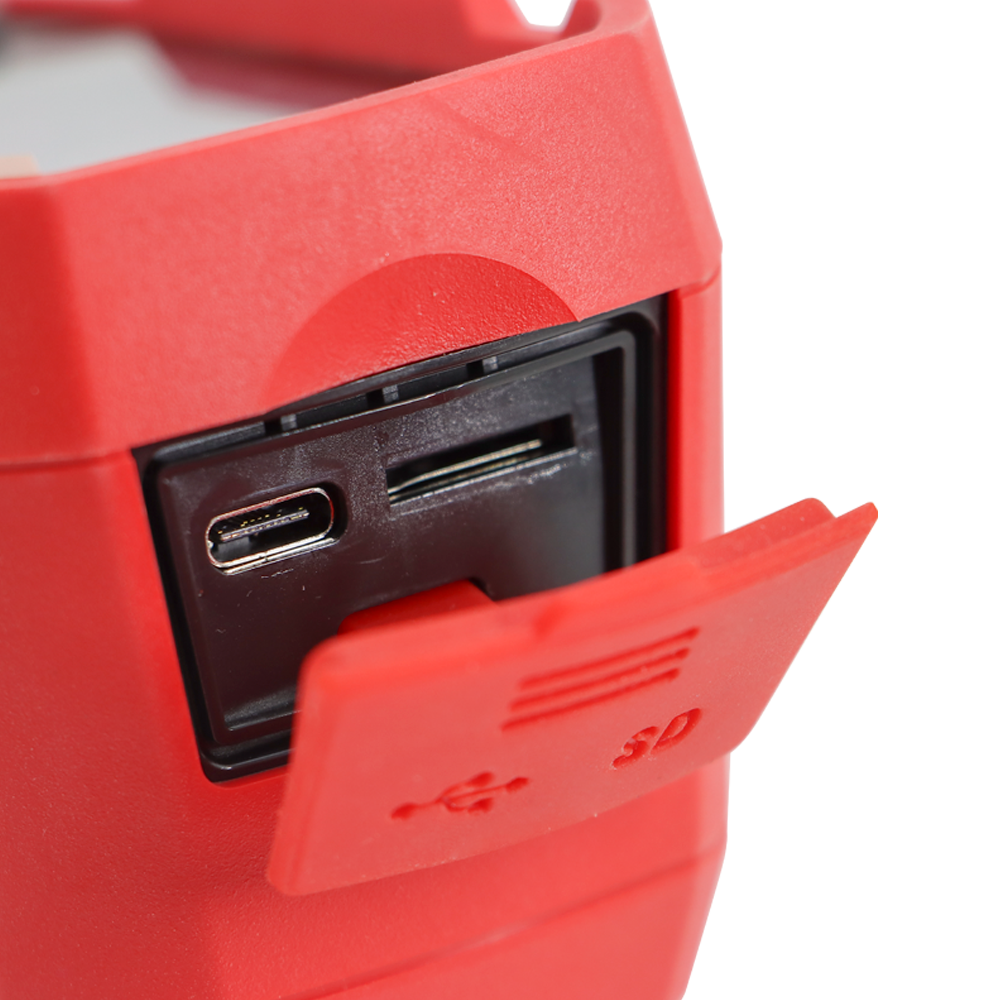

| Communication | USB Type C (for battery charging) |
| Languages | Spanish, English, Portuguese, Italian, German, French, Chinese |
| Power | Lithium Battery 3.6V / 5000mAh Rechargeable |
| Battery duration | 8 hours |
| Temp. operation | -20º C ~ + 60º C |
| Degree of protection | IP54 |
| Dimensions | 60 (D) x 197 (H) x 72 (W) mm |
| Weight | 310 g |
In the box
- Portable Thermographic Camera
- User instructions
- USB cable type C
- 16GB MicroSD card
