UTi165K

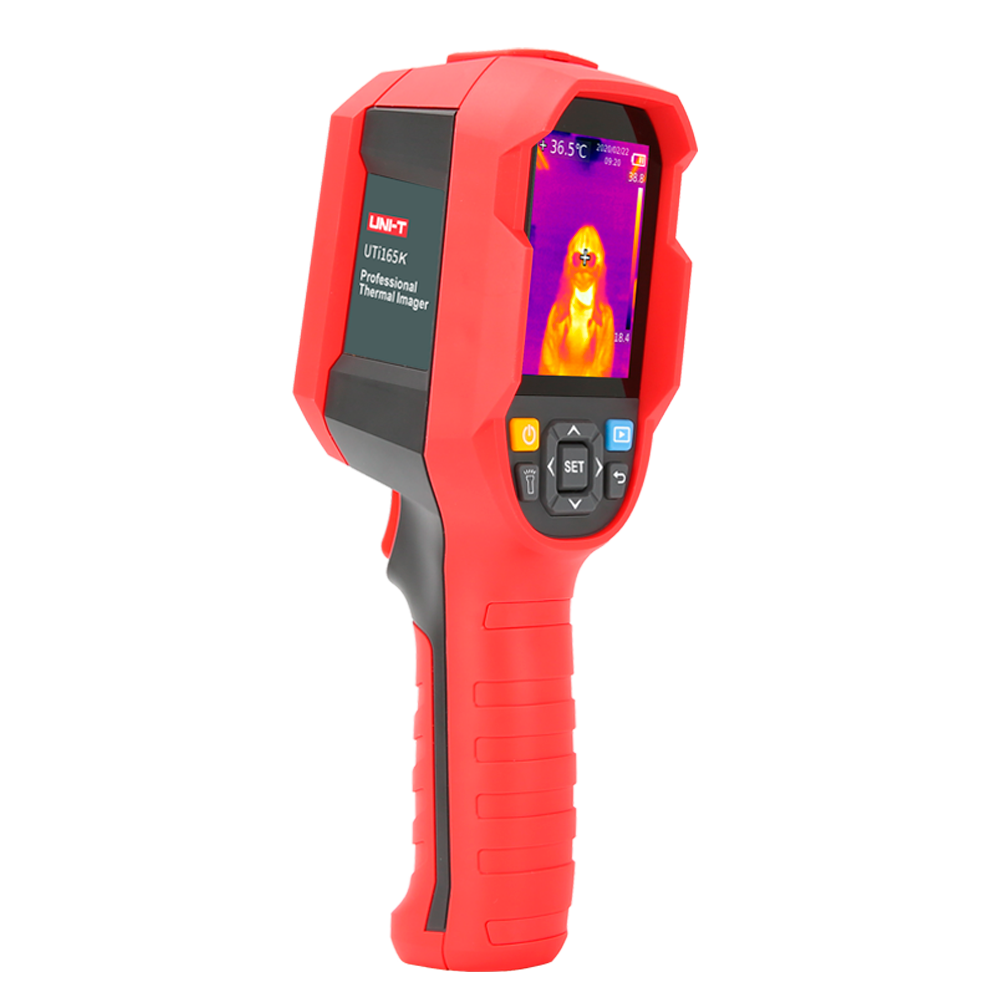

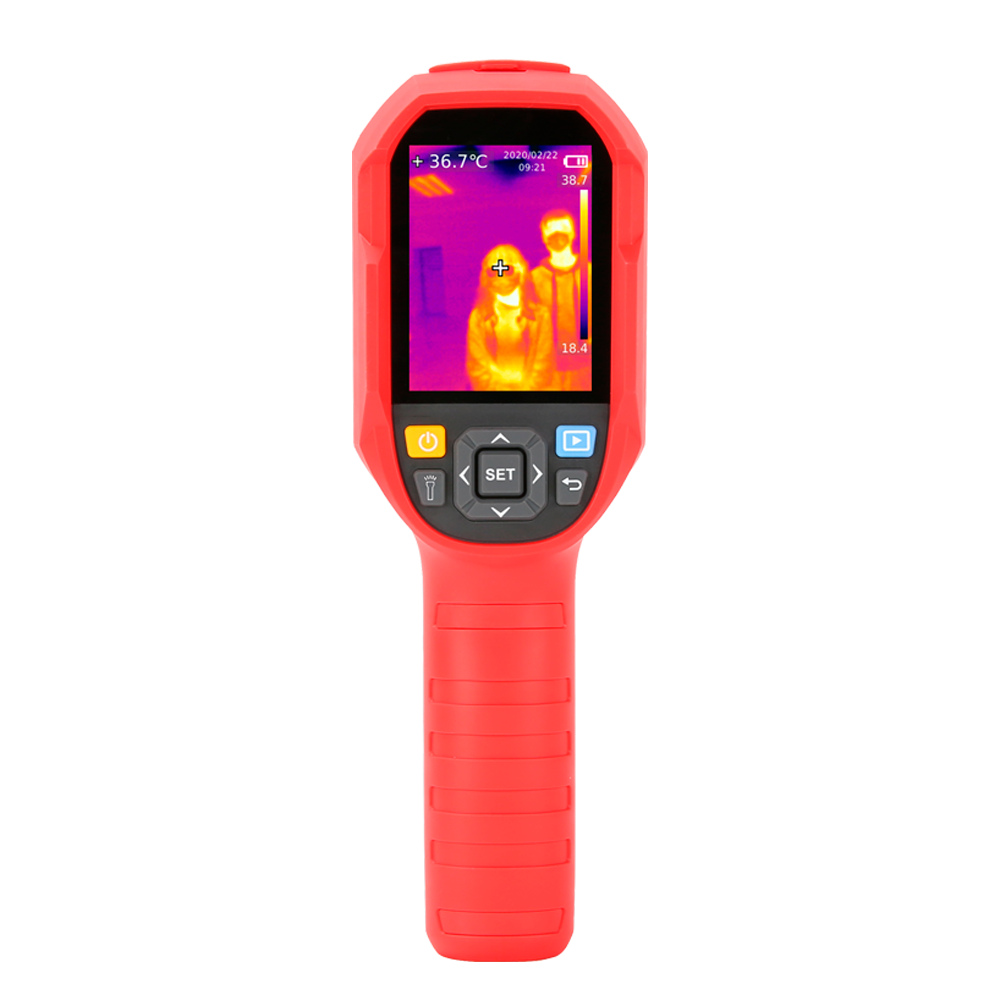

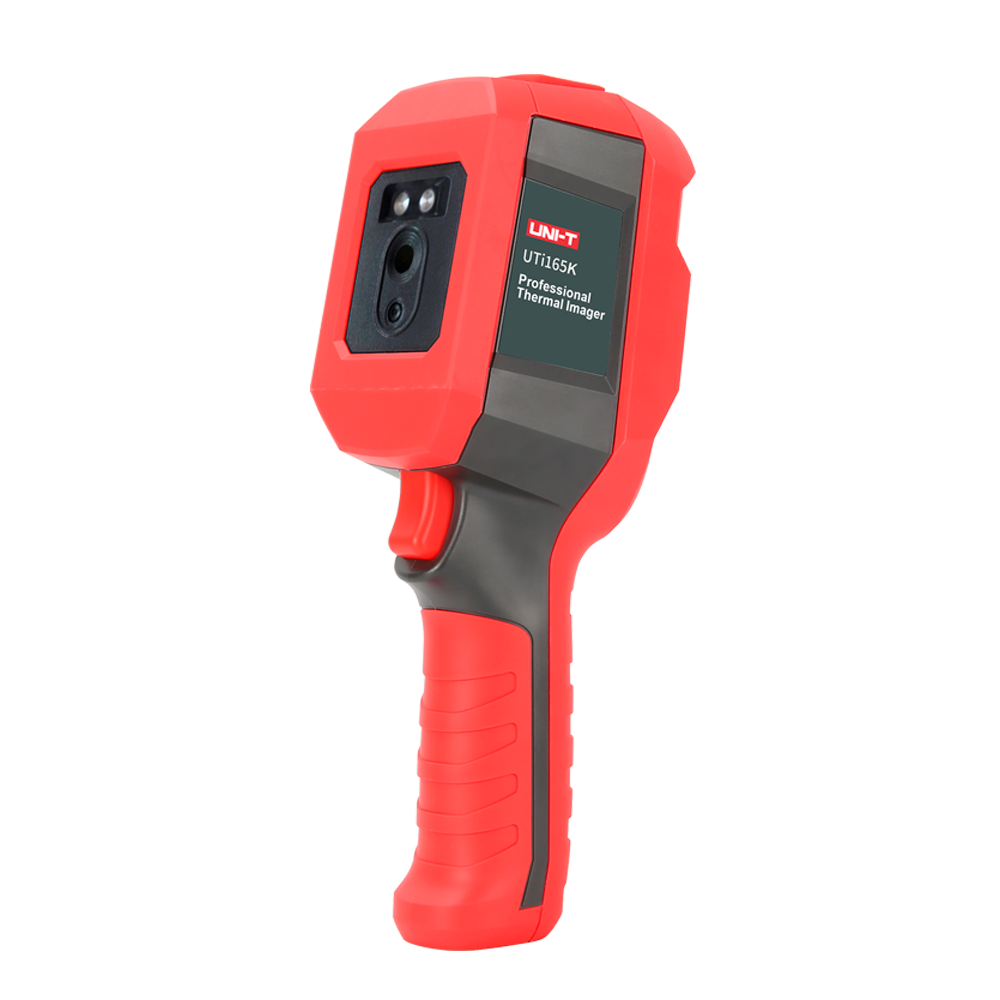

- Handheld Thermographic Dual Camera
- Real-time temperature measurement
- Thermal resolution 160x120 | Accuracy ±0.5ºC
- Thermal sensitivity ≤50mK
- Monitoring on external monitor through PC
- Handheld Thermographic Dual Camera
- Real-time temperature measurement
- Thermal resolution 160x120
- NETD ≤50mK
- Accuracy ±0.5ºC
- Temperature measuring range 30º~45ºC
- Over-temperature light
- Display 2.8”LCD

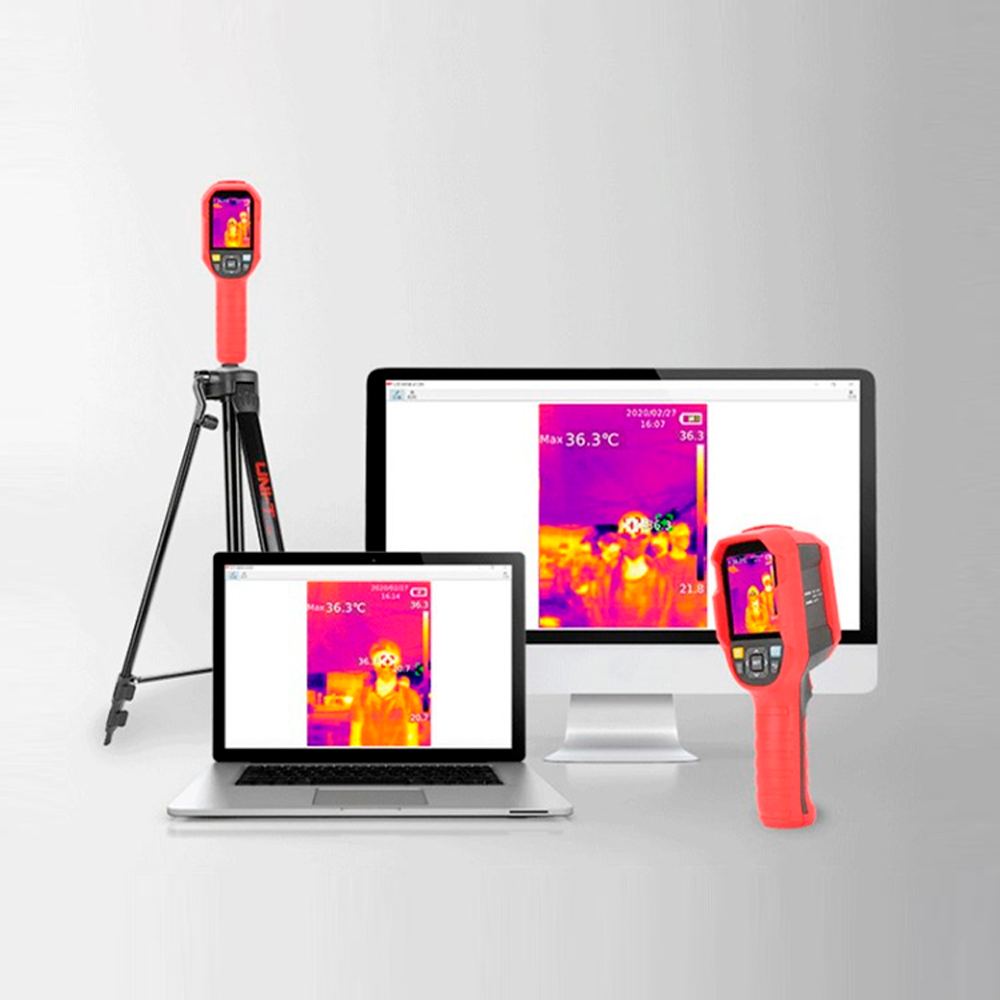

- Tripod installation - Monitoring in PC Software with alarm events
Specifications
| Thermal sensor | 160x120 |
| Field of view (thermal) | 35º x 26º |
| Accuracy | ± 0.5ºC |
| Thermal sensitivity (NETD) | ≤50mK |
| Intelligent functions | Temperature measurement |
| Measurement Range | 30º~45ºC |
| Usage Modes | Center point, Maximum and minimum temperature measurement, ROI function |
| Image Modes | Thermal, Visible, Display fusion of thermal view and optical view (Adjustable with 0%, 25%, 50%, 75% and 100%) |
| Image captures | Manual (trigger) / Automatic |
| Internal memory | Micro SD card up to 32 GB (included from 16GB)) |
| Light / Flashlight | Manual activation / Activation due to increase or decrease in temperature |
| Display | TFT display 2.8" LCD / From external monitor via PC |
| Communication | USB Type C (for battery charging and PC connection for monitoring) |
| PC Software | Live Image, Event History, Audible Alarm Notification |
| Installation | Tripod (Not included) or handheld |
| Power | Lithium Battery 3.7V / 5000mAh Rechargeable |
| Battery duration | 6 hours |
| Degree of protection | IP65 |
| Dimensions | 86(D) x 236(W) x 75.5(An)mm |
| Weight | 910 g |

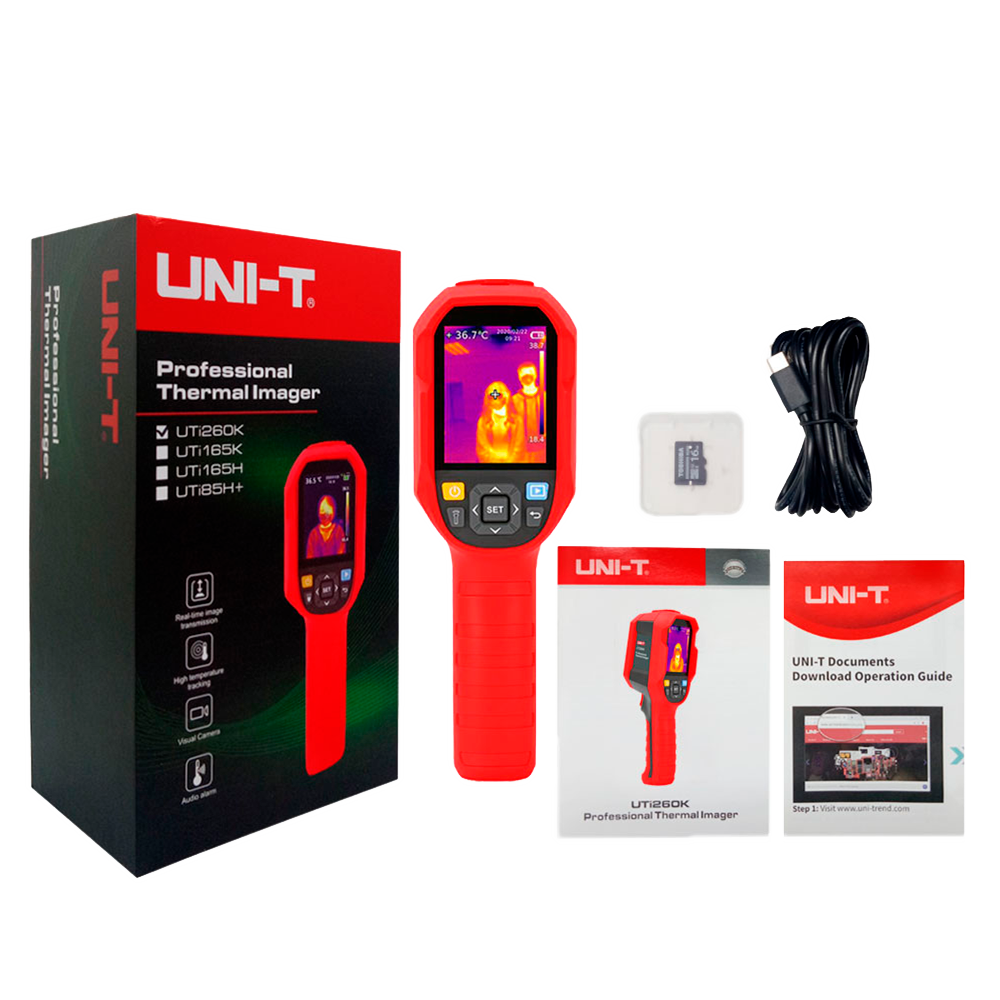

In the box
- Portable Thermographic Camera
- User instructions
- USB cable type C
- 16GB MicroSD card
