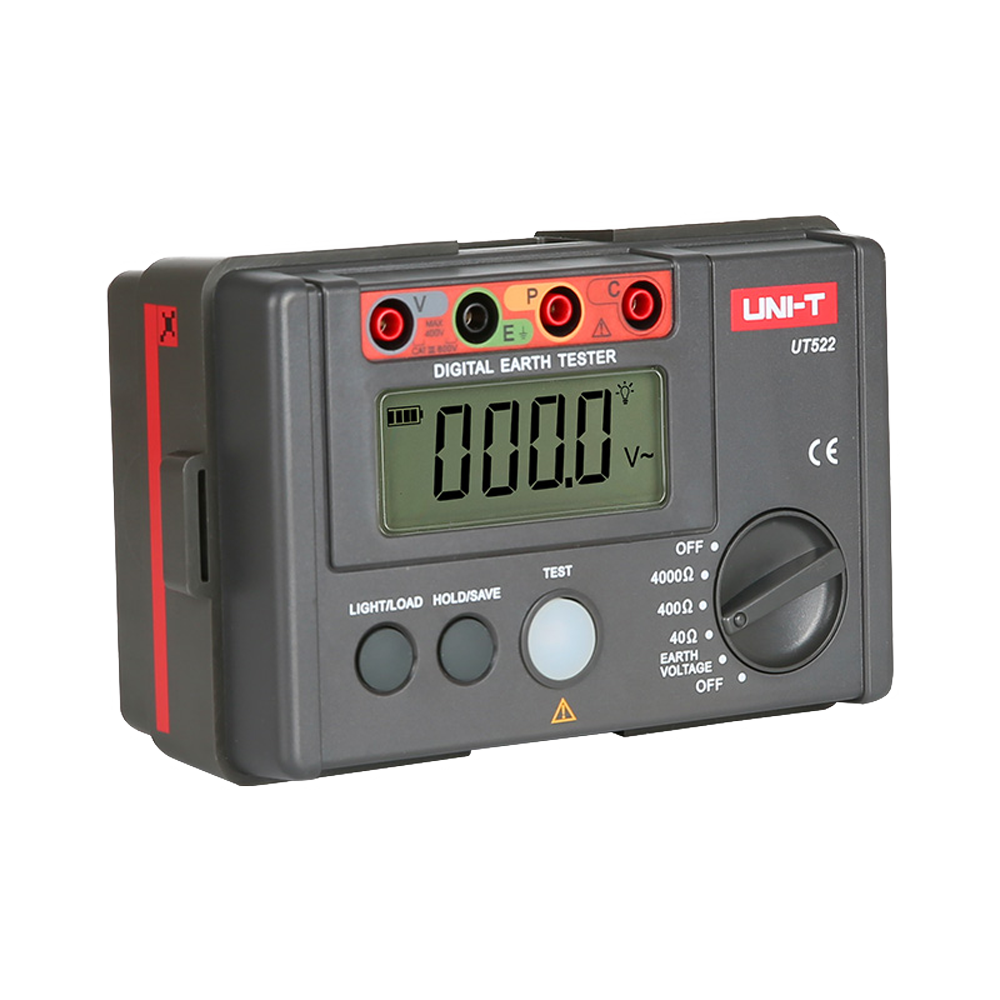

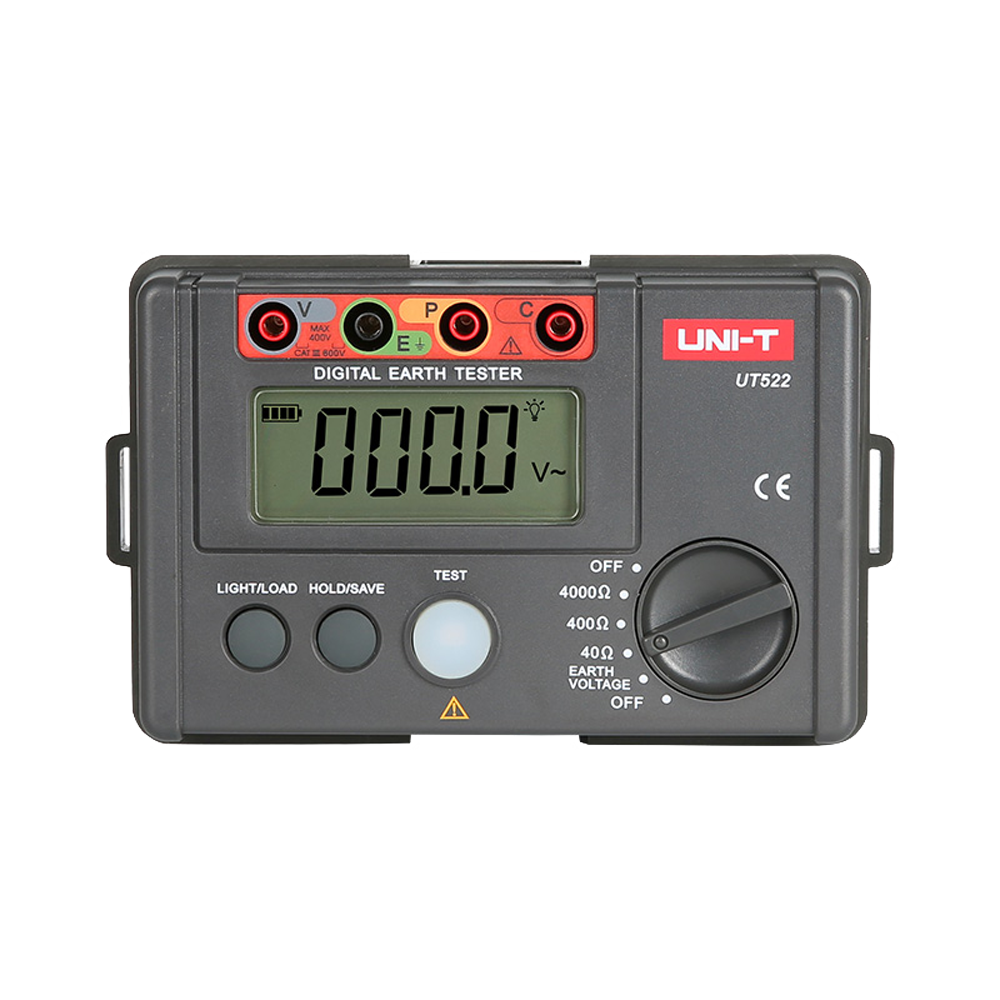

UT522
Ga direct naar de productinformatie
UT522
- Earth Resistance Meter
- LCD display up to 4000 accounts
- Earth resistance measurement up to 4000Ω
- AC ground voltage measurement up to 400V
- Data storage
- Automatic shutdown
- UNI-T
- CAT III earth resistance meter 600V
- LCD display up to 4000 accounts
- Performs accurate earth resistance measurements up to 4000Ω of 3 cables and 2 single wires in electrical and power systems, lightning protection equipment and grounding systems in electrical equipment
Specifications
| Brand | Uni-T |
| Measuring range earth resistance | 0~40Ω ±(2%+20) 0~400Ω ±(2%+3) 0~4000Ω ±(2%+3) |
| Measuring range of AC voltage to ground | 0~400V ±(1%+6); Frequency: 50Hz/60Hz |
| Display dimensions | 70.6mm x 34mm |
| Display accounts | Up to 4000 |
| Testing 3 cables and 2 cables | Yes, it is available |
| Dimensions | 100 (H) x 160 (W) x 70.5 (D) mm |
| Power | 6 x batteries 1.5V (LR6) |
| Weight | 560 g |
| Security | CAT III 600V |
In the box
- Earth Resistance Meter
- User instructions
- Test leads
