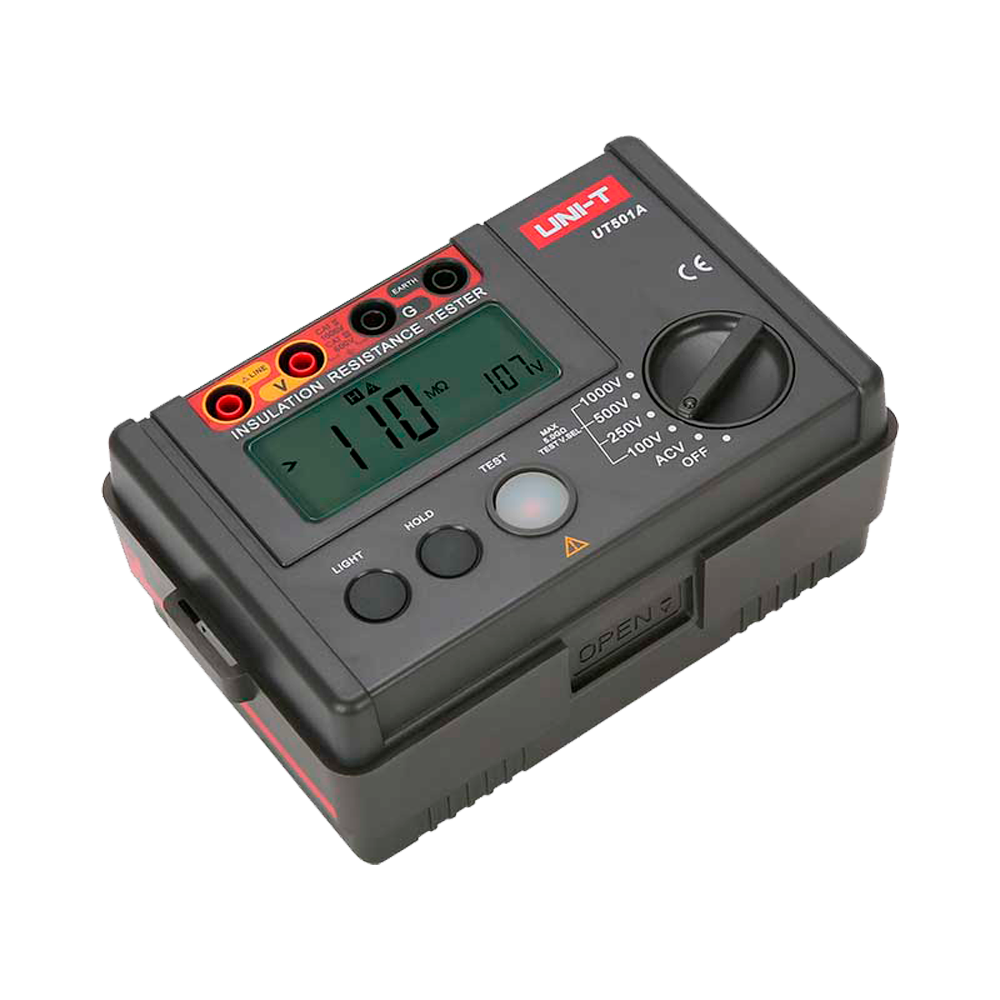

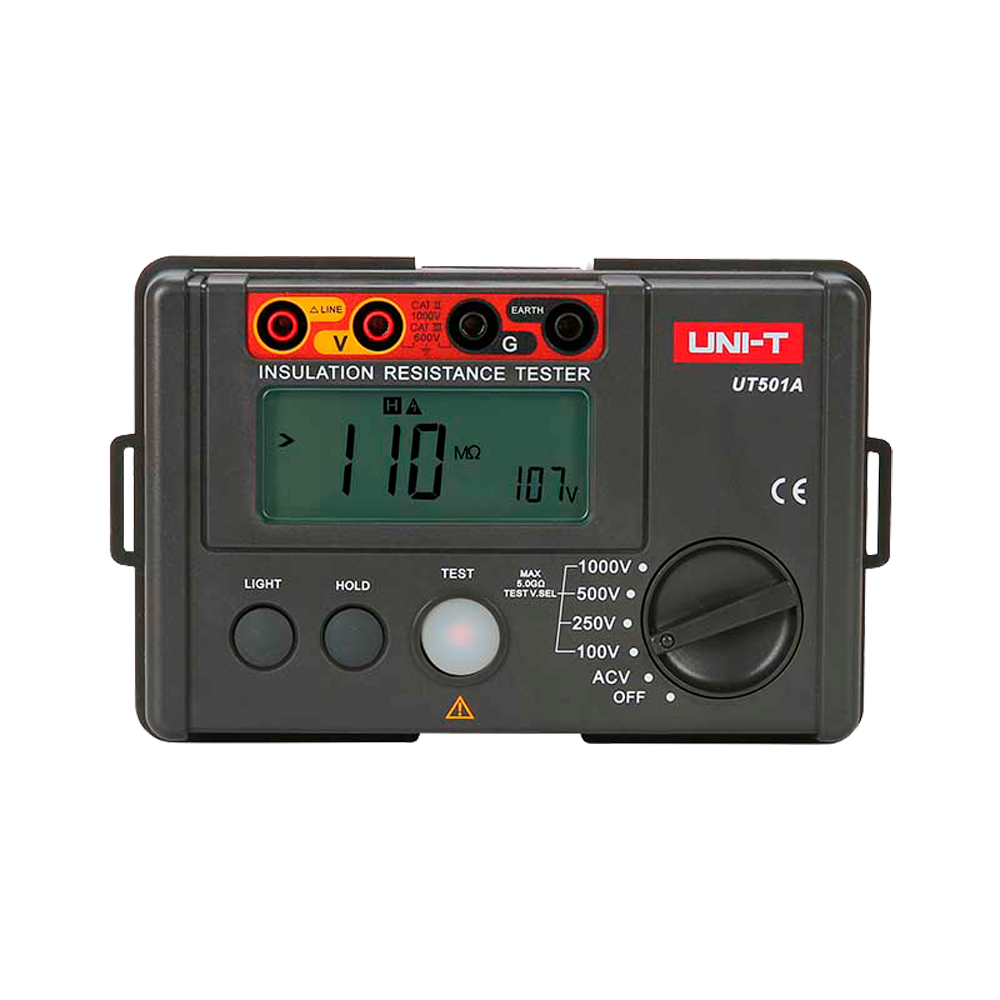

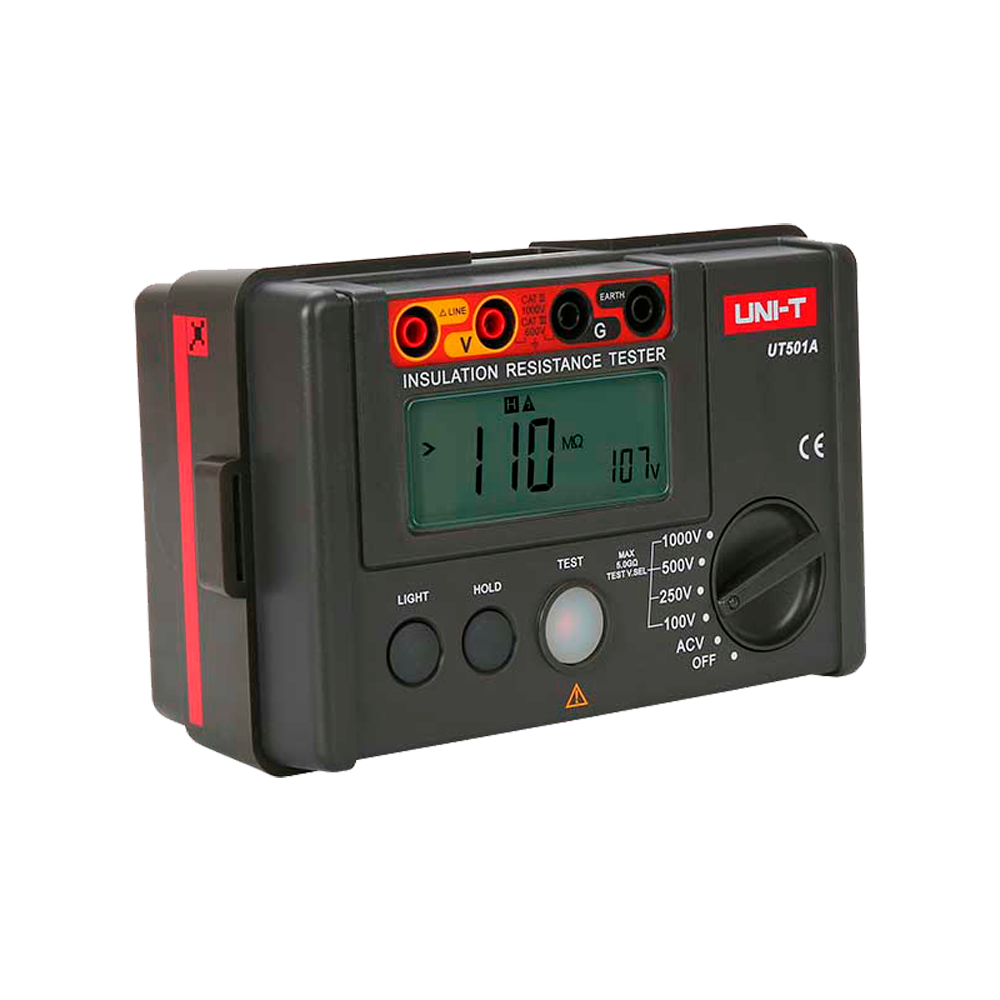

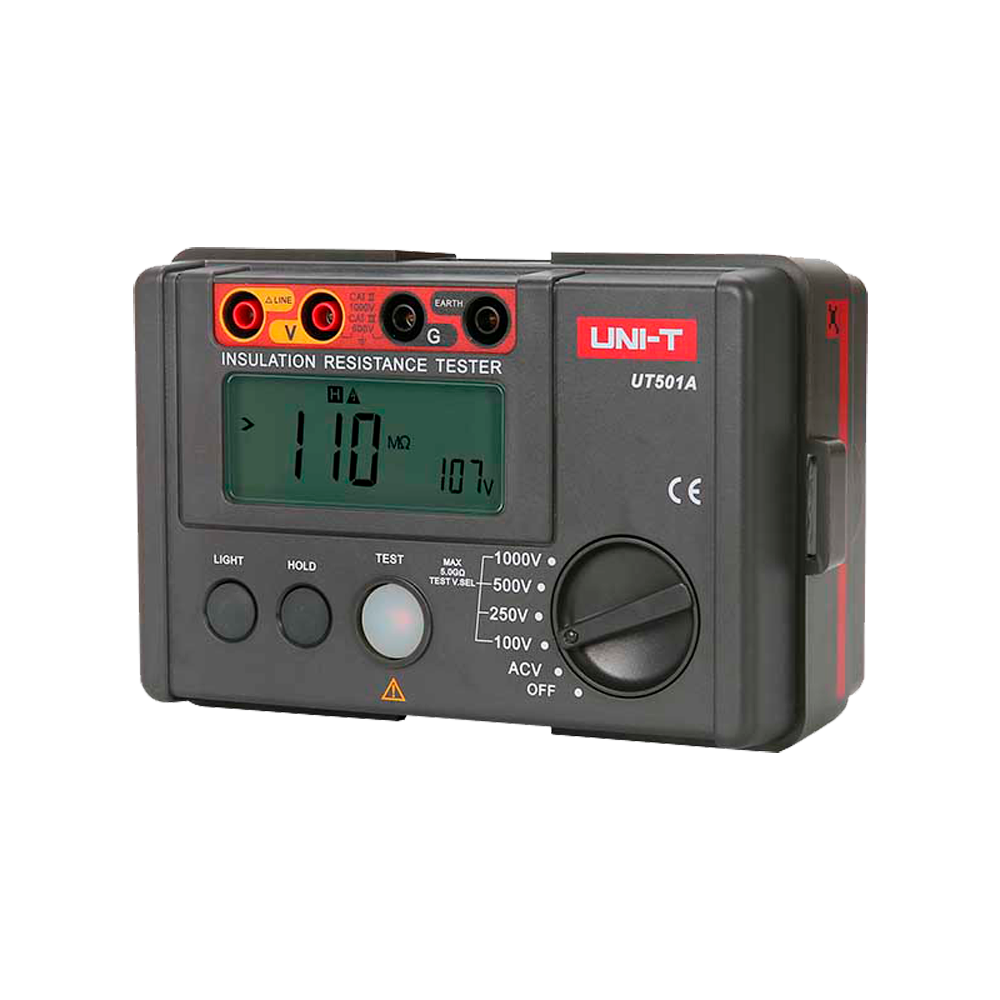

UT501A
Ga direct naar de productinformatie
UT501A
- Electrical Insulation Resistance Meter
- LCD display up to 2000 accounts
- AC voltage measurement up to 750V
- Automatic shutdown
- Ranges 100V/250V/500V/1000V
- UNI-T
- Electrical Equipment Insulation Resistance Tester
- LCD display up to 2000 accounts
- Insulation resistance measurement (Ω) of voltages 100V/250V/2500V/1000V
- AC voltage measuring range 30~750V
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Isolation Resistance | 100V: 0MΩ~100MΩ ±(3%+5) 250V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) 500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) 1000V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5) |
| Charging current | 50V (R=50kΩ) 1mA; 0%~10% 100V (R=100kΩ) 1mA; 0%~10% 250V (R=250kΩ) 1mA; 0%~10% 500V (R=500kΩ) 1mA; 0%~10% 1000V (R=1MΩ) 1mA; 0%~10% |
| Short circuit current | <2mA |
| Rango de medida de voltaje AC | 30V~750V ±(2%+3) |
| Dimensiones display | 70.6mm x 34mm |
| Cuentas display | Hasta 2000 |
| Buzzer voltaje alto | Si dispone |
| Indicador de sobrecarga | Si dispone |
| Test resistencia interna 10 MΩ | Si dispone |
| Dimensiones | 100 (Al) x 150 (An) x 71 (Fo) mm |
| Alimentación | 6 x pilas 1.5V (LR6) |
| Peso | 500 g |
| Seguridad | CAT II 1000V/ CAT III 600V |

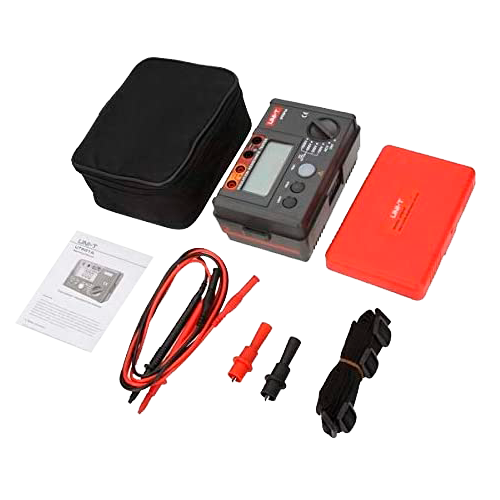

In the box
- Medidor de resistencia de aislamiento eléctrico
- Pinzas de cocodrilo
- Instrucciones de uso
