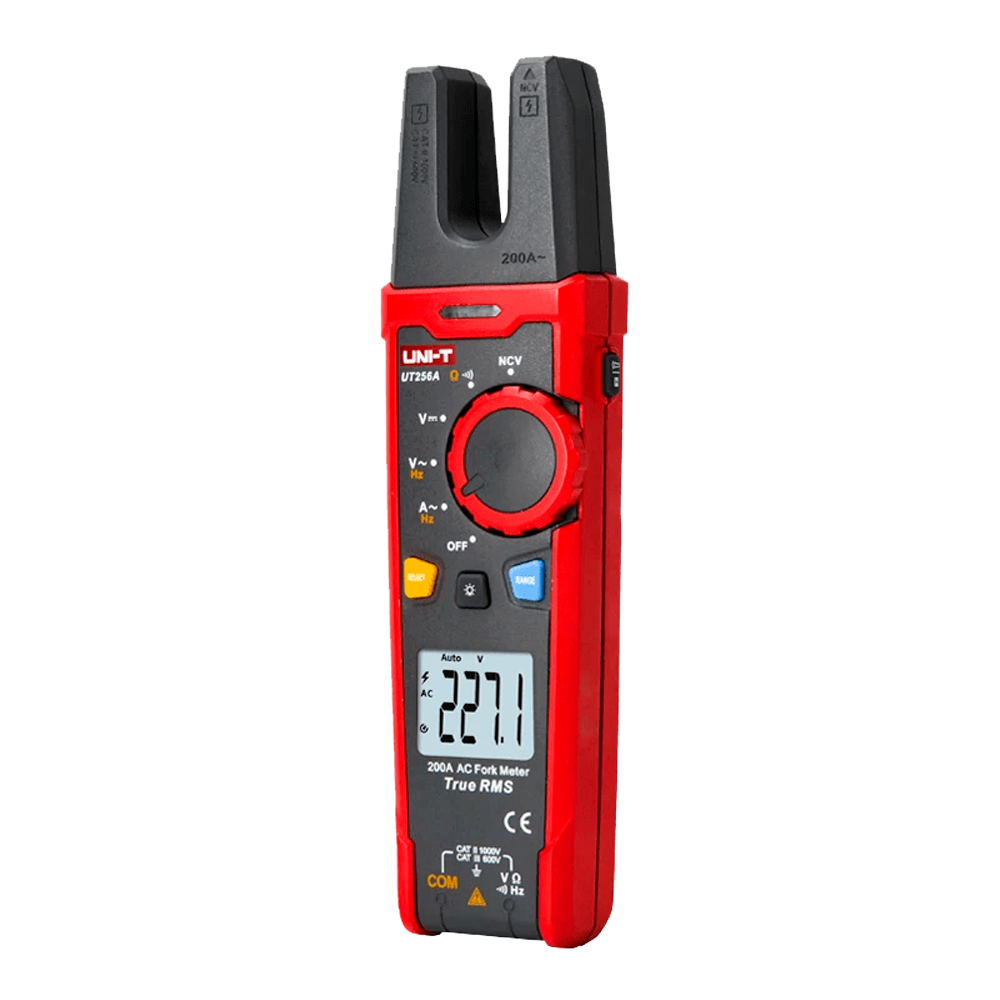

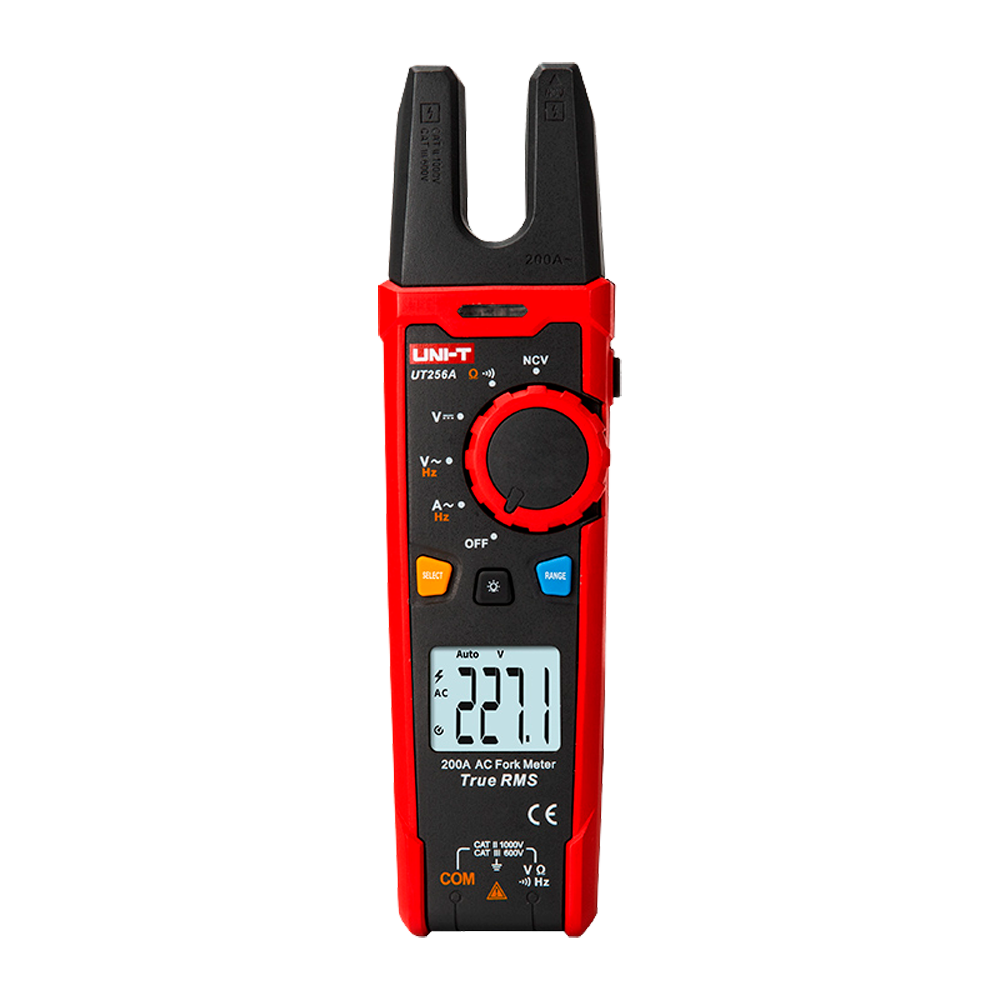

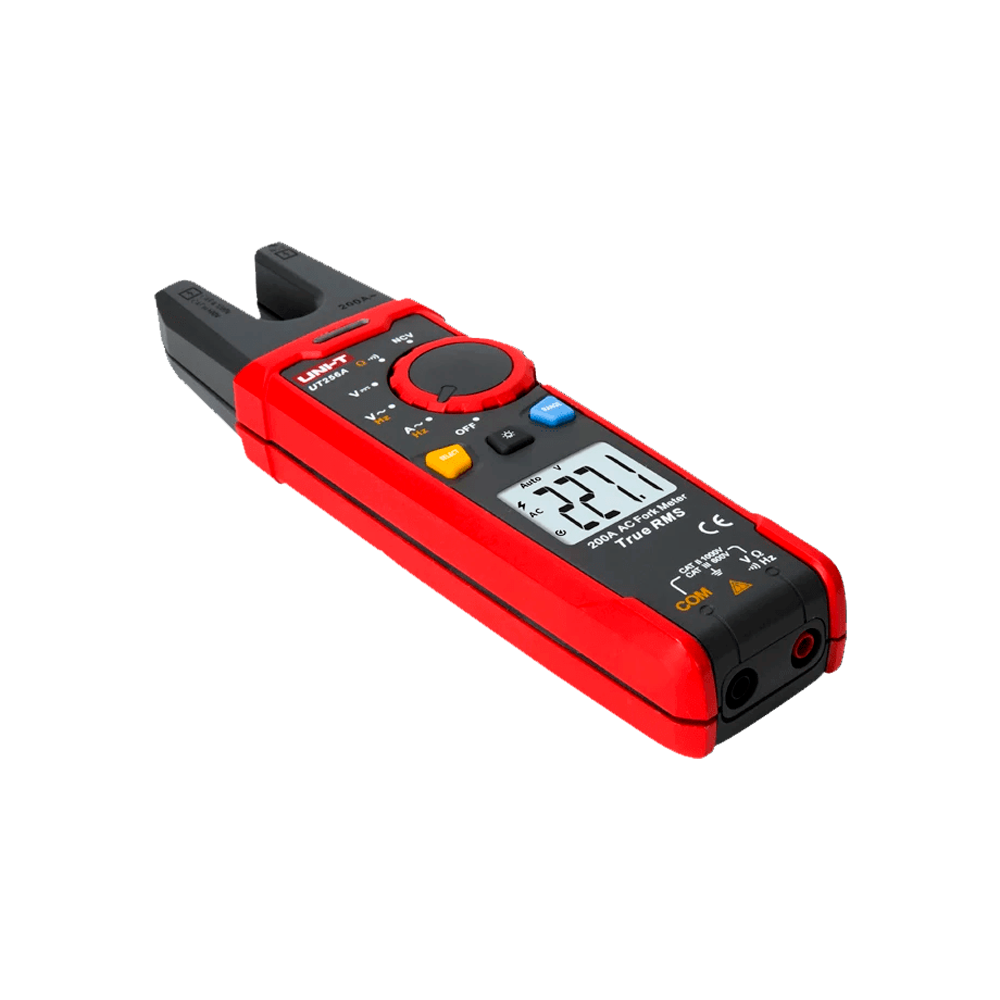

UT256A
Ga direct naar de productinformatie
UT256A
- Fork-type clamp ammeter
- LCD display of up to 6000 counts
- Current measurement in AC up to 200A
- DC and AC voltage measurement up to 1000V
- High AC accuracy with True RMS function
- Resistance and frequency measurement | NCV function
- UNI-T
- Fork-type clamp meter CAT II 1000V/ CAT III 600V
- LCD display up to 6000 accounts
- DC and AC voltage measurement up to 1000 V
- AC current measurement up to 200 A
- High accuracy in AC with built-in True RMS function
- Resistance and frequency measurement
- Buzzer for continuity test
- NCV (non-contact voltage) function
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Measuring range AC current | 200A ±(1.8%+2) |
| AC and DC voltage measuring range | AC 1000V ±(1.2%+3) DC 1000V ±(0.8%+3) |
| Resistance measuring range | 60MΩ ±(1%+2) |
| Frequency measurement range | 10~10kHz ±(0.1%+5) |
| Display accounts | Up to 6000 |
| Display | 35 x 26mm |
| NCV function (non-contact voltage detection) | Yes, it is available |
| Continuity test | Yes, it is available |
| Low battery indicator | Yes, it is available |
| Input protection | Yes, it is available |
| Power | 2 x batteries (R03) 1.5V |
| Dimensions | 217 (H) x 58.8 (W) x 38.5 (D) mm |
| Weight | 251 g |
| Security | CAT II 1000V/ CAT III 600V CAT III [%VAR%] |

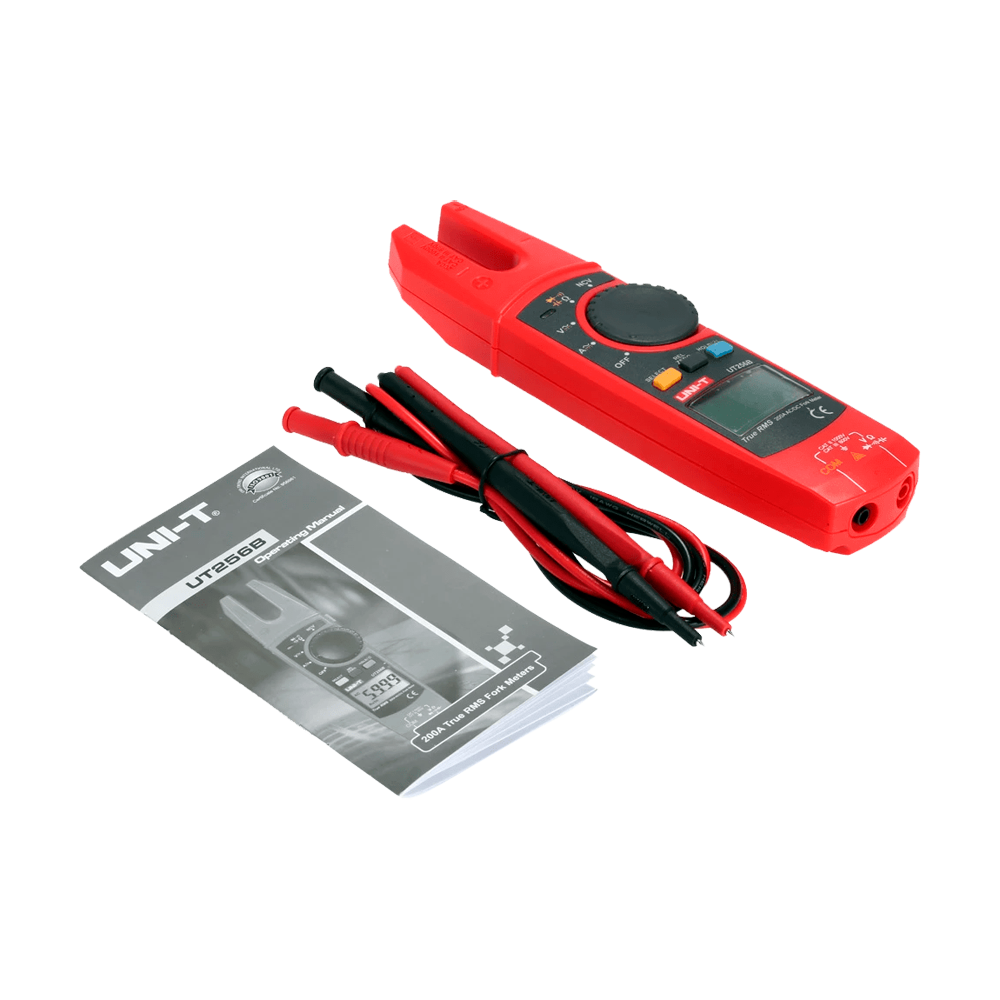

In the box
- Current clamp
- Batteries
- User instructions
