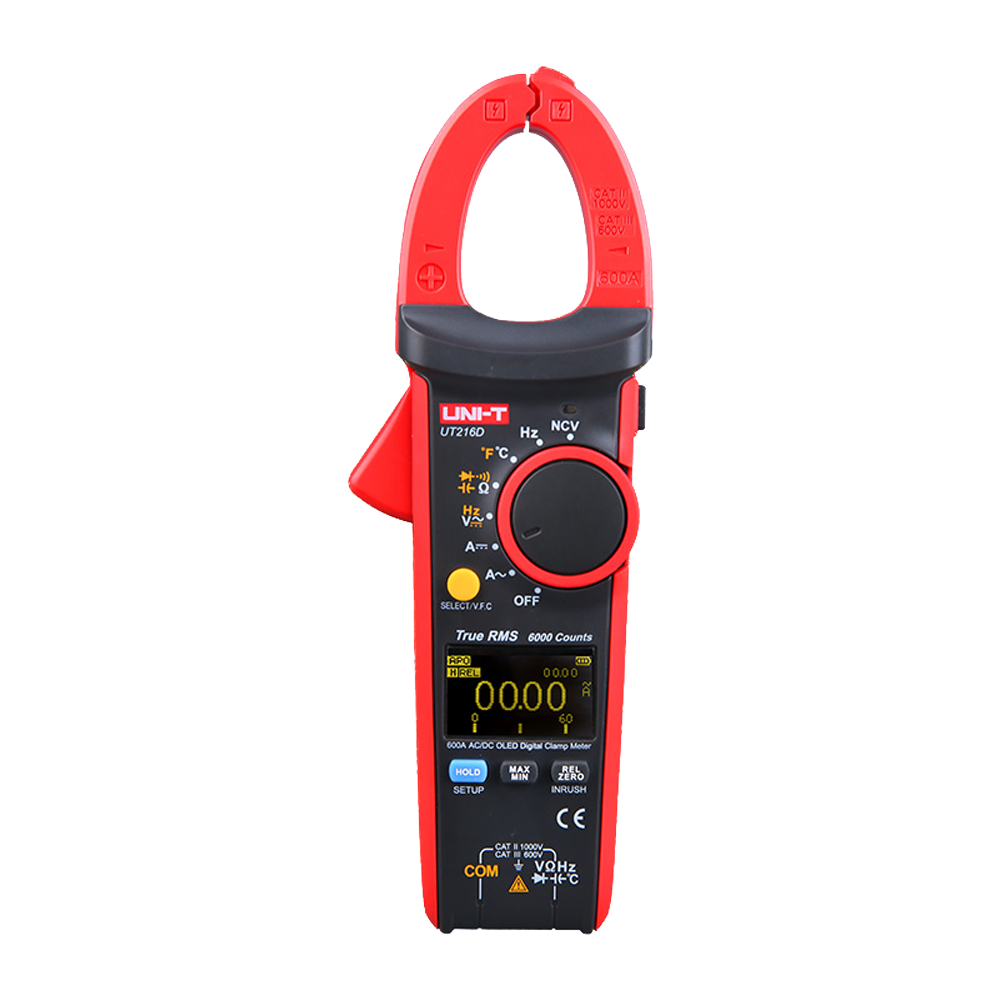

UT216D
Ga direct naar de productinformatie
UT216D
- OLED clamp meter
- DC measurement up to 1000V and 600A
- Measurement in AC up to 750V and 600A
- Resistance/capacitance/frequency/temperature
- Auto Range | Test diodes | True RMS | NVC
- Clamp opening of 30mm
- UNI-T
- Clamp meter CAT II 1000V/ CAT III 600V
- OLED display up to 6000 accounts with analog bar
- DC and AC current measurement up to 600 A
- DC voltage measurement up to 1000V and AC voltage measurement up to 750 V
- High accuracy in AC with built-in True RMS function
- Resistance, Capacitance and Frequency Measurement
- Buzzer for continuity test
- NCV (non-contact voltage) function
- Diode test
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Measuring range DC and AC current | DC 600A ±(2.5%+5) AC 600A ±(2.5%+5); Frequency of response: 40~400Hz |
| DC voltage measuring range | 1000V ±(0.8%+1) |
| AC voltage measuring range | 750A ±(1.2%+5); Response frequency: 45~400Hz |
| Resistance measuring range | 60MΩ ±(1%+2) |
| Capacitance measuring range | 60mF ±(4%+20) |
| Frequency measurement range | 10Hz~1MHz ±(0.1%+4) |
| Temperature measurement range | -40ºC~1000ºC ±(2%+5) |
| Display accounts | Up to 6000 |
| Display dimensions | 38mm x 24mm |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Diode test | Around 3V |
| Analog bar | Yes, it is available |
| VFC and NCV function (Non-contact voltage detection) | Yes, it is available |
| Relative mode | Yes, it is available |
| MAX/MIN register | Yes, it is available |
| Continuity test | Yes, it is available |
| Low battery indicator | If you have (<3.6V) |
| Input protection | Yes, it is available |
| Input impedance DCV | ~10MΩ |
| Power | 3 x batteries (R03) 1.5V |
| Dimensions | 220 (H) x 75 (W) x 40 (D) mm |
| Weight | 231.7 g |
| Security | CAT II 1000V/ CAT III 600V CAT III [%VAR%] |
In the box
- Current clamp
- Test leads
- Temperature probe
- Batteries
- User instructions
