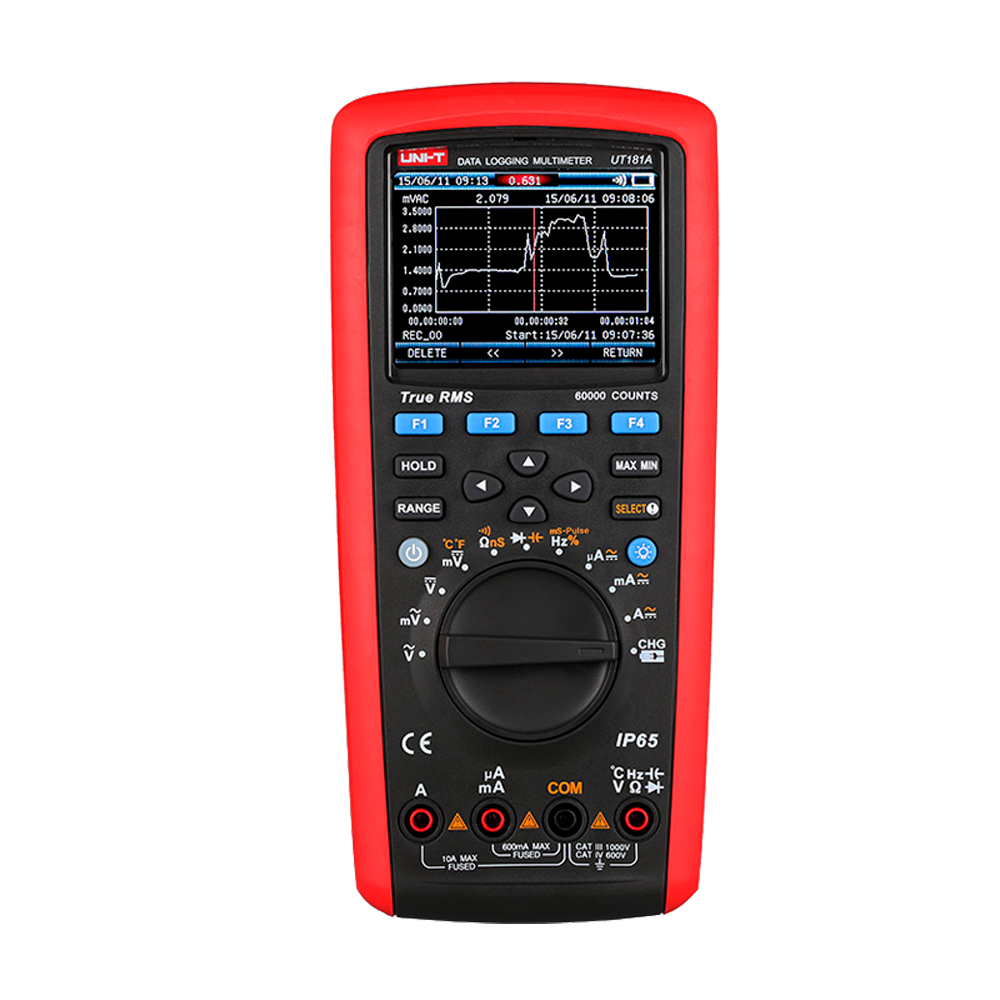

UT181A
Ga direct naar de productinformatie
UT181A
- True RMS Datalogging Multimeter
- PC connection for data dump
- AC/DC measurement: to 1000V and 10A
- Resistance, capacitance, conductance measurement
- Measurement of frequency, temperature, continuity
- Data logging and visualization
- UNI-T
- Datalogging multimeter CAT III 100V/ CATIV 600V
- LCD display up to 6000 accounts
- DC and AC voltage measurement up to 1000 V
- DC and AC current measurement up to 10 A
- High accuracy in AC with built-in True RMS function
- Resistance, capacitance, conductance, frequency and temperature measurement
- Buzzer for continuity test
- Diode test
- Logging function for up to 20000 datasets and visualization for trend tracking
- Automatic shutdown
- PC connection for data dump.
Specifications
| Brand | Uni-T |
| Measuring range DC and AC voltage | DC 1000V ±(0.025%+5) AC 1000V ±(0.3%+30); Frequency of response: 40~500Hz |
| DC and AC current measuring range | DC 10A ±(0.08%+10) AC 10A ±(0.6%+20); Frequency of response: 40~500Hz |
| Resistance measuring range | 60MΩ ±(0.05%+2) |
| Capacitance measuring range | 60mF ±(2%+5) |
| Frequency measurement range | 10Hz~60MHz ±(0.01%+5) |
| Temperature measurement range | -40°C~1000°C ±(1%+30) |
| Display accounts | Up to 60000 |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Bandwidth | 100 kHz |
| Relative mode | Yes, it is available |
| Data logging | 20000 |
| Continuity test | Yes, it is available |
| Low pass filter | 1 kHz |
| Diode test | Up to 3V |
| Dual temperature measurement | T1, T2, T1-T2, T2-T1 |
| Input protection | Yes, it is available |
| DC input impedance | ≥10MΩ |
| Power | Lithium Battery 2200 mAh 7.4V |
| Dimensions | 195 (H) x 95 (W) x 58 (D) mm |
| Weight | 638.6 g |
| Security | CAT III 100V/ CATIV 600V CATIV [%VAR%] |

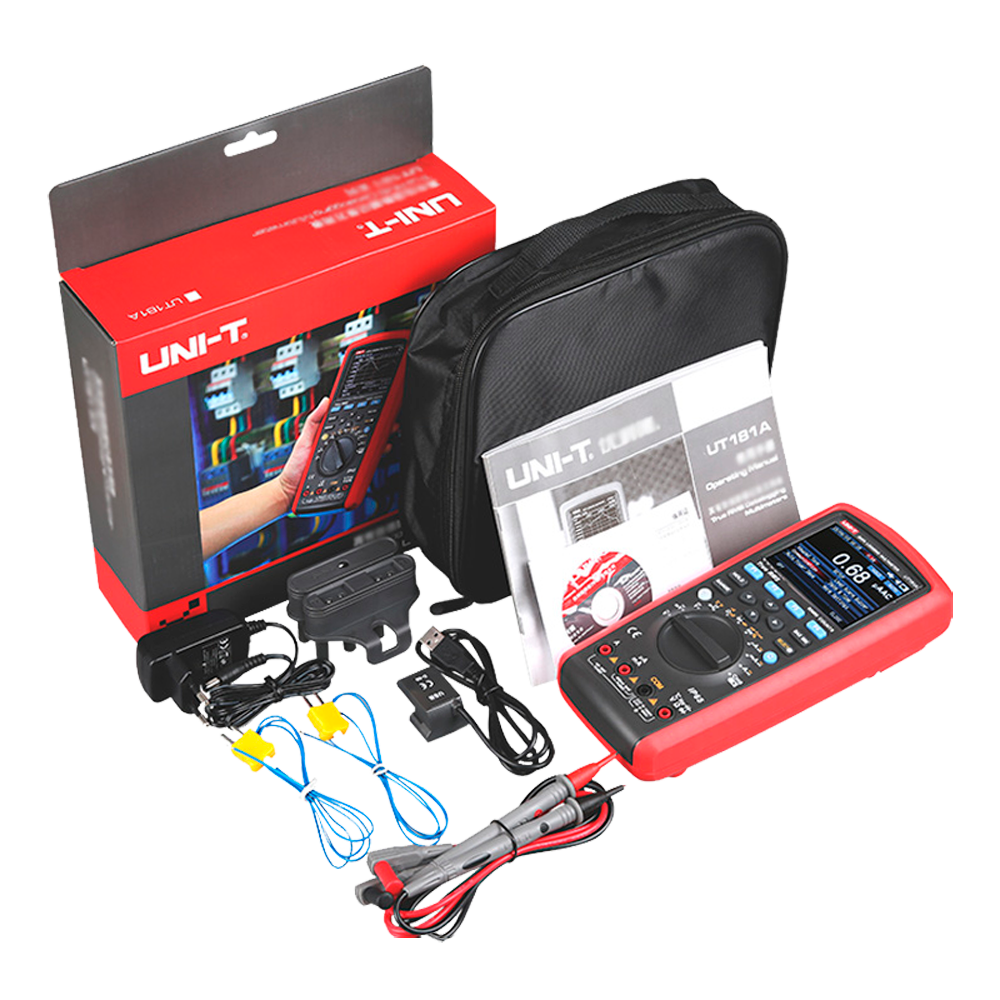

In the box
- Digital multimeter
- Test leads
- Temperature probe
- User instructions
- Adapter and power cable
- USB Cable
- CD PC Software
