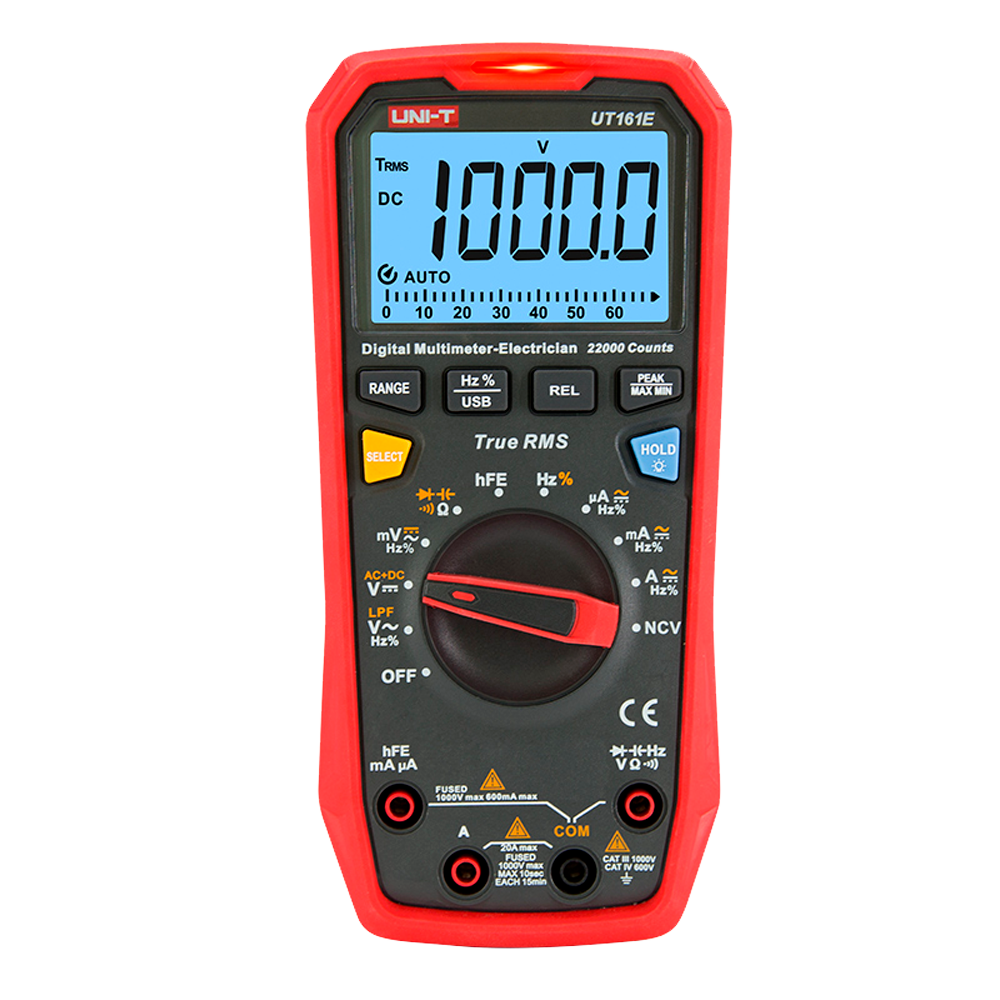

UT161E
- Digital multimeter CAT III
- LED display up to 22000 accounts
- DC and AC measurement up to 1000V and 20A
- PC connection
- High AC accuracy with True RMS function
- Measurement of resistance, capacitance and hFE
- UNI-T
- Digital multimeter CAT III 1000V
- LED backlight display up to 22000 accounts
- DC and AC voltage measurement up to 1000 V
- DC and AC current measurement up to 20 A
- Bandwidth 40~10kHz
- LPF filter
- High accuracy in AC with built-in True RMS function
- Resistance, capacitance, frequency and hFE measurement of transistors
- Buzzer for continuity test
- NCV (non-contact voltage) function
- Diode test
- PC connection
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Measuring range DC and AC voltage | DC 1000V ±(0.05%+5) AC 1000V ±(0.8%+10) |
| DC and AC current measuring range | DC 20A ±(0.5%+10) AC 20A ±(0.8%+10) |
| Resistance measuring range | 220MΩ ±(0.5%+10) |
| Capacitance measuring range | 220mF ±(3%+5) |
| Frequency measurement range | 220MHz ±(0.01%+5) |
| Duty cycle | 0.1%~99.9% ±(2%+5) |
| Display accounts | Up to 22000 |
| Display dimensions | 58mm x 36mm |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Bandwidth | 40~10kHz |
| Continuity test | Yes, it is available |
| Diode test | Around 3V |
| LPF/LoZ (ACV) (Phantom Voltage Measurement) | Yes, it is available |
| Power | 4 x batteries (R03) 1.5V |
| Dimensions | 90 (H) x 120 (W) x 33.5 (D) mm |
| Weight | 350 g |
| Security | CAT III 1000V, CAT IV 600V CAT IV [%VAR%] |

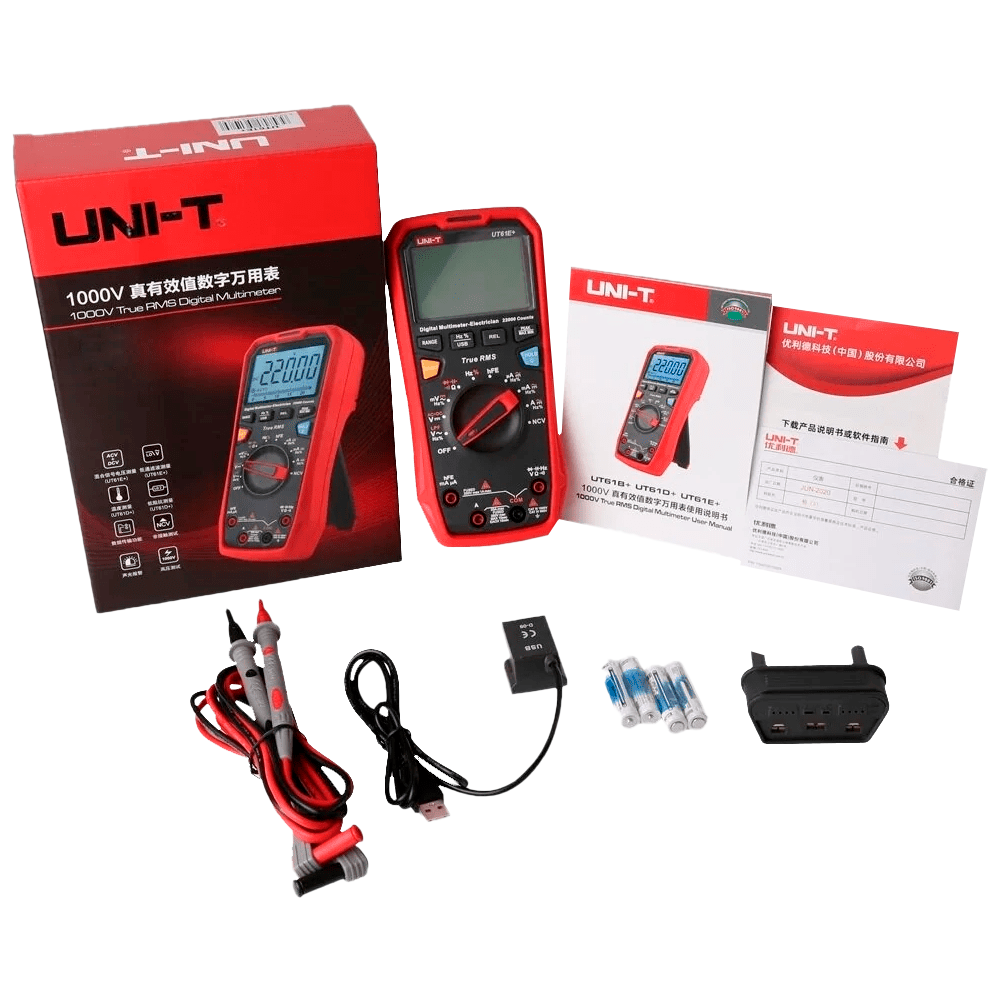

In the box
- Digital multimeter CATIII
- Test leads
- Batteries
- User instructions
