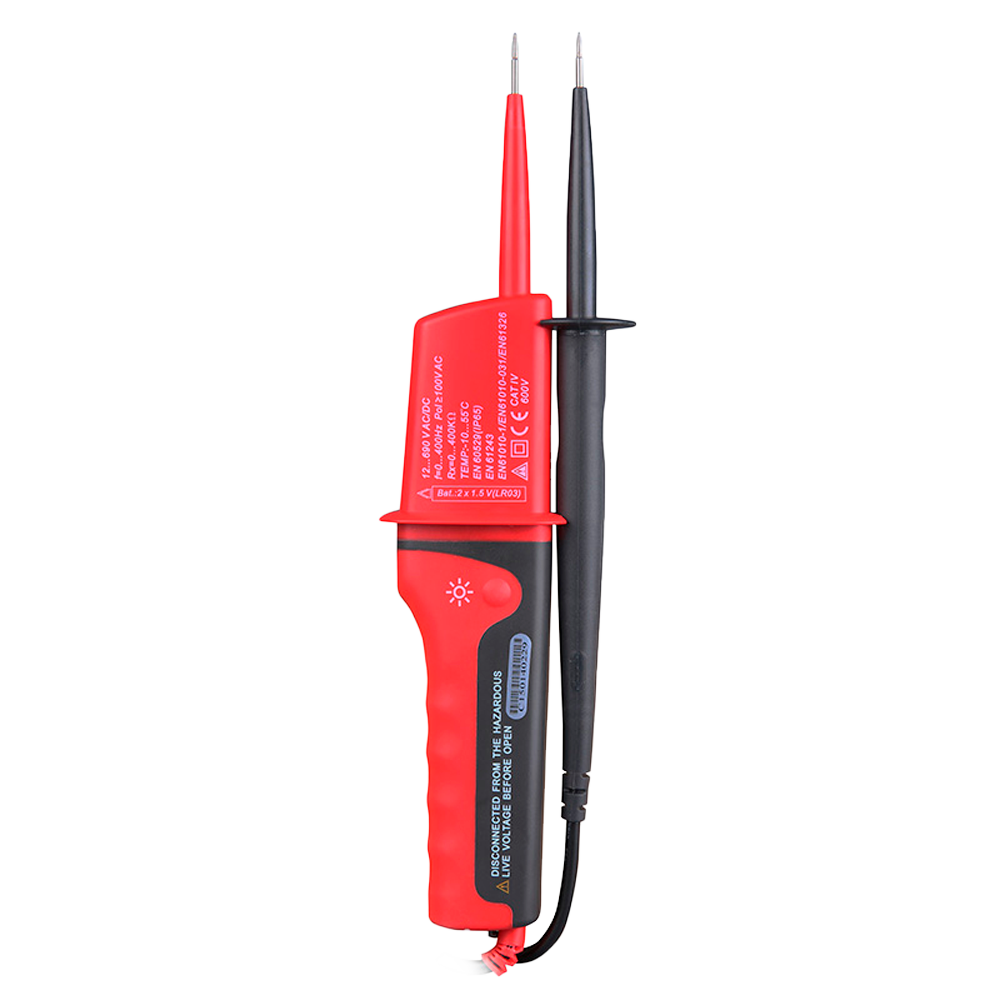

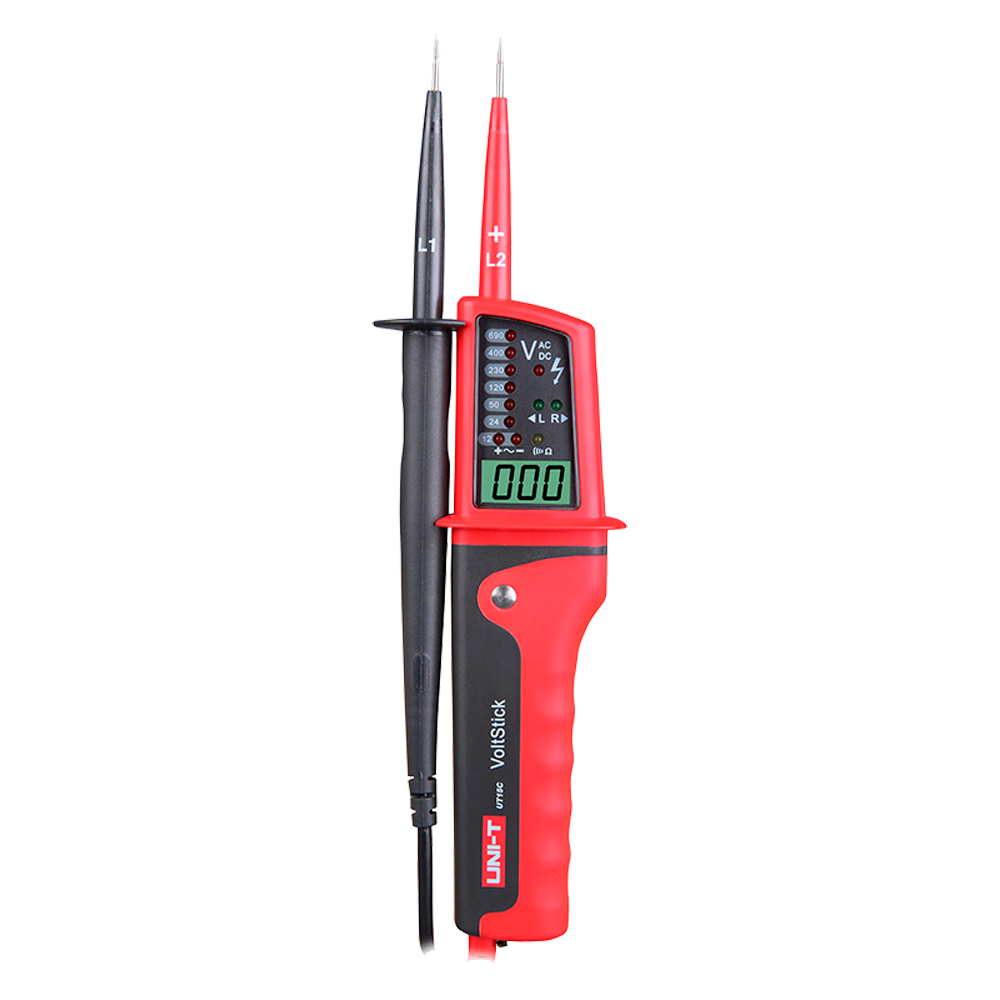

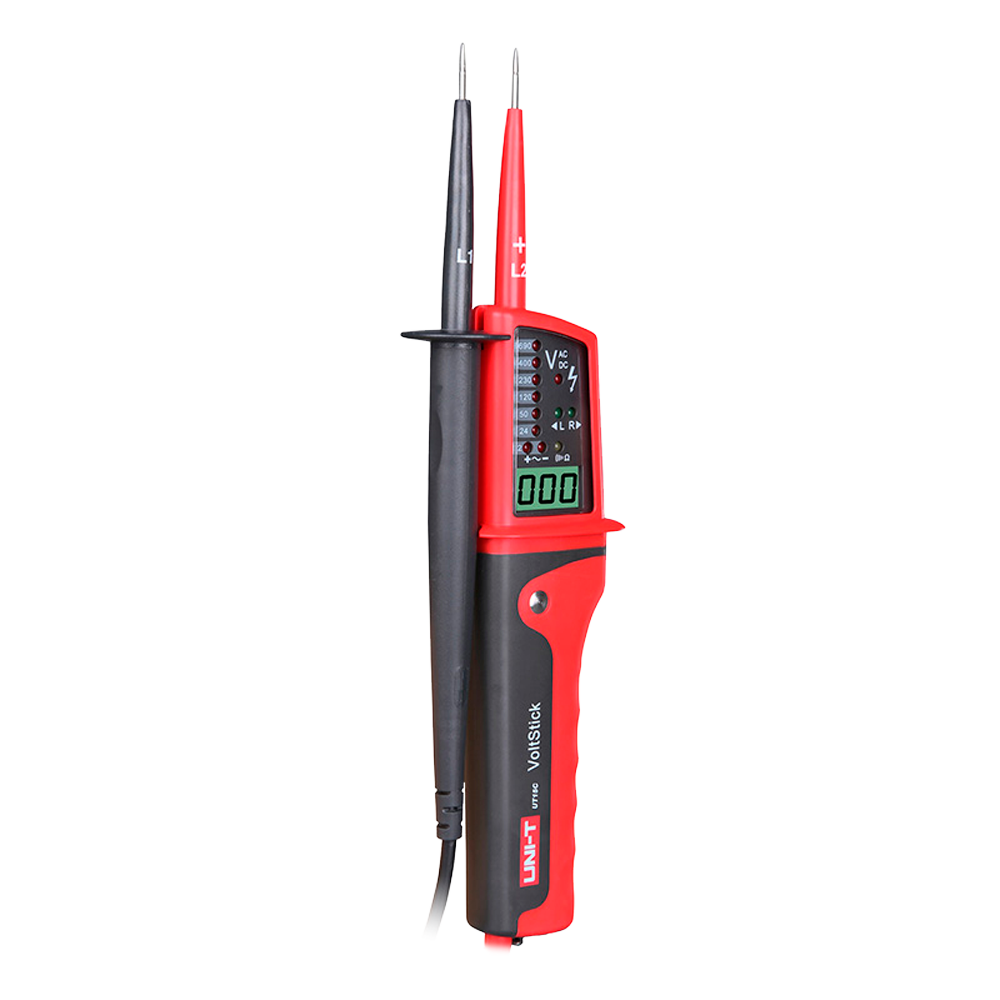

UT15C
- Pencil-type voltage meter with LCD display
- AC and DC voltage measurement
- Audible warning and visible LED for continuity
- Weatherproof IP65
- Continuity test
- Null or live wire indicator
- UNI-T
- Pencil-type DC/AC Voltage Meter
- LCD Display
- Wide voltage range with LED indicator up to 690V
- Three-phase AC phase position indication
- Continuity test
- Neutral wire or live wire indicator
- Weatherproof IP65
Specifications
| Brand | Uni-T |
| AC/DC LED voltage indication | 12; 0~12V 24V; 17V±2V 50V; 35V±5V 120V; 80V±15V 230V; 165V±20V 400V; 300V±30V 690V; 510V±40V |
| Phase rotation test | Operating Voltage: 0V~690V; Frequency: 50Hz~60Hz |
| Single wire voltage detection | Operating Voltage: 0V~690V; Frequency: 50Hz~400Hz |
| Continuity test | Audible warning and visual LED Resistance: 0~100kΩ |
| Polarity detection | Positive and negative |
| Display dimensions | 23mm x 12mm |
| Protection | Weatherproof IP65 |
| LCD AC/DC voltage display | 24V~690V ±(3%+5) |
| Automatic shutdown | Yes, it is available |
| Power | 2 x batteries (R03) 1.5V |
| Dimensions | 51 (H) x 275 (W) x 30 (D) mm |
| Weight | 210 g |

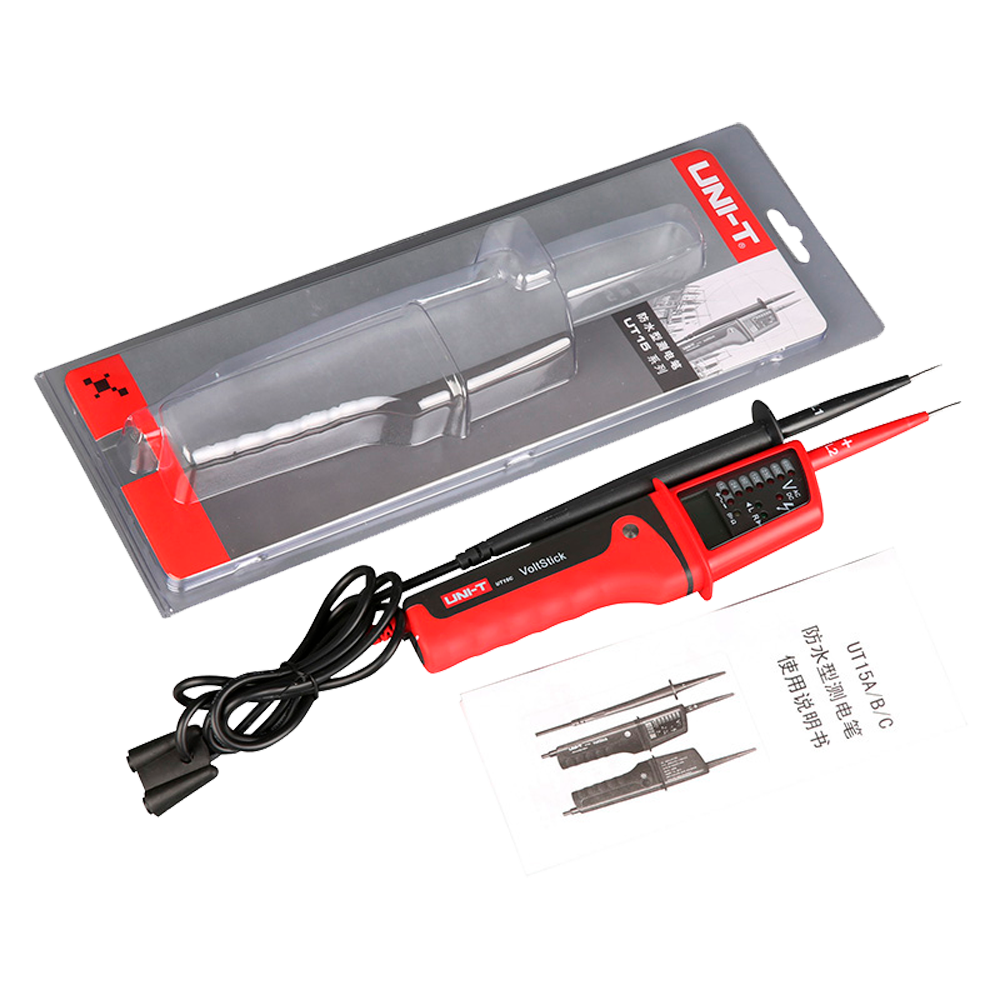

In the box
- Voltage meter
- Batteries
- User instructions
