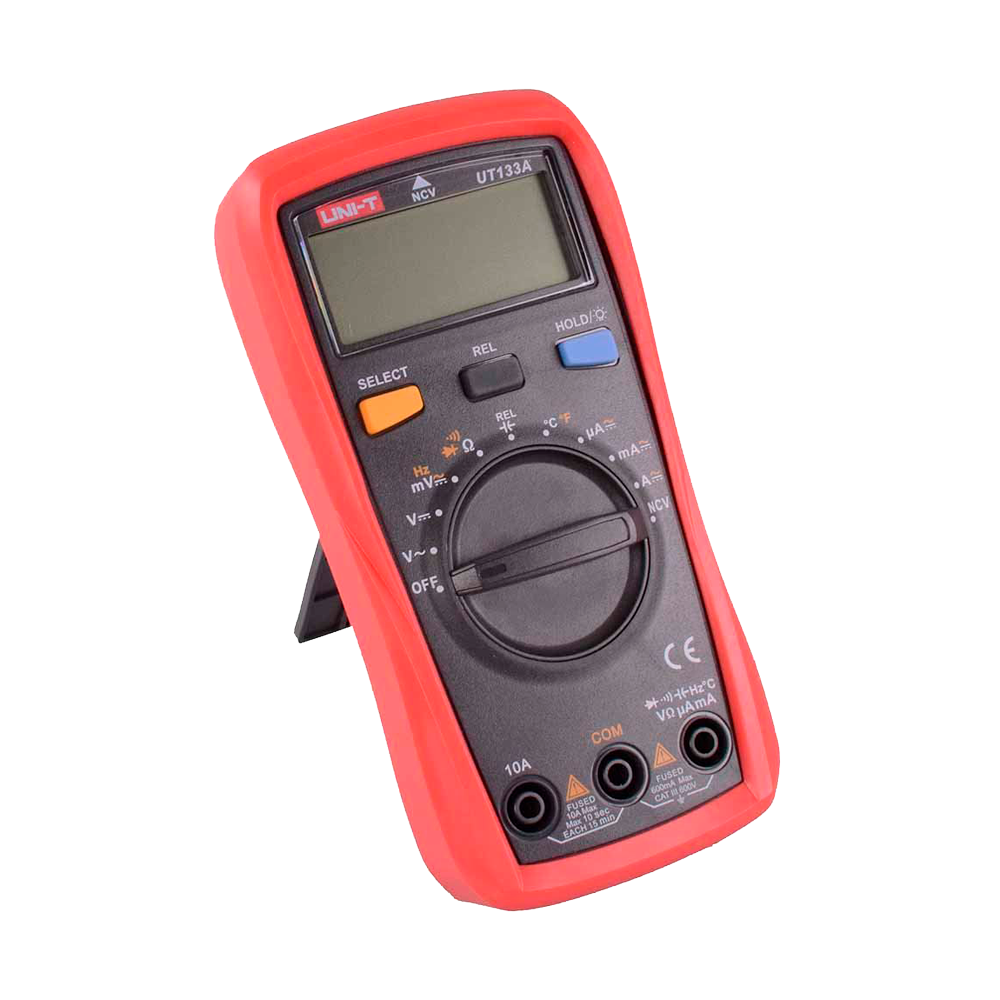

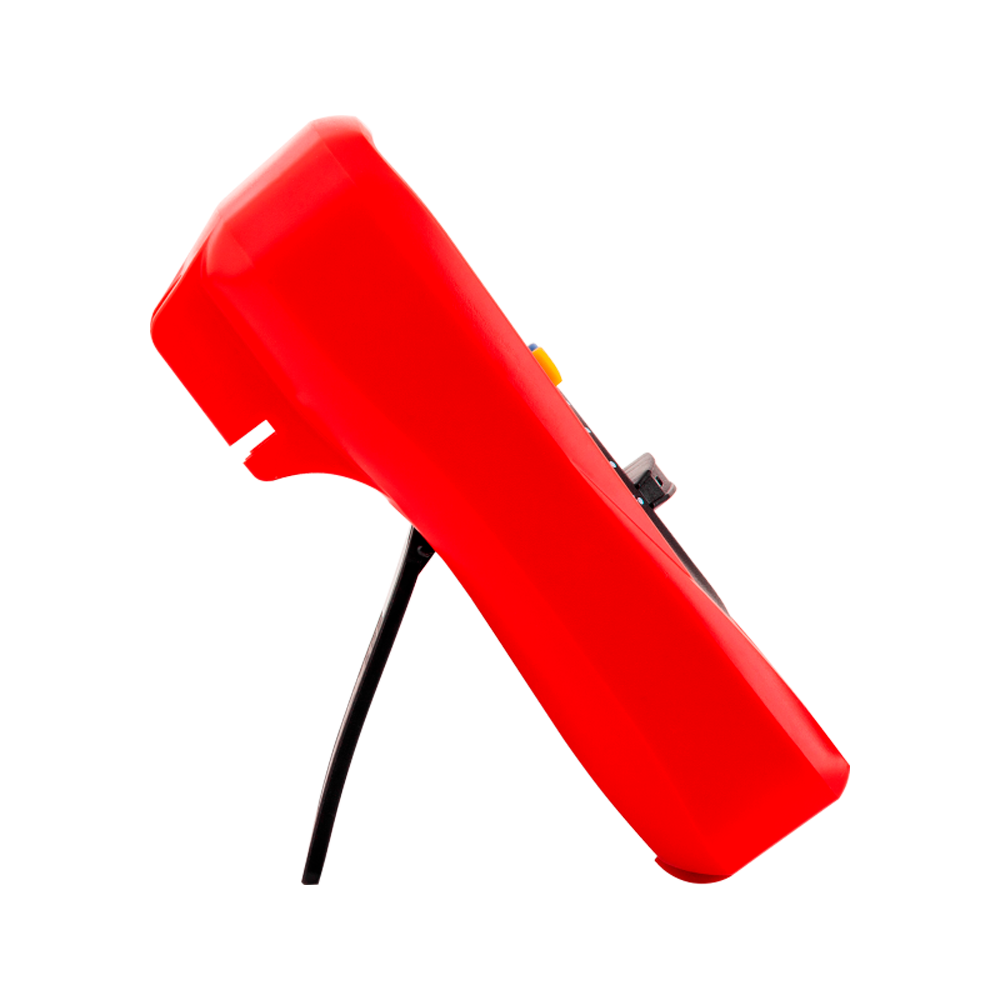

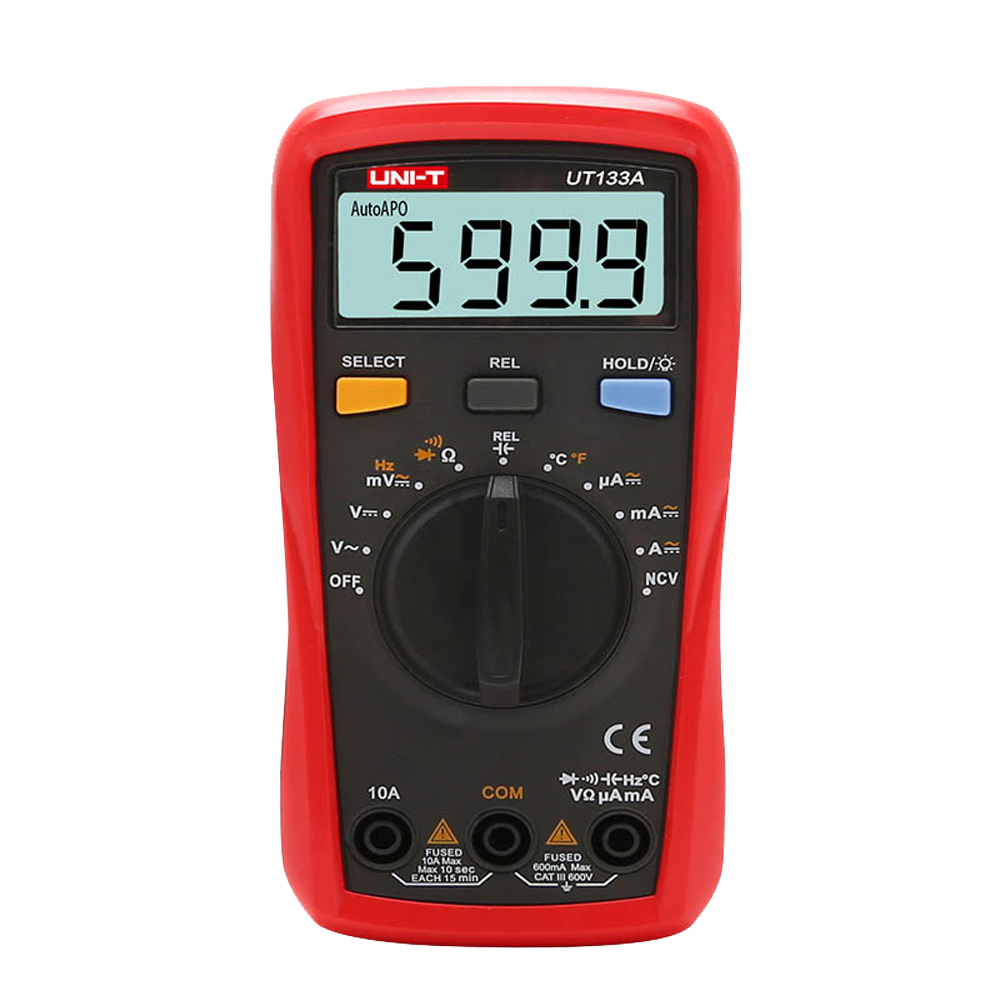

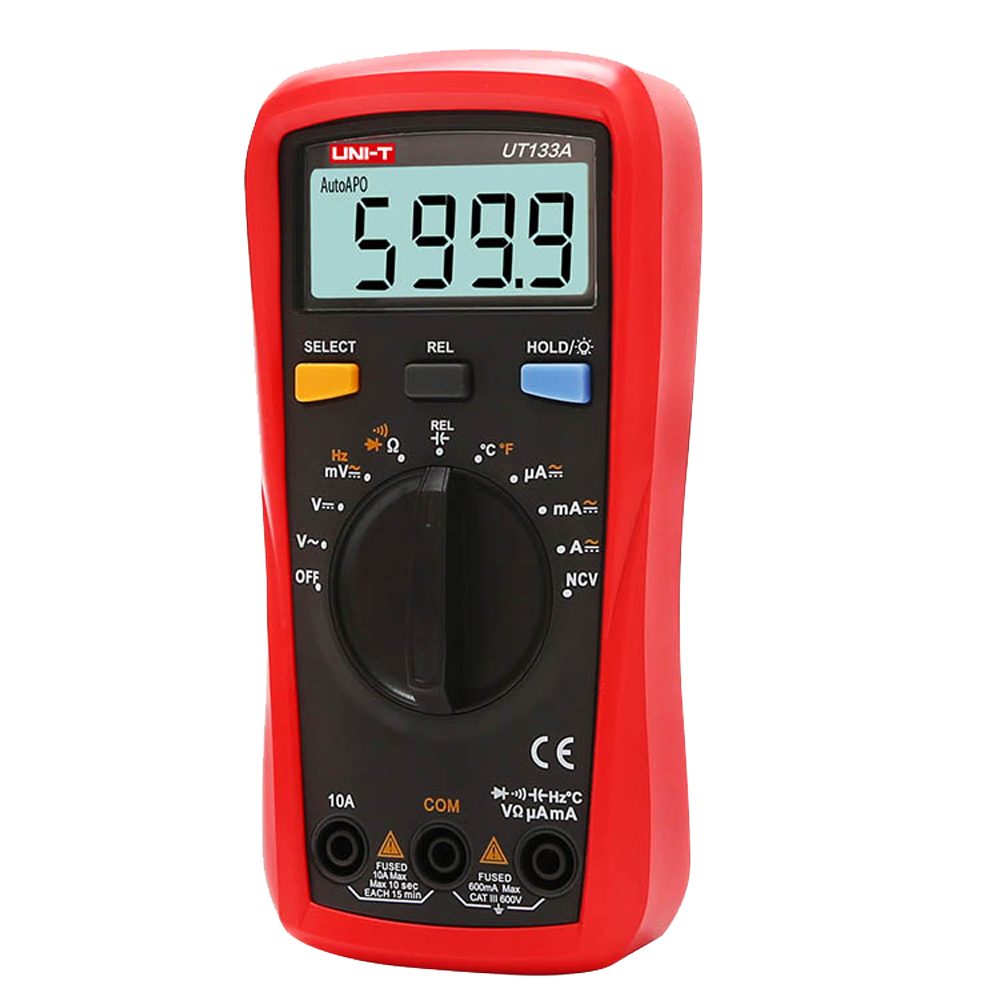

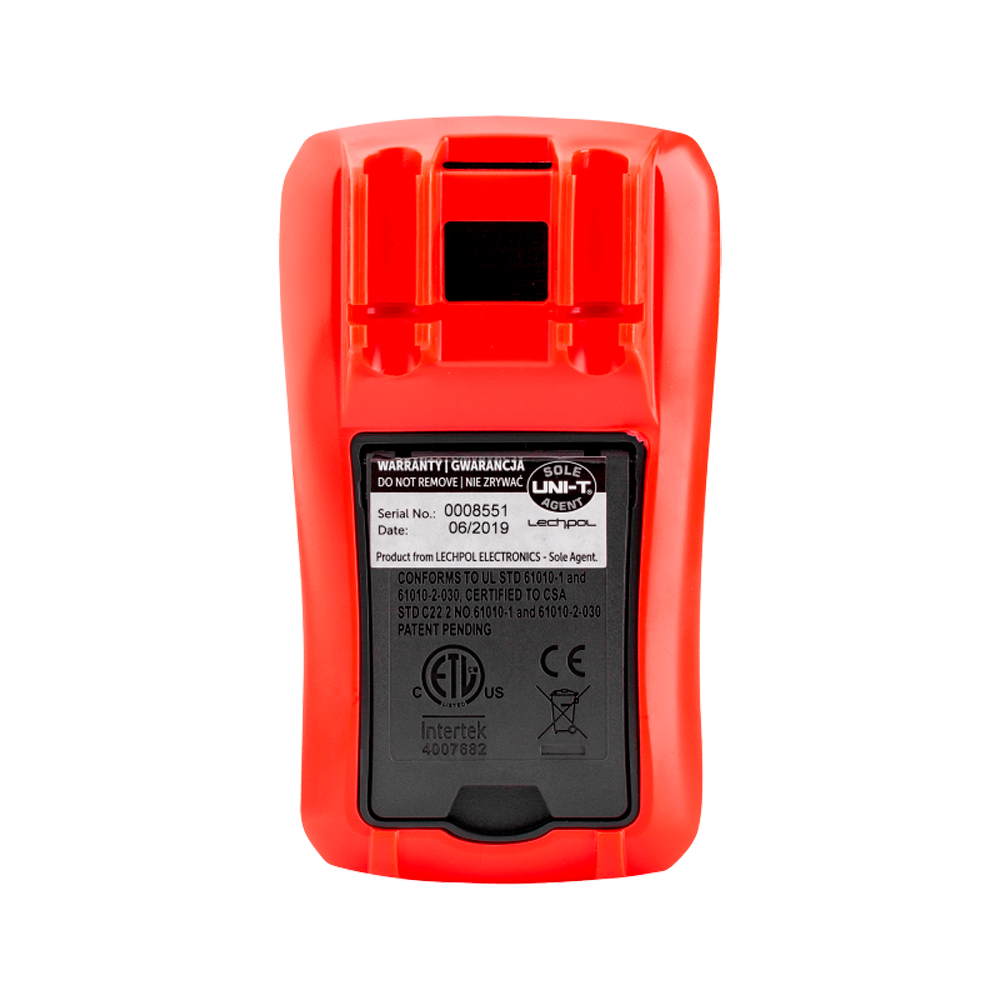

UT133A
Ga direct naar de productinformatie
UT133A
- Handheld Digital Multimeter
- DC and AC voltage measurement up to 600V
- DC and AC current measurement up to 10A
- Resistance, capacitance, frequency measurement
- Temperature measurement
- Auto Range | NVC function | Continuity test
- UNI-T
- Hand-held digital multimeter CAT III 600V
- LCD backlight display up to 6000 accounts
- DC and AC voltage measurement up to 600 V
- DC and AC current measurement up to 10 A
- Frequency, resistance, capacitance and temperature measurement
- Buzzer for continuity test
- Diode test
- Automatic shutdown
Specifications
| Brand | UNI-T |
| Measuring range DC and AC voltage | DC 600mV/6000mV/60V/600V ±(0.5%＋3) AC 600V ±(0.7%+3) |
| DC and AC current measuring range | DC 600μA/60mA/600mA/10A ±(1%+3) AC 10A ±(1.2%+3) |
| Resistance measuring range | 600Ω/6000Ω/60kΩ/600kΩ/60MΩ ±(0.8%+2) |
| Capacitance measuring range | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF±(4%+5) |
| Frequency measurement range | 10.00Hz~1.000MHz ±(0.1%+5) |
| Temperature measurement range | ‒40℃~1000℃ ±(1%+4) |
| Display dimensions | 56.8mm x 36.1mm |
| Display accounts | Up to 6000 |
| Continuity test | Yes, it is available |
| Diode test | Yes, it is available |
| NVC | Yes, it is available |
| Power | 2 x batteries (R03) 1.5V |
| Dimensions | 155 (H) x 76.5 (W) x 49 (D) mm |
| Weight | 255 g |
| Security | CAT III 600V |
In the box
- Digital multimeter
- Test leads
- Temperature probe
- Batteries
- User instructions
