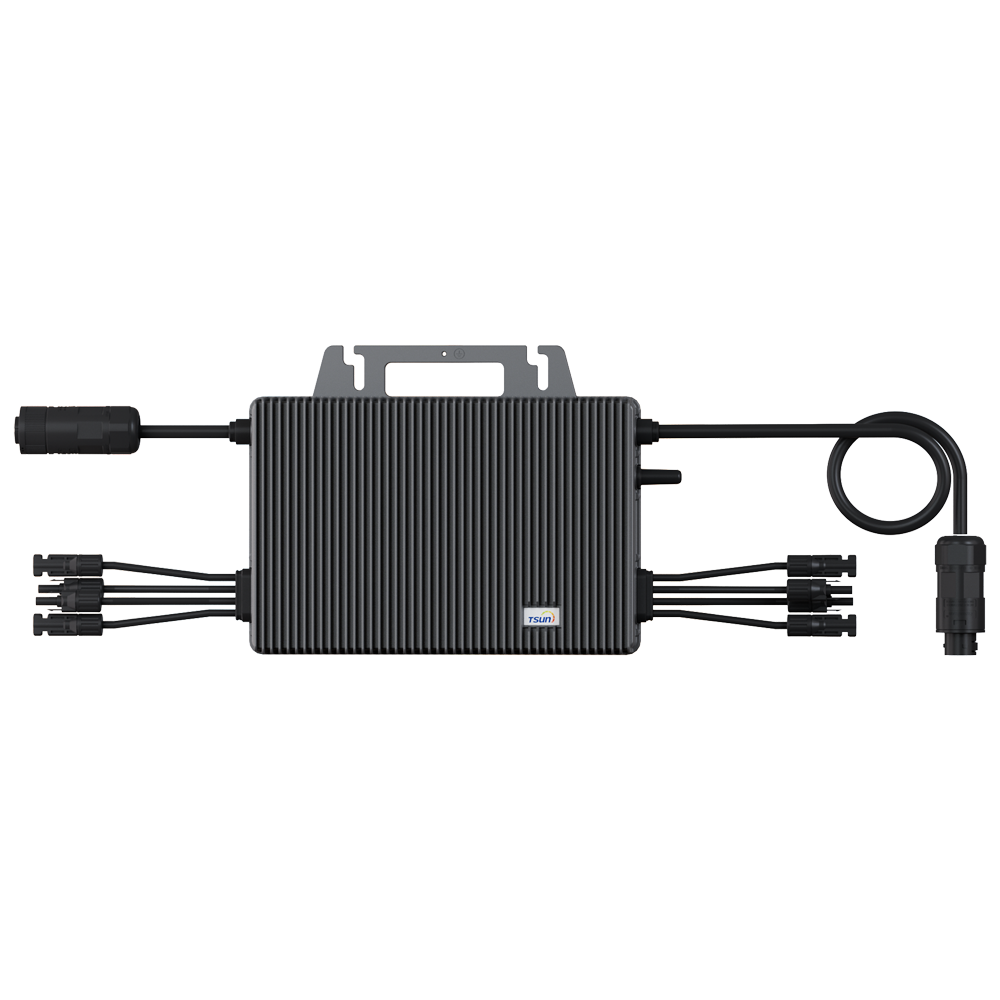

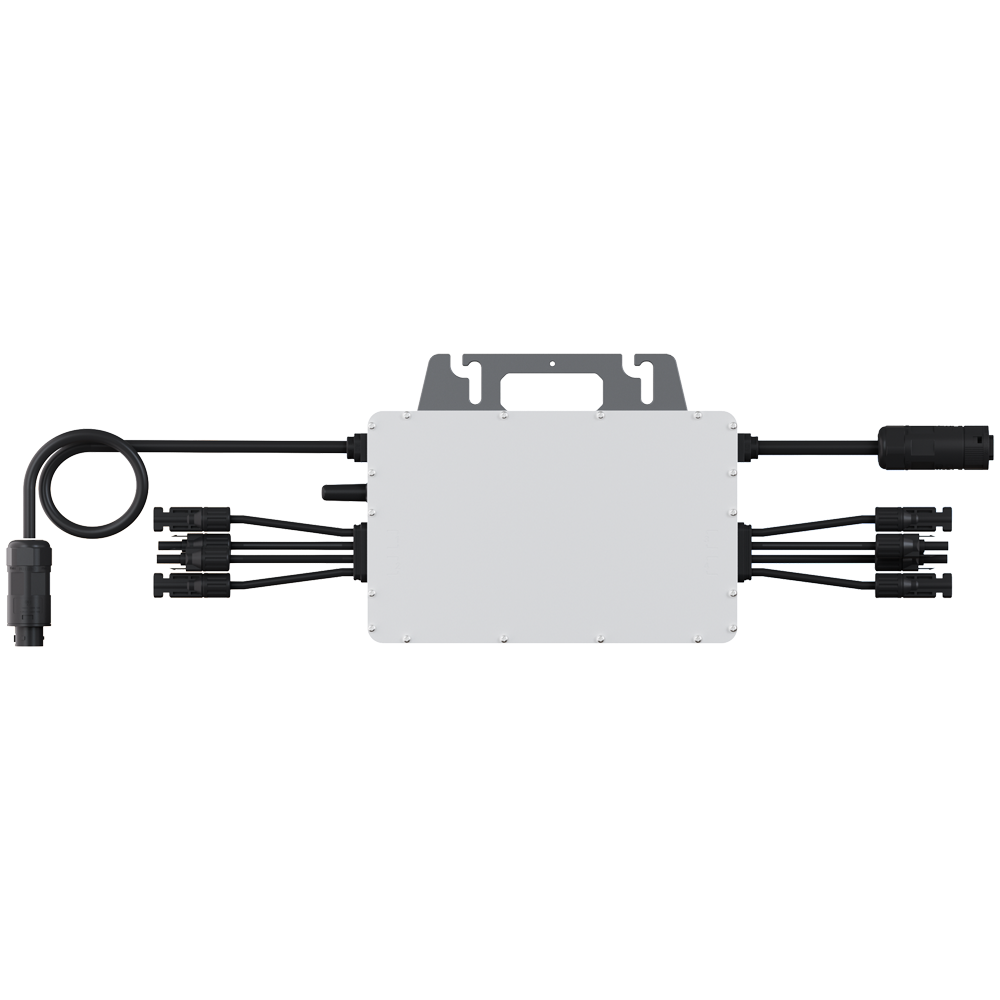

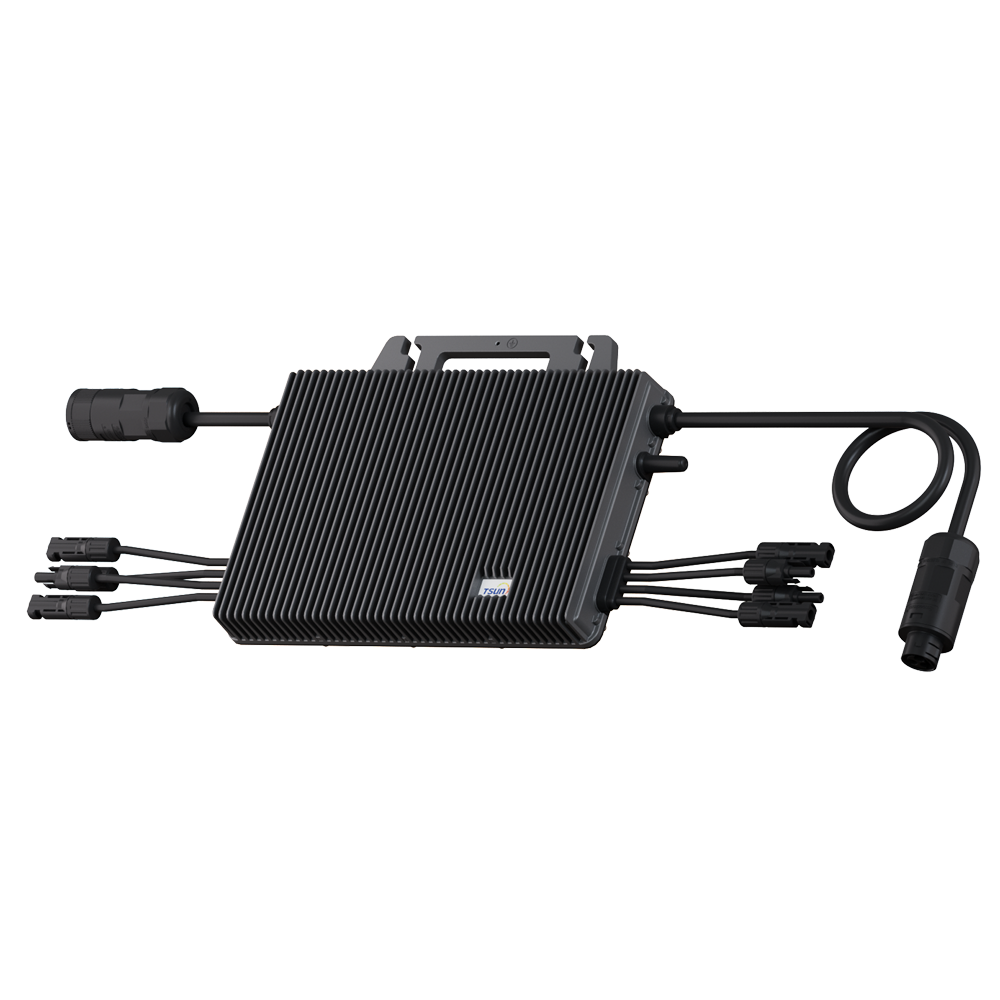

TSOL-MS2000

TSOL-MS2000

Log in voor B2B prijs
  • TSUN Microinverter
  • Power 2000W
  • 4 MPPT inputs / 4 panels
  • IP67
  • Wi-Fi communication module
  • Web and Smartphone monitoring

TSUN's GEN3 series is the best solution for photovoltaic systems where the use of a scalable system with microinverters is necessary. By placing a microinverter for each photovoltaic panel, the overall installation continues to operate even if solar panels are affected by obstacles, shadows or different orientations.

With WiFi module included, the production of each photovoltaic panel can be monitored at all times, facilitating management and maintenance by the installer.

  • TSUN
  • Microinverter for grid connection
  • 2000W of maximum output power
  • 4 MPPT inputs
  • Supports from 1 to 4 300~600 W panels
  • 96,7% Efficiency
  • WiFi connection for control via smartphone APP
  • Suitable for outdoor installation IP67
  • Natural convection
  • Reduced size
  • Scalable up to 5 units
  • Plug & Play

Specifications

Brand TSUN
Rated output power 2000W
Maximum output current 10 A
No. of MPPT's 4
Number of inputs 4 inputs
No. of Panels 1-4 panels
Recommended panel power 300-600 W
Starting voltage per input 22 V
MPPT voltage range 16~60 V
Maximum voltage admitted per input 60 V
Maximum short-circuit current per input 25 A
Maximum admissible current per input 16 A
Rated output voltage 220/230/240 V, L/N/PE
Nominal frequency 50/60 Hz
Power factor >0.99 default, 0.8 leading ... 0.8 lagging
Output harmonic distortion current <3%
Eficiencia pico del inversor 96,7%
Eficiencia CEC 96,5%
Eficiencia nominal MPPT 99,9%
Comunicación Wi-Fi / BLE / RS485
Escalable Hasta 4 ud (sección 12 AWG)
Hasta 5 ud (sección 10 AWG)
Cable AC Incluido. 2.52 m
Consumo nocturno < 50 mW
Grado de protección IP IP67
Temperatura de funcionamiento -40 ~ +65 °C
(pierde eficiencia a partir de 50°C de temperatura ambiente)
Humedad relativa 100%
Altitud máxima 2000m
Refrigeración Convección natural
Dimensiones 331 (Al) x 261 (An) x 44 (Fo) mm
Peso 5.5 Kg
Tipo de instalación On-Grid

In the box

  • Microinversor
