TRAILER-12KWH-600W-9M

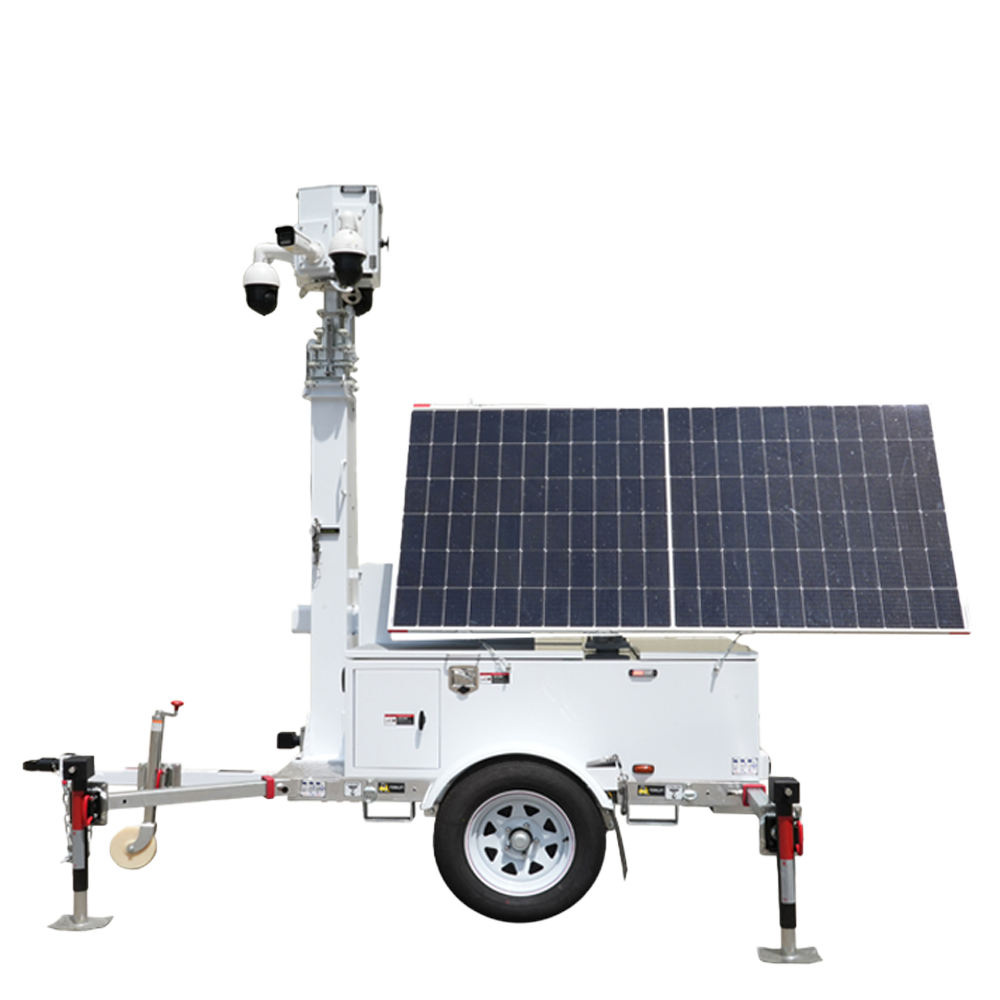

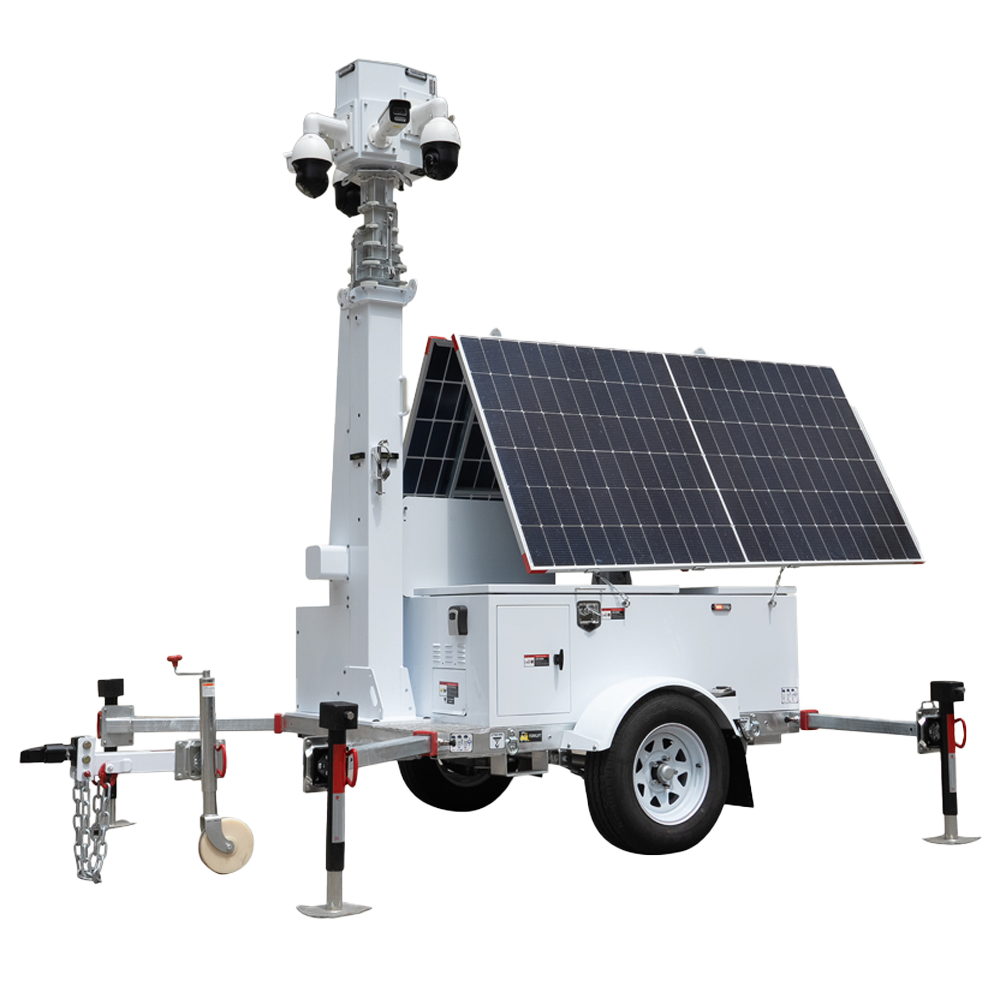

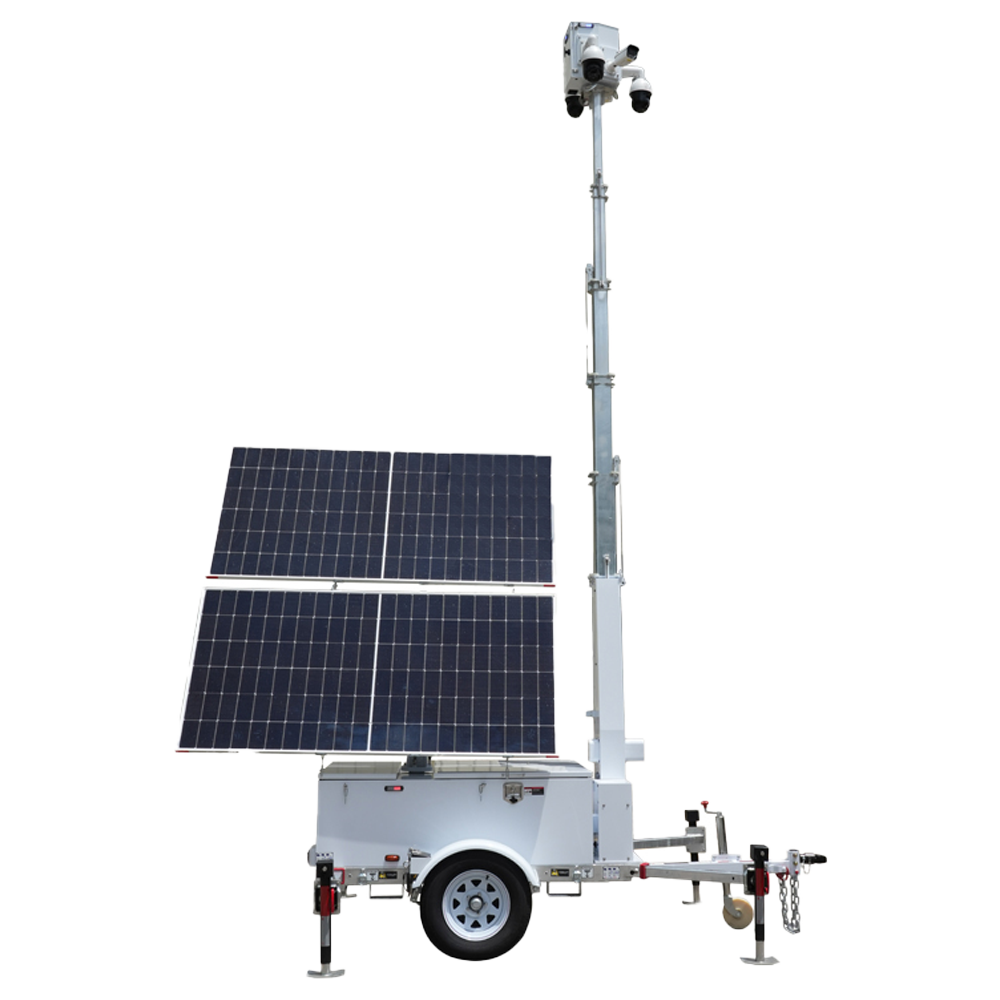

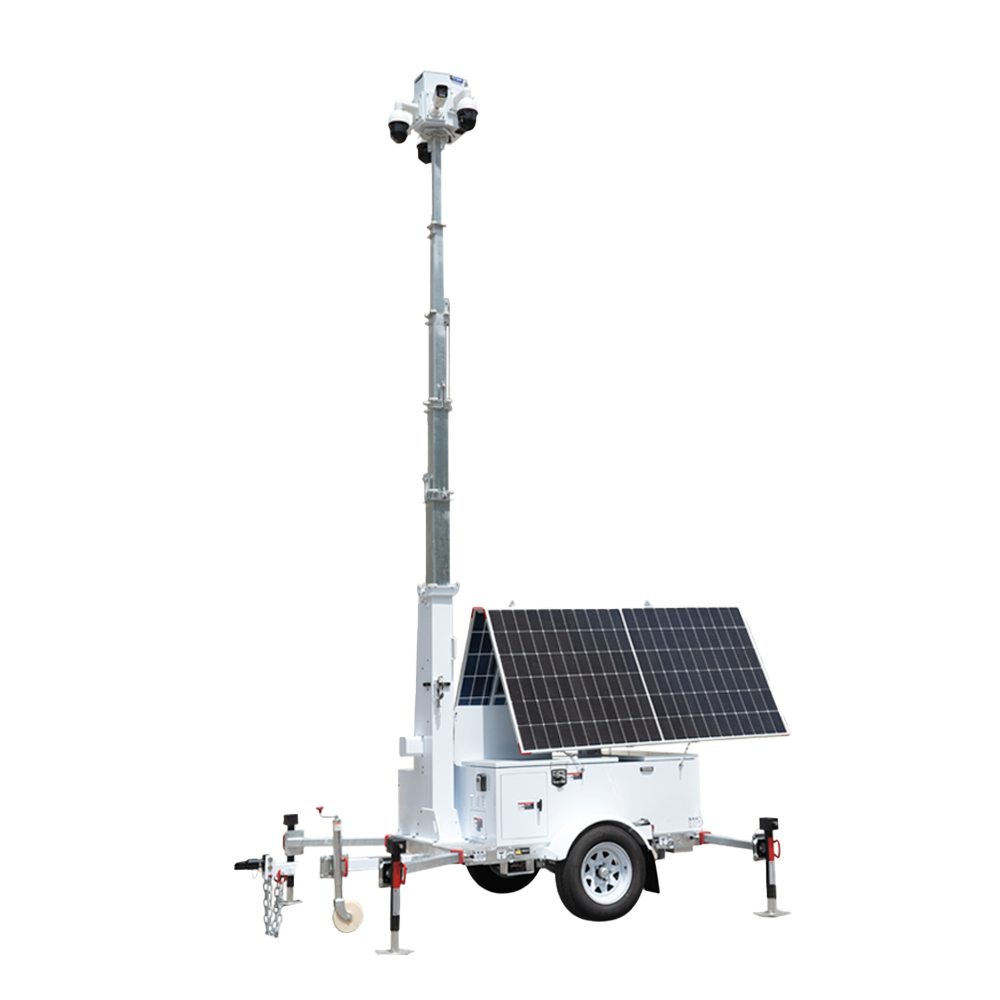

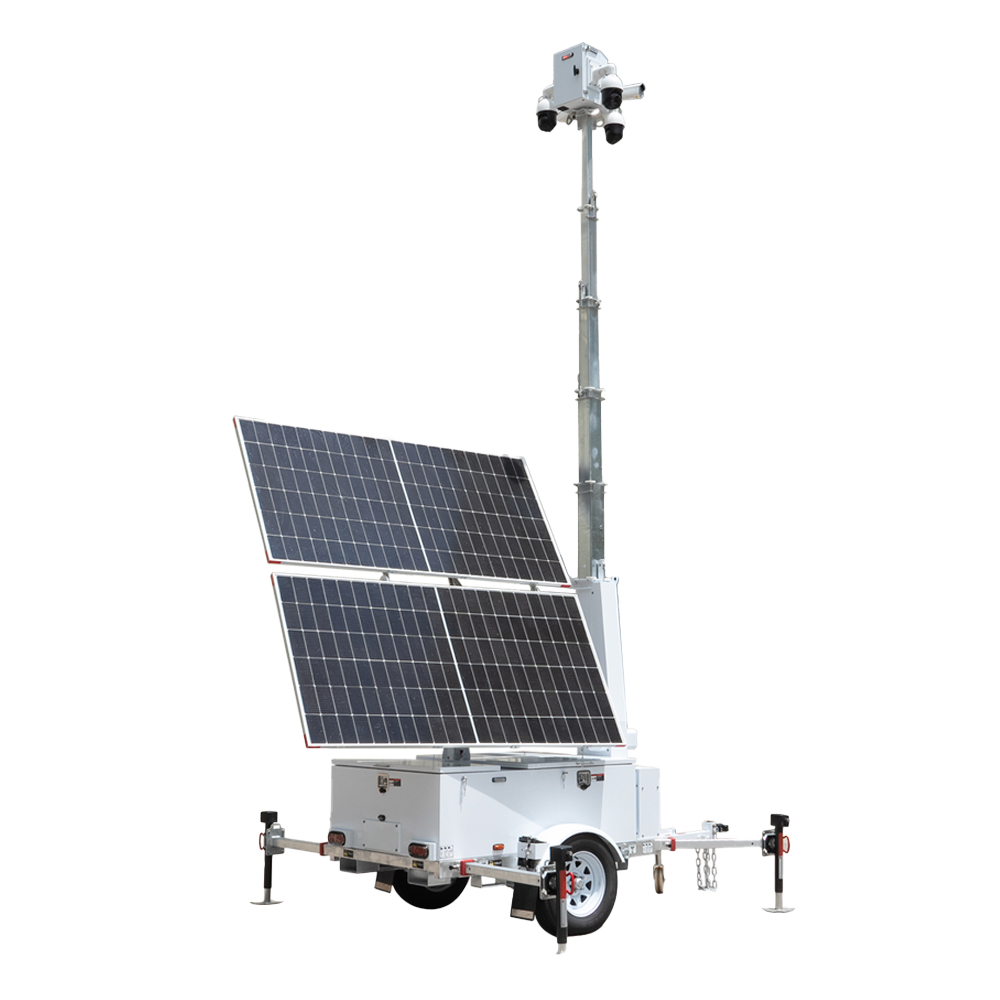

- Self-powered trailer for CCTV
- Solar panel of 2x600W
- Lithium LiFePo battery 12000Wh
- Telescopic mast up to 9m - IP65
- Towing hitch and manual handbrake
- ASSEMBLY NOT INCLUDED
- Safire
- Autonomous trailer for video surveillance
- Solar panel up to 2x600W ABATIBLES
- LiFePo battery of 12000WH
- Integrated MPPT 50A controller
- Telescoping mast up to 9m with integrated cable
- Air pump to lift the mast
- Junction box
- Degree of protection IP65
- Stable wheels
- Towing hitch
- Electric Brake
- Anti-tip stabilizers with height adjustment device for ramps
- Battery and output voltage monitoring display
- ASSEMBLY NOT INCLUDED
Specifications
Trailer technical information |
|
| Maximum supported speed | 80 Km/h |
| Solar panel module | 2x 600W (1200W) |
| Panel rotation | 235º |
| Panel tilt | 30º/40º/50º/60º |
| Battery | Lithium LiFePo 12000WH |
| Load voltage | 24V |
| Battery charger | 1.5Kw, 15A |
| Mast junction box | Including |
| Tire | 14" |
| Hand truck hole | x6 |
| Working temperature | -35℃~60℃ |
| Charging time | 8 hours |
| Battery duration | 6.6 days to 60W |
| Regulator | Integrated MPPT 50A |
| Dimensions | 2050mm×1700mm×2550mm (Shipment) 2900mm×1600mm×2550mm (Transportation) 2900mm×2500mm×9000mm (Operational) |
| Weight | 1050 Kg |
| Degree of protection | IP65 |
| Hand brake | Electric |
| Towing hitch | Yes |
| Stabilization | Anti-tip stabilizers with height adjustment device for horizontal ramps |
| Battery monitoring | Yes |
| Approval | Approval for circulation NOT included |
Mast | |
| Length | 9m max. (Extendible by air pump) |
| Wind resistance of the mast | 66Km/h |
| Connection wiring | Included RJ45 and standard JACK 12V |
In the box
- CCTV Trailer
- Telescopic mast 9m
- Mounting accessories
- AC power cable
- Light adaptor socket
- PTZ support
