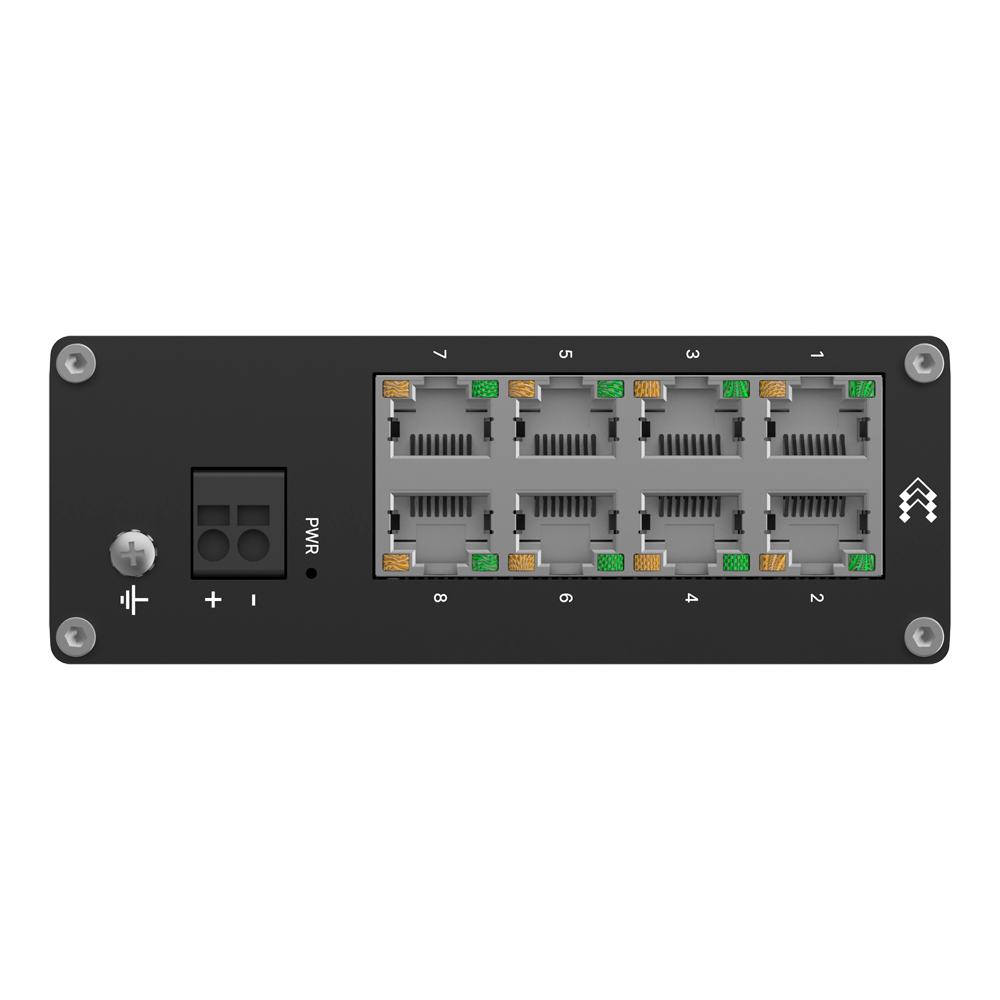

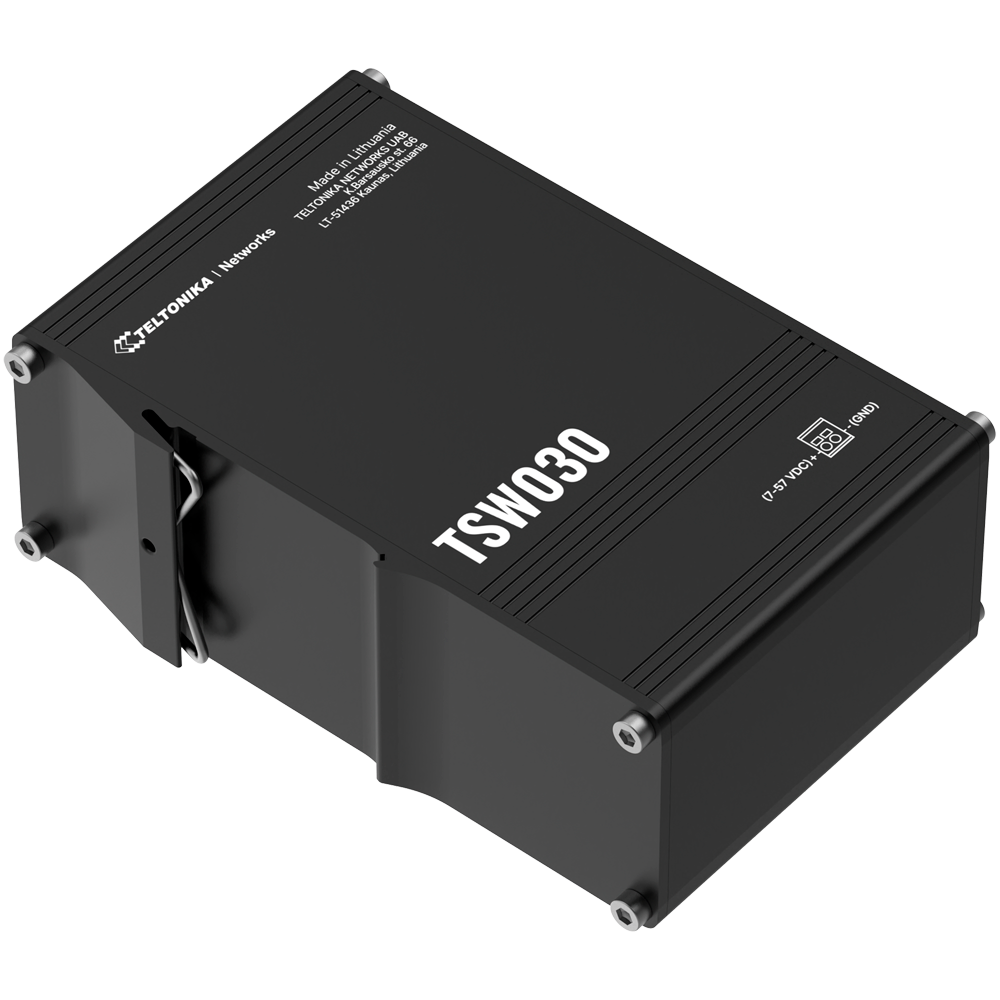

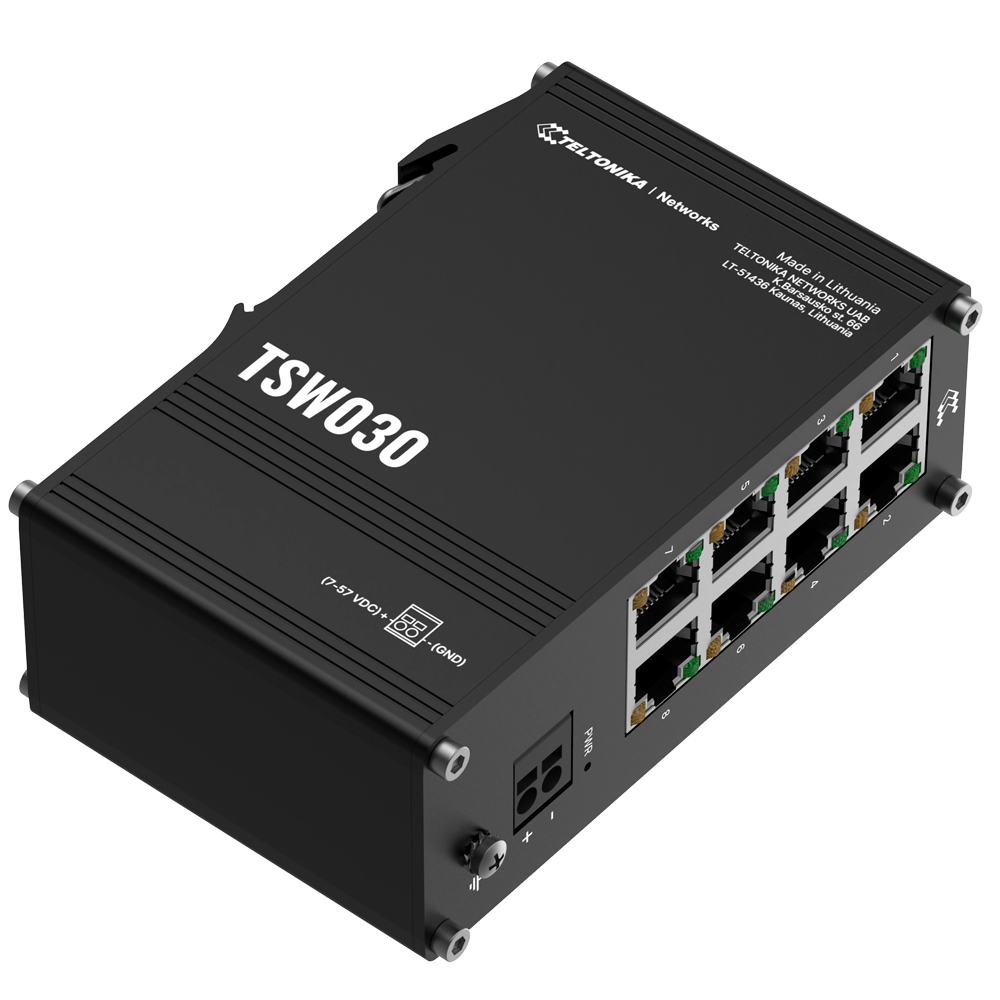

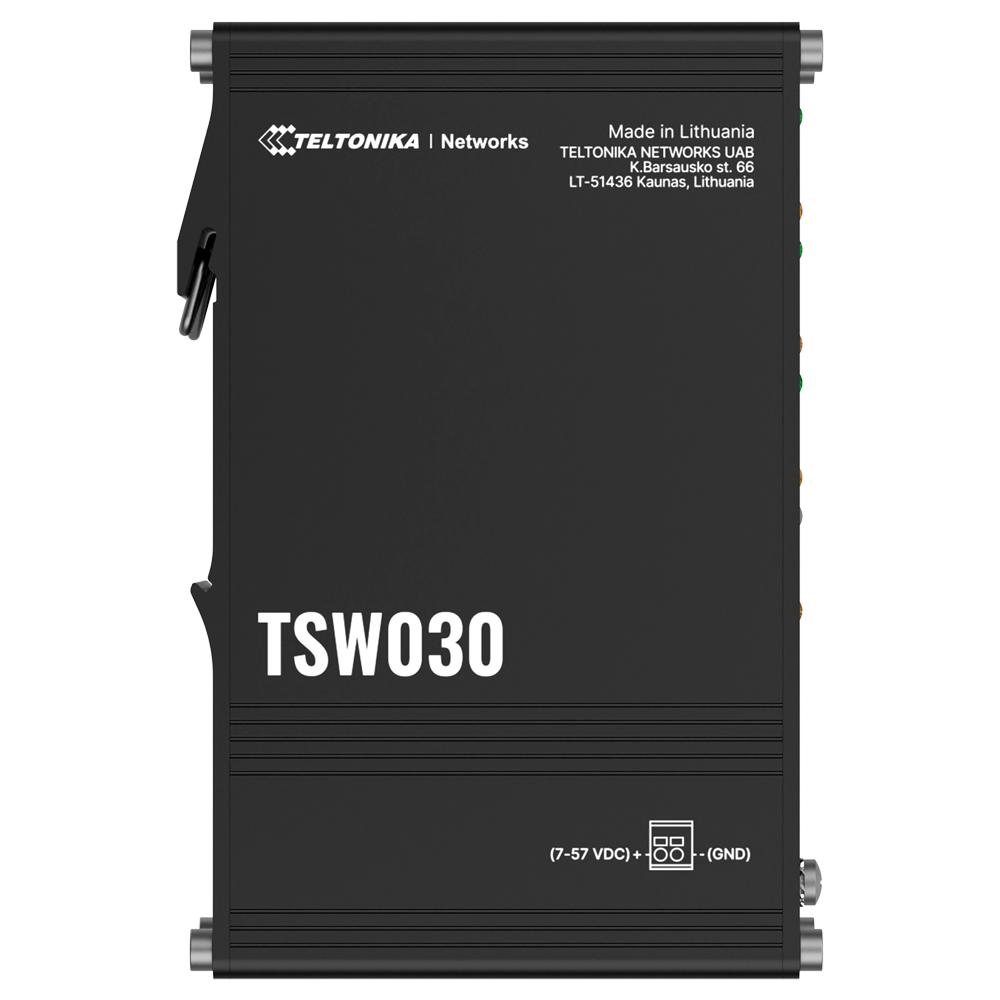

TK-TSW030
Ga direct naar de productinformatie
TK-TSW030
- Teltonika Industrial Unmanaged Switch
- 8 Ethernet ports RJ45 Fast Ethernet
- Ruggedized Aluminum Housing
- Plug and Play
- DC power 5 to 57V
- Status LED
- Teltonika
- Industrial Unmanaged Switch
- Slim form factor
- 8 Ethernet RJ45 Gigabit ports
- Plug and Play
- DC power connector of 2 industrial power supply pins
- DC 5 to 57V
- Status LEDs
- Rugerized
Specifications
| Brand | Teltonika |
| Device | Industrial Unmanaged Switch |
| Ethernet | 8 Ethernet ports RJ45 10/100Mbps |
| IEEE standards compliance 802.3 | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Switching capability (non-blocking) | 20Gbps |
| MAC Table | 2K inputs |
| Packet Buffer | 128 Kb |
| Jumbo Frame | 9216 bytes |
| Technology | Auto MDI/MDI-X Cable detection |
| Power | DC connector 2 Industrial pins 7 to 57v |
| Power consumption | Standby: 0,5W / Max: 1,5W |
| Power supply Protection | Overvoltage protection: 60 Vmax Reverse polarity protection: 80 Vmax Surge protection: min. 64,4 V/max. 71,2 V Input voltage range breakdown voltage, 93,6 V of maximum reverse voltage @4,3 A of maximum reverse surge current. |
| Material | Aluminium |
| Degree of protection | IP30 |
| Temp. operation | -40º C ~ +75º C |
| Operating humidity | 10 ~ 90 % (non-condensing) |

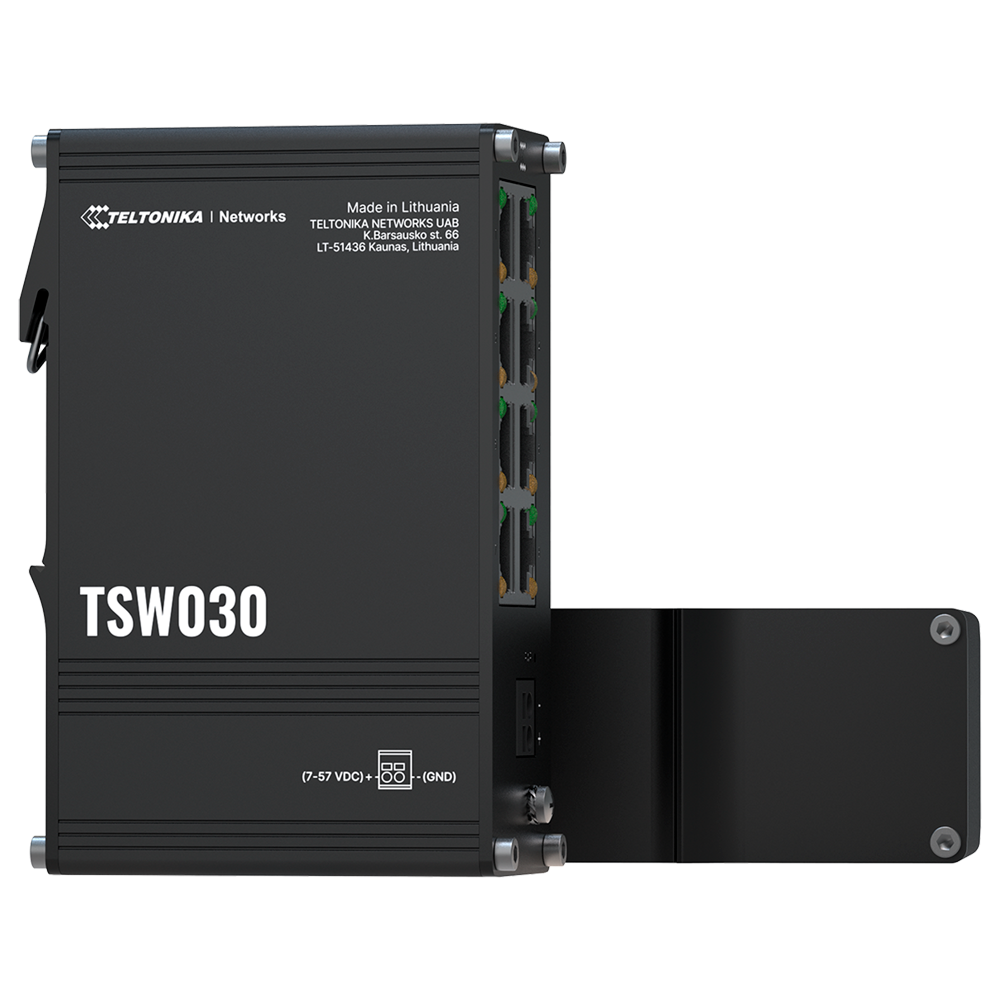

| Optional Mounting Kit (Not included) | Rail Mounting Kit |
| Dimensions | 41,2 (Al) x 113,1 (W) × 74,6 (D) mm |
| Weight | 256 g |
In the box
- Industrial Slim Switch
- User instructions
- Integrated DIN rail mounting
