TK-TRM200
TK-TRM200
- Teltonika Módem Industrial 4G LTE Cat 4
- Reliable connectivity backed by 2G and 3G
- Power and data via Micro-USB port
- Rugged, compact aluminum housing
- Low power consumption, ideal for deployments
- Easy integration with Windows, Linux, and Android

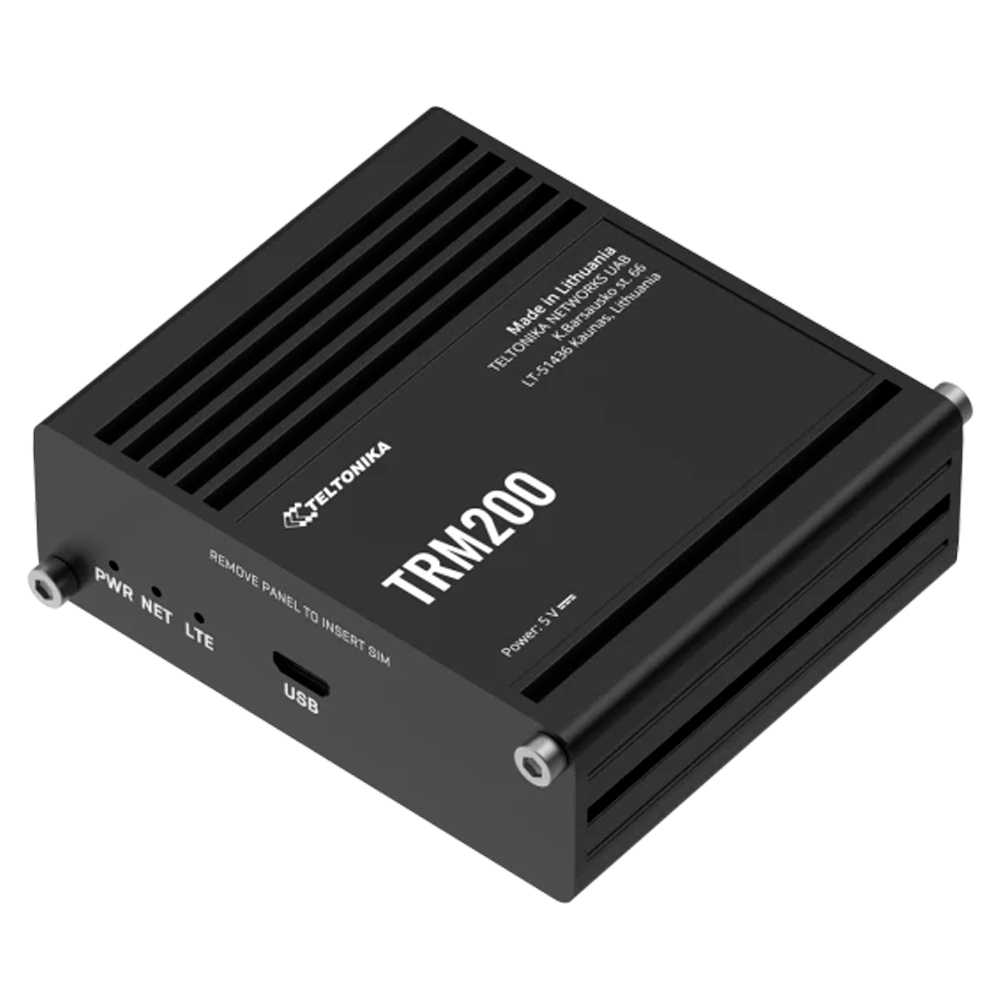

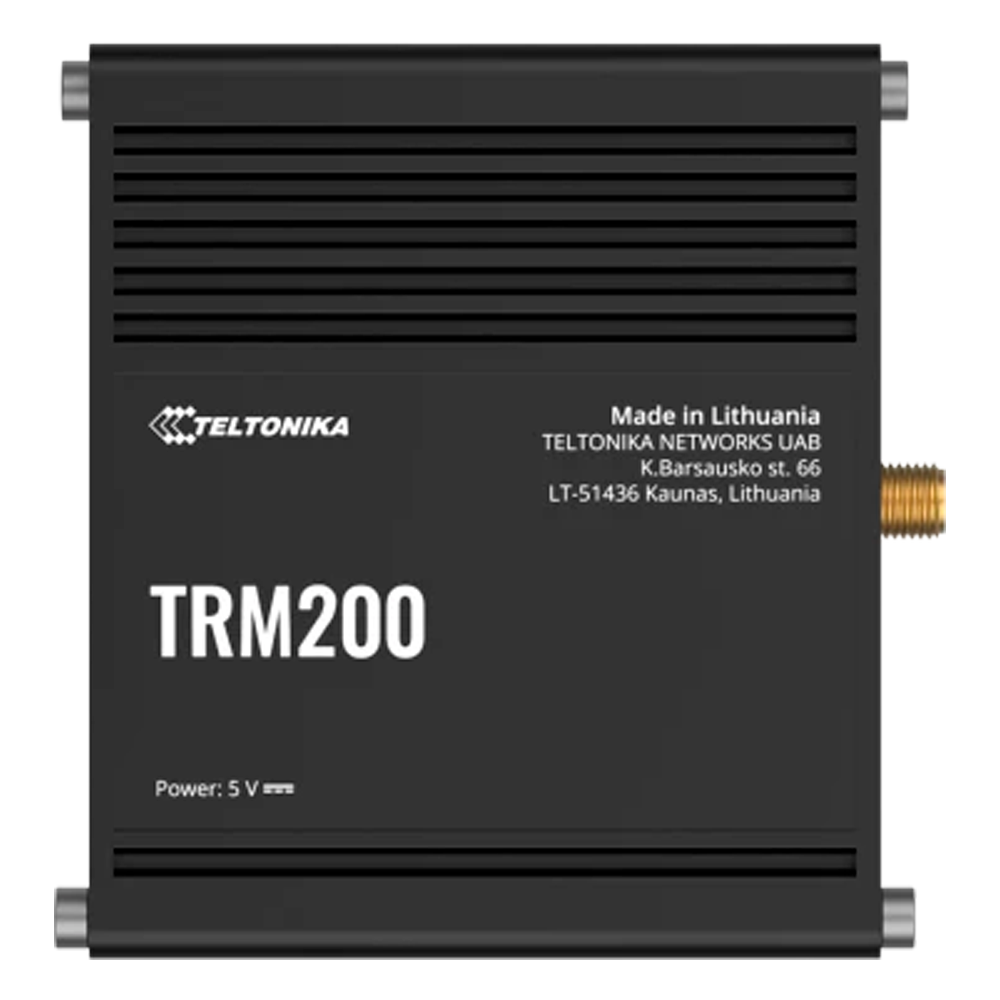

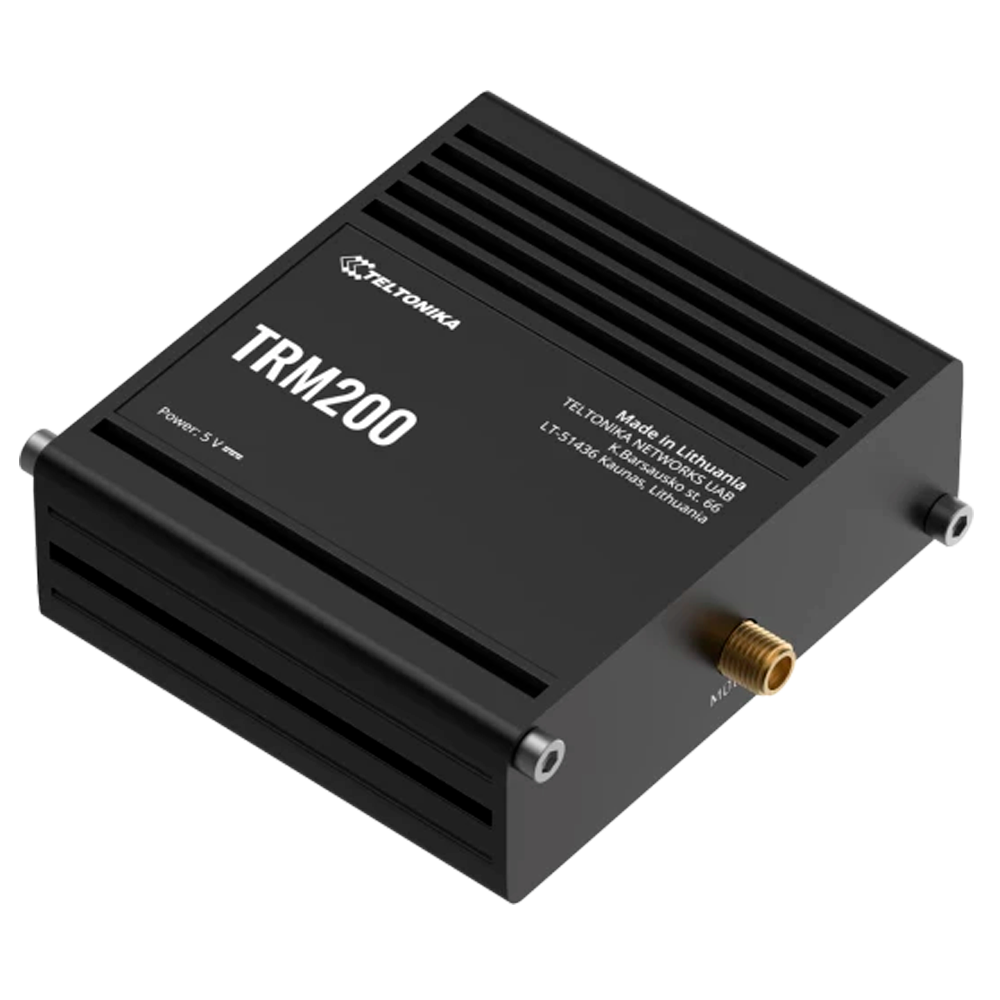

The TRM200 is an industrial-grade cellular modem designed to provide robust and reliable connectivity for large-scale Internet of Things (IoT) and M2M applications. Thanks to its support for 4G LTE Cat 4, 3G and 2G, technologies, this device ensures constant communication even in areas with limited mobile coverage, enabling download speeds of up to 75 Mbps to efficiently connect industrial equipment and telemetry systems to cloud platforms.
Technically, this device stands out for its extremely compact design and ease of integration; it operates via a Micro-USB interface, which simplifies deployment by providing both power and data communication. Its anodized aluminum construction with IP30 protection ensures superior durability in demanding environments, withstanding extreme temperatures of up to 75°C and offering compatibility with a wide range of operating systems through specialized NDIS and USB drivers.
- Industrial Modem 4G LTE Cat 4
- Connectivity 4G, 3G and 2G integrated

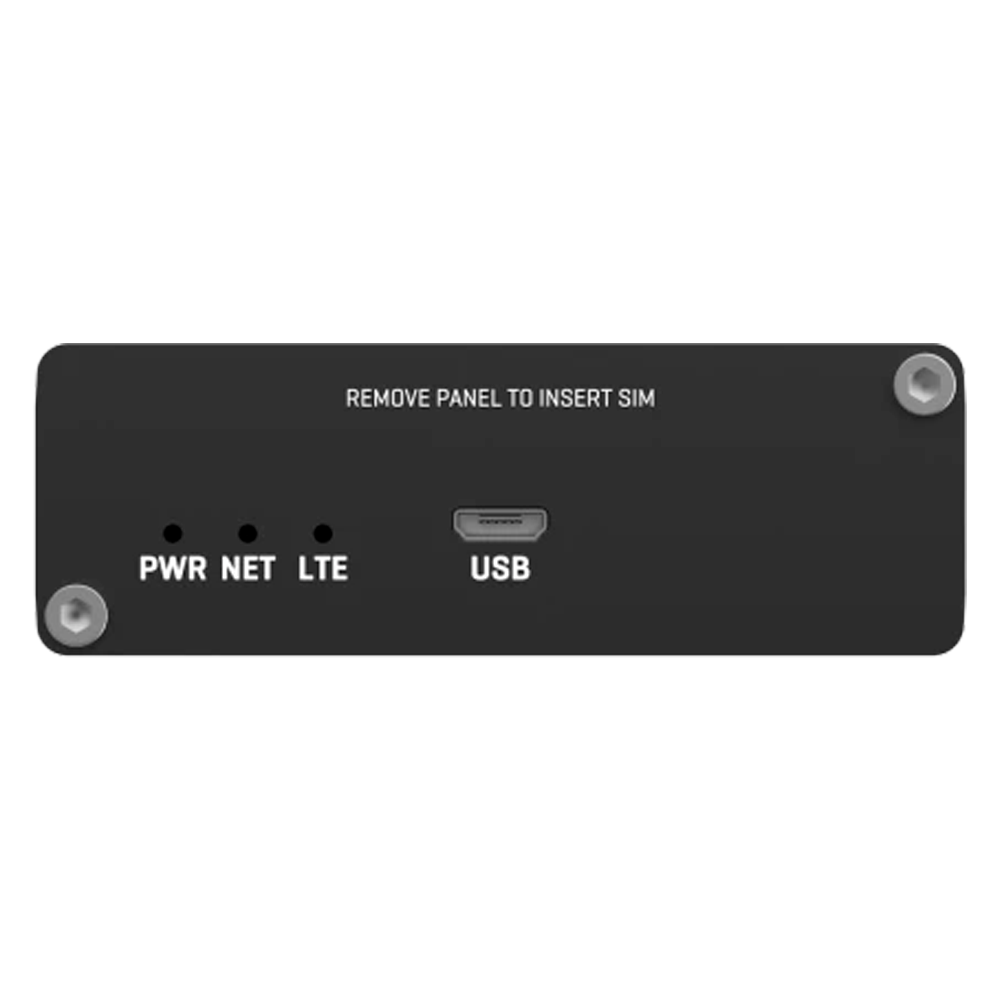

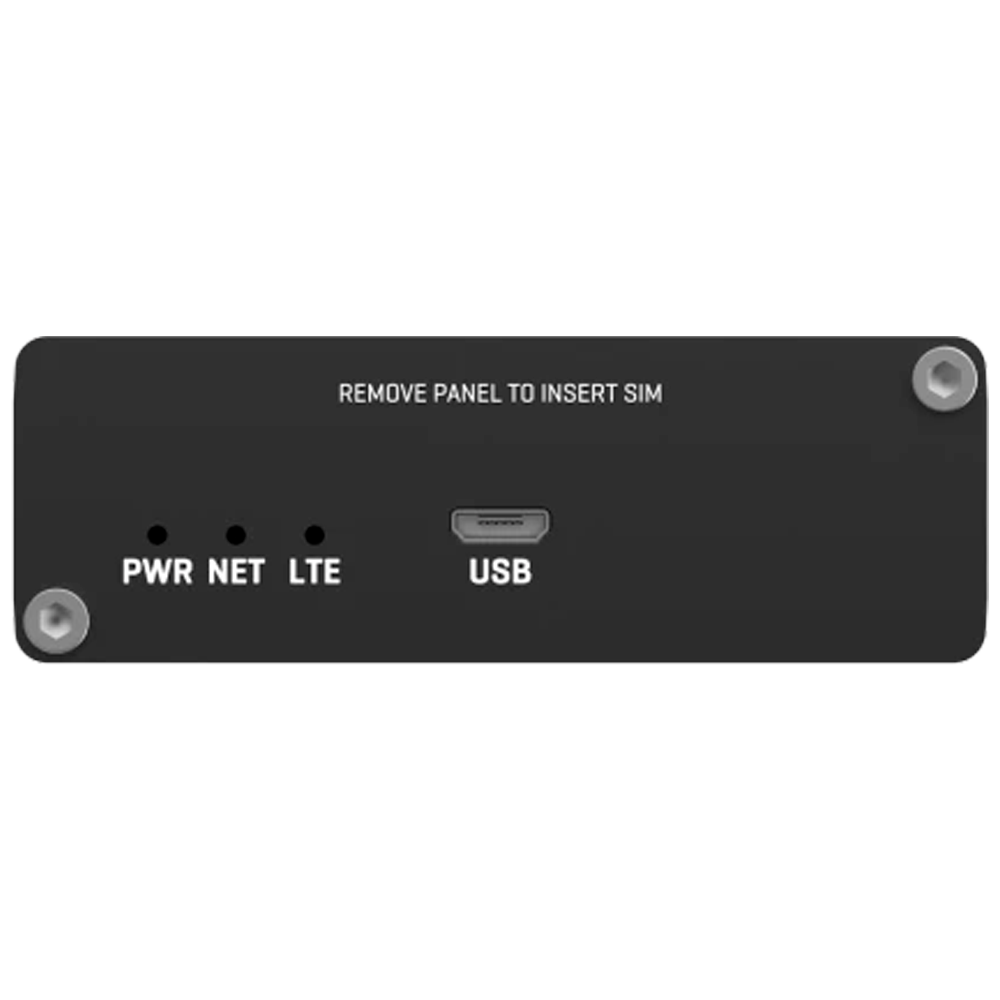

- Micro-USB port for data and power
- LTE speeds up to 75 Mbps (download) / 50 Mbps (upload)
- Maximum power consumption of 3.2 W
- An easily accessible Mini SIM slot (2FF)
- Rugged aluminum housing with LEDs
- Industrial temperature range from -40°C to 75°C
Specifications
| Brand | Teltonika |
| Type of equipment | Industrial LTE Modem |
| Installation | DIN rail, wall, or flat surface |
| Mobile Technology | 4G LTE Cat 4, 3G, 2G |
| Speed 4G | 75 Mbps DL / 50 Mbps UL |
| Speed 3G | Up to 42 Mbps DL / 5.76 Mbps UL |
| Speed 2G | Up to 236.8 kbps DL / 236.8 kbps UL |
| SIM slot | 1 x Mini SIM (2FF), 1.8 V/3 V |
| USB port | 1 x Micro-USB (Data and power) |

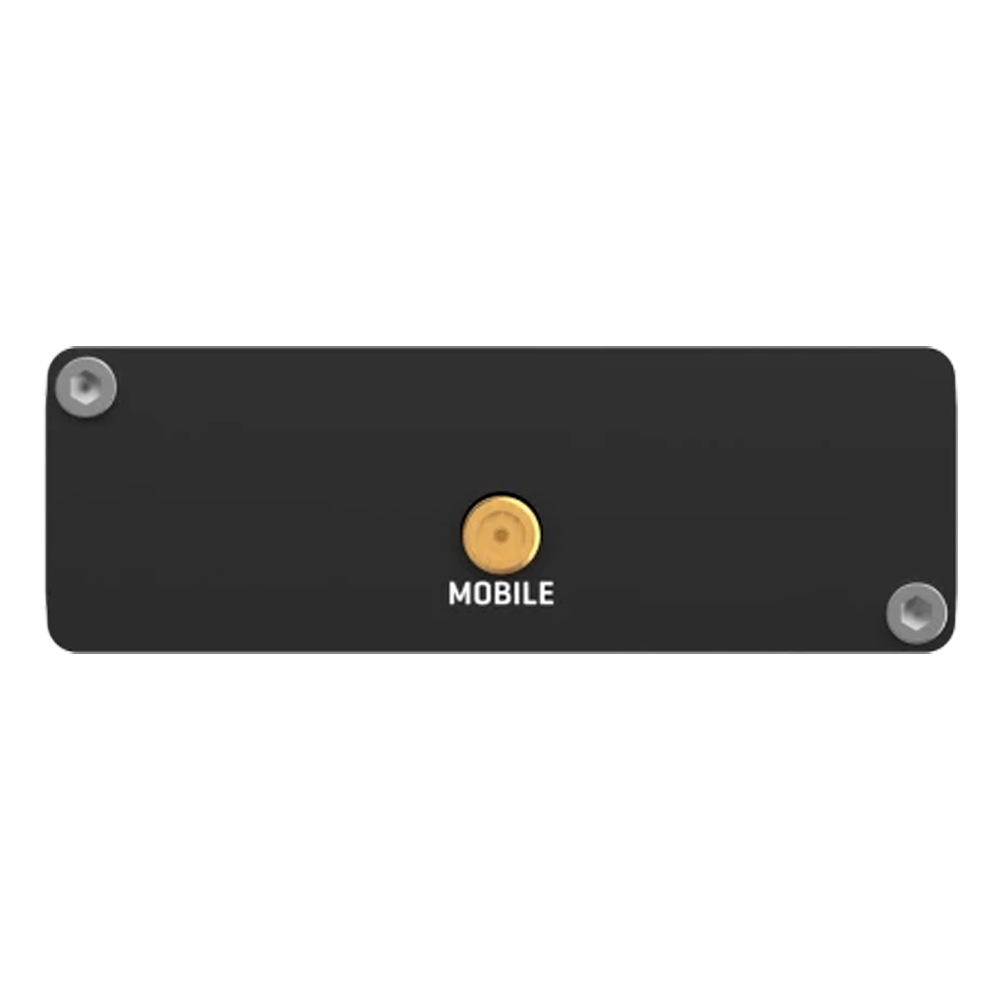

| Antenna | 1 x SMA connector for mobile devices |
| Supported Systems | Windows 7/8/8.1/10, Linux 2.6+, Android 2.3+ |
| Controllers | USB Driver RUT#03, NDIS |
| Power | 5 VDC via Micro-USB |
| Energy Consumption | Rest: < 0.9 W; Maximum: < 3.2 W |
| Housing Material | Anodized aluminum |
| Property Protection | IP30 |
| Status LEDs | 1x Power, 1x Network, 1x Mobile |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | 10% to 90% (no condensation) |
| Dimensions | 74.5 x 25 x 64.5 mm |
| Weight | 274 g |
| Colour | Metallic Gray |
In the box
- 1x Modem TRM200
- 1x Mobile antenna (swivel, SMA male)
- 1x Micro-USB Cable (0.8 m)
- 1x Hex wrench
- 1x Quick Start Guide (QSG)
