TK-TRB501
TK-TRB501
- Teltonika Industrial Router 5G
- High-speed connectivity 5G SA/NSA
- Ultra-fast Ethernet port up to 2.5 Gbps
- Advanced VPN: IPsec, WireGuard, and ZeroTier
- Compact industrial gateway for DIN rail
- Hardware and Modbus/IIoT Protocol Watchdog

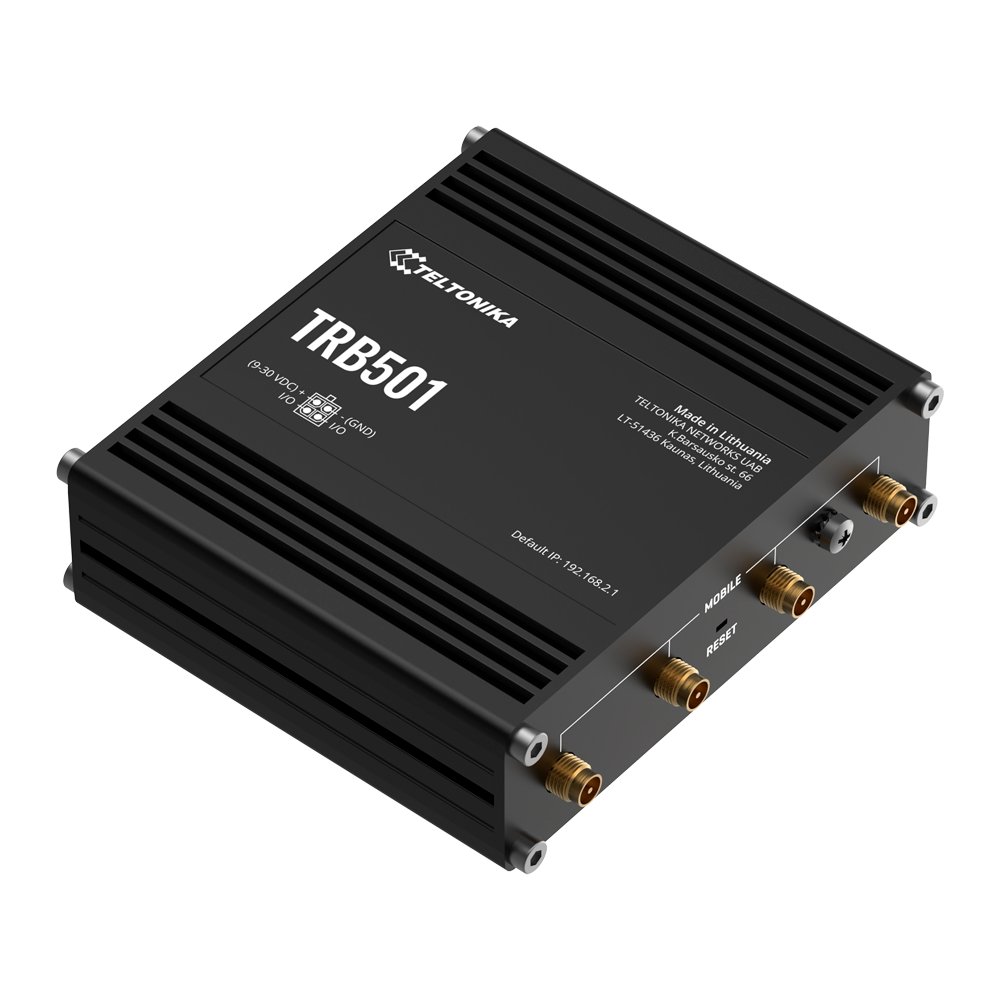

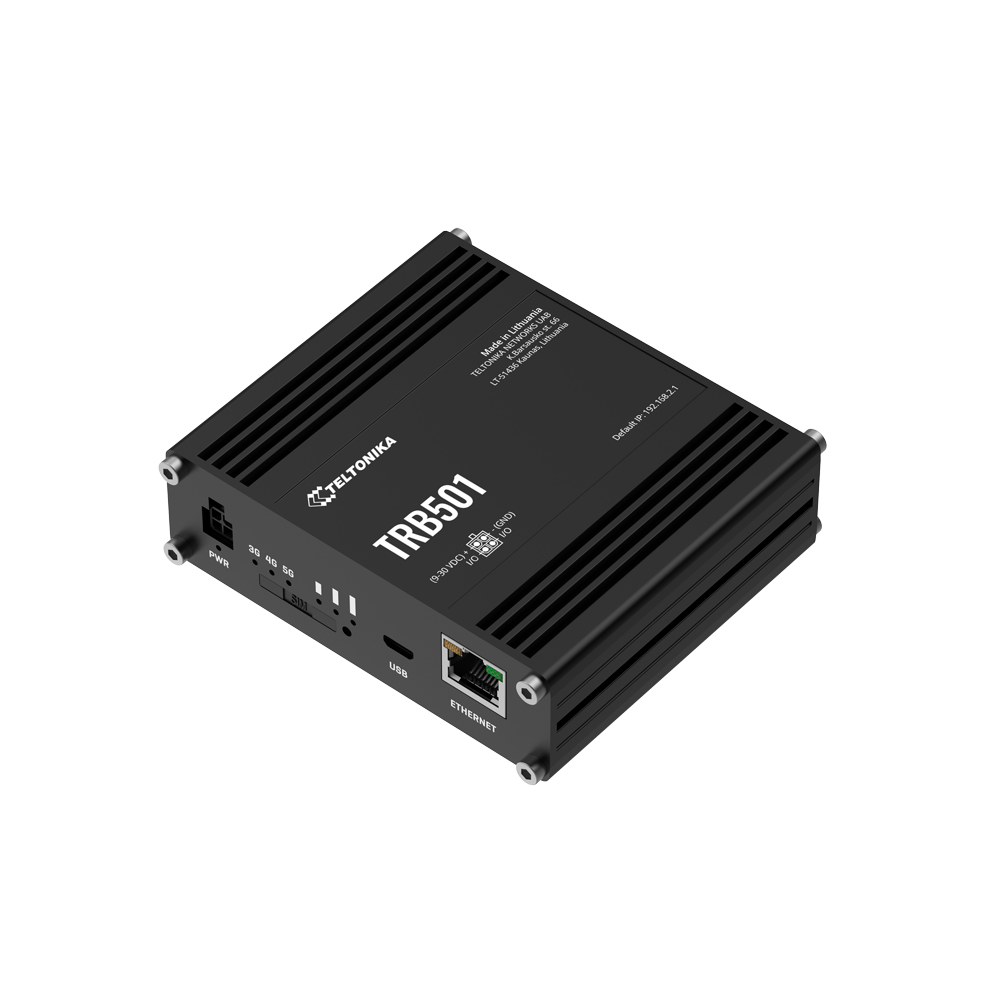

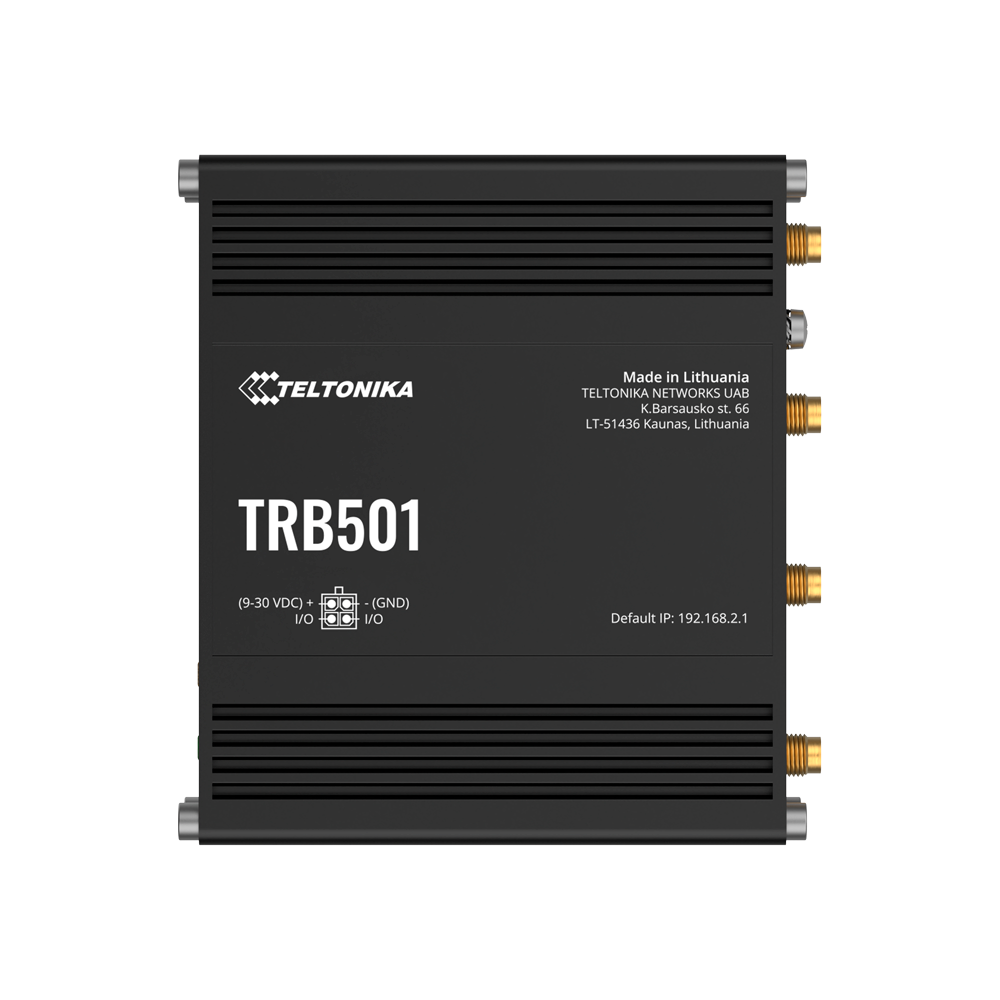

The TRB501 is a next-generation industrial gateway 5G designed to provide ultra-low-latency, highly reliable connectivity in confined spaces without compromising performance. It is the ideal solution for critical sectors such as energy, smart cities, industrial automation, and retail, enabling carrier aggregation 5G for optimal use of the mobile spectrum .
Technically, this device is powered by a Qualcomm CPU architecture running at 1.5 GHz and runs on RutOS, an operating system based on OpenWrt that ensures advanced and secure network management. Its rugged anodized aluminum housing withstands extreme temperatures of up to 75°C and features versatile interfaces such as a 2.5 Gbps Ethernet port and configurable I/O ports, ensuring seamless integration into telemetry and SCADA architectures.
- Teltonika
- Industrial Gateway TRB501
- Speed 5G to 3.4 Gbps (download) and 900 Mbps (upload)
- Puerto Ethernet 10/100/1000/2500 Mbps
- Qualcomm Single-Core Processor 1.5 GHz
- RutOS operating system based on OpenWrt
- Supports up to 7 eSIM profiles
- Wide voltage range from 9 to 30 VDC
- Anodized aluminum housing with IP30
- 1x Input / 1x Digital Output (Configurable)
- Rugged aluminum housing
- Remote management via RMS
Specifications
| Brand | Teltonika |
| Installation | DIN rail, wall, or flat surface |
| CPU | Qualcomm Single-Core ARM Cortex-A7 (1.5 GHz) |
| RAM | 512 MB |
| Flash | 512 MB |
| Bands 5G NR | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78 |
| Bands 4G FDD | B1, B3, B5, B7, B8, B20, B28, B32, B71 |
| Bands 4G TDD | B38, B40, B41, B42, B43 |
| Bands 3G | B1, B3, B5, B8 |
| Cell Phone Speed | 5G: 3.4Gbps DL / 900Mbps UL; 4G: Cat 19 |

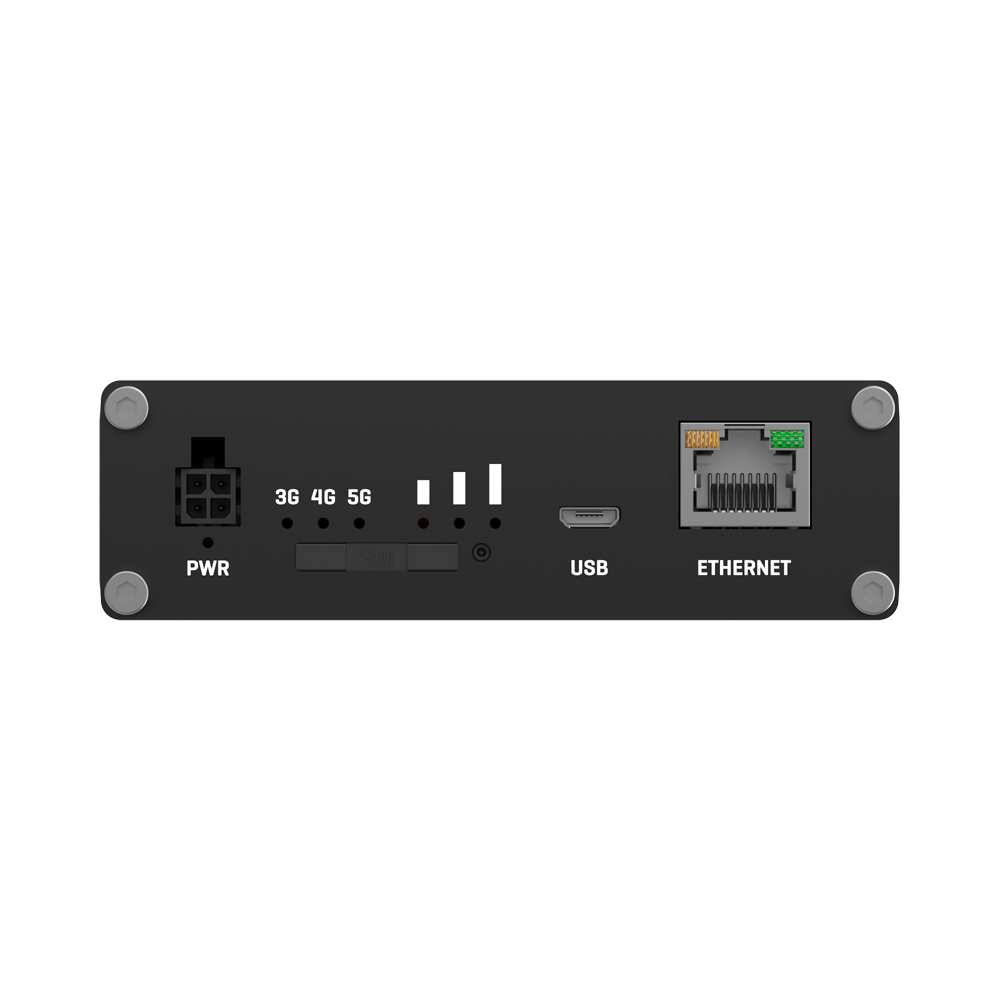

| Ethernet port | 1 x 10/100/1000/2500 Mbps (RJ45) |
| SIM slot | 1 x Mini SIM slot (2FF) + 1 x eSIM |
| Digital I/O | 2 x Configurable digital inputs/outputs |
| USB port | 1 x Micro USB (virtual network interface) |

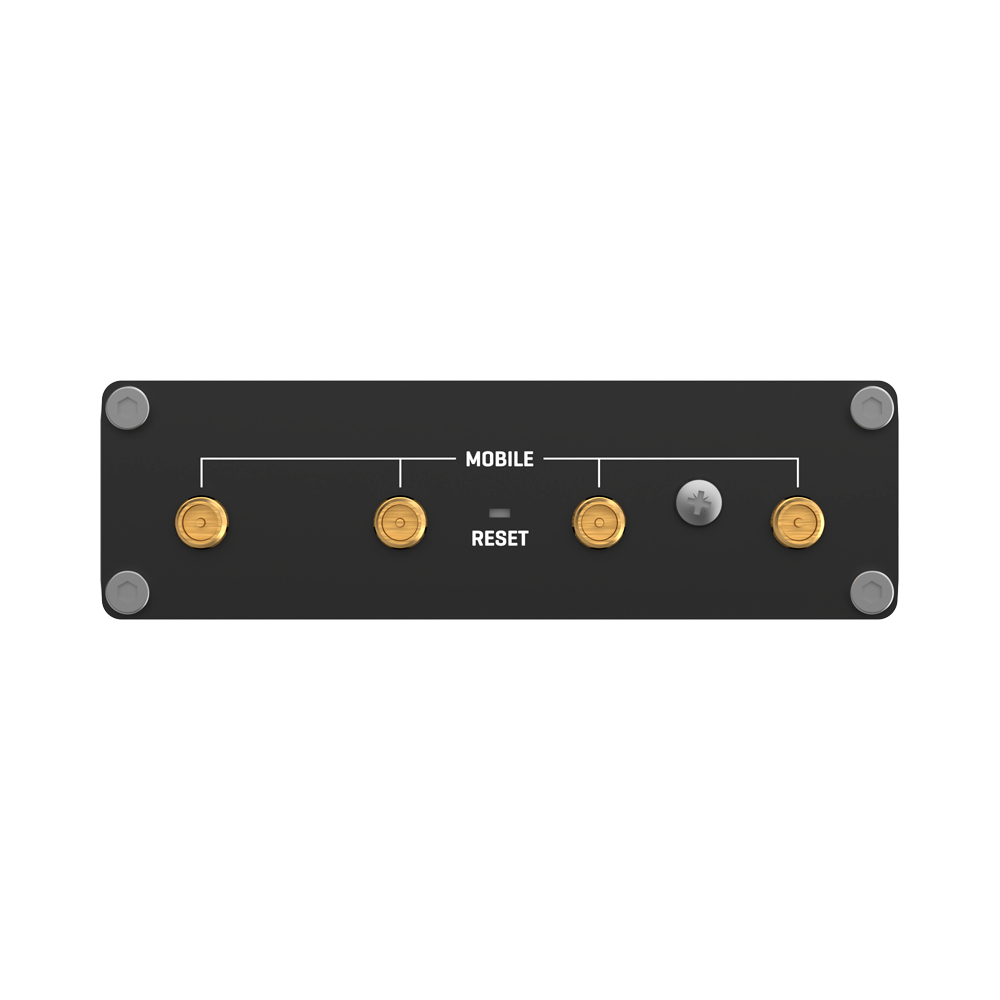

| Mobile Antennas | 4 x SMA connectors [cite: 2431] |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard |
| Firewall | NAT, NAT-T, NAT64, DMZ, Custom Rules, Web Filter |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, VRRP, MQTT |
| IIoT Protocols | Modbus TCP/RTU, DNP3, DLMS, OPC UA |
| Management | Web UI, CLI, SMS, SSH, JSON-RPC, RMS, FOTA, TR-069, SNMP |
| Operating System | RutOS (Linux-based OpenWrt) |
| Power | 9 - 30 VDC (connector with 4 pins) |
| Energy Consumption | Rest: < 1.5 W; Maximum: < 5 W |
| Operating Temperature | -40°C to 75°C |
| Humidity at Work | 10% to 90% (no condensation) |
| Property Protection | IP30 |
| Dimensions | 100 x 30 x 93.4 mm |
| Weight | 241 g |
| Colour | Anodized aluminum |
In the box
- 1x Industrial Gateway TRB501
- 1x Power supply for 9W
- 4x Mobile antennas 5G SMA
- 1x Micro-USB cable (0.8m)
- 1x Ethernet Cable (1.5m)
- 1x SIM adapter kit
- 1x Quick Start Guide
