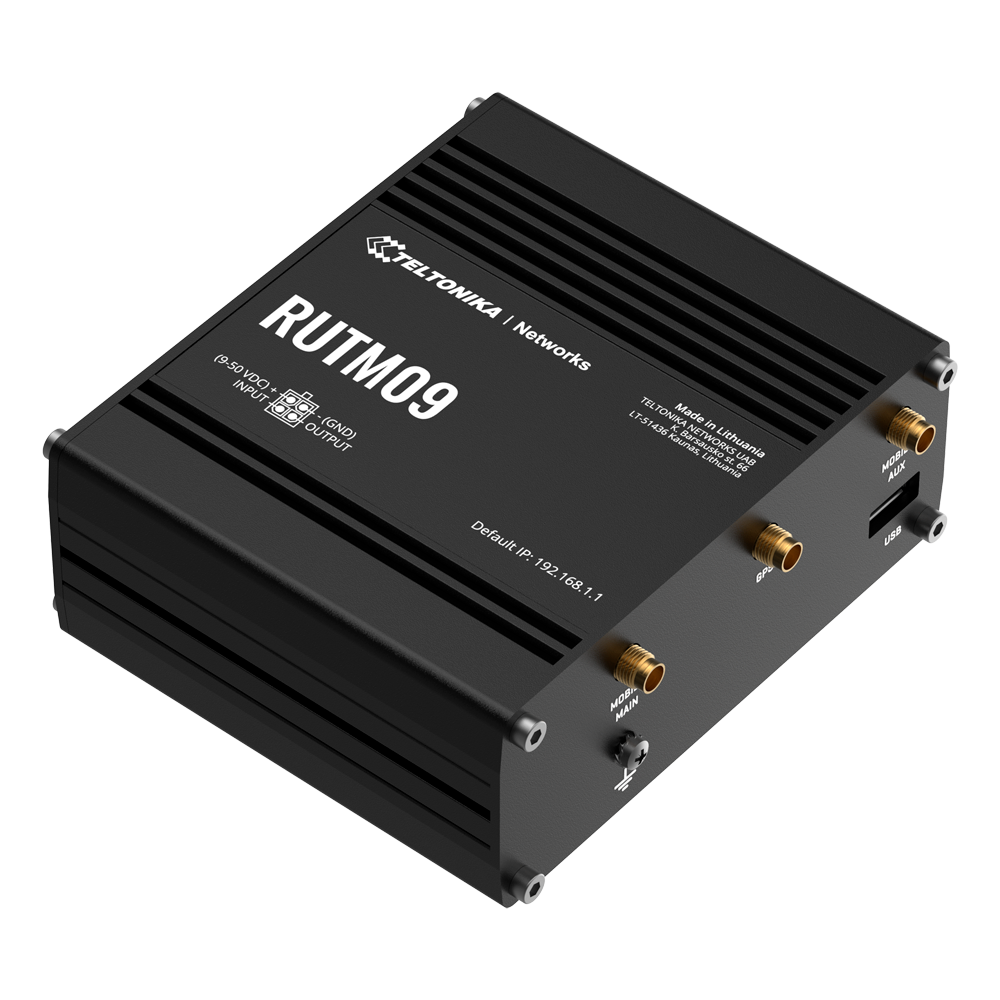

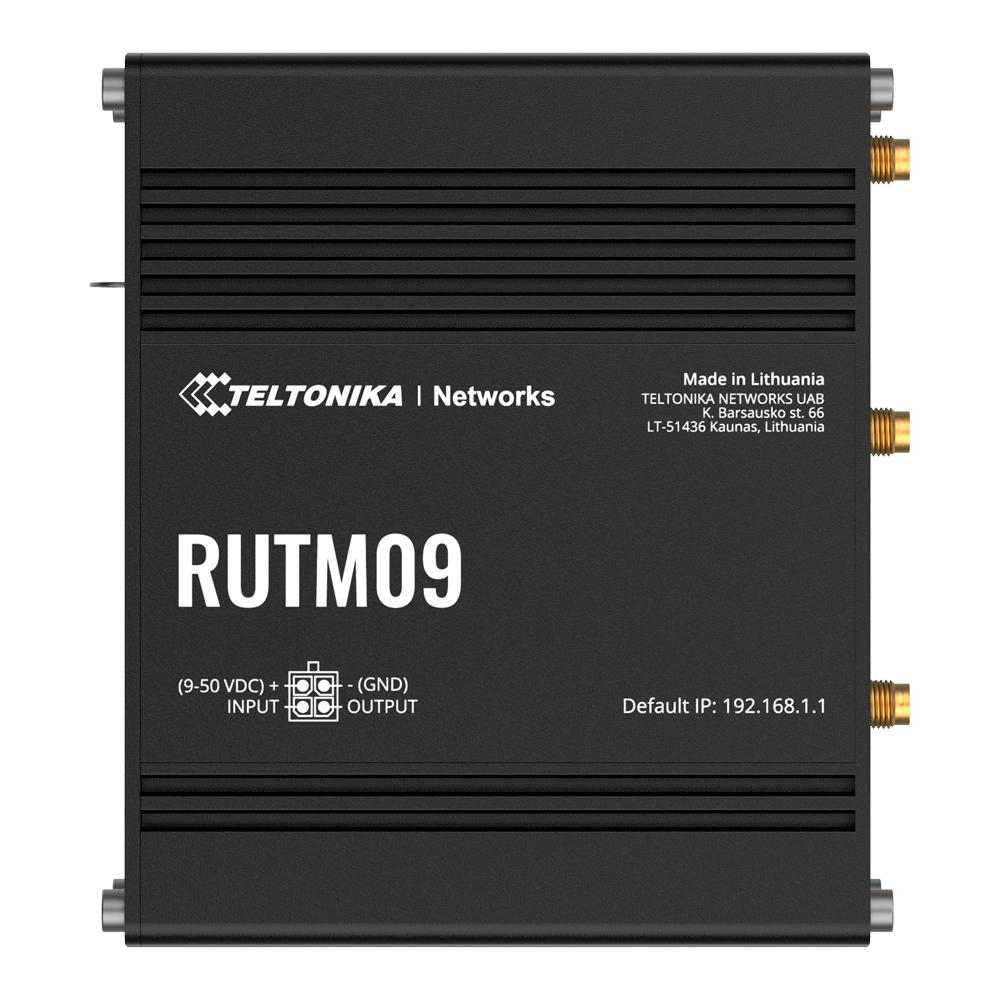

TK-RUTM09
TK-RUTM09
- Teltonika Router 4G Industrial
- Dual SIM 4G Cat 6 Cat [%VAR%]
- 1x Digital Input/Output
- GNSS positioning
- 4 Ethernet RJ45 Gigabit ports
- Housing Anodized aluminum
Teltonika Networks' RUTM09 is a versatile and robust industrial router, and its use cases are quite broad, especially in industrial and enterprise environments. Ideal for:
Industrial automation
Transportation and fleet management
Networks for Smart Cities
Security cameras and remote surveillance
Rural or remote environments
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
- Industrial 4G Router
- 4G Cat 6
- 4 Ethernet RJ45 Gigabit ports
- GNSS positioning
- USB 2.0 and Digital Input/Output
- LTE and GNSS antennas
- Industrial 4 pin DC power connector
- DC power 9 to 50V Power Supply Included
- Passive PoE power supply
- Status LEDs
Specifications
| Brand | Teltonika |
| Device | Industrial 4G Router |

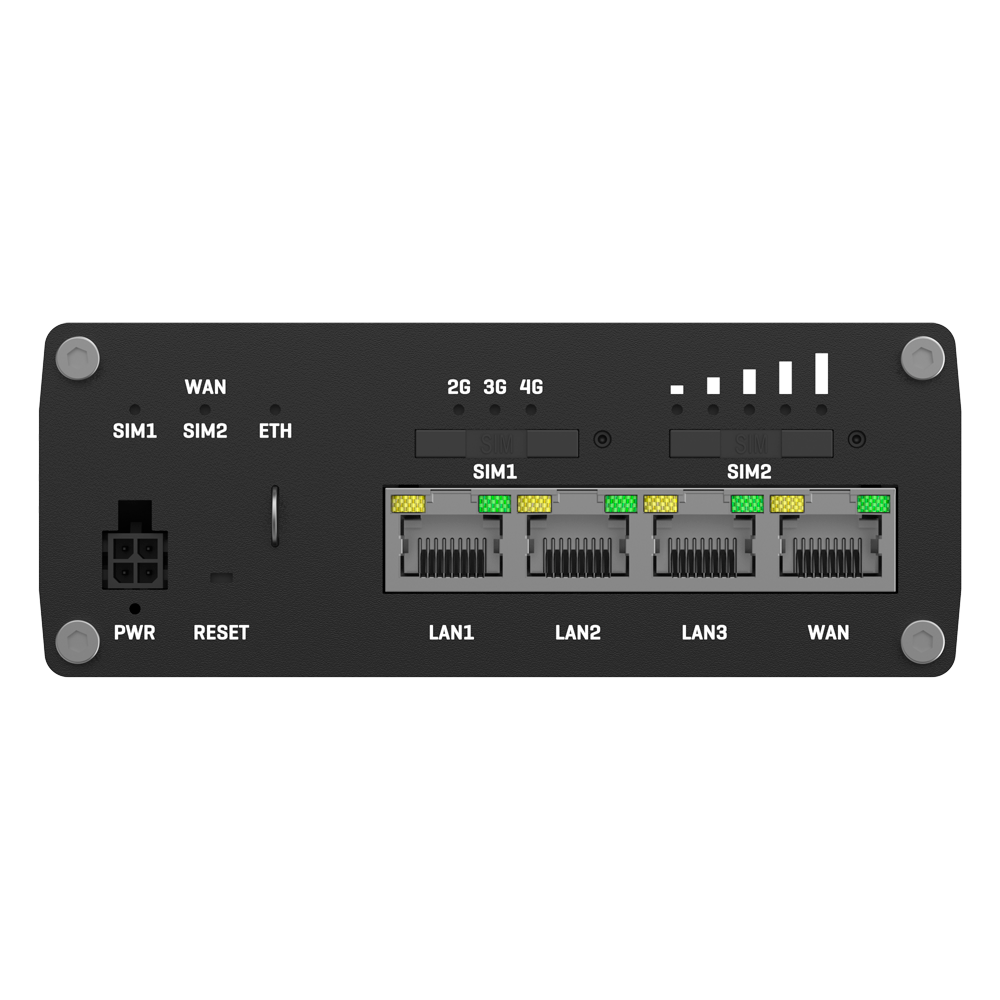

| Ethernet | 4 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 3 LAN) |
| Type of 4G | Cat 6 to 300Mbps |

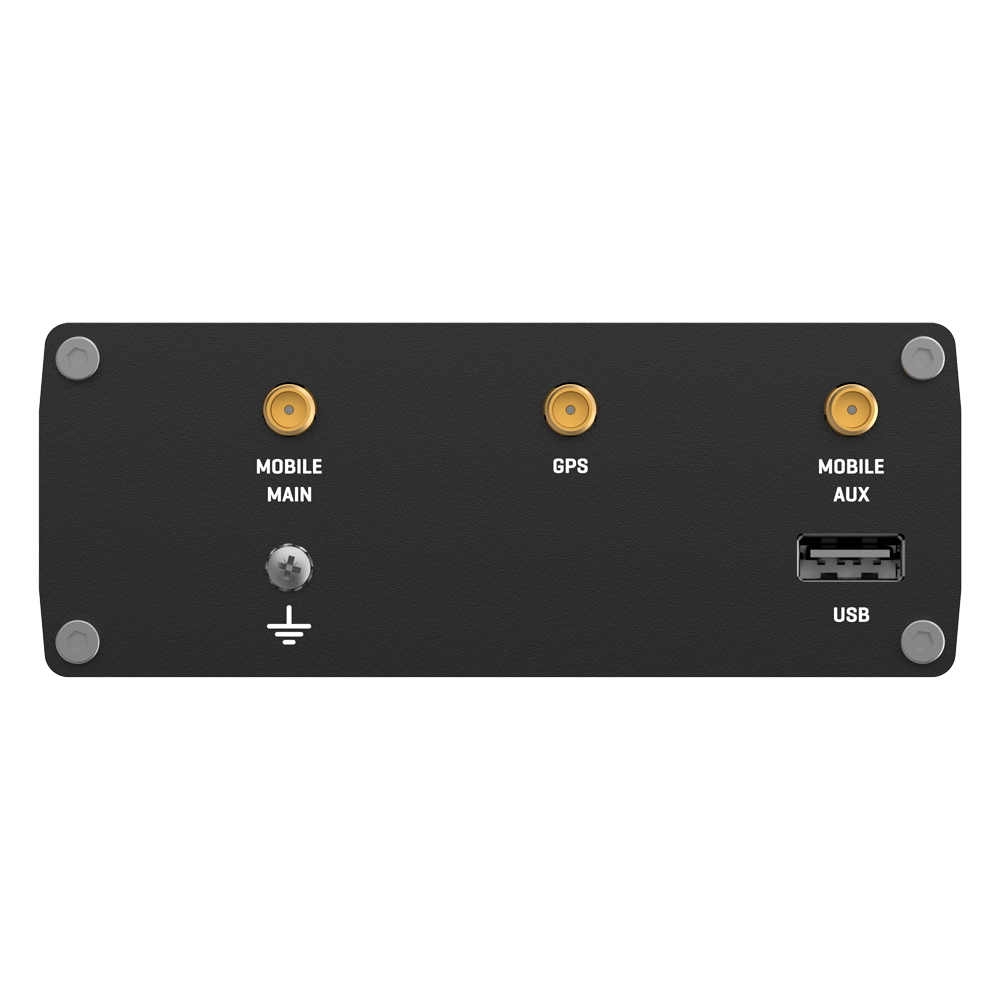

| Antenna connectors | 2 x SMA Male swivel (LTE) 1 x SMA Male Adhesive (Positioning, 3 m cable) |
| CPU | MediaTek, Dual-core, 880 MHz, MIPS1004KC |
| RAM | 256MB DDR3 |
| Flash | 16MB serial NOR flash, 256MB serial NAND flash |
| Operating System | RutOS (Based on OpenWRT) |
| Dual SIM | Auto Switch in case of low signal / data limit / roaming / no network |
| GNSS Technologies | GPS, GLONASS, BeiDou, Galileo, QZS |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier,Tinc, Tailscale |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging |
| Inputs and Outputs | 1 x Digital Input, 0 - 6 V detected as low level, 8 - 30 V detected as high level 1 x Digital Output, Open Collector Input, Maximum Output 30 V, 300 mA |
| Power | DC connector 4 Industrial pins 9~50V Power Supply Included Possibility to power through LAN1 port with Passive PoE (Cannot power with IEEE802.3af, 802.3at and 802.3bt standards, Mode B) 9 - 50 VDC |
| Material | Aluminium |
| Temp. operation | -40º C ~ +75º C |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 44,2 (Al) x 115 (W) × 95,1 (D) mm |
| Weight | 457 g |
| Region | Europe, Middle East, Africa, Australia, APAC2, Brazil, and Malaysia |
In the box
- Industrial Router
- 2x LTE Antennas
- 1x GNSS Antenna
- AC power supply 18W
- Ethernet Cable 1,5m
- User instructions
