TK-RUT951
TK-RUT951
- Industrial Router 4G LTE Cat 4 (150/50 Mbps)
- Wi-Fi connectivity with hotspot functionality
- Resilience with Dual SIM and automatic failover
- 4 Ethernet ports ((1 x WAN and 3 x LAN)
- Advanced security with a firewall and multiple VPNs
- Rugged design with an aluminum casing IP30
The RUT951 is a high-performance industrial 4G LTE cellular router, designed for professional applications that require robust connectivity and reliable network redundancy. Equipped with a Cat 4 modem capable of speeds up to 150 Mbps, this device ensures operational continuity through its dual-SIM system with automatic failover and multi-WAN management, making it an ideal solution for the automation, energy, and smart city sectors.
Powered by the OpenWrt-based RutOS operating system, the RUT951 offers a comprehensive security suite that includes advanced VPN protocols, an industrial-grade firewall, and DDoS attack prevention. Its hardware is optimized for demanding environments, operating within a temperature range of -40°C to 75°C, and featuring Wi-Fi connectivity for up to 100 simultaneous users, ensuring versatility in both local networks and remote deployments.
Remote Management (RMS): Compatible with Teltonika RMS for centralized and secure fleet management from anywhere. It enables real-time monitoring, remote access (RMS Connect), and bulk updates, reducing operating costs by eliminating the need for on-site visits.
- Industrial Router 4G LTE Cat 4 up to 150 Mbps
- Wi-Fi 4 (802.11n) up to 100 simultaneous users

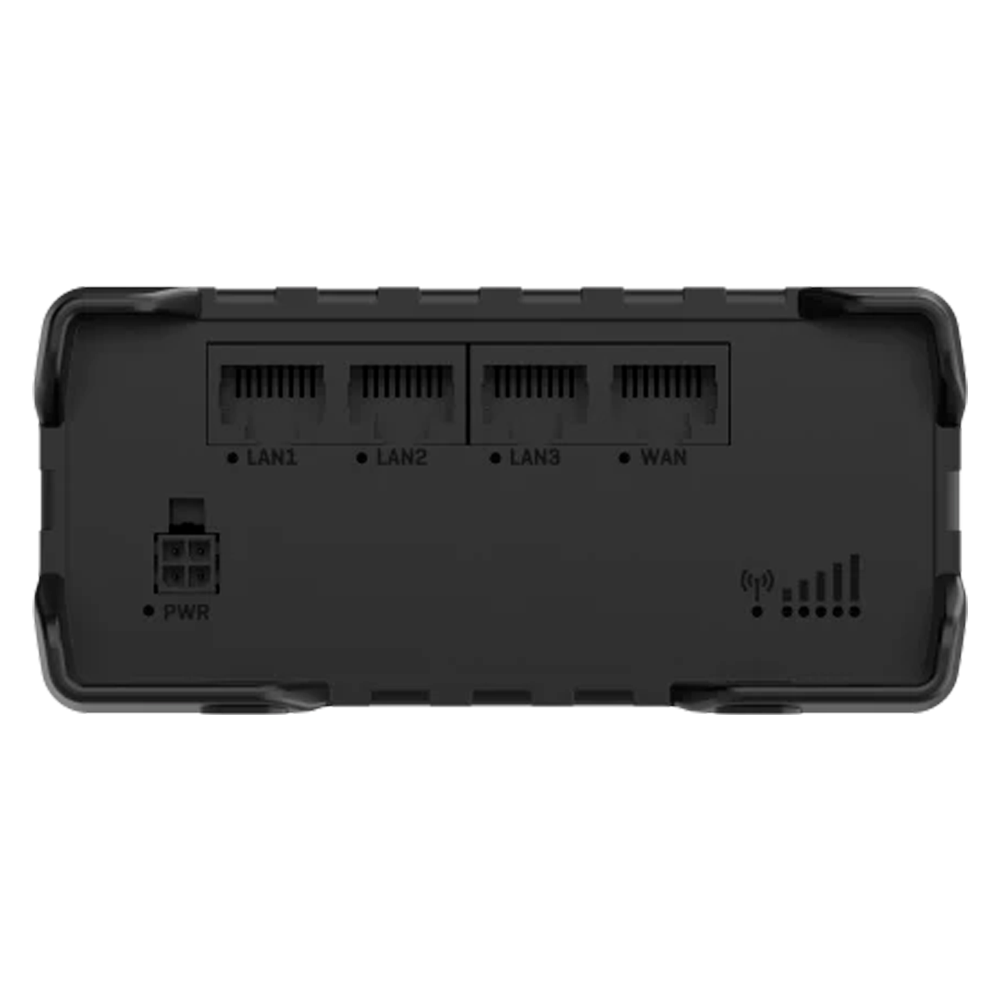

- 4 Ethernet ports 10/100 (1 x WAN, 3 x LAN)

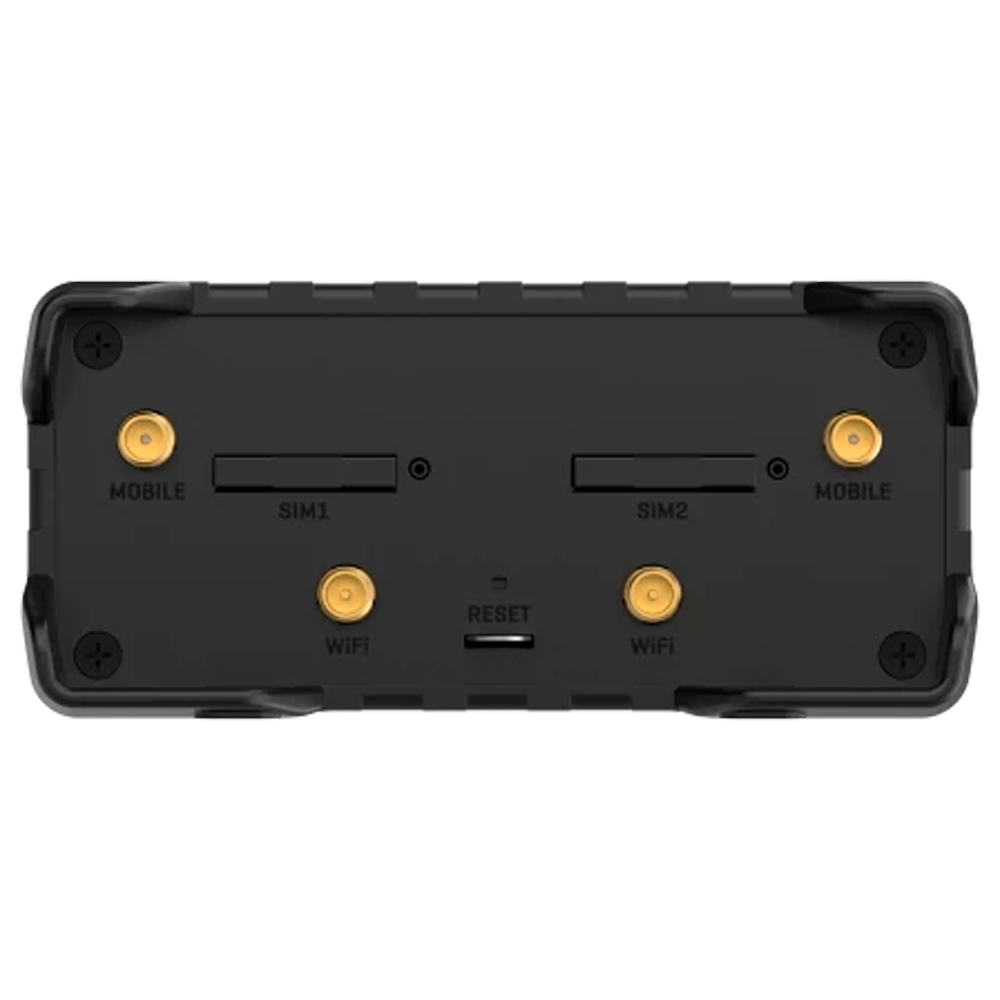

- Dual SIM slot (2FF) with automatic switching
- RutOS Operating System based on OpenWrt
- Mediatek processor 580 MHz MIPS 24KEc
- 128 MB of RAM and 16 MB of flash memory
- Industrial power supply range from 9 to 30 VDC
- Rugged aluminum housing with IP30 panels
- Support for MQTT, Modbus, and SNMP protocols
Specifications
| Brand | Teltonika |
| Mobile module | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| 3GPP Release | Release 10/11 (depending on the hardware version) |
| SIM card slots | 2 x Mini SIM (2FF) with automatic failover |
| eSIM | Consumer type (optional), up to 7 profiles |
| WiFi | 802.11b/g/n (Wi-Fi 4) up to 100 simultaneous users |
| Ethernet | 4 x RJ45 10/100 Mbps (1 x WAN, 3 x LAN) |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Flash | 16 MB, SPI Flash |
| Inputs/outputs | 1 x Digital input and 1 x Digital output (on DC connector) |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard |
| Network Protocols | TCP, UDP, IPv4/v6, HTTP/S, FTP, SMTP, SSH, MQTT, SNMP |
| IIoT Protocols | MQTT Gateway, Modbus TCP Master/Slave, SNMP |
| Security | SPI Firewall, DDoS Protection, VLAN, Web Filter |
| Management | WEB UI, CLI, SSH, SMS, TR-069, MQTT, SNMP, RMS |
| Power | 9 - 30 VDC (industrial connector with 4 pins) |
| Passive PoE | Supported via LAN1 (Mode B, 9-30 VDC) |
| Energy consumption | Rest: < 2 W / Maximum: < 7 W |
| Housing material | Anodized aluminum with plastic panels |
| IP protection | IP30 |
| Temp. work | -40 °C to +75 °C |
| Humidity at work | 10% to 90% (no condensation) |
| Dimensions | 110 x 50 x 100 mm |
| Weight | 287 g |
In the box
- 1x Router RUT951
- 1x Power supply for 9W
- 2x Mobile antennas (magnetic, SMA male)
- 2x Wi-Fi antennas (magnetic, RP-SMA male)
- 1x Cable Ethernet (1.5 m)
- 1x SIM adapter kit
- 1x Quick Start Guide
