TK-RUT200-V2
TK-RUT200-V2
- Industrial Router 4G LTE Cat 4 (150/50 Mbps)
- Teltonika chipset optimized for performance
- 4 Wi-Fi access point for up to 50 users
- 2 Ethernet ports 10/100 Mbps (WAN/LAN)
- Industrial security with a firewall and multiple VPNs
- Ultra-compact design in an aluminum housing

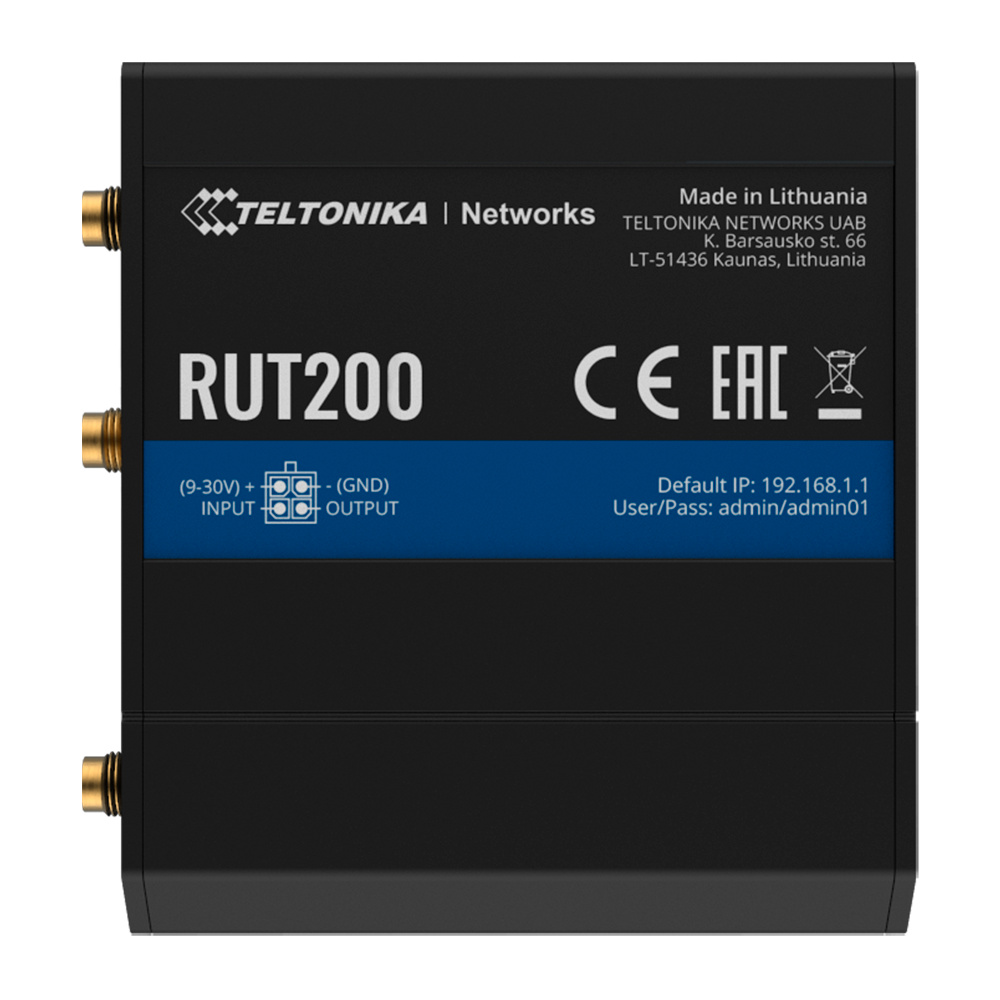

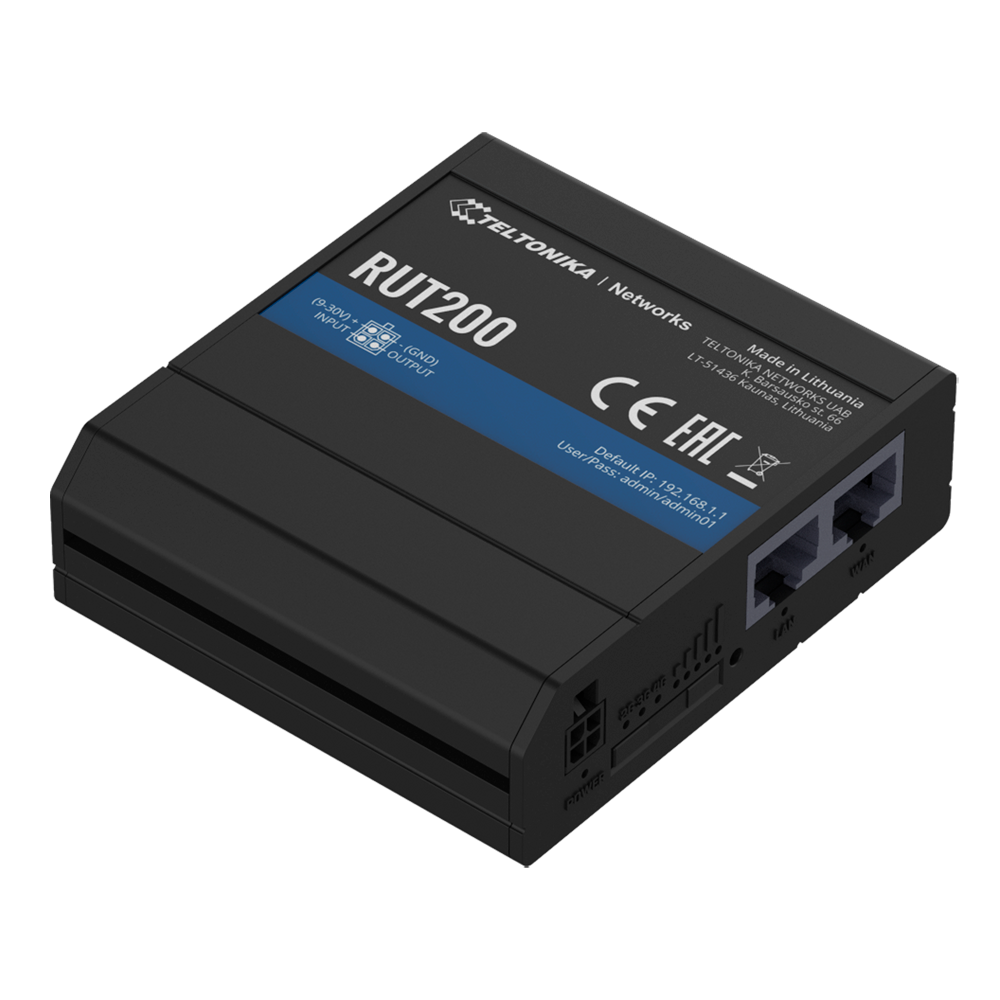

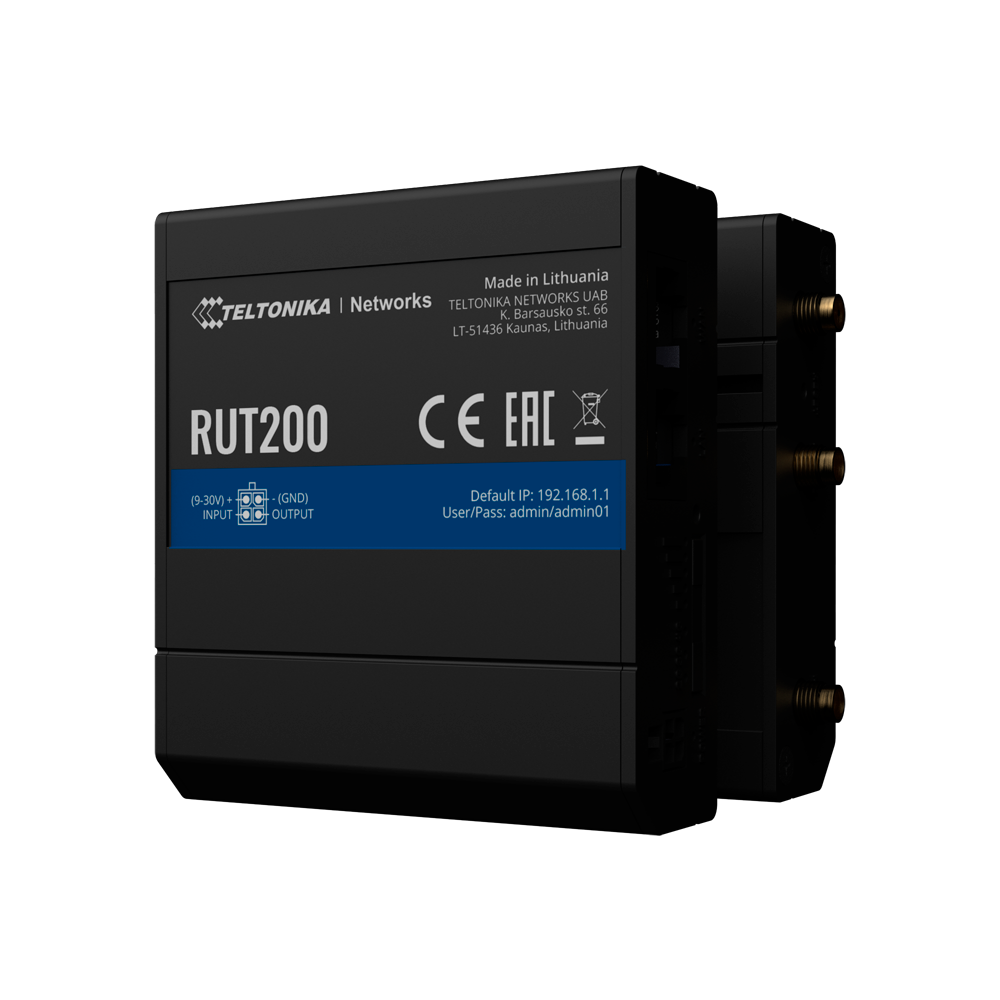

The RUT200-V2 is an industrial LTE Cat 4G cellular router designed to provide robust connectivity in an extremely compact form factor. This version V2 features a Teltonika chipset to maximize system efficiency and stability in mission-critical applications. With speeds of up to 150 Mbps and automatic failover to a backup connection, it ensures uninterrupted communications in the automation, retail, and smart city sectors.
Equipped with the RutOS operating system, the device provides advanced networking and security tools, including support for industrial protocols such as Modbus and MQTT. Its rugged design allows it to operate in temperature ranges from -40 °C to 75 °C, making it a versatile solution for securely and efficiently connecting remote infrastructure.
Remote Management (RMS): Compatible with Teltonika RMS for centralized and secure fleet management from anywhere. It enables real-time monitoring, remote access (RMS Connect), and bulk updates, reducing operating costs by eliminating the need for on-site visits.
- Router 4G LTE Cat 4 up to 150 Mbps DL
- Wi-Fi 4 (802.11n) up to 50 simultaneous users

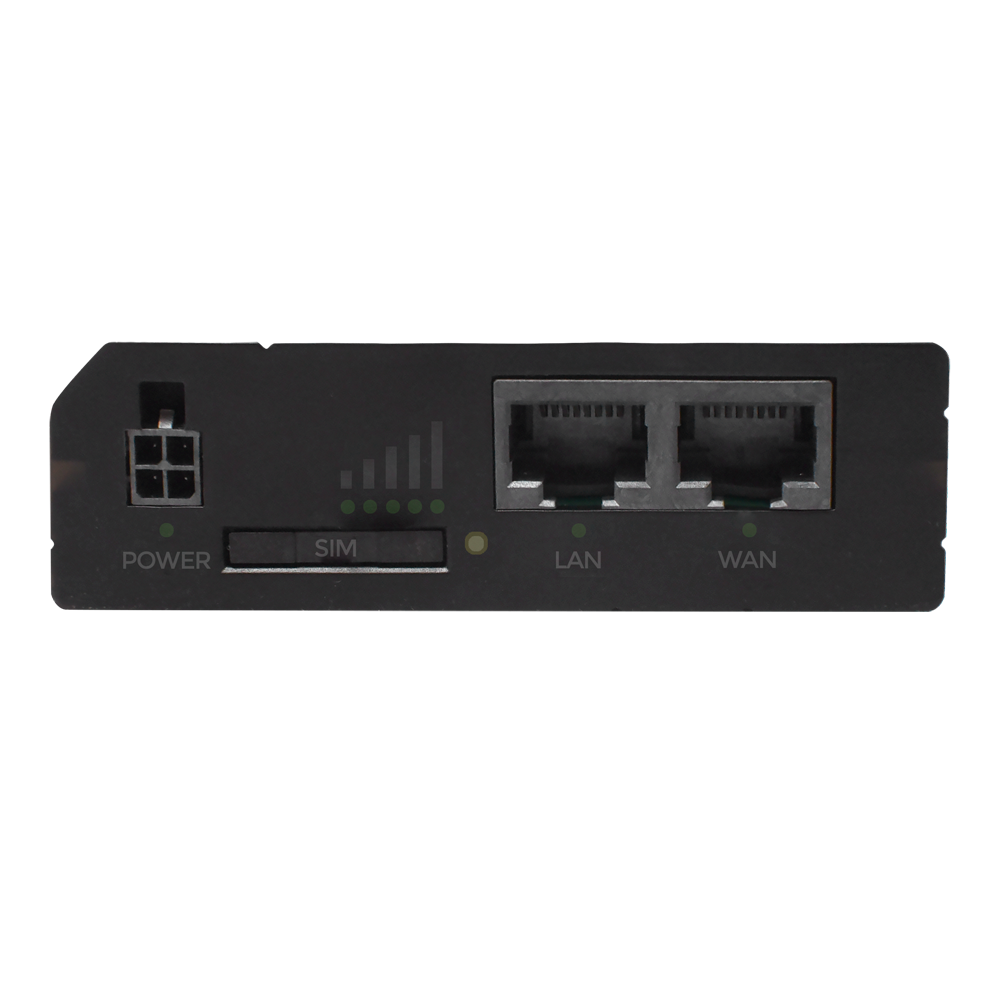

- 2 Ethernet ports 10/100 (1 WAN, 1 LAN)
- 1 Mini SIM slot (2FF) with eSIM support*
- RutOS Operating System based on OpenWrt
- RAM: 128 MB and Flash: 16 MB
- 1 digital input and 1 digital output via DC connector
- Industrial power supply range: 9 at 30 VDC
- Rugged anodized aluminum housing IP30
Specifications
| Brand | Teltonika Networks |
| Type of equipment | Industrial Cellular Router (Teltonika Chipset) |
| Mobile module | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| Mobile Phone Chipset | Teltonika (Stability Optimization) |
| Standard 3GPP | Release 9 |
| SIM slot | 1 x Mini SIM (2FF), 1.8 V/3 V |
| eSIM | Supported (Consumer type), up to 7 profiles |
| WiFi | 802.11b/g/n (Wi-Fi 4), AP and STA mode) |
| WiFi rate | Up to 150 Mbps; 50 concurrent users |
| Ethernet WAN | 1 x WAN port 10/100 Mbps, compliant with IEEE 802.3 |
| Ethernet LAN | 1 x LAN port 10/100 Mbps, compliant with IEEE 802.3 |
| RAM memory | 128 MB, DDR2 |
| Flash Storage | 16 MB, SPI Flash |
| Digital Input | 1 x Digital Input (0-6 V low, 8-30 V high) |
| Digital Output | 1 x Digital Output (Open collector, 30 V, 300 mA) |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard, Tinc |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| IIoT Protocols | Modbus TCP (Server/Client), OPC UA (Client/Server), DNP3 (Station/Outstation), DLMS |
| Security | SPI Firewall, DDoS Prevention, VLAN, Web Filter, 802.1x |
| Management | Web UI, CLI, SSH, SMS, TR-069, MQTT, SNMP, RMS |
| Power | 9 - 30 VDC (industrial connector with 4 pins) |
| Passive PoE | Supported via the LAN1 port (Mode B, 9-30 VDC) |
| Energy Consumption | Maximum < 6.5 W |
| Housing Material | Anodized aluminum, plastic panels |
| IP protection | IP30 |
| Temp. Job | -40 °C to +75 °C |
| Humidity at Work | 10% to 90% (no condensation) |
| Dimensions | 83 x 25 x 74 mm |
| Weight | 125 g |
In the box
- 1x Router Industrial RUT200-V2
- 1x Power supply for 9W

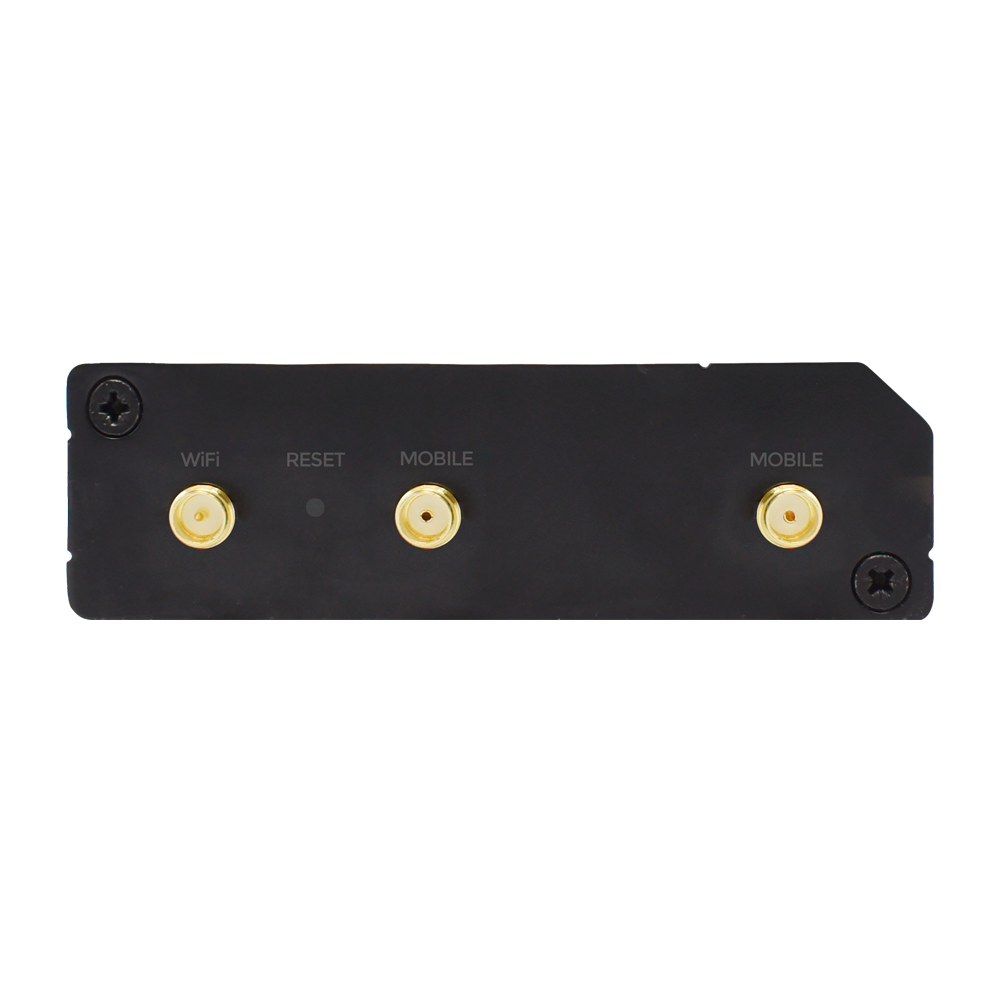

- 2x Mobile antennas (SMA male)
- 1x Wi-Fi antenna (RP-SMA male)
- 1x Quick Start Guide (QSG)
