TK-PR1ICA70

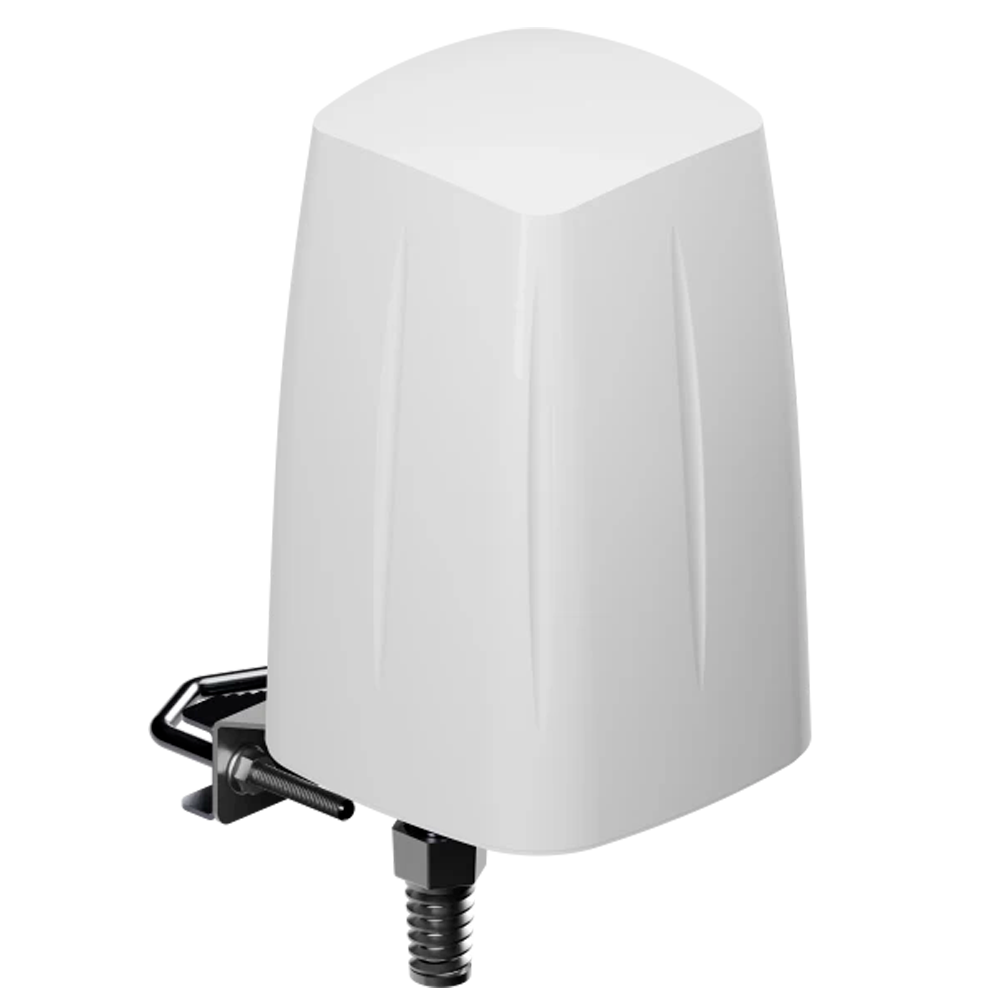

- Teltonika Industrial Outdoor Antenna
- 5G Combo LTE/Wi-Fi/GNSS
- Pole/mast mounting
- SMA connectors
- Outdoor certificate IP67

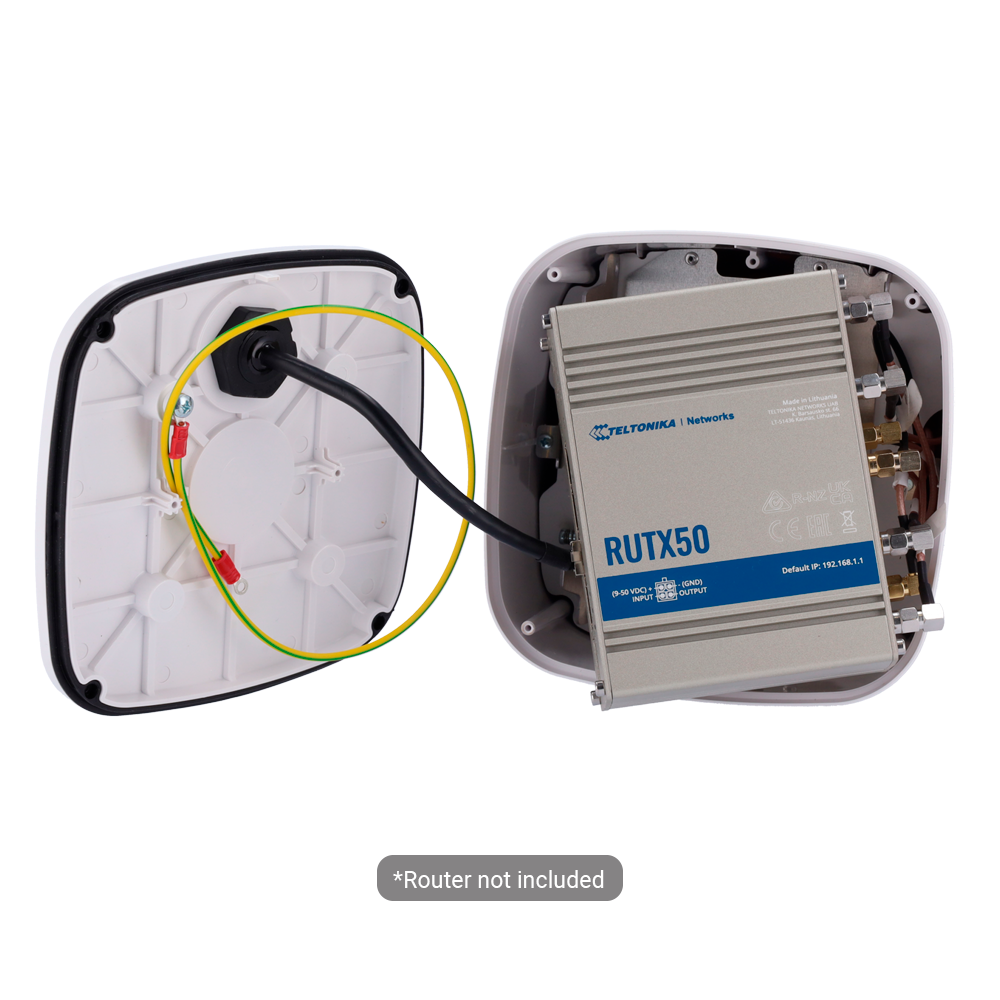

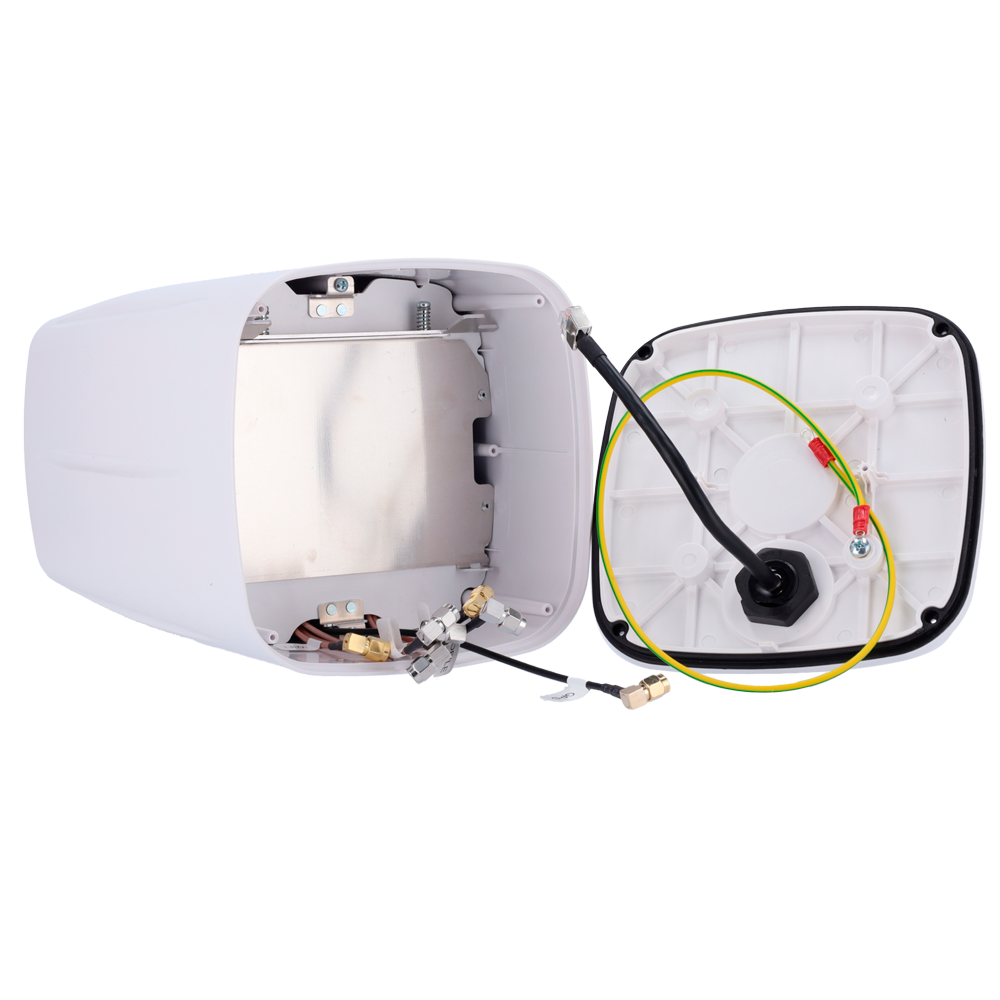

- Antenna+Housing for mounting
- Teltonika
- Industrial Antenna 5G Combo LTE GNSS Wi-Fi outdoor pole antenna
- LTE Frequency 617-960/1700-2700/3300-4300 MHz Connector 4x SMA Male
- GNSS antenna 1560-1610 MHz 1x SMA Male Connector
- Wi-Fi antenna 2400-2500/4700-6000 MHz Connector 2x RP SMA Male
- Exterior Certification IP67
- 6x Cables RG316 1 x RG174- Compatible routers TK-RUTX50, TK-RUTM50, TK-RUTX12
Specifications
| Mounting | Mast or wall mounting (bolt-on) (Screws not included) |
| LTE Antennas | Frequency Range: 617-960/1700-2700/3300-4300 MHz Polarization: Vertical Gain: 4.5dBi (Max) V.S.W.R < 2.5 Impedance: 50 ohms 4x SMA Male connectors |
| Wi-Fi antennas | Frequency: 2400-2500/4700-6000 MHz Polarization: Vertical Gain: 7.5dBi V.S.W.R < 2.0 Impedance: 50 ohms 2x RP-SMA Male Connectors |
| GNSS Antenna | Frequency: 1560-1610 MHz Polarization: RHCP Gain : 28 dBi V.S.W.R < 2.0 Impedance: 50 ohms Voltage 2.5-6.5 VDC Current consumption 2.5-6.5 mA 1x SMA Male connector |
| Cables | 6x RG316 1x RG174 |
| Degree of protection | IP67 |
| Dimensions | 160 x 240 x 189 mm |
| Operating temperature | -40º C ~ +75º C |
| Weight | 1500 g |

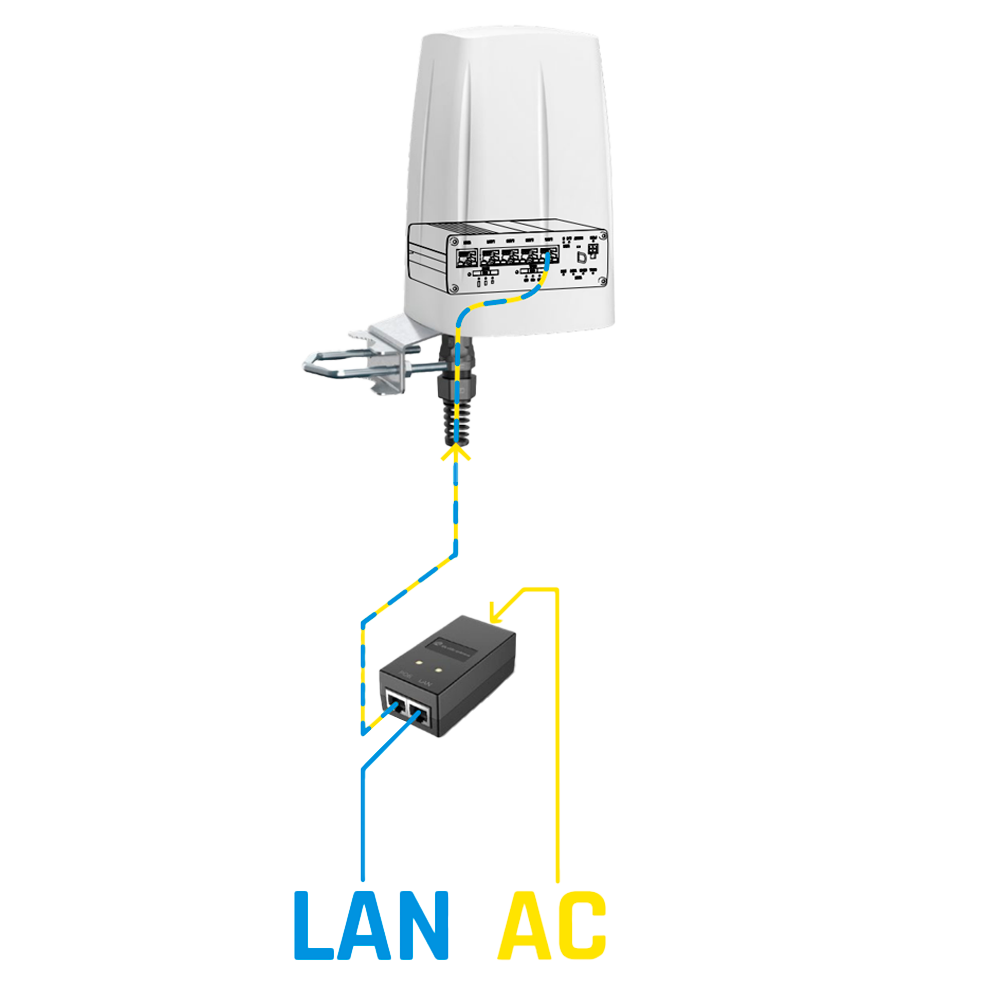

| Power | It is necessary to power the indoor Teltonika with Passive PoE, through the LAN1 port with at least the TK-PR324EUB adapter (not included) |
| Compatibility | Compatible with TK-RUTM50, TK-RUTX50, TK-RUTX12 models |
In the box
- Antenna 5G Outdoor Combo
