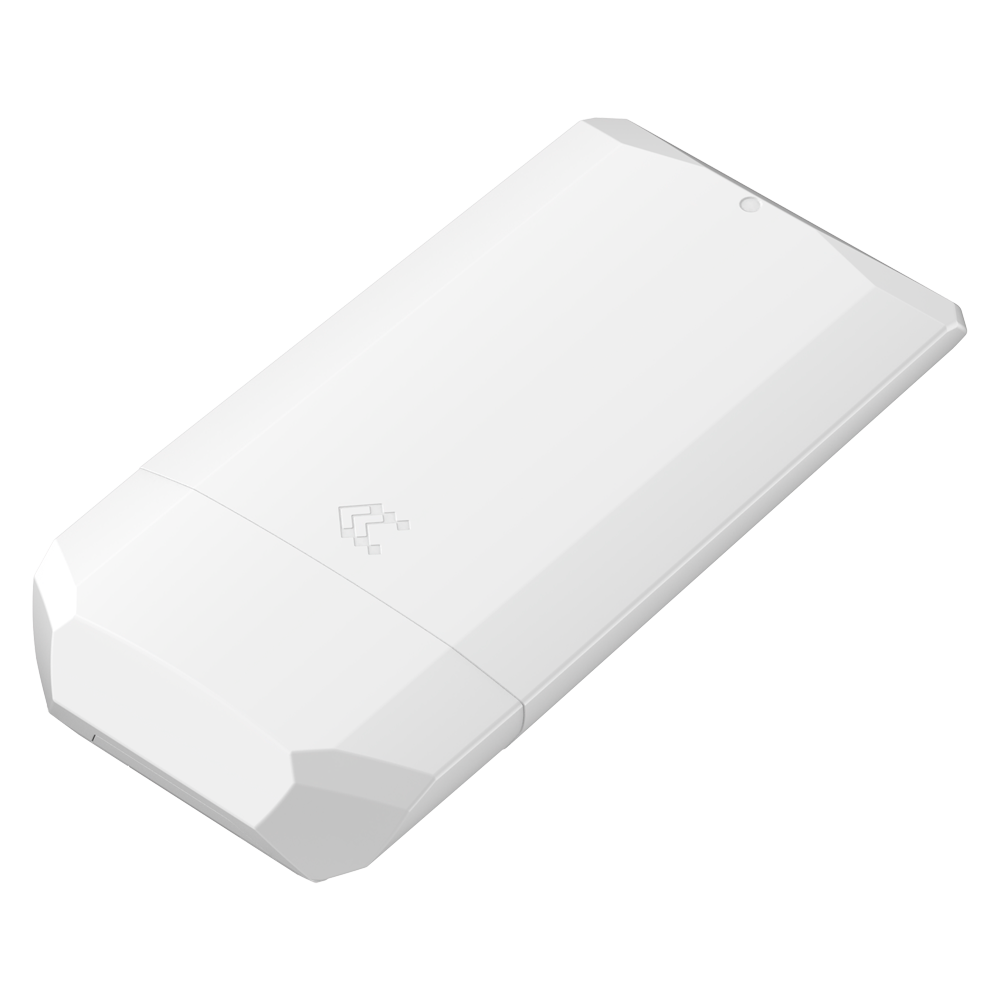

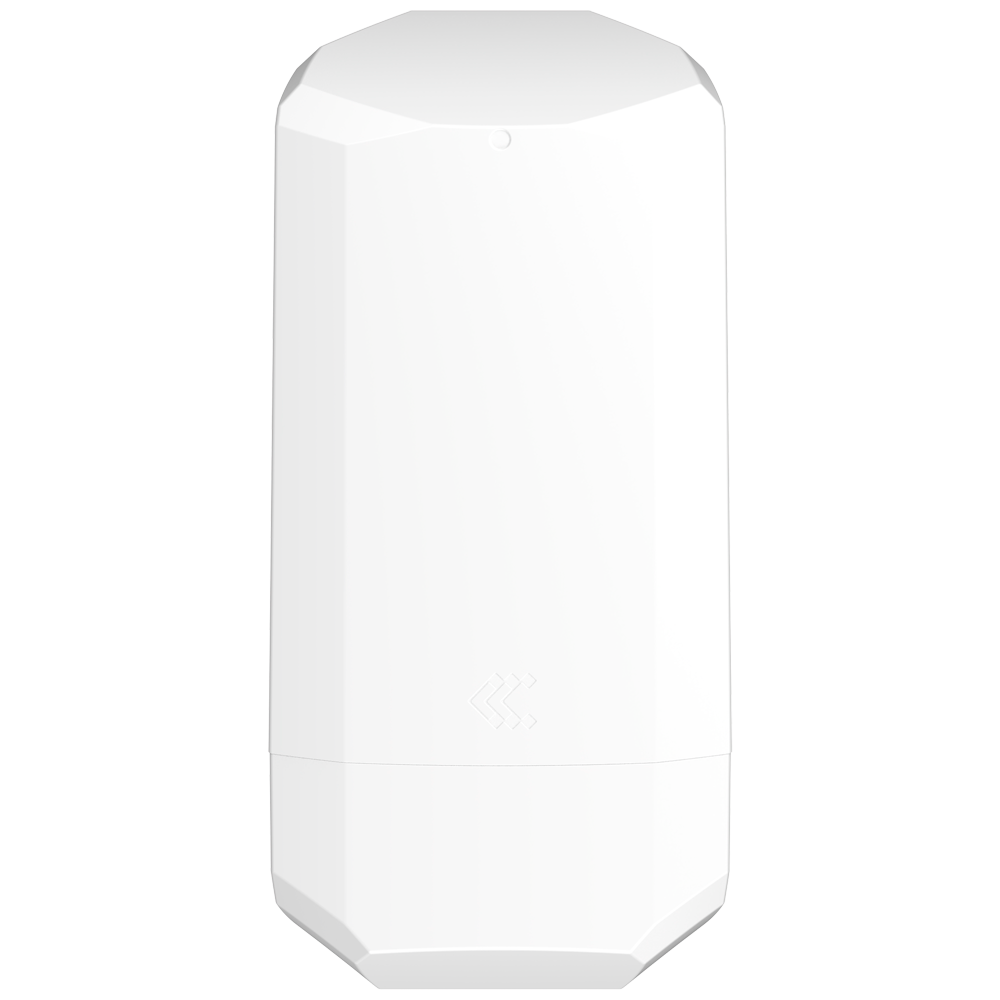

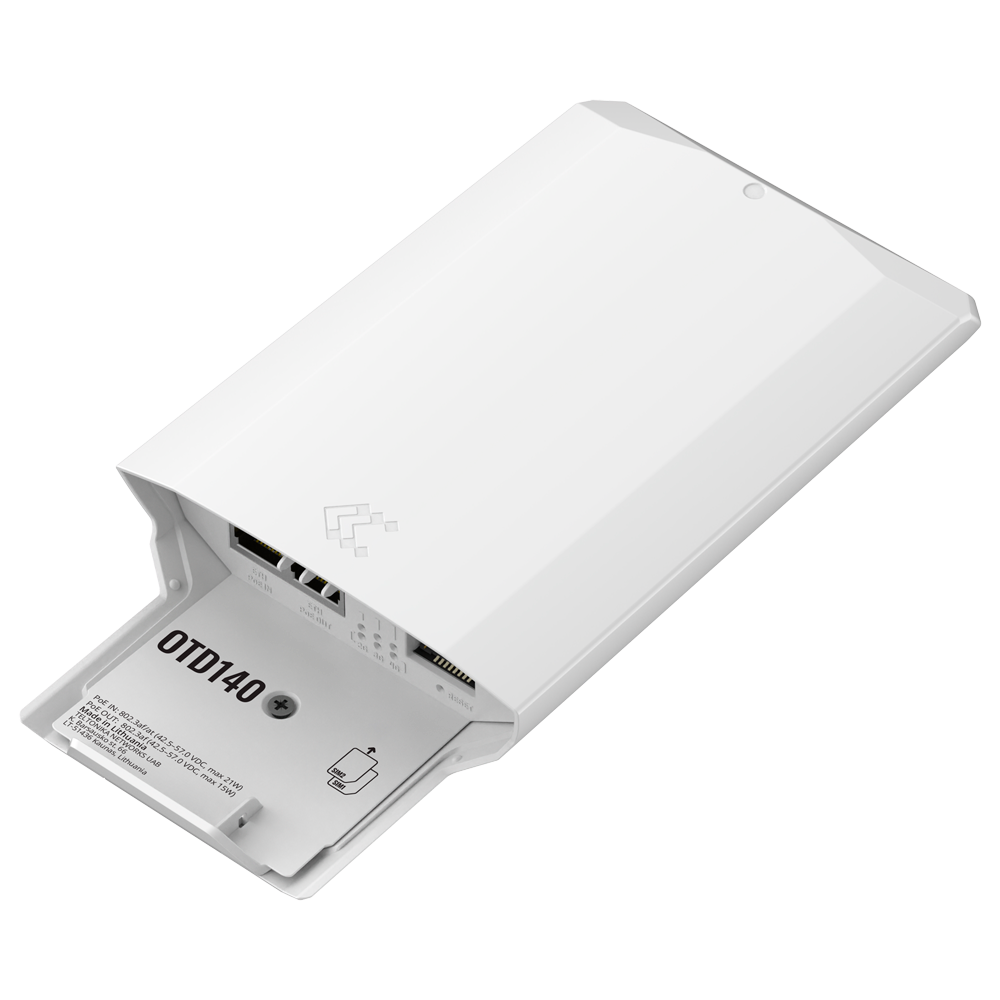

TK-OTD144

• Outdoor LTE router with 4G protection
• Speed 4G LTE Cat 4 up to 150 Mbps
• Integrated PoE-in power supply and PoE-out output
• Resilience with Dual SIM and automatic failover
• Versatile pole or wall mounting included
• Advanced support for VPN protocols and RutOS

The OTD144 is an industrial LTE router designed specifically for outdoor deployments that require high durability and reliable connectivity. With a rugged housing certified to IP67,, this device is completely dust- and waterproof, allowing it to be installed directly outdoors without the need for additional protective enclosures, making it easier to capture the best possible mobile signal. It is the perfect solution for remote video surveillance, infrastructure in rural areas, and monitoring of critical assets.

Its technical architecture is notable for its energy flexibility: The ETH1 port is powered via PoE-in, while the ETH2 port provides passive PoE-out to power IP cameras or other sensors. Equipped with Dual SIM for full redundancy and the RutOS operating system, the OTD144 ensures secure and professional network management, operating without interruption within a wide temperature range of -40 °C to 75 °C.

Remote Management (RMS): Compatible with Teltonika RMS for centralized and secure fleet management from anywhere. It enables real-time monitoring, remote access (RMS Connect), and bulk updates, reducing operating costs by eliminating the need for on-site visits.

• Router 4G LTE Cat 4 up to 150 Mbps DL

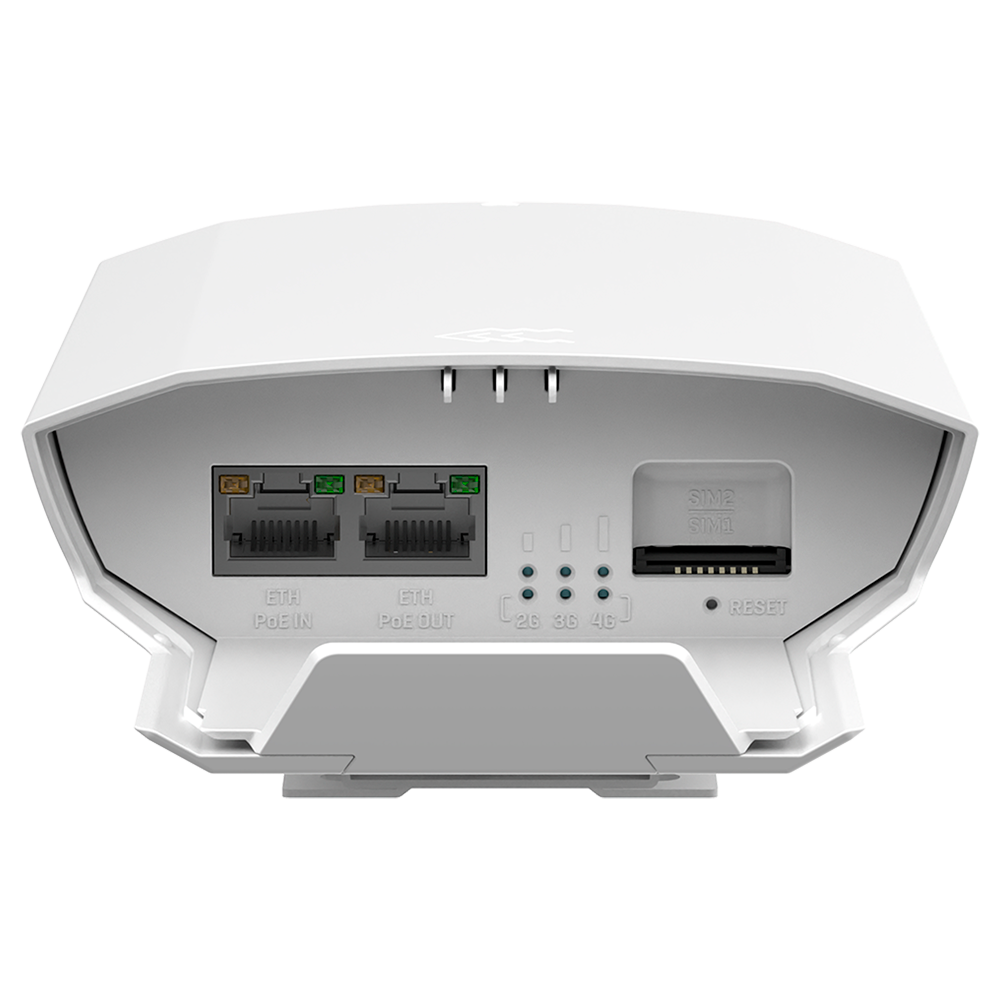

• 2 ports RJ45 Ethernet 10/100 Mbps
• Port ETH1 with PoE-in enabled (802.3af/at)
• Port ETH2 with passive PoE-out (up to 15W)
• Dual SIM slot (2FF) with automatic switching
• UV-stabilized plastic chassis, grade IP67
• Mediatek processor 580 MHz MIPS 24KEc
• RAM: 128 MB and Flash: 16 MB
• RutOS Operating System based on OpenWrt
• Support for MQTT, Modbus, and VPN protocols

Specifications

In the box

• 1x Router 4G OTD144
• 1x Mounting kit (pole and wall)
• 1x Quick Start Guide
