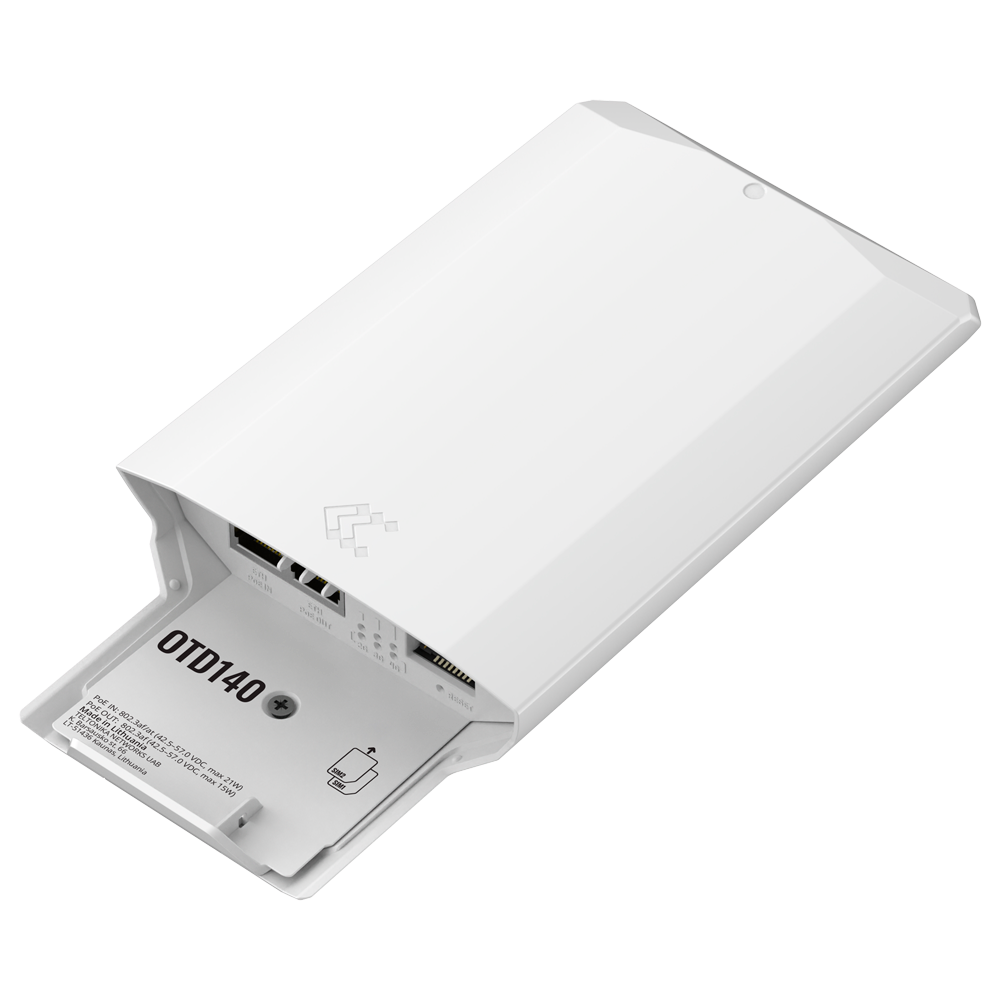

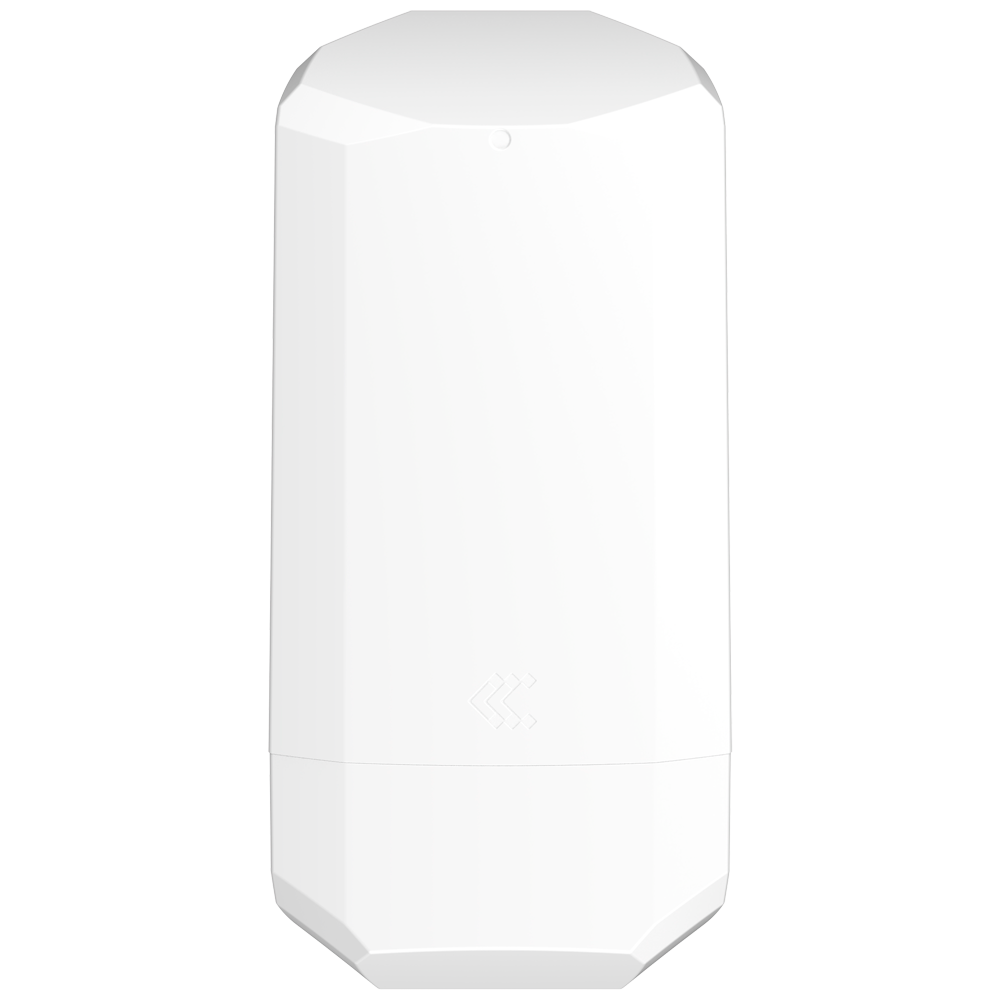

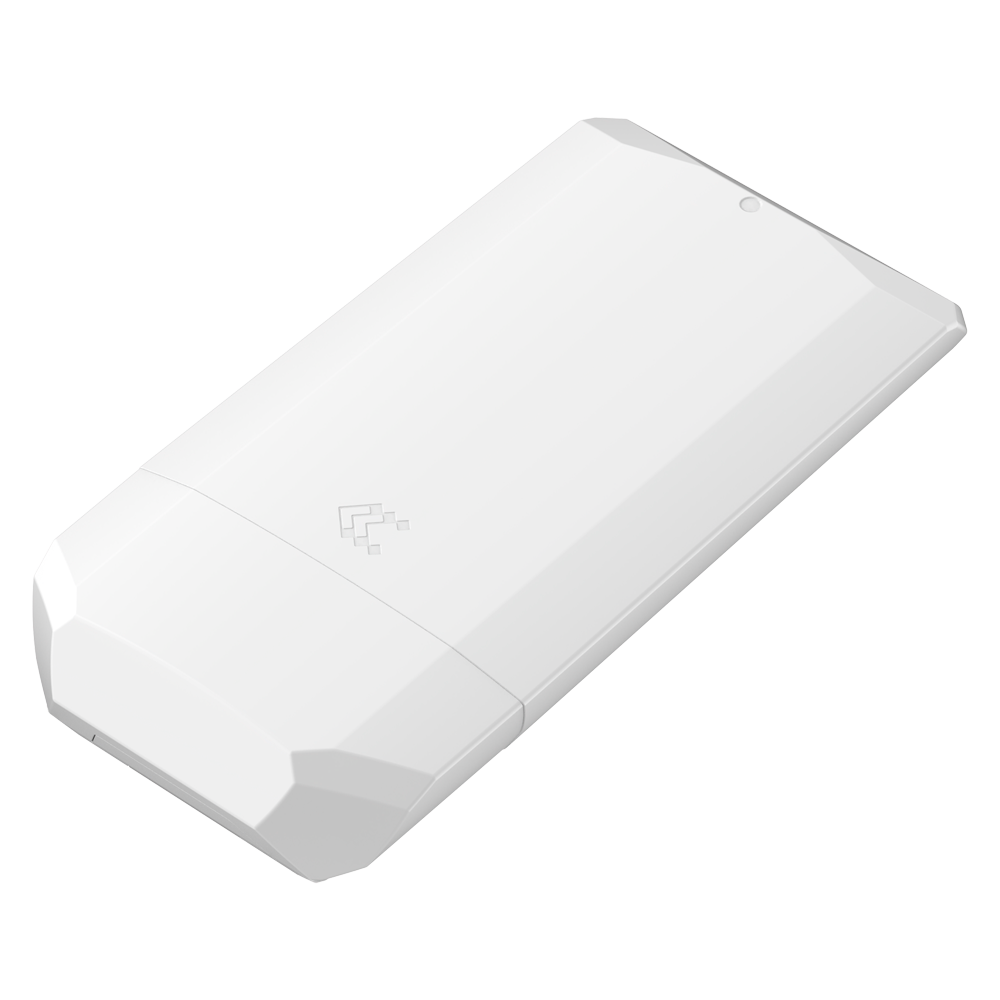

  • Teltonika Router 4G Industrial Outdoor
  • 2 Ethernet ports RJ45 Fast Ethernet
  • 4G (LTE) Cat 4 to 150Mbps
  • PoE Powered In 802.3af (42.5 - 57.0 VDC)
  • Degree of protection IP55
  • Dual SIM slot

The TK-OTD140 is an 4G Industrial Outdoor Router ideal for

Construction sites

Reliable connectivity for portable offices, trailers and CCTV cameras in rainy and dusty environmental conditions

Campgrounds and RV parks

Convenient connectivity for campers, parks and

motor homes and all other outdoor explorers

Remote outdoor surveillance

Suitable for all types of remote outdoor projects monitoring solar panels, pipelines, agricultural fields, offshore installations, etc.

Offers outstanding remote management features (RMS) and VPN functionality.

RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.

VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.


  • Router 4G Industrial Outdoor Router
  • 4G Cat4 / 3G / 2G
  • 2 SIM Slot
  • IP55
  • Dual Sim for Failover

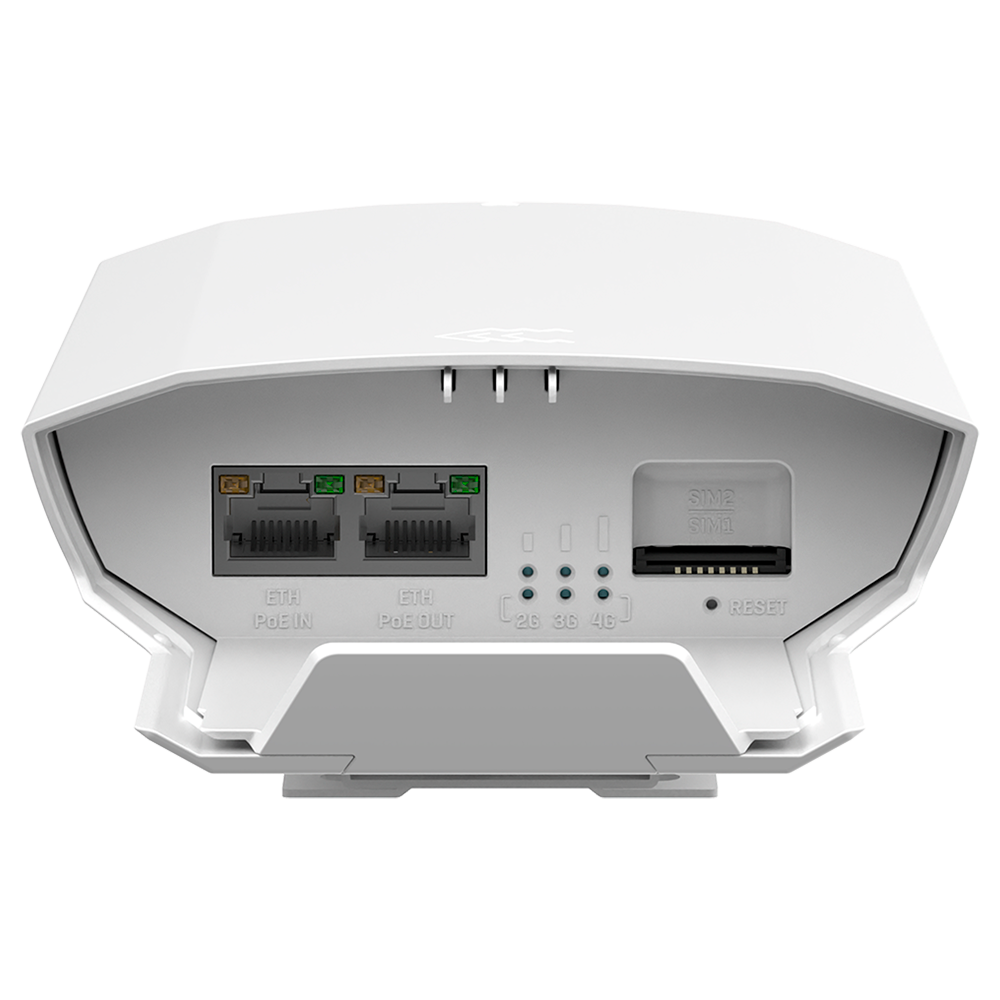

  • 2 Ethernet ports RJ45 Fast Ethernet
  • Powered by PoE In standards 802.3af/at
  • 1 PoE Out port
  • 4 x status LEDs

Specifications

Brand Teltonika
Device Router 4G Outdoor industrial
Ethernet 2 Ethernet ports RJ45 10/100Mbps (2x WAN/LAN)
PoE characteristics 802.3af Alternative B
Dual SIM format 2 x Mini SIM - 2FF
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128MB DDR2
Flash 16MB
Type of 4G Cat 4 to 150Mbps
Operating System RutOS (Based on OpenWRT)
Routing protocols BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routes
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP ,Telnet , SMPP, SNMP, MQTT, Wake On Lan (WOL), OPC UA, Azure MQTT, DNP3, DLMS
VPN Protocols OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
Monitoring and Management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, MODBUS
Cloud Solutions RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Services DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
Internal antennas 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3.5, ganancia <3 dBi, omnidirectional
1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3, ganancia <4.5 dBi, omnidirectional
Alimentación PoE In 802.3af/at (42.5–57.0 VDC), protección contra polaridad inversa, protección contra sobretensiones
Material Plástico (PC/ASA)
Temp. funcionamiento -40º C ~ +75º C
Humedad funcionamiento 10 ~ 90 % (no condensante)
Kit de Montaje Opcionales (No incluidos) Anclaje para montaje en poste incluido
Dimensiones 49.30 (Al) x 110 (An) × 235 (Fo) mm
Peso 855 g
Consumo eléctrico En reposo: < 2.5 W / Max: < 6 W / PoE Máximo < 21 W

In the box

  • Router 4G Industrial de Exterior
  • Anclaje Router
  • Instrucciones de uso
