TK-NTP001
TK-NTP001
- Teltonika Industrial GNSS NTP Time Server
- Precise Stratum synchronization 1 via GNSS
- NTPv4 protocols and Modbus TCP/RTU support
- Advanced security: PSK, X.509 and RADIUS
- 1 Ethernet port 10/100 and serial interfaces
- Remote management and RutOS based on OpenWrt

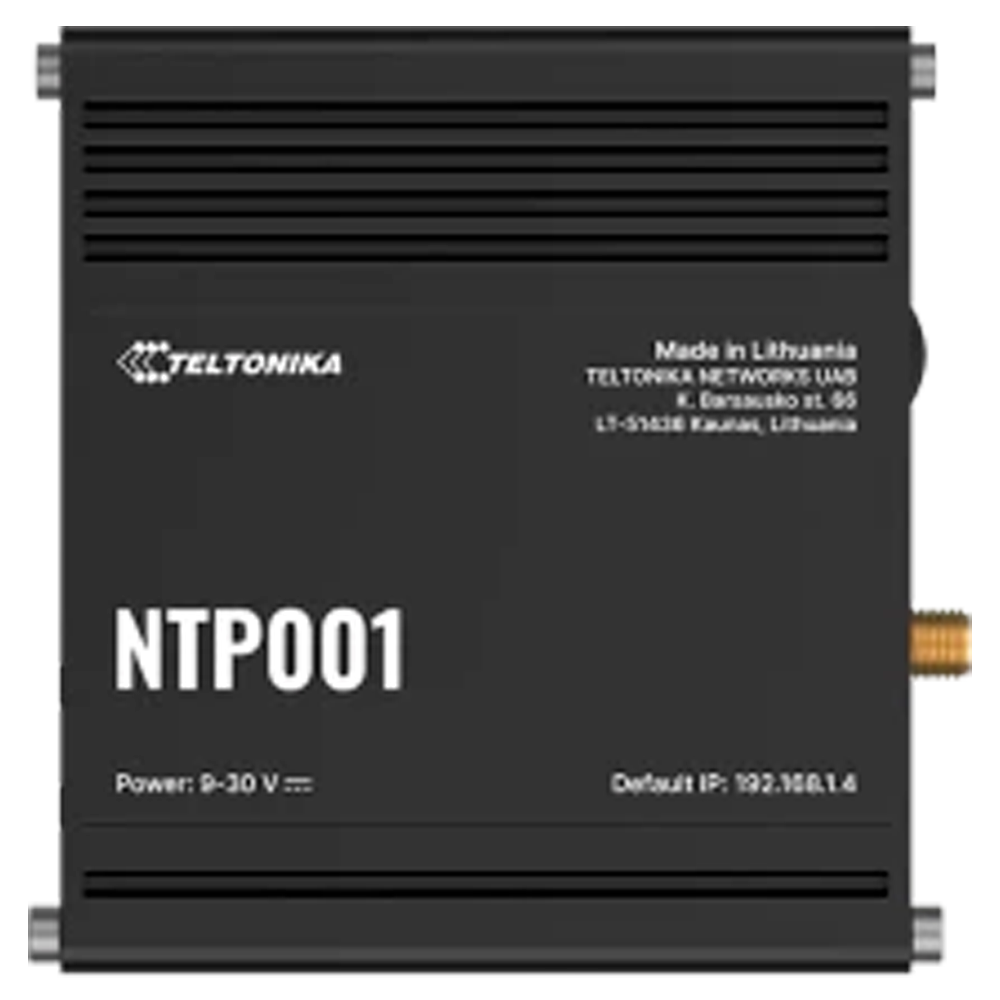

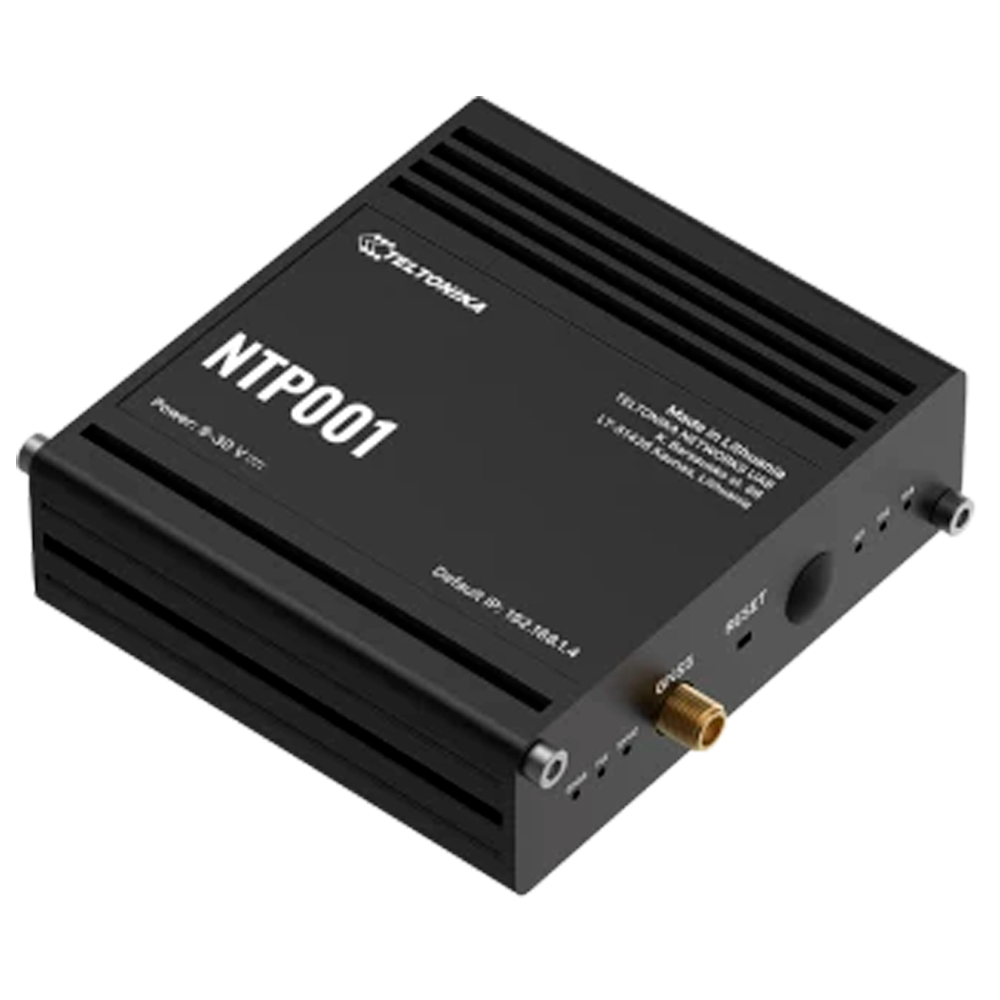

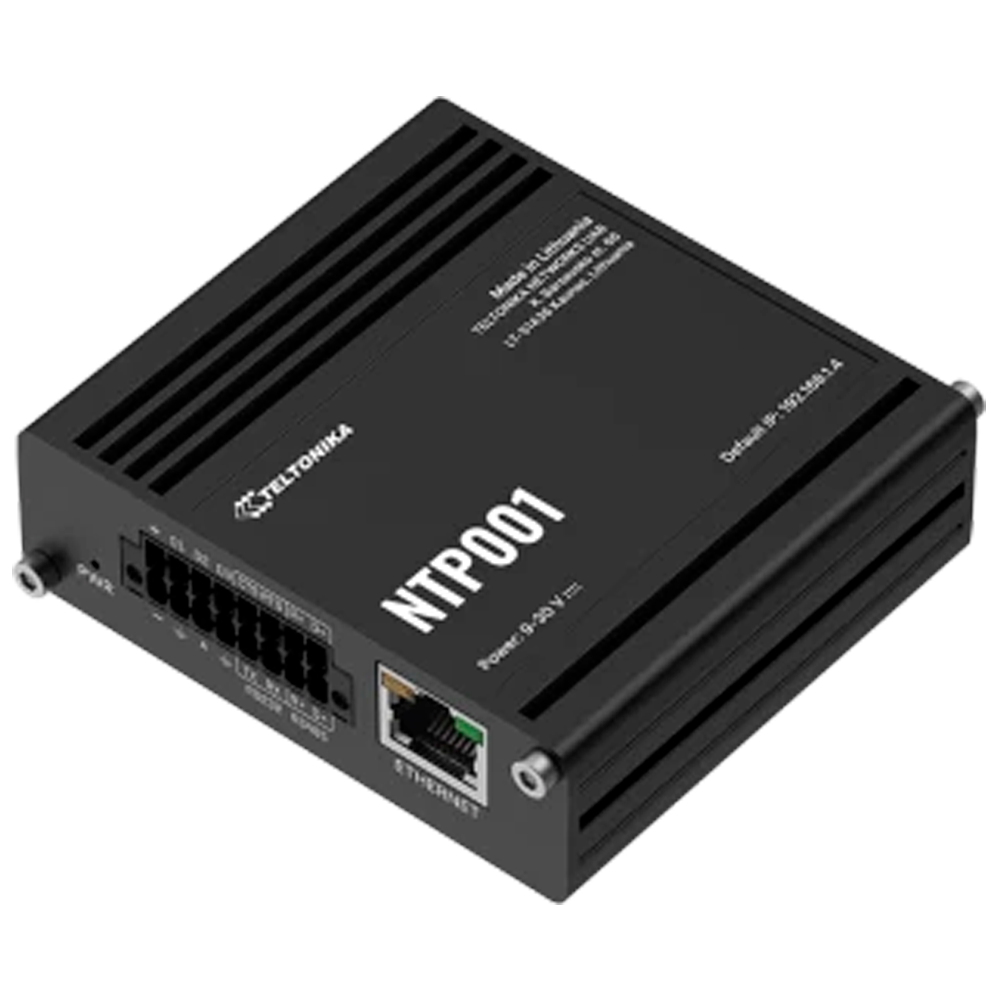

The ΝΤΡ001 is an industrial GNSS-based NTP time server designed to provide an extremely accurate and reliable time reference in mission-critical environments. When acting as a Stratum server, 1, receives time signals directly from satellite constellations to synchronize devices on local networks, making it a vital tool for sectors such as energy, utilities, and industrial automation, where the accuracy of data logging is critical to operational success.
Technically, the device is powered by the robust RutOS operating system, offering advanced network management capabilities and a comprehensive security suite that includes RADIUS authentication and X.509 certificates. Its compact hardware includes an Ethernet port, serial interfaces RS232/RS485, and configurable digital inputs/outputs, all housed in a ruggedized anodized aluminum enclosure that withstands extreme temperatures of up to 75°C. With a performance exceeding 300 NTP requests per second, it ensures seamless and secure time distribution in SCADA and telemetry infrastructures.
- GNSS NTP Industrial Time Server
- High-precision Stratum synchronization 1

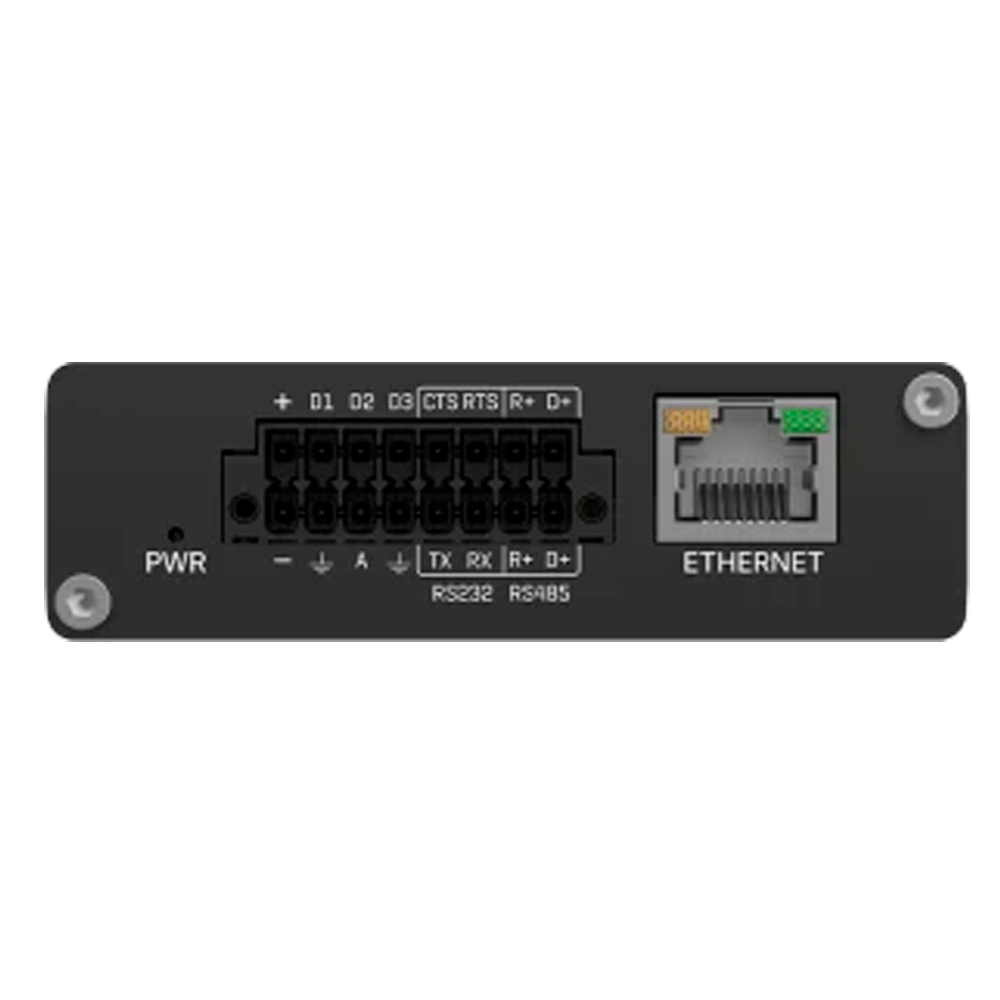

- 1 Port RJ45 10/100 Mbps integrated
- Performance >300 NTP requests per second
- RutOS Operating System based on OpenWrt
- Interfaces RS232 y RS485 (Terminal Block)
- Mediatek processor 580 MHz MIPS 24KEC
- RAM 128 MB and Flash 16 MB
- Extended voltage range from 9 to 30 VDC
- GNSS: GPS, GLONASS, Galileo, and BDS

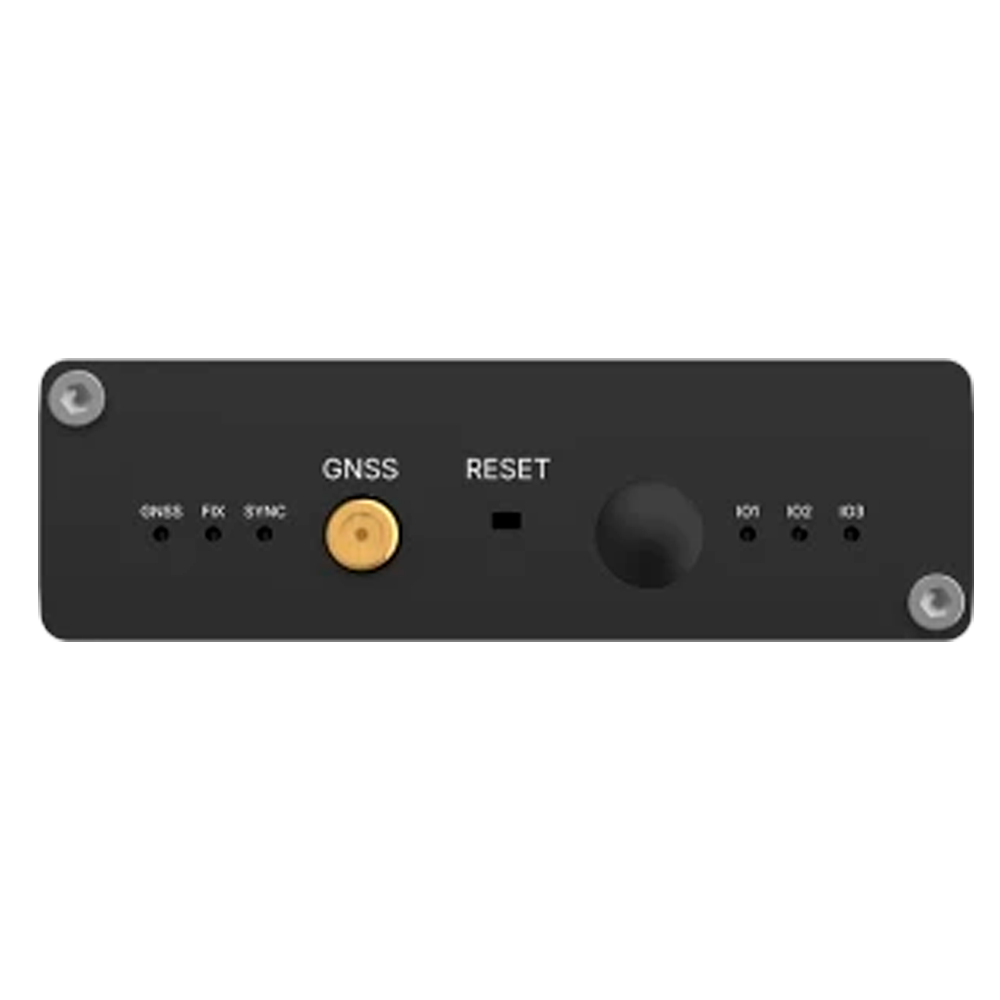

- Ruggedized chassis IP30 and status LEDs
Specifications
| Brand | Teltonika |
| Type of equipment | GNSS NTP Time Server |
| Installation | DIN rail, wall, or flat surface |
| CPU | Mediatek, 580 MHz, MIPS 24KEC |
| RAM | 128 MB, DDR2 |
| Flash | 16 MB, NOR Flash |
| Ethernet | 1 x RJ45 10/100 Mbps (auto MDI/MDIX) |
| NTP Protocol | NTPv4, Stratum 1 Time Server |
| NTP Accuracy | Ethernet NTP ±1ms global |
| NTP Performance | >300 requests per second |
| GNSS | GPS, GLONASS, Galileo, BDS |
| GNSS sensitivity | Receive -146 dBm, Transmit -157 dBm |
| Serial Interfaces | 1 x RS232 + 1 x RS485 (Terminal Block) |
| Digital I/O | 3 x Inputs + 3 x Outputs (Open Collector) |
| Analog Input | 1 x Analog input (Terminal Block) |
| Security | Pre-shared key, X.509, TACACS+, RADIUS |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| Modbus | Server/Client (RTU and TCP) |
| Operating System | RutOS (Linux-based OpenWrt) |
| Power | 9 - 30 VDC (terminal connector 2 pins) |
| Energy Consumption | Idle: < 2 W, Maximum: < 3.5 W |
| Energy Protection | Overvoltage, reverse polarity, voltage surge |
| Case | Anodized aluminum (Protection IP30) |
| Operating Temperature | -40°C to 75°C |
| Humidity at Work | 10% to 90% (no condensation) |
| Dimensions | 82.6 x 25 x 83 mm |
| Weight | 180 g |
| Colour | Black |
In the box
- 1x Time Server NTP001 GNSS
- 1x Terminal block with 16 pins
- 1x Quick Start Guide (QSG)
- 1x Shipping box
