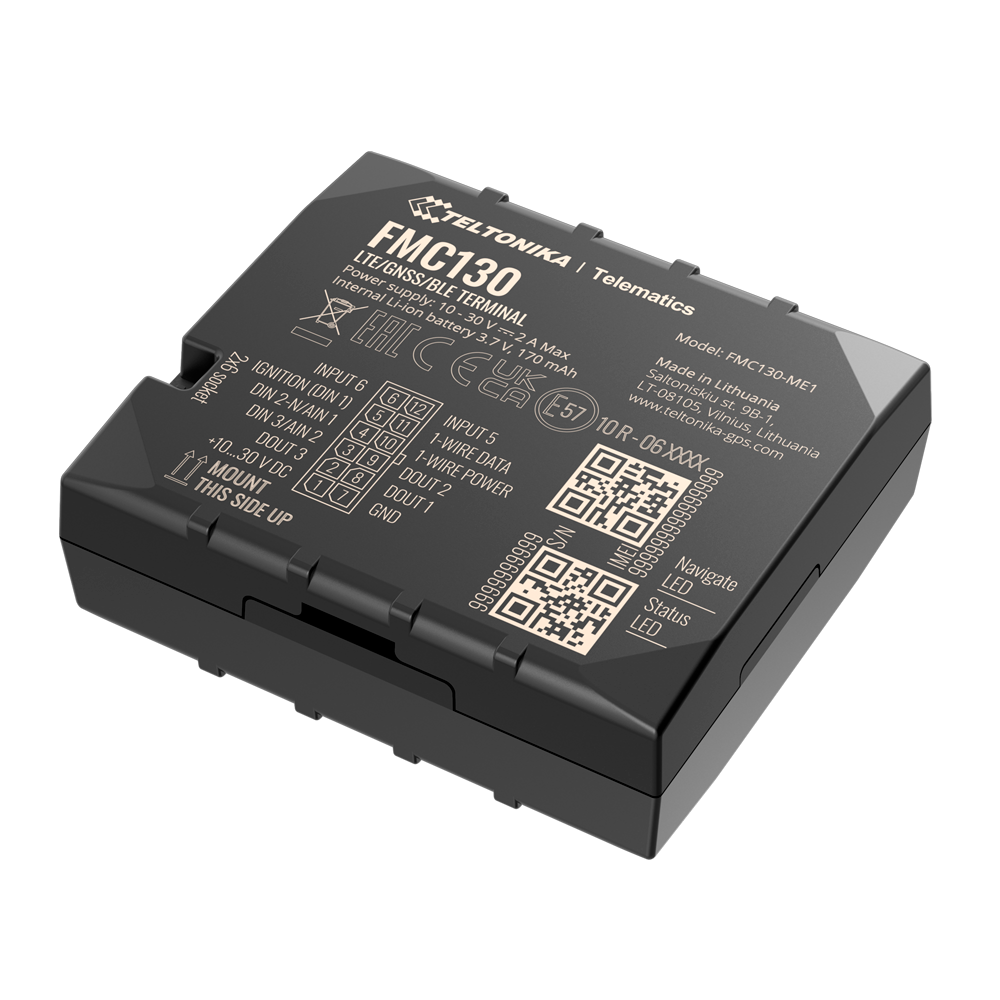

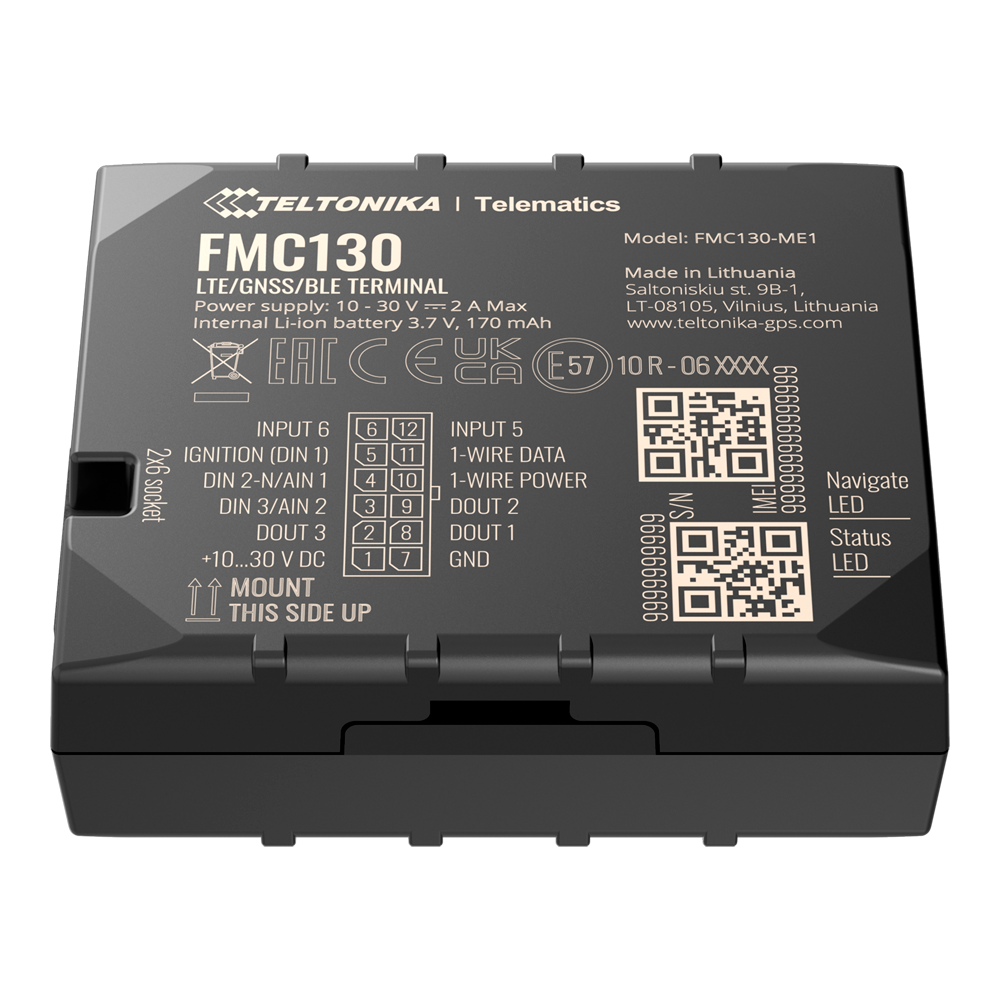

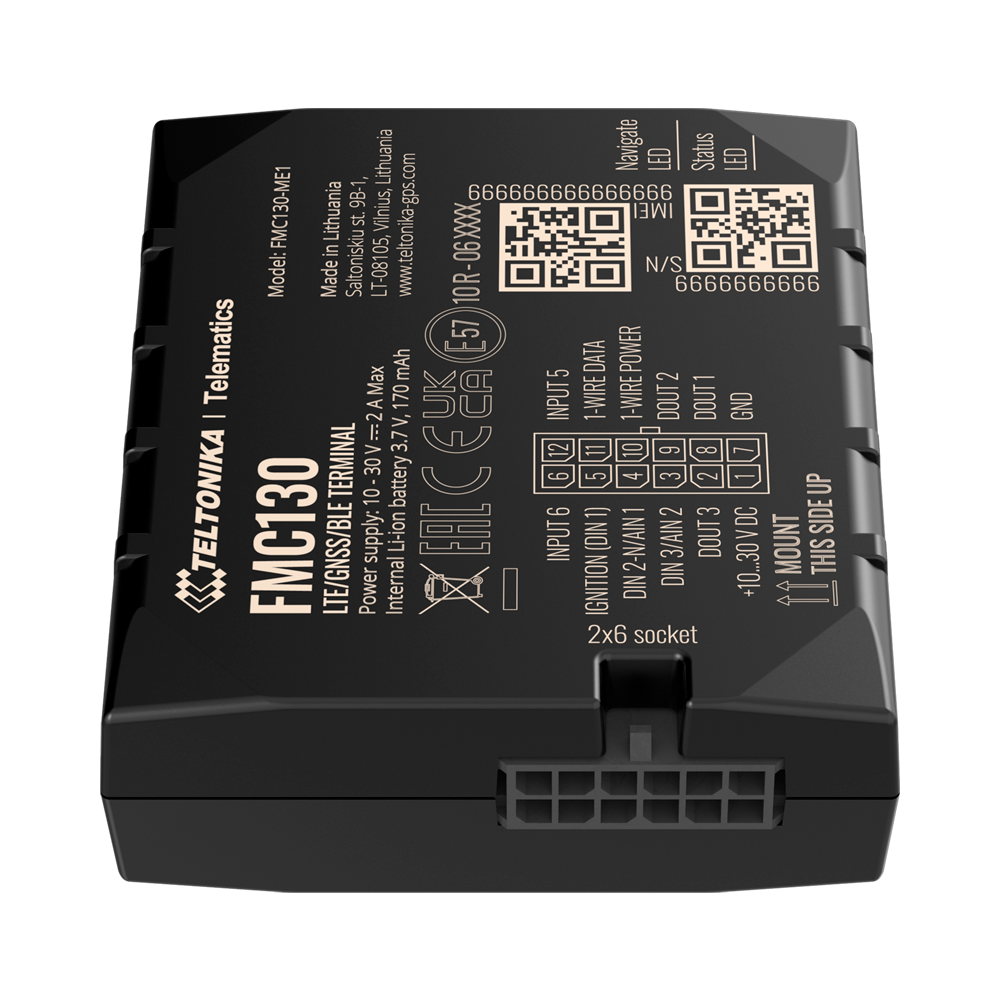

TK-FMC130
Ga direct naar de productinformatie
TK-FMC130
- Advanced vehicle tracker
- Internal wiring connection
- Installation concealed under dashboard
- 4G, 3G, 2G and BLE for TK-EYE
- Micro-SIM + eSIM
- D/A inputs and outputs
The TK-FMC130 tracker is a versatile GPS tracker with 4G connectivity and 2G backup. Offers advanced and configurable inputs/outputs and support for external sensors. Its flexible design makes it ideal for fleet management, trailer monitoring, logistics and commercial vehicle security, allowing integration with accessories such as iButton identifiers, engine start input or temperature sensors.
- Teltonika
- Tracker for vehicles
- Installation of internal vehicle wiring
- Connectivity 4G (LTE CaT1), 3G (UMTS/HSPA), 2G (GSM/GPRS) and Bluetooth LE 4.0
- GNSS positioning
- Internal antennas
- Micro-SIM + eSIM and Micro-USB slot 2.0
- LED indicators
- Digital and analog inputs and outputs
- Power supply DC 10-30 V
- Integrated battery
- Integrable with AIKO fleet management platform
- AIKO-LICENSE required for use
- SIM card required for use
Specifications
| Brand | Teltonika |
| Model | FMC130 |
| Installation | Connection of internal vehicle wiring |
| Positioning | GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Mobile connectivity | 4G (LTE CaT1), 3G (UMTS/HSPA), 2G (GSM/GPRS) |
| Bluetooth connectivity | BLE 4.0 for TK-EYE |
| Interface connections | 1 x Micro-SIM + eSIM, 1 x Micro-USB 2.0 (configuration) |
| Indicators | Status and connectivity LEDs |
| Sensors | Accelerometer |
| Inputs | 3 x Digital Input (2 configurable to Analog Input): negative and impulse 1 x CAN adapter input 1 x Input 1-Wire |
| Outputs | 3 x Digital Output |
| Functions | Efficient driving, Overspeed, Forced shutdown, Collision detection, Energy-saving modes, Immobilizer, Anti-inhibit |
| Configuration and management | FOTA Web, Teltonika Configurator (USB and BLE) |
| Power | DC 10-30 V with overvoltage protection Battery 3.7 V / 170 built-in mAh |
| Material | Plastic |
| Protection | Suitable for indoor use (IP41) |
| Temp. operation | -40 ºC ~ +85 ºC |
| Operating humidity | 5% ~ 95% (no condensation) |
| Dimensions | 65 (W) x 56.6 (H) x 20.6 (D) mm |
| Vehicle management | Suitable for integration with AIKO fleet management platform |
| Recommended scenarios | Fleet management, Heavy vehicles, Refrigerated vehicles, Vehicle pooling |
In the box
- Teltonika Tracker
- Connector with cables
