THERMTEC-QS650
Ga direct naar de productinformatie

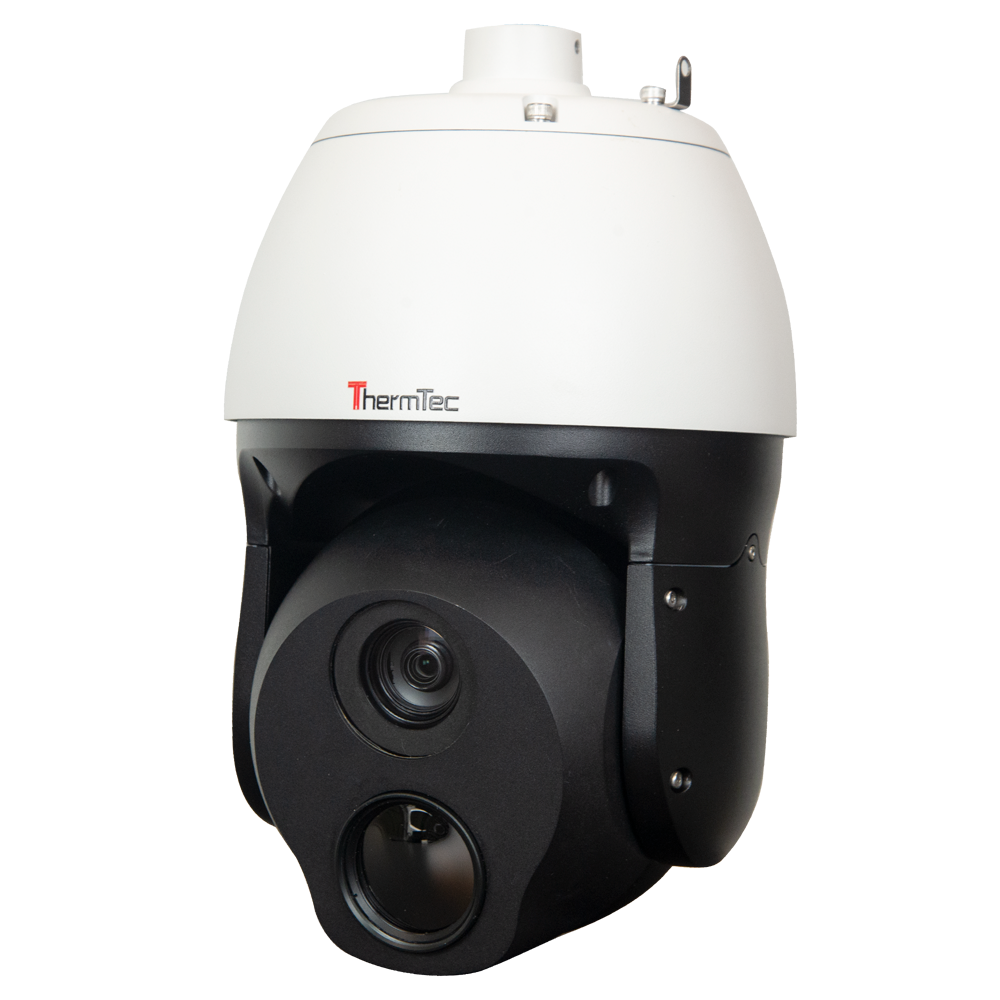

THERMTEC-QS650
- ThermTec High Speed PTZ Dual IP thermal camera
- temperature sensor 640x512VOx - lens 50mm
- visible sensor 2MPx - lens 5,5 - 180mm
- Thermal sensitivity ≤35mK
- Thermal accuracy ± 8ºC
- Intrusion and temperature detection
- ThermTec
- Dual High Speed PTZ IP Thermal Camera
- Thermal sensor 640x512/12µm VOx
- Thermal Lens 50mm
- Spectral range 8~14µm
- Thermal sensitivity ≤35mK
- Visible sensor 2MPx
- Visible lens 5,5-180mm
- H.265 / H.264
- RJ-45 10/100M BaseT
- Alarms
- Temperature detection and alarm
- ONVIF Compatible
Specifications
| Brand | ThermTec |
| Thermal sensor | 640x512/12µm VOx |
| Spectral range | 8 ~ 14µm |
| Optical sensor | 2 MPx 1/2.8" Progressive Scan CMOS |
| Main Stream rate | 1280x720, 768x576, 640x480, 384x288, 352x288 (25fps)(term) / 1920x1080, 1280x720 (25fps)(vis) |
| Sub Stream Rate | 768x576, 640x480, 384x288, 352x288 (25fps)(term) / 1280x720, 768x576, 640x480 (25fps) (vis) |
| Compression | H.265 / H.264 |
| Lens | 50mm (term)/motorized autofocus 5,5 ~ 180mm (vis) 33X |
| Angle | H: 8,8º (term) / H: 60.5° - 2.3° (vis) |
| Pan/Tilt Range | Horizontal: 0°~360° (without end), Vertical: 110° (-20° ~ +90°) |
| Manual speed | Horizontal: 0.01°~60° /s, Vertical: 0.01°~30° /s |
| Actuator | Stepper motor |
| Repeatability | ±0.01° |
| Preset positions | 200 preset |
| Thermal sensitivity | ≤35mK |
| Range of Detectable Temperatures | -20 ℃ to 150 ℃ ( from -4 ℉ to ℉ 302 ) |
| Accuracy | ± 8ºC |
| Image improvements | AGC, NUC, IDE, HDE, DNR |
| Detection ranges | Human detection (1.8x0.5 m): 2083 m Detection of vehículo(4x1.4 m): 5833 m Human Recognition (1.8x0.5 m): 521 m Vehicle recognition (4x1.4 m): 1458 m Person ID (1.8x0.5 m): 260 m Vehicle identification (4x1.4 m): 729 m |
| Intelligent functions | Temperature detection, motion detection |
| Audio | 1 input / 1 output |
| Alarms | 1 Output / 1 Input |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS-485 |
| Remote access | WEB interface, VMS |
| Interoperability | ONVIF, SDK, CGI |
| Power | 12 VDC / 5A / 30W |
| Temp. operation | -20º C ~ +60º C |
| Degree of protection | IP66 |
| Dimensions | 230mm x 430mm |
| Weight | 8Kg |

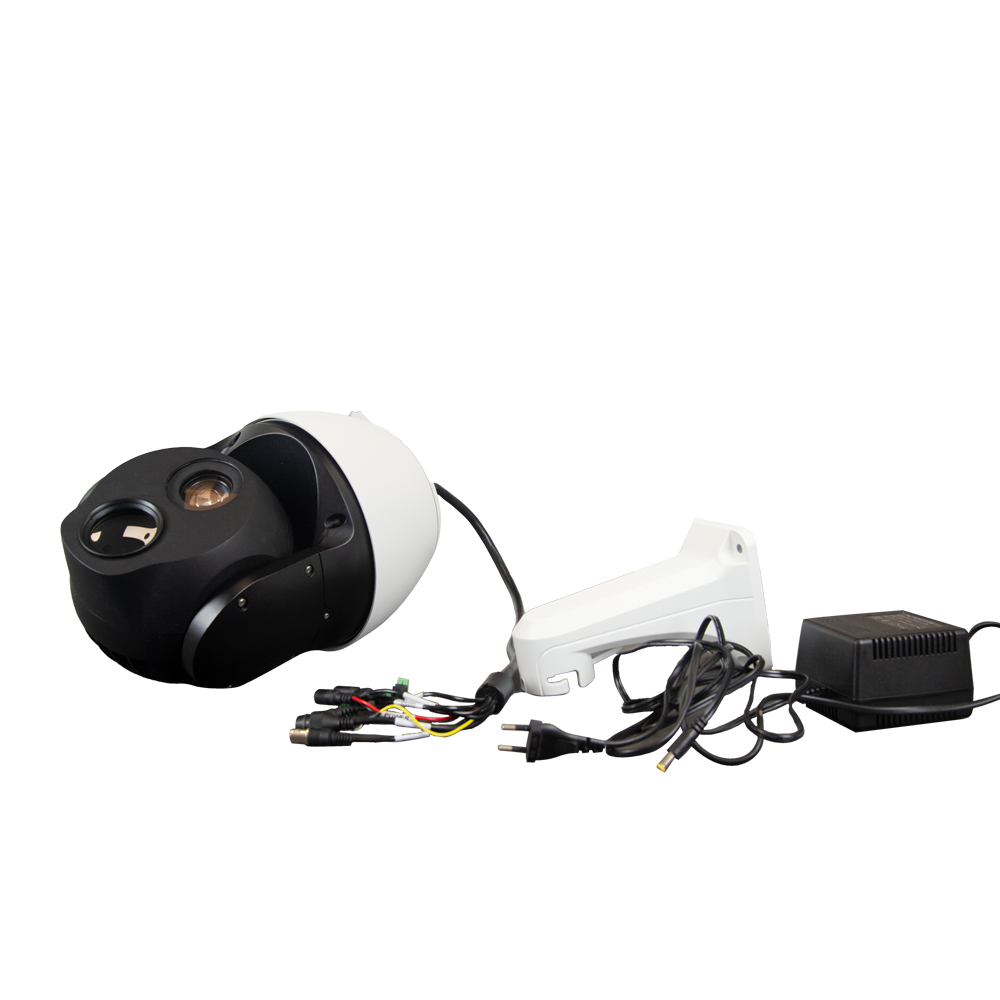

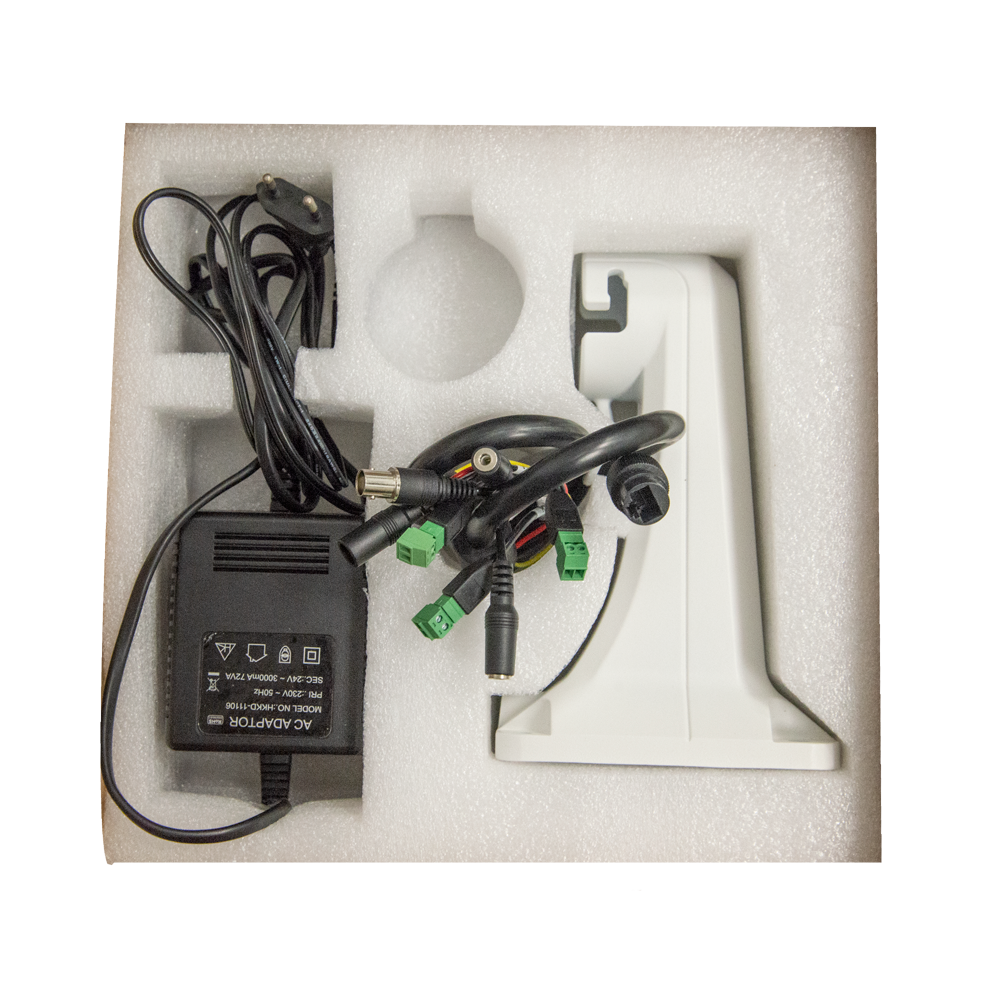

In the box
- Dual High Speed PTZ IP Thermal Camera
- Power supply 24V DC
- Installation material
- User instructions
