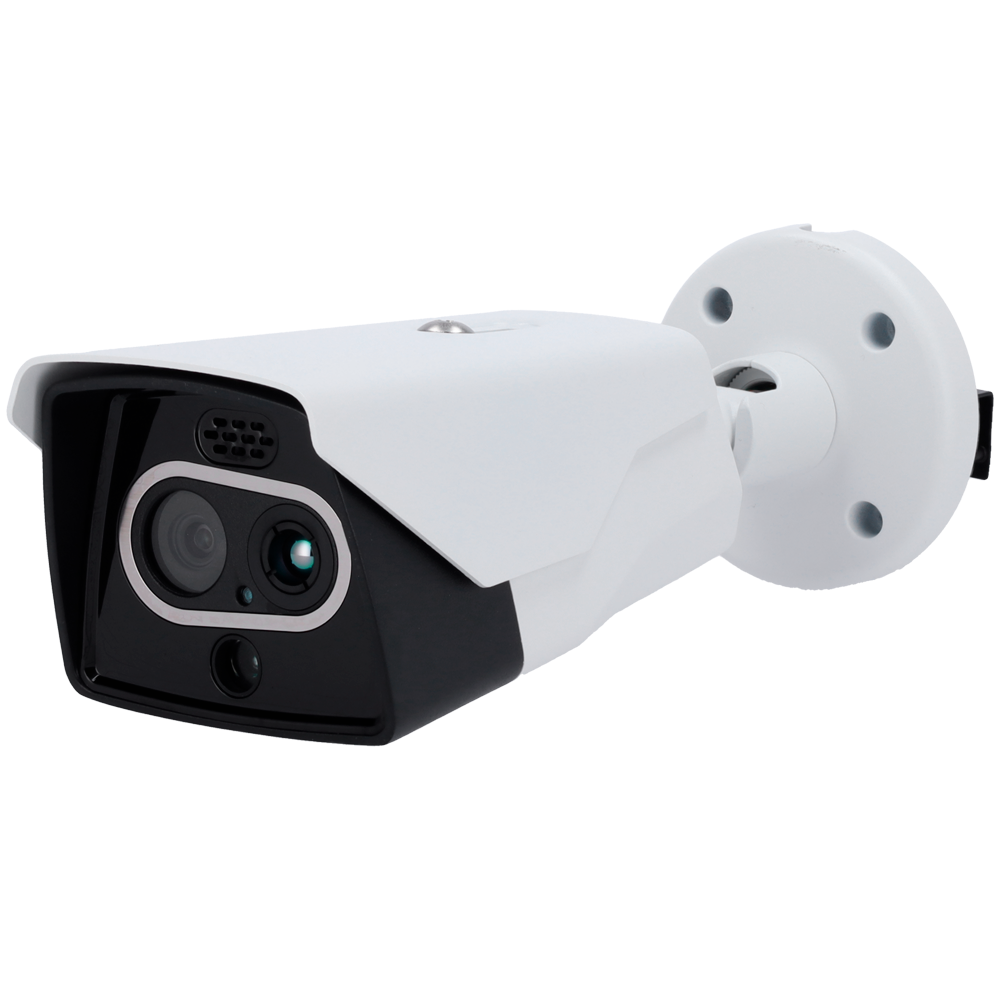

THERMTEC-HM207
Ga direct naar de productinformatie
THERMTEC-HM207
- Thermtec IP thermal camera HM2 series
- VOx FPA thermal sensor 256x192 12μm |Lens 7mm
- Visible 1/2.8" CMOS sensor 4Mpx Lens 6mm
- Thermal sensitivity ≤35mK
- Temperature measuring range -20ºC~150º/±8ºC
- Temperature measurement, fire detection, VCA
- Thermtec
- Biespectro Thermal Bullet IP Camera
- Thermal sensor 256x192 VOx FPA uncooled
- Pixel size 12μm
- 7mm lens
- Temperature measurement range -20ºC~150ºC (±8ºC)
- Thermal sensitivity ≤35mK
- Visible sensor 4Mpx 1/2.8" Progressive Scan CMOS
- 6mm lens
- H.265/H.264
- RJ-45 10/100 BaseT
- DC12V / PoE IEEE802.3af
- Alarm
- WEB interface, Thermtec VMS
- ONVIF Compatible
- Weatherproof IP66
- TVS 6000V lightning protection
Specifications
| Brand | Thermtec |
| Range | HM2 |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 256 x 192 |
| Pixel pitch | 12μm |
| Thermal lens | 7mm |
| Thermal sensitivity | ≤35mK |
| Thermal measurement range | -20ºC~150ºC / ±2ºC |
| Spectral range | LWIR 8~14μm |
| Thermal viewing angle | 24,8° (H) x 18,6° (V) |
| Visible sensor | 1/2.8" Progressive Scan CMOS |
| Visible sensor resolution | 2592 x 1536 (4Mpx) |
| Visible lens | 6mm |
| Infrared illuminator | 20m. maximum |
| Main Stream rate | Visible: 25fps (2592×1536, 1920×1080, 1280x720) Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Sub Stream Rate | Visible: 25fps (1280x720, 768x576, 640x480, 352x288, 256x192) Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Compression | H.265 / H.264 |
| VCA | Motion detection, line crossing, intrusion, area entry/exit Fire detection and temperature measurement |
| Temperature rules | Point, line and area, multiple rules simultaneously |
| Alarms | 1 input / 1 relay |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, Thermtec VMS software |
| Interoperability | ONVIF, API, SDK |
| Power | DC 12V, 3W max. PoE IEEE802.3af |
| Temp. operation | -20ºC~+75ºC, <95% RH |
| Grado de protección | Impermeable IP66 TVS 6000V protección rayos |
| Dimensiones | 277mm × 92mm × 90mm |
| Peso | ≤1.6Kgr |
In the box
- Cámara térmica dual IP Thermtec HM2 series
- Material de instalación

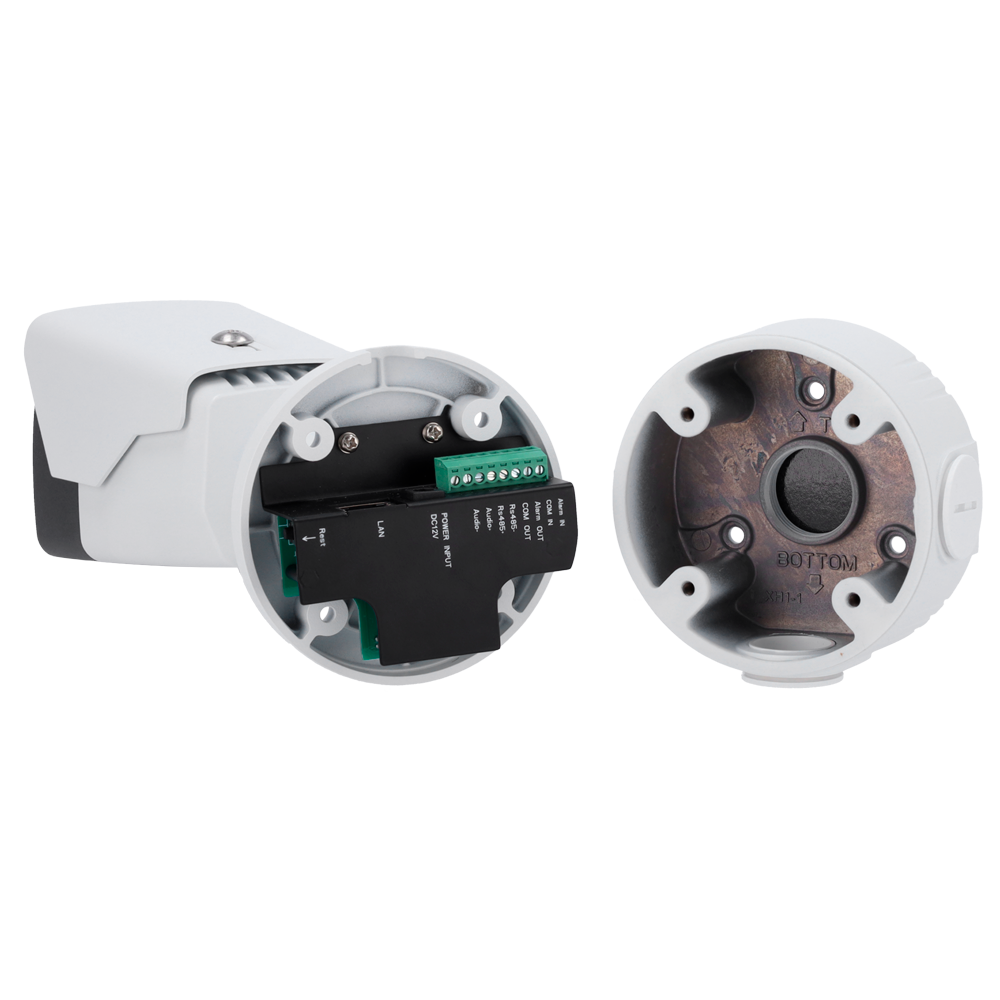

- Caja de conexiones
