TF-FDTR1
- Test equipment for optical and heat detectors
- Articulated extraction head
- Activation of automatic stimulation
- Ecological smoke liquid
- Maximum height of 3.6m
Test and extraction equipment for optical smoke and thermal detectors. The kit is equipped with a sturdy and extremely light extruded aluminum modular rod, extendable up to a maximum height of 3,6 m. The upper part of the rod can alternatively be fitted with the terminal element equipped with the extraction head or the stimulation head for optical and thermal equipment
- TECNOFIRE
- Test equipment for optical smoke and heat detectors
- Power supply: rechargeable battery
- Maximum height of 3.6m
- Articulated extraction head
Specifications
| Brand | Tecnofire |
| Extraction head | Adjustable hitch diameter and fittings for universal adaptability |
| Stimulation activation | Automatic (proximity sensor) |
| Diffuser nozzle orientation | 90° with respect to the rod |
| Stimulation of optical detectors | Smoke jet |
| Stimulation of thermal detectors | Hot air jet; Temperature >80°C |
| Optical detector cleaning function | Air jet |
| Stimulation time | Approx. 5 seconds |
| Ecological smoke liquid | Vegetable glycerin |
| Tank Capacity | 100ml |
| Rechargeable battery | 7.4V 2200mAh |
| Electrical autonomy for detector testing | Optical 400...700; Thermal >400 |
| Total extension | 3.6m |
| Pole weight | 2kg |
| Suitcase weight | 6.5kg |

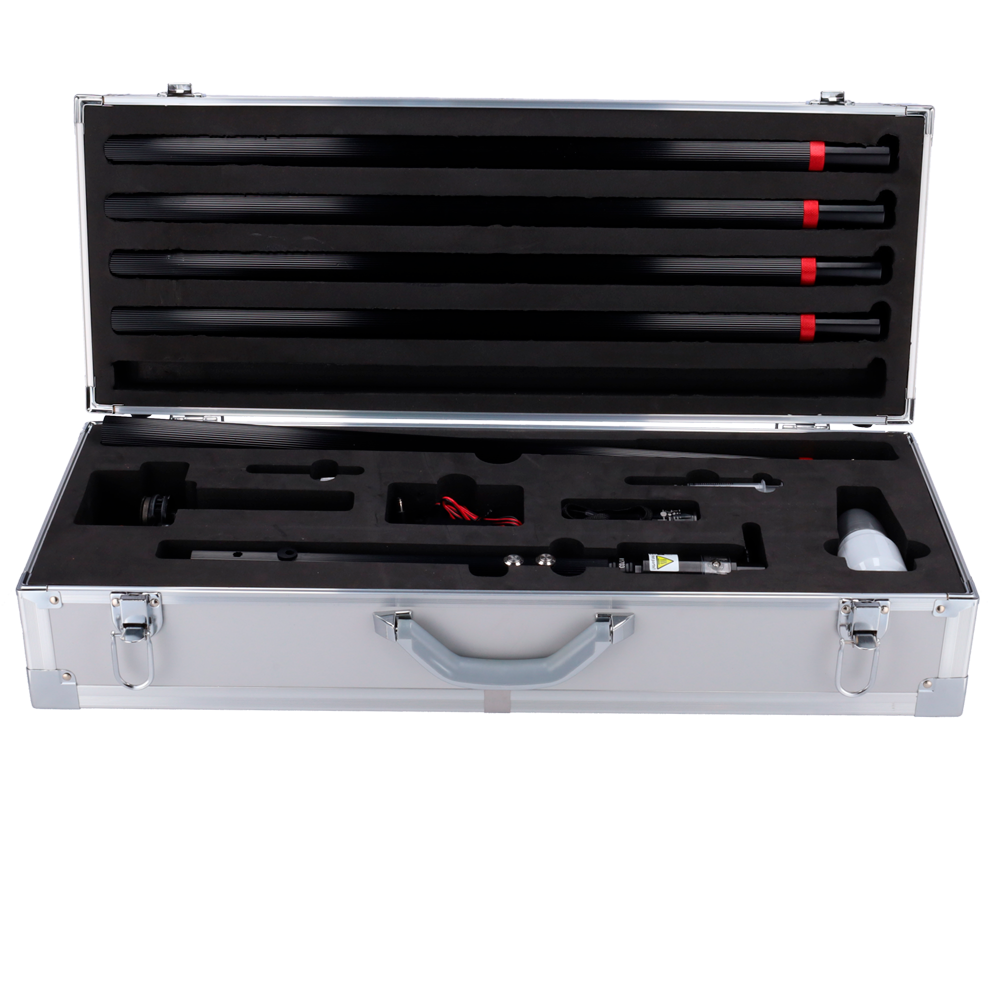

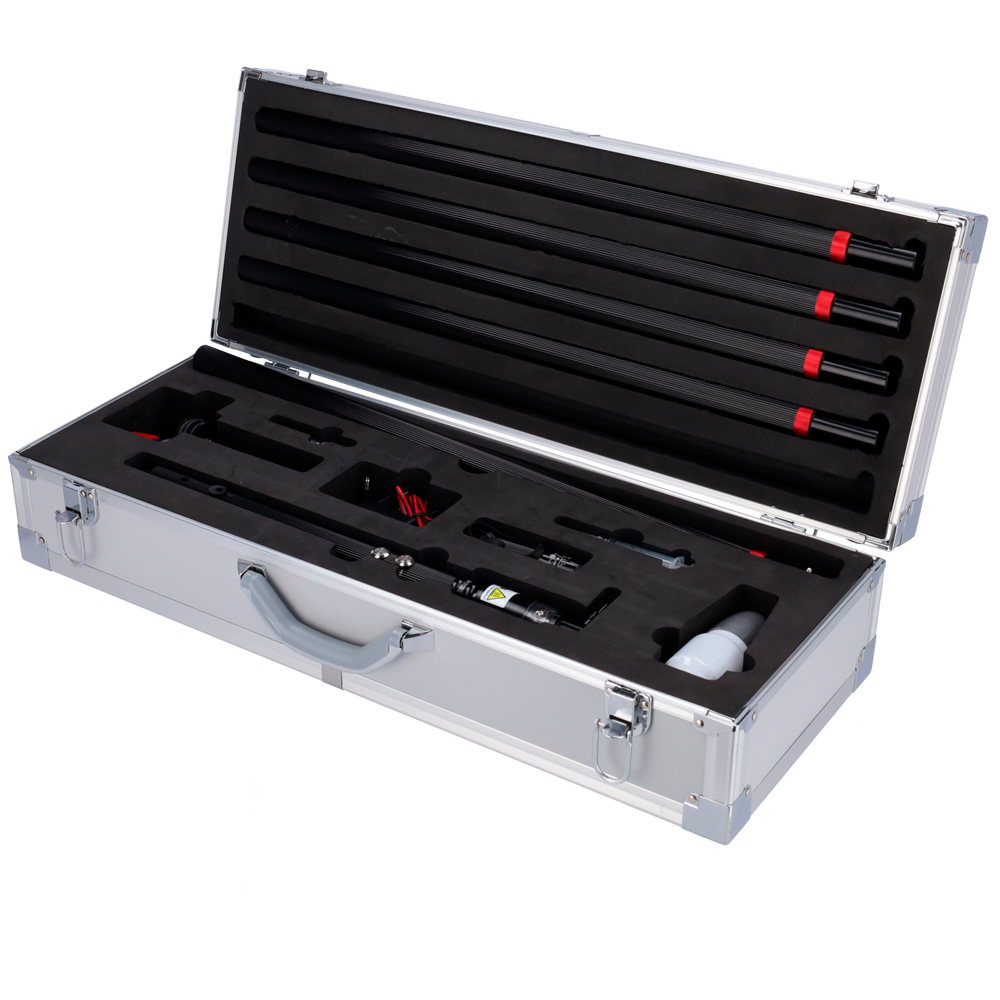

In the box
- TF-FDTR1
- 1 stimulation head module
- 5 x extension modules
- 1 grip module
- Extraction head
- Refill bottle and syringe
- Flashlight
- Adapters
- Power supply
