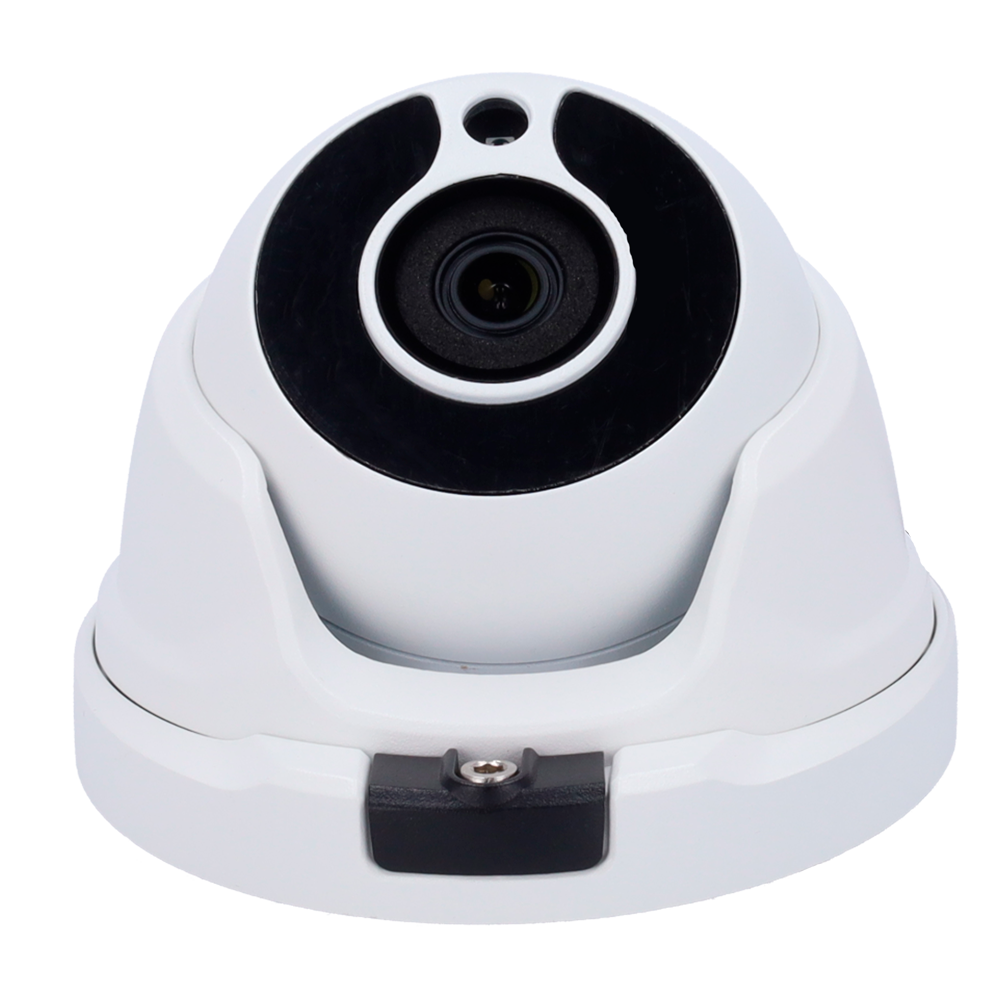

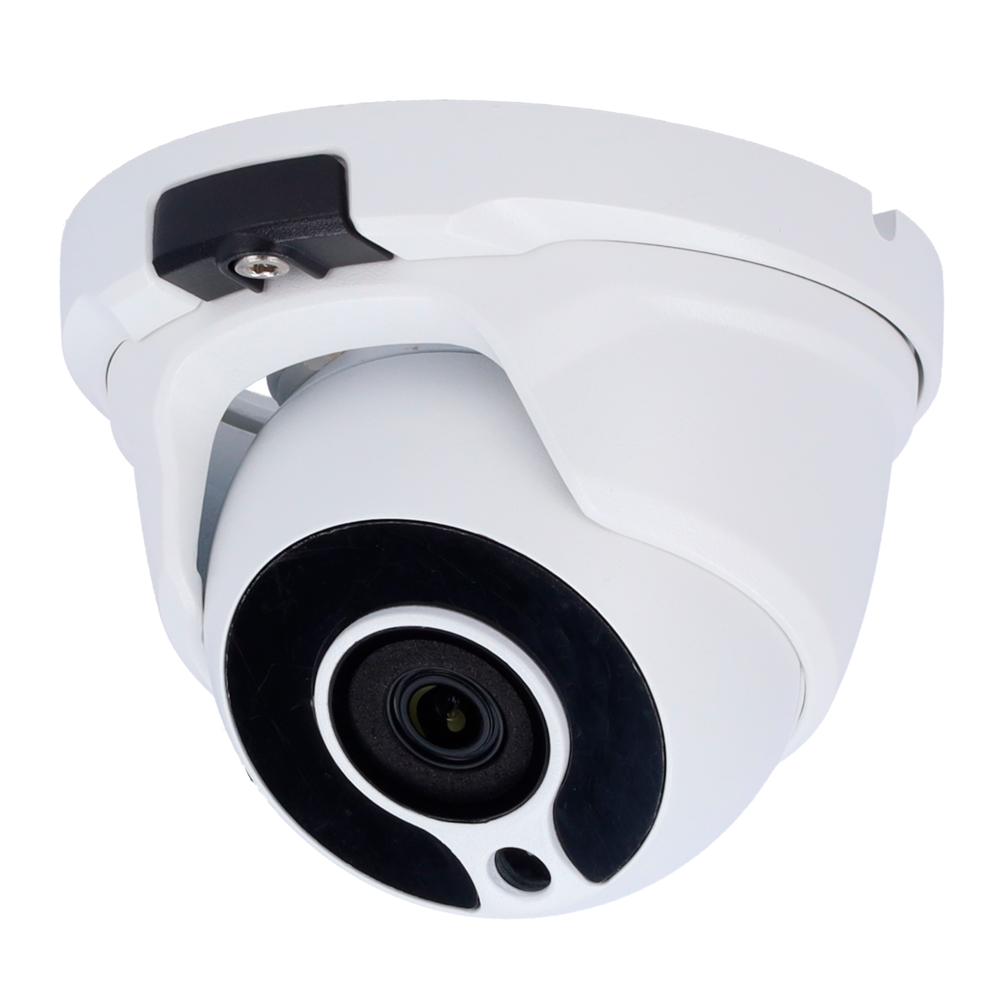

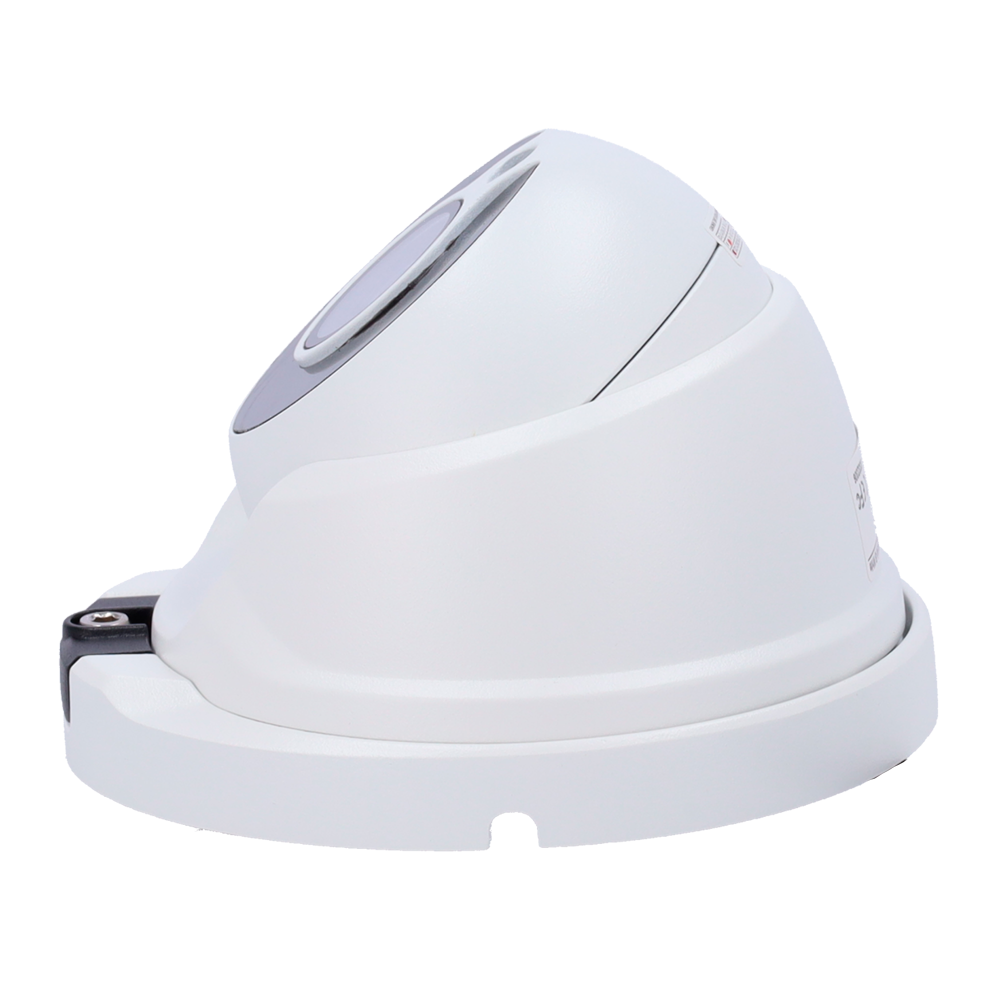

T941-B-2E
Ga direct naar de productinformatie
T941-B-2E
- Turret Camera ECO Range
- Output 4 in 1 / Resolution 2 Mpx (1920x1080)
- 1/2.9" CMOS
- 3.6 mm Lens
- IR Matrix LEDs IR Matrix LEDs Range 25 m
- Weatherproof IP67
- Turret HDTVI, HDCVI, AHD and Analog Camera
- ECO Range
- 1/2.9" CMOS
- 2 Mpx (1920x1080)
- Output 4in1
- 3.6 mm Lens
- 0 Lux
- IR Matrix Range 25 m
- 3-DNR
- IR Cut
- Weatherproof IP67
Specifications
| Range | ECO |
| Image sensor | 1/2.9" CMOS |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR Matrix LEDs (range 25 m) |
| Day / Night | Auto / Color / BW (black and white) |
| Video output | AHD/ CVI/ TVI(AoC)/ CVBS |
| Basic functions | OSD Menu |
| Configurable OSD functions | DWDR, 3D DNR |
| Alarm | Does not have |
| Audio | Coaxial (TVI only) |
| Power | DC 12 V / 450 mA |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -10º C ~ +60º C |
| Material | Metal and plastic |
| Dimensions | 96.99 (W) x 75.22 (H) mm - PENDING |
| Base diameter | 105 (Ø) mm x63 |
| Weight | 300 g |
In the box
- Turret Camera 4N1
- Installation material
- User instructions
