SW1008POE-H-800M-120W
Ga direct naar de productinformatie
SW1008POE-H-800M-120W
- PoE Switch
- 8 PoE FE + 2 GE ports
- Speed 8 x10/100Mbps + 2 x10/100/1000Mbps
- 8 PoE+ ports for up to 800m with attachment
- Up to 120 W of Total PoE Power
- Norm IEEE802.3at PoE / af PoE+
- Desktop Switch
- 8 PoE+ ports RJ45 10/100 Mbps + 2 Gigabit RJ45 ports
- PoE+ Ports 30W 802.3af/at
- Supports PoE power supply up up 120W in total for all ports

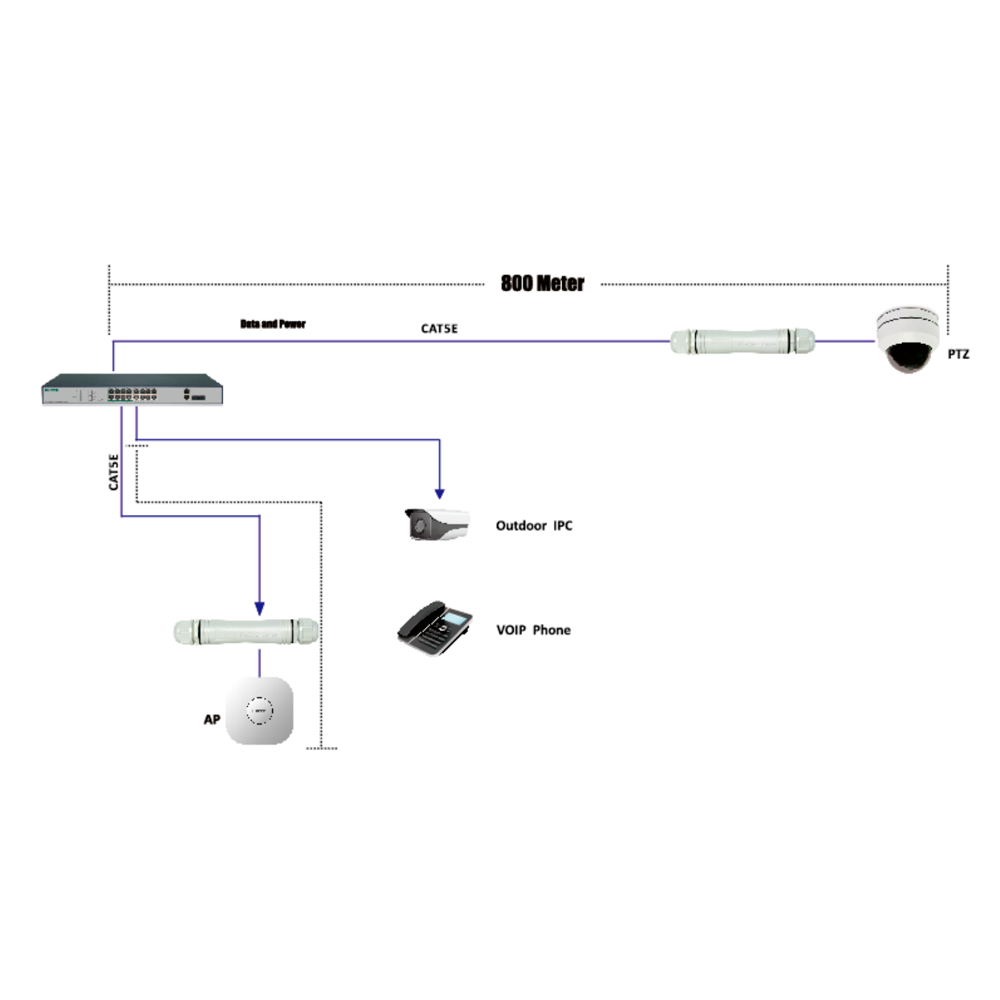

- The 1~8 ports are PoE Long Range ports and allow up to 300 meters to 100Mbps (with Extender) and 800 meters to 10Mbps
- VLAN mode
- PoE Watchdog
Specifications
| Interface | 8 PoE ports RJ45 + 2 Gigabit Ports |
| Port speed | 8 x10/100 + 2 x10/100/1000 Mbps |
| Power supply | Ports 1~8: PoE+ Up to 30W per port Ports 1~8: PoE+ Long Range Reach up to 250 meters to 100Mbps and provide between 19,64 and 17,56W (with extender). They reach up to 800 meters to 10Mbps and provide between 7,38 and 6,67W but will require the use of the POE-EXT01-800M-IP67 accessory Up to 120W of total PoE power |
| PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Switching Capacity | 5.6Gbps |
| MAC Table | 8K |
| Jumbo Frame | 9216Byte |
| Packet Buffer | 4 Mbit |
| Operating Modes | VLAN (Isolated Port) / Default (Normal Mode) / CCTV (Extended Mode 250m)) |
| Operating temperature | 0º C - 40º C |
| Power | AC 100 V - 240 V |
| Installation | Desk / Rack |
| Dimensions | 220 (D) x 44 (H) x 150 (W) mm |
| Racking | 1U |
| Weight | 1,88 Kg |
In the box
- PoE Switch
- Power supply cable
- User instructions
- Rack installation brackets
