STK-TC639-T3
Ga direct naar de productinformatie
STK-TC639-T3
- Thermal camera with collision detection
- Thermal detection range 50m
- Weatherproof IP69K
- Dual visible and thermal camera
- Connector M12 of 4 pins

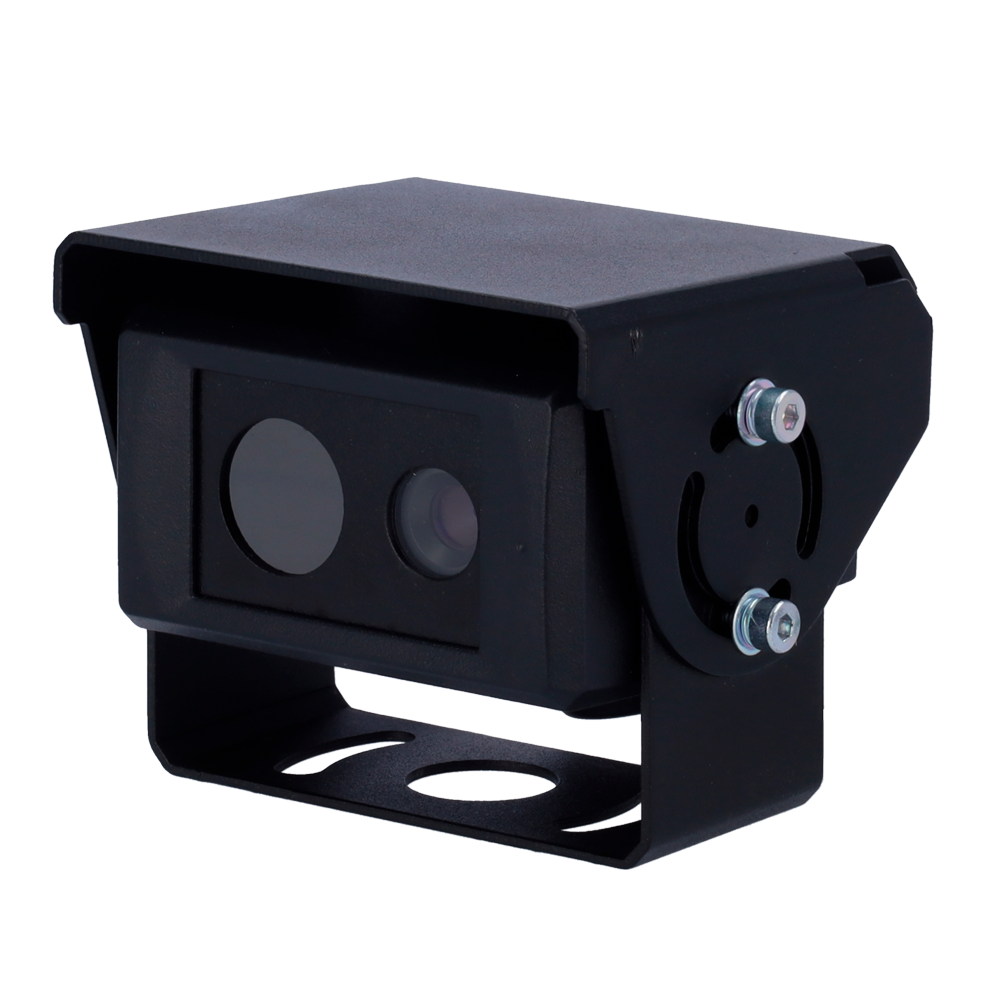

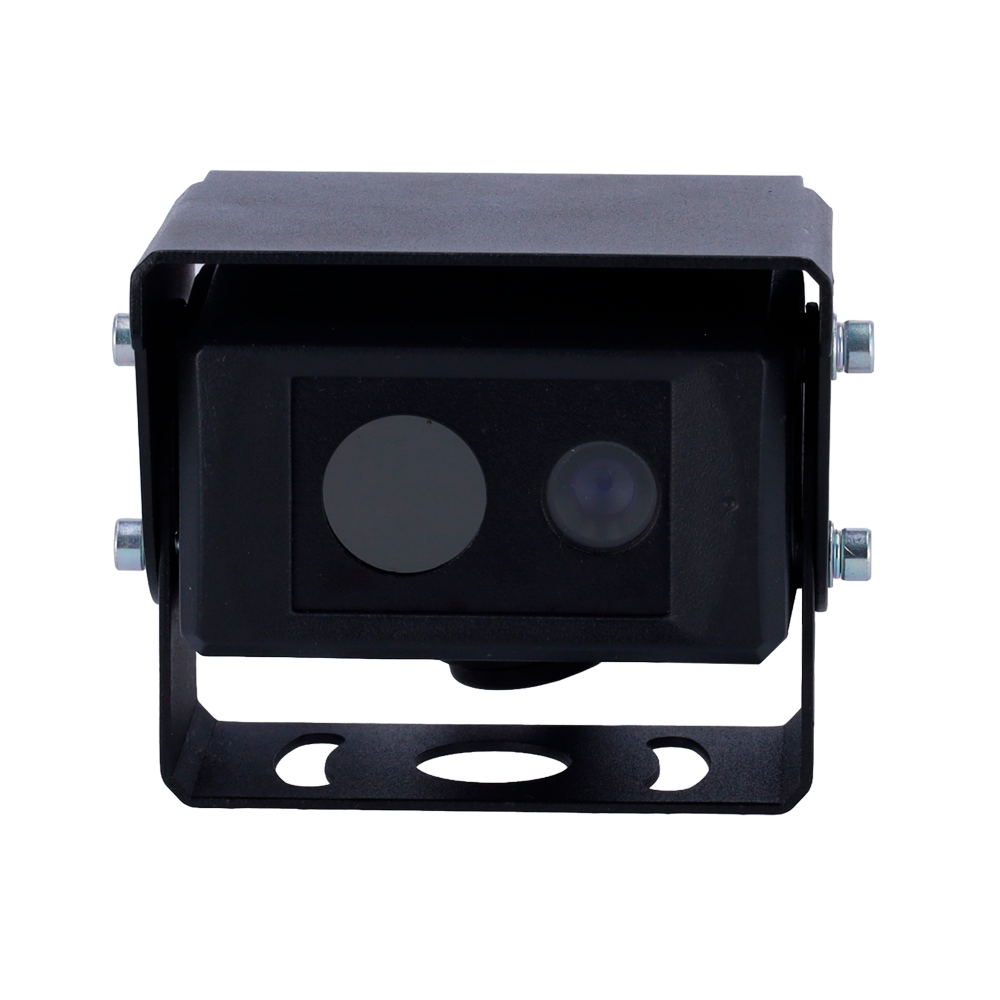

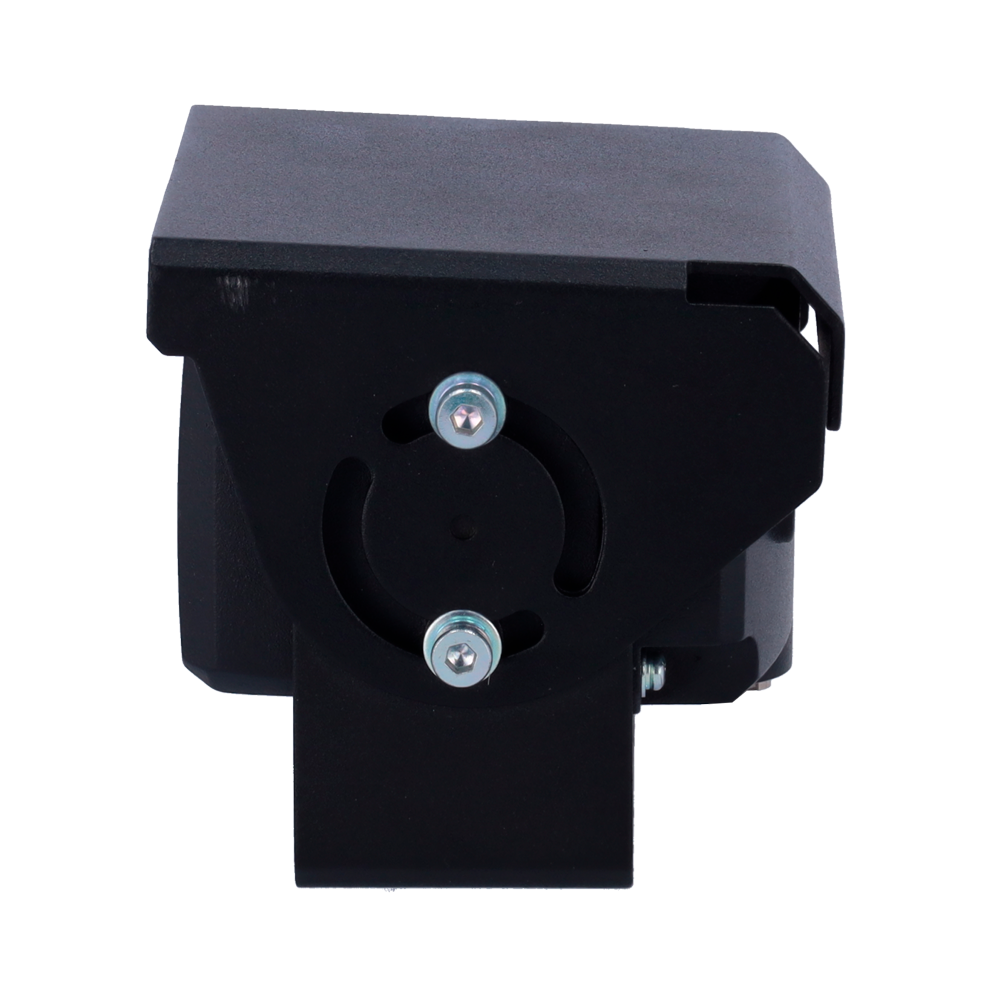

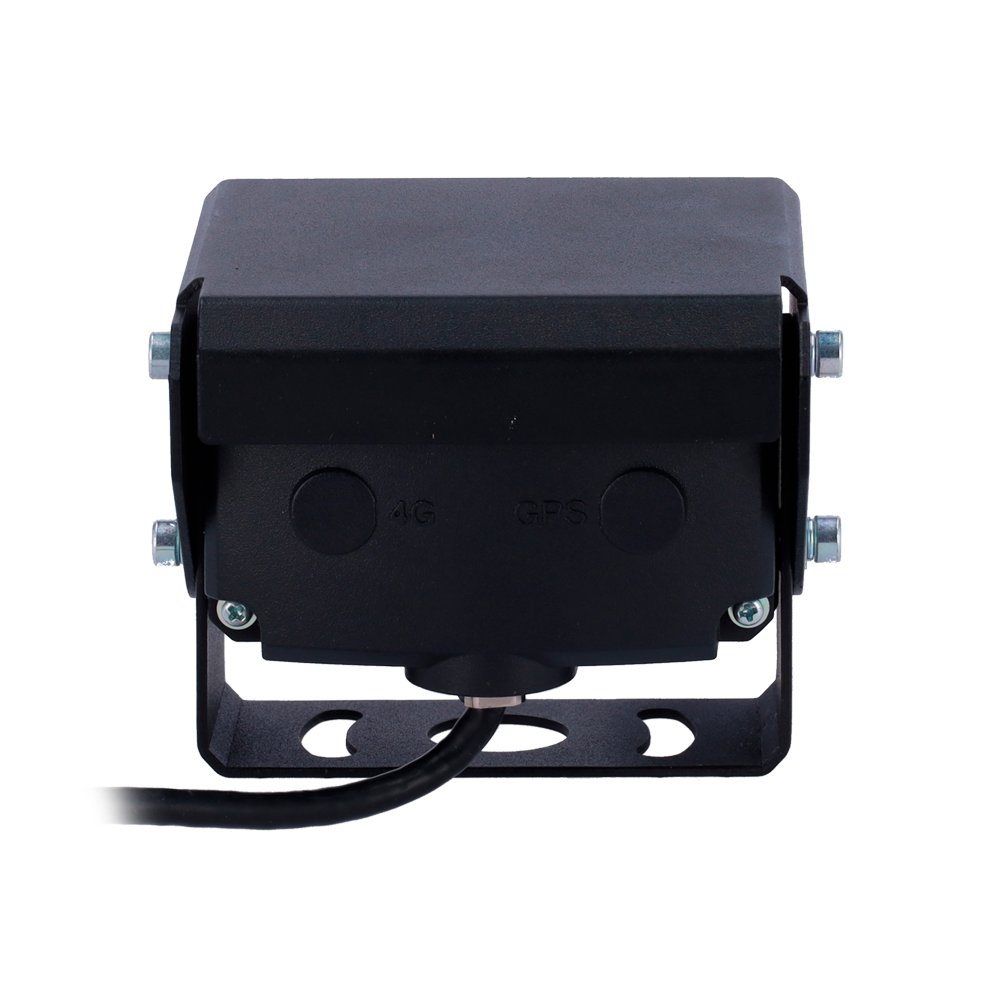

In-vehicle thermal camera with AI collision detection. Dual visible and thermal lens with detection range down to 50 meters. Waterproof IP69K, requires STK-AC575 tool for configuration. Horizontal viewing angles of 28º in thermal and 40º in visible. Resolution 2MP on visible.
- Thermal camera with collision detection
- Thermal detection range 50m
- Weatherproof IP69K
- Dual visible and thermal camera
- Connector M12 of 4 pins
Specifications
| Protection | IP69K |
| Analytics | collision detection of people and vehicles |
| Detection range | 50 meters |
| Viewing Angle | 28º in thermal 40º on visible |
| Photograms | 25 FPS |
| Resolution | 384x288/25f (thermal module) 1920x1080p/30f (module AI) |
| Video output | 2MPx AHD connector M12 4 pins |
| Dimensions | 98 x 73 x 74(mm) |
| Weight | 576g |
| Audio output | alarm output via monitor or MDVR |
| USB | Calibration tool port STK-AC575 |
| Working temperature | –20℃ ~ 70℃, RH95%MAX. |
| Storing temperature | –30℃ ~ 80℃, RH95%MAX |
| Power | DC10~32V |
| Lens | 9.1mm (thermal) 8mm (AI Visible) |
In the box
- Camera

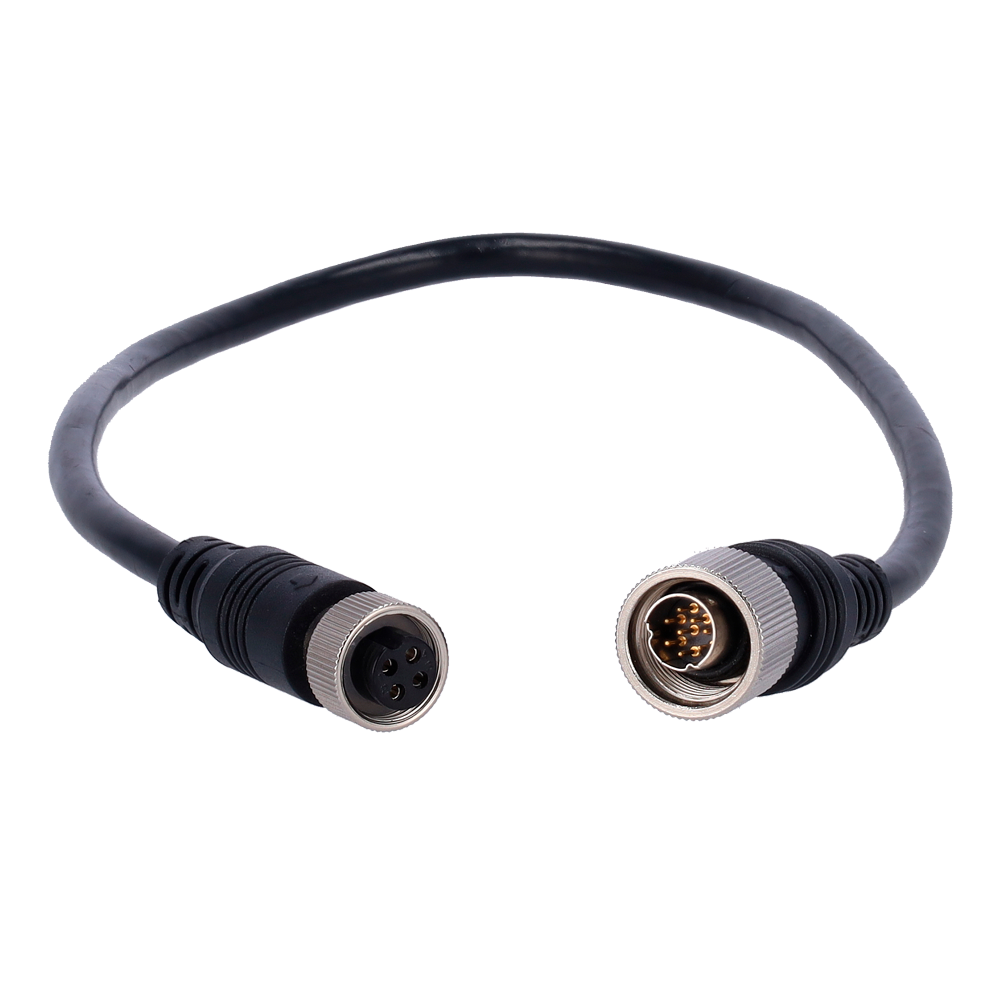

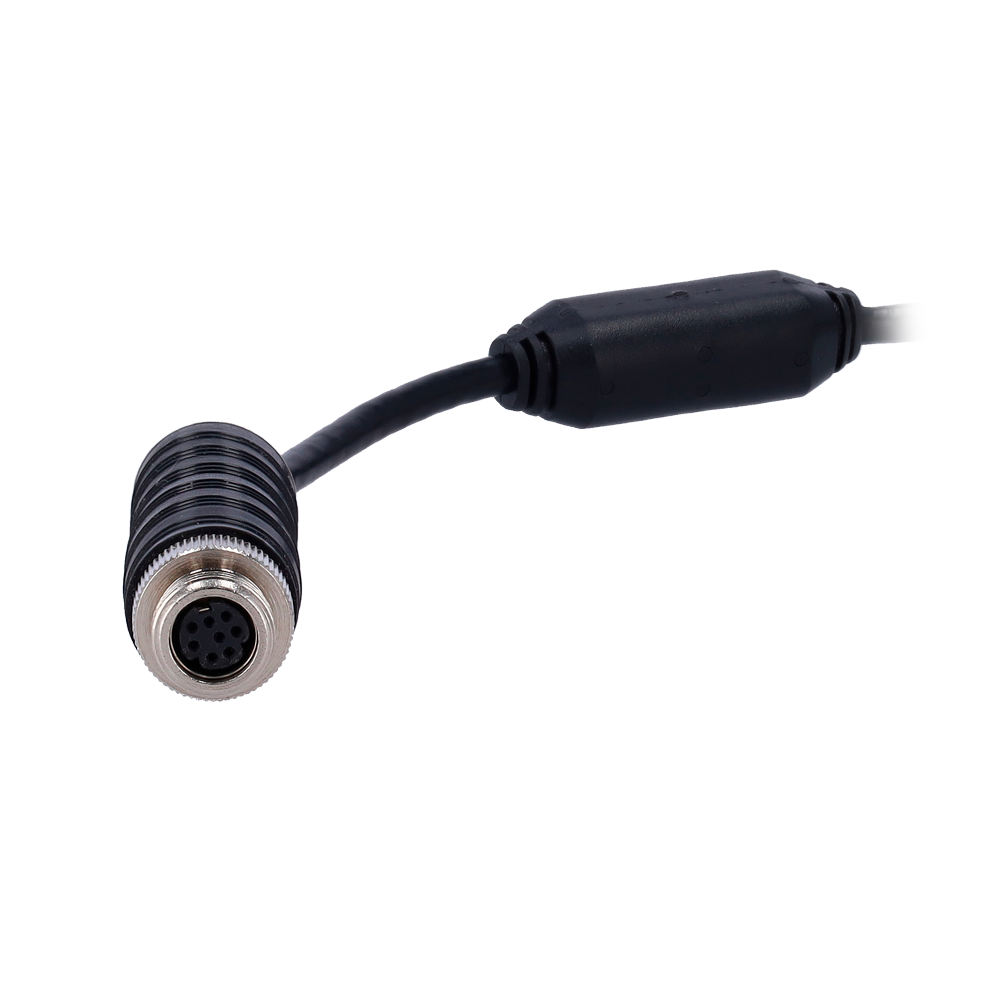

- Converter cable to 4 pins
- screws
