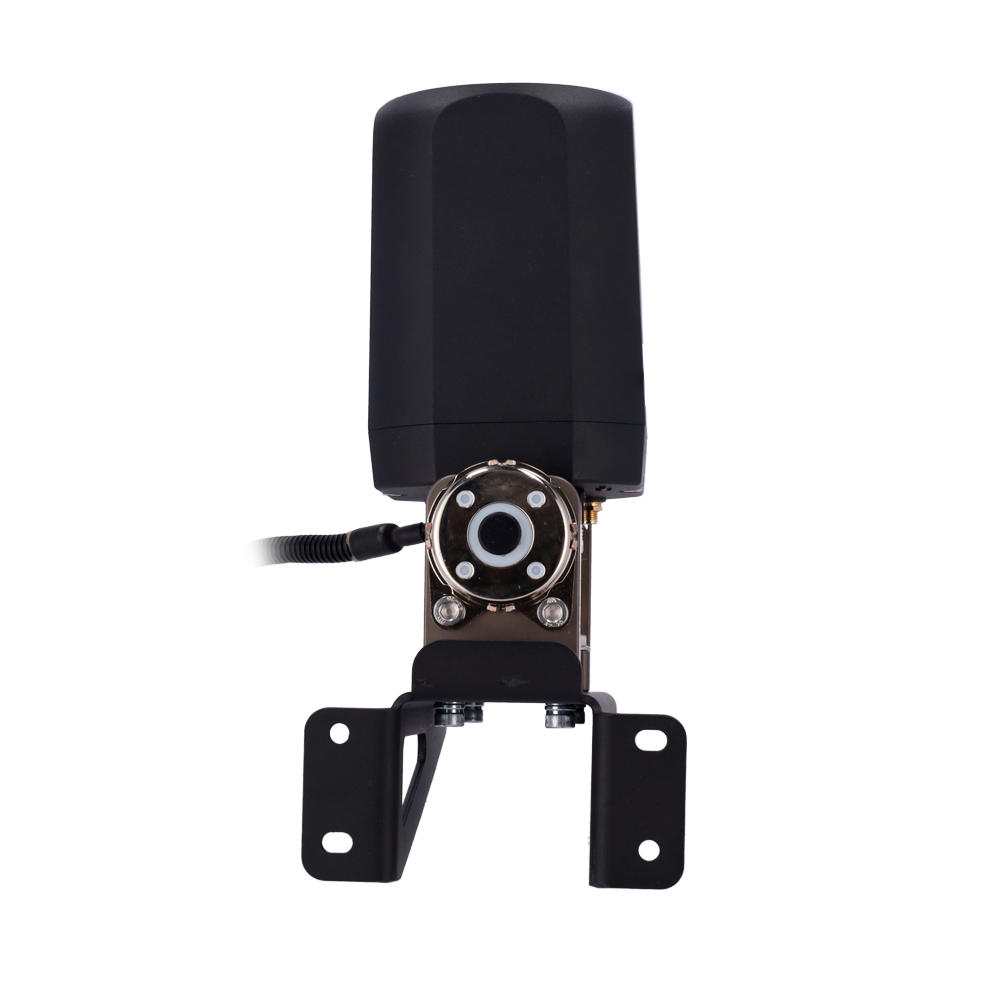

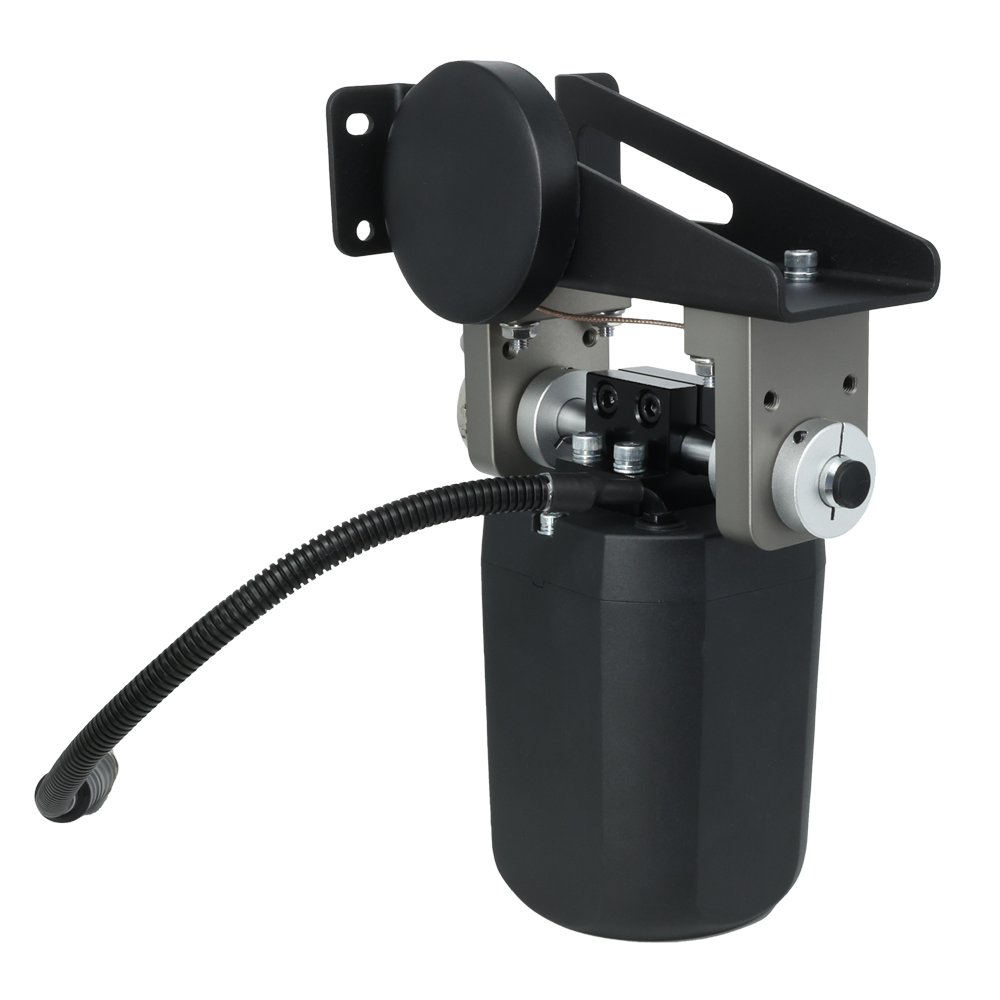

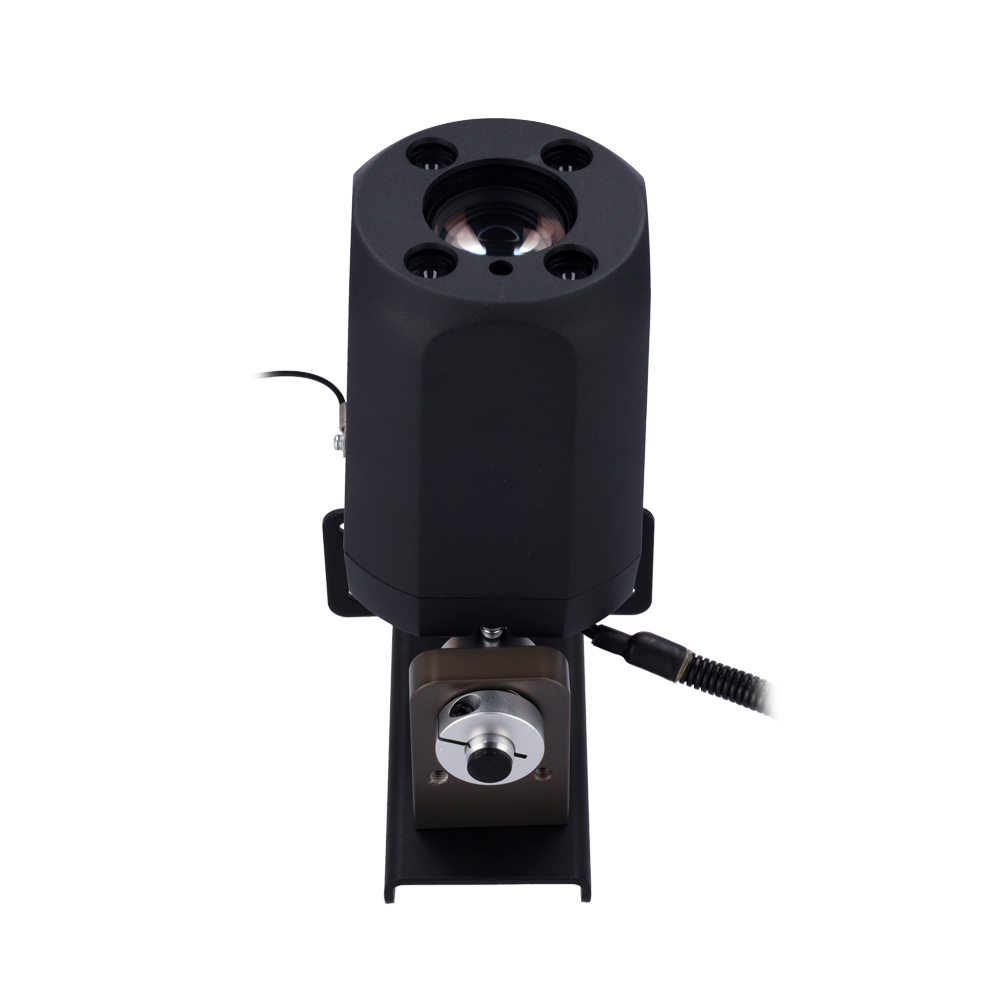

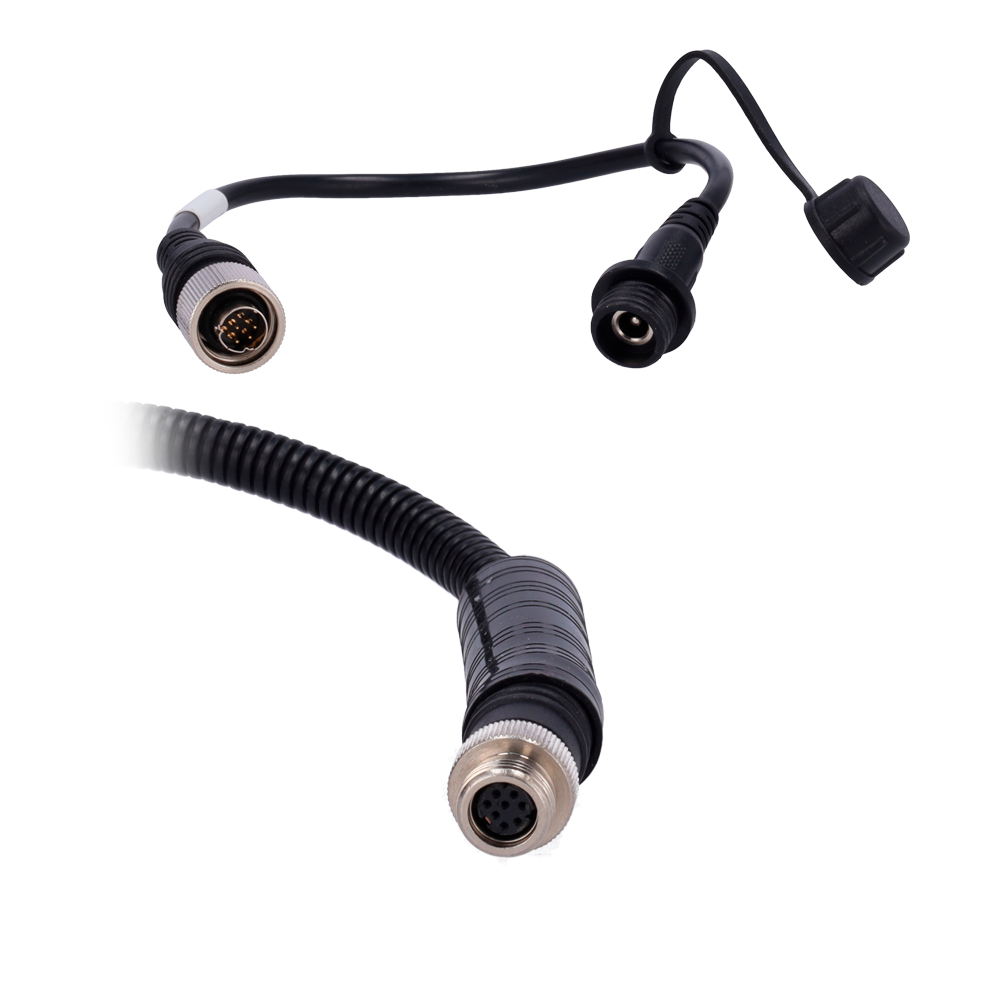

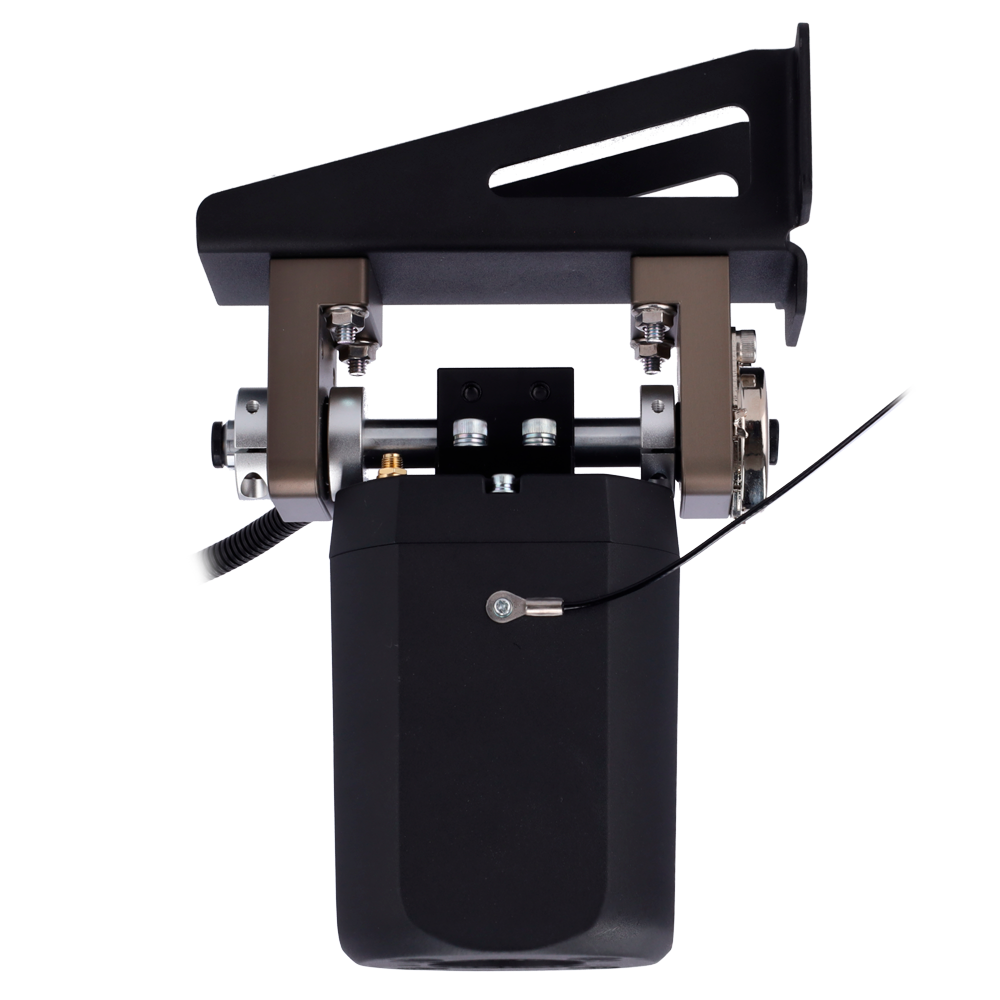

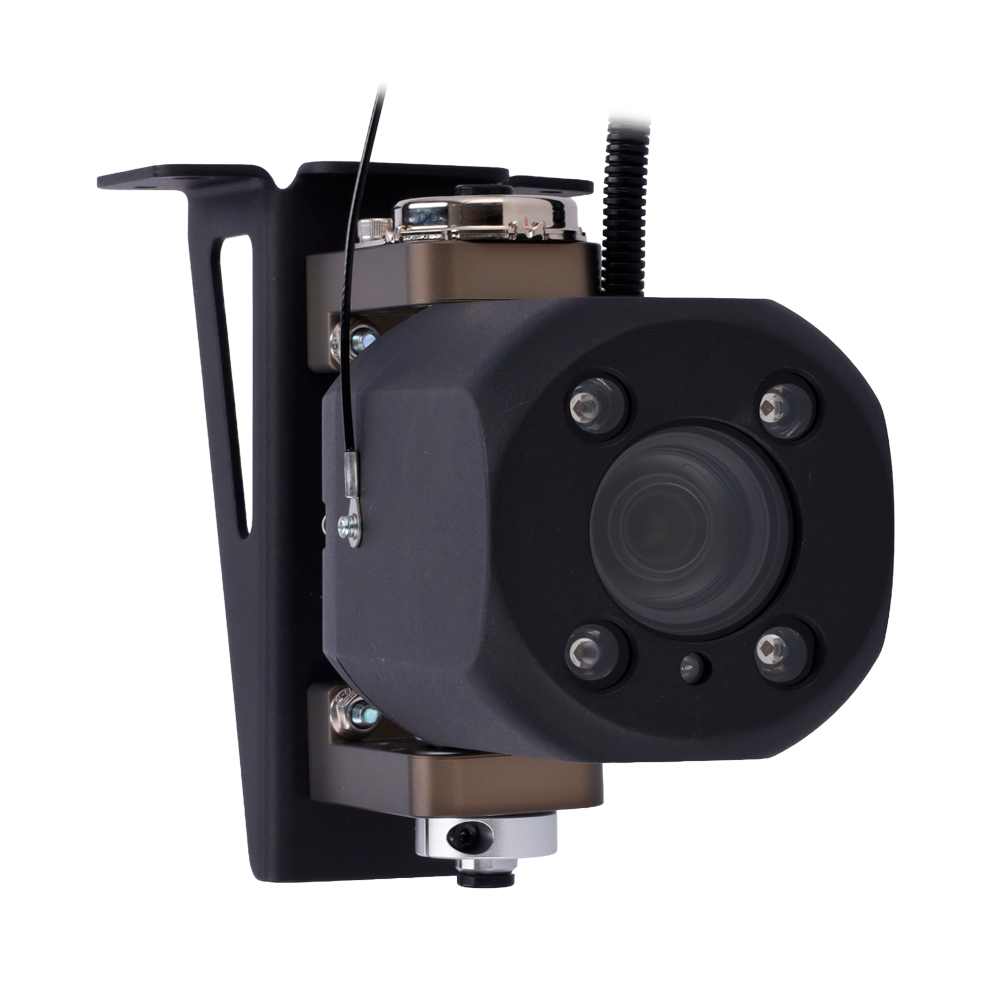

STK-HDW845
- Camera for cranes with pedestrian detection
- Wireless communication with monitor
- Lens control by foot pedals
- Optical zoom 30x
- Weatherproof IP69K
- RF Distance 150m
Wireless crane pendant camera with pedestrian detection and foot pedal lens control. Compatible with STK-HDW295 monitor and STK-PEDAL-SWITCH foot pedal. Waterproof with IP69K protection and RF range up to 150m.
- Camera for cranes with pedestrian detection
- Wireless communication with monitor
- Lens control by foot pedals
- Optical zoom 30x
- Weatherproof IP69K
- RF Distance 150m
Specifications
| Optical zoom | 30X |
| Compatibility | Monitor STK-HDW295 STK-PEDAL-SWITCH foot pedal |
| Protection | IP69K |
| Pairing with monitor | Automatic and manual |
| Sensor | CMOS 1/2.9" |
| Wireless transmission | 2.4Ghz |
| Transmitter power | 20dBm |
| Range | 150 meters in ideal conditions |
| Work frequency | 2400 ~ 2483.5MHZ |
| Resolution | 1080P |
| Focal length | 4.85 ~ 138.66mm |
| Aperture | 1.65(W) ~ 4.70(T) |
| Horizontal angle | 57.69°(W) ~ 2.2°(T) |
| Visibility | 5-200m |
| IR range | 50 meters |
| Voltage range | DC10 ~ 32V |
| Working temperature | -20℃ ~ +60℃ |
| Vibration | 5G ( GB-T2423056-2006 standard) |
| Dimensions | 150(W) x 170(H) x 90(D) mm |
In the box
- Camera
- Bracket
- Antenna 5dB
- Screws
