STK-ADA32
Ga direct naar de productinformatie
STK-ADA32
- Pedestrian and Cyclist Detection
- Audio output for connecting a speaker
- Customizable detection areas
- Protection IP69K
- Adjustable detection range from 0,5 to 20M
- Wi-Fi calibration using a tool

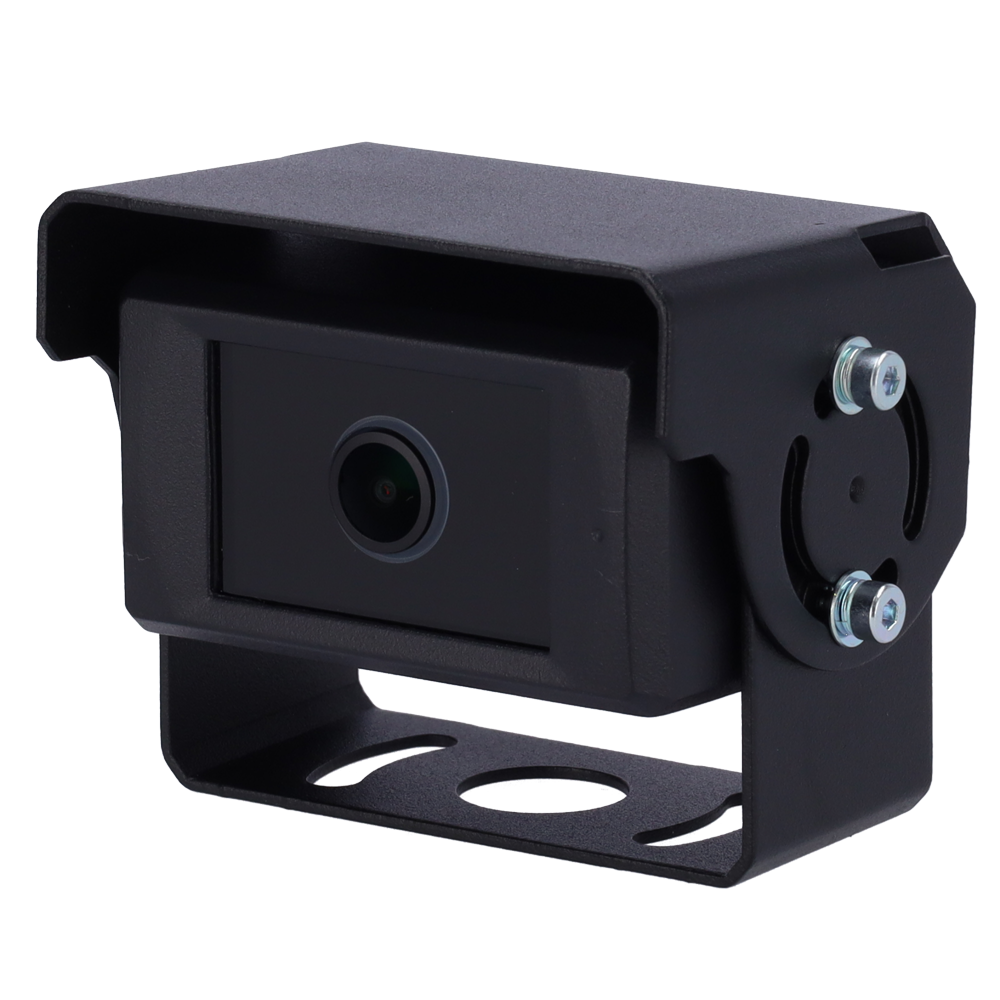

On-board camera with AI-powered pedestrian and cyclist detection, with a detection range between 0,5 and 20M. Detection lines with adjustable hazard zones. Configurable via Wi-Fi using an optional tool (not included). protection IP69k.
- Pedestrian and Cyclist Detection
- Detection range from 0,5 to 20 meters
- Adjustable detection zones
- High-definition video 1080P
- Direct connection to a recorder
- Audio output
- Wi-Fi setup with an additional tool (not included)
- Protection IP69
Specifications
| Video resolution | 1920 x 1080 |
| Photograms | 25 FPS |
| Video output | AHD(1.0Vp-p, 75Ohm) |
| Viewing Angle | Front/side view: 70° (horizontal) Rear view: 150° (horizontal) |
| Audio | Audio output available |
| Interface | USB 2.0 (for connection to a calibration tool) |
| Cable length | 0.5 meters |
| Power | DC 10V-32V |
| Consumption | 320 mA / 470 mA (IR enabled) |
| Protection | IP69K |
| Working temperature | -20~+70℃ |
| Storing temperature | -30~+80℃ |
| Vibration resistance | 5.9G |
In the box
- Camera

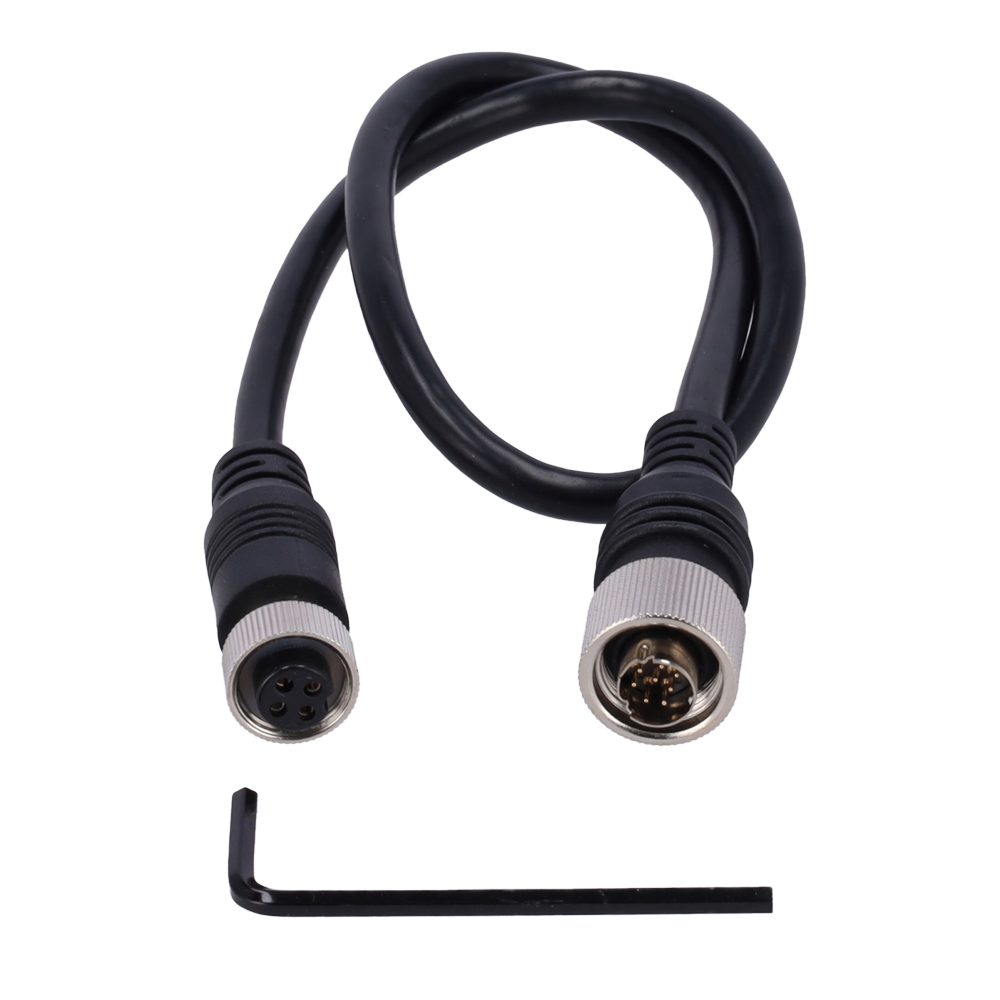

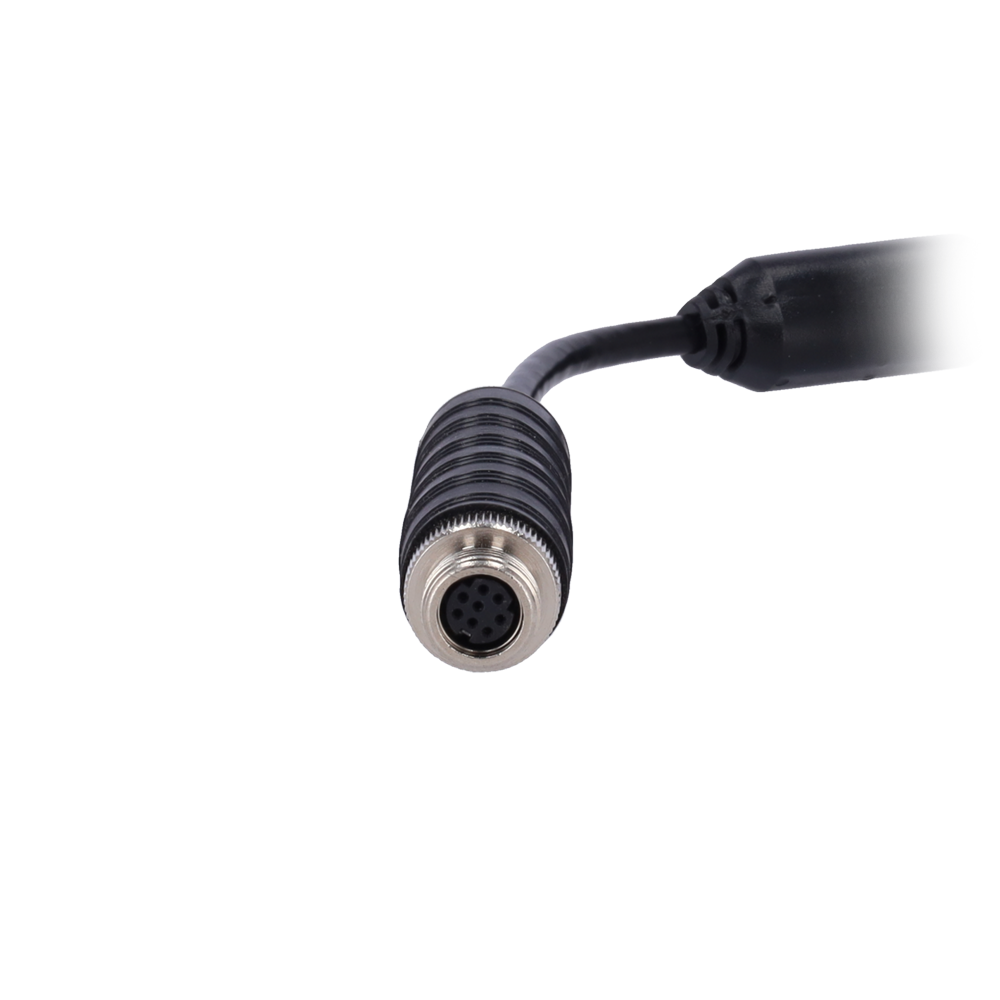

- Video adapter cable
- Adjustment Allen wrench
- Quick Guide
