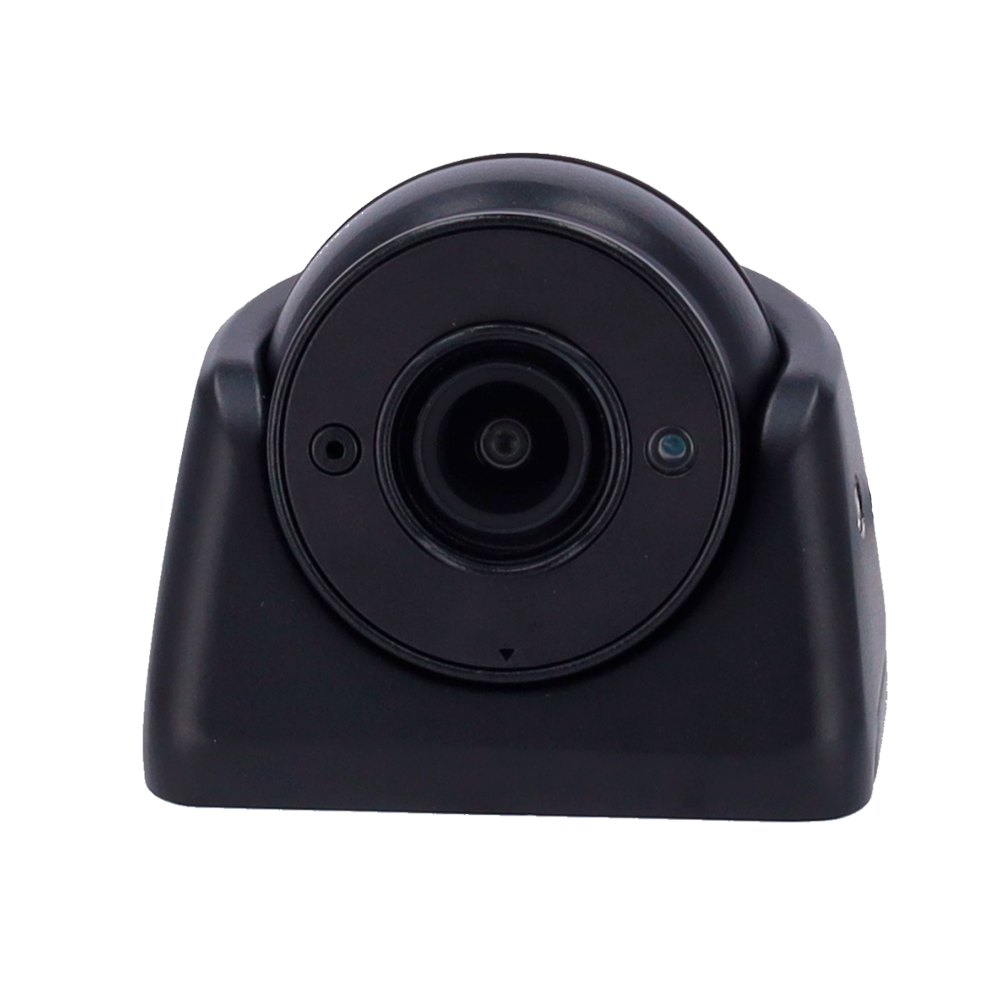

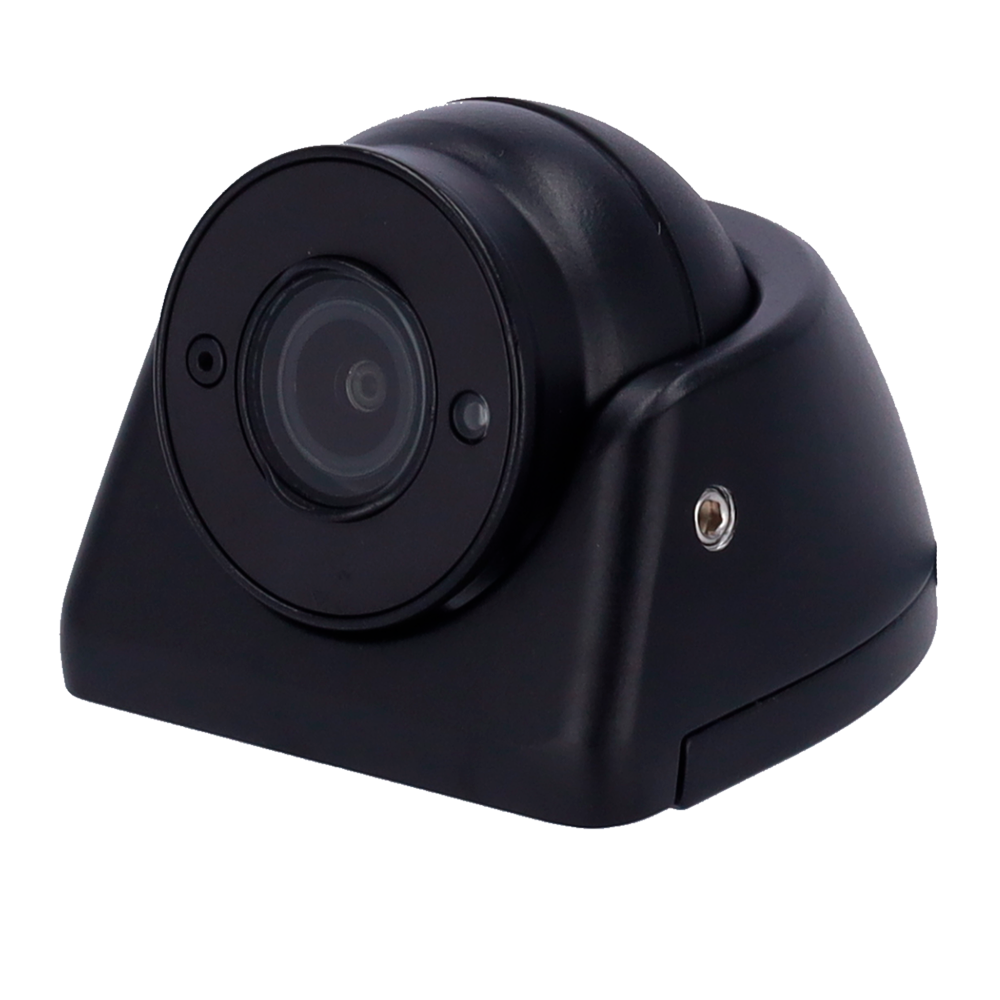

ST-CA39B
Ga direct naar de productinformatie
ST-CA39B
- Streamax
- AHD turret camera
- 1/2.8" CMOS 1080P
- Lens 2.8mm | IR range up to 15m
- Suitable for vehicle embarkation
- Streamax
- Indoor camera
- Resolution 1080P AHD
- 2.8mm lens
- 0Lux
- IR up to 15m

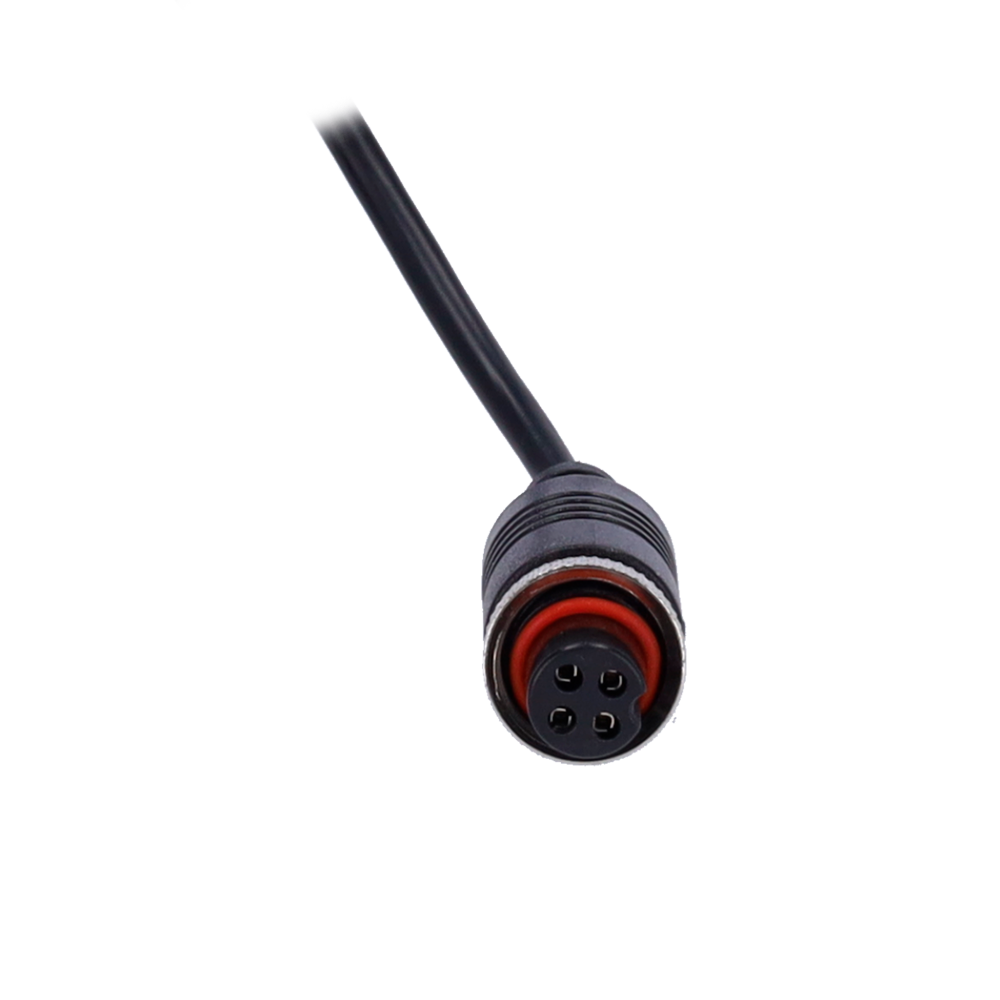

- Aviation cable 4 Pins
- Integrated microphone
Specifications
| Sensor | 1/2.8" CMOS |
| Resolution | 1080p (1920 x 1080) |
| Lens | 2.8 mm (H: 103º, V: 56º, D: 121º) |
| Electronic Shutter | 1/25 ~ 1/25.000s (auto) |
| Image enhancement | DWDR, BLC, ATW, AWB, Auto Gain, 3D DNR |
| S/N | >50dB |
| Minimum Illumination | 0,01 Lux (IR OFF), 0 Lux (IR ON) |
| Infrared lighting | 10 -15 m |
| Video output | AHD |
| Connection interface | Aviation plug 4-Pines |
| Day / Night | ICR IR Filter |
| Lens adjustment | Up: 15° , Down:107° |
| Audio | Integrated microphone up to 5m |
| Power | 12V DC, 200mA. 2.4W |
| Operating temperature | -40ºC ~ 70ºC |
| Dimension | 47.5(Fo) x 61 (W) x58 (H) mm |
| Weight | 125 g |
In the box
- AHD Camera 1080P
- Installation material
- Installation quick guide
