ST-CA20S
Ga direct naar de productinformatie
ST-CA20S
- Streamax
- ADAS camera
- 1/2.8" Progressive Scan CMOS 1080P
- 2.8 mm Lens

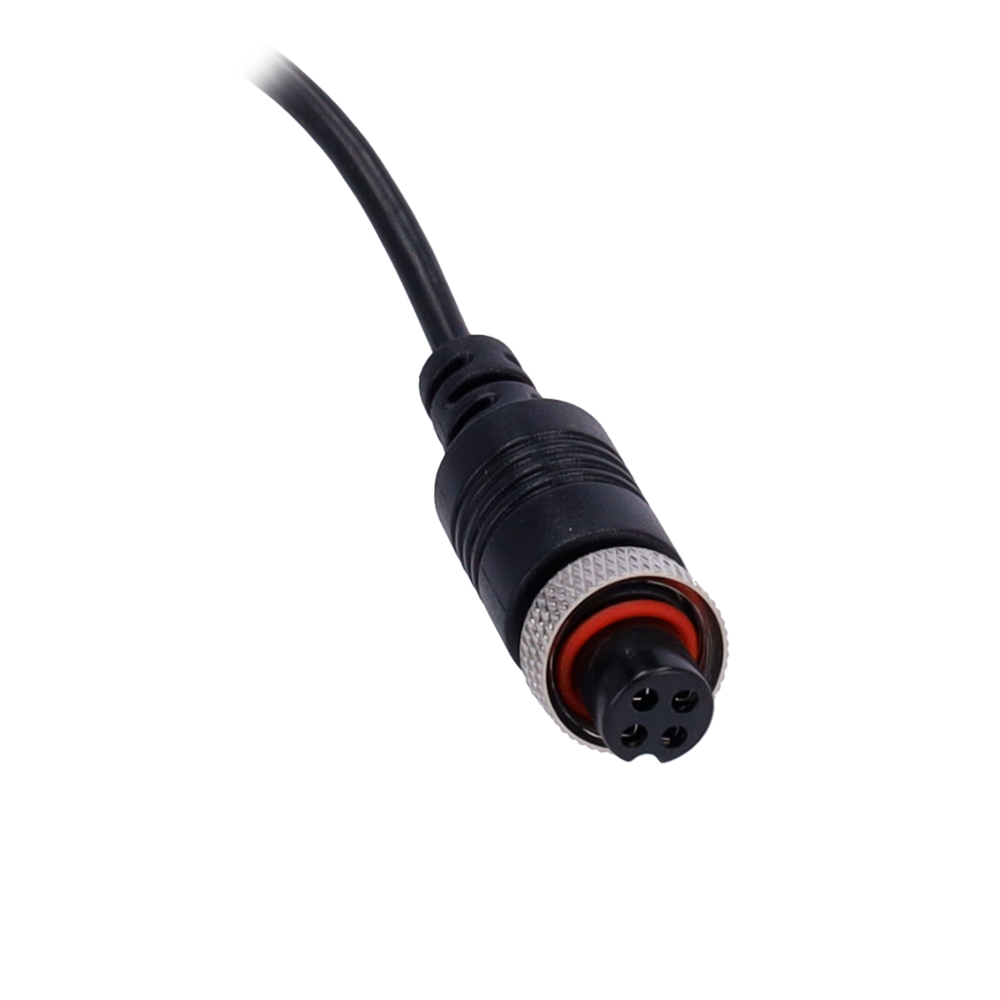

- Aviation connector 4 pins
- Installation on windshield
- Streamax
- ADAS camera
- Resolution 1080P
- 2.8 mm Lens
- Aviation plug, 4 Pins
- Needs AI BOX for intelligent functions
- Lane departure detection, forward collision, distance warning with vehicle ahead
- Installation on windshield
Specifications
| Brand | Streamax |
| Camera type | ADAS |
| Image sensor | 1/2.8" Progressive Scan CMOS sensor |
| Resolution | 1080p (1920x1080) |
| Lens | 2.8 mm (HFOV: 42º, VFOV: 24º) |
| Minimum illumination | 0.05Lux (color) |
| Lens adjustment | HFOV: 42º, VFOV: 24º |
| Day / Night | Color, BW (Black and White) (ICR) |
| Electronic Shutter | Auto |
| Image improvements | 3D-DNR, AGC, BLC, DWDR, AWB |
| Exposure Mode | Auto |
| Audio | Does not have |
| Smart Features | Lane departure detection, forward collision detection, distance detection with vehicle ahead *Requires AI BOX for intelligent functions |
| Power | DC 12 V, 90 mA |
| Installation | On the front window of the vehicle |
| Temp. operation | -40º C ~ +70º C |
| Dimensions | 39 (D) ×54.5 (W) × 87 (H) mm |
| Weight | 100 g |
In the box
- Camera ST-CA20S
- Installation material
- Installation quick guide
