ST-C6LITE-V2
- Streamax
- Cockpit Dashcam with DSM and ADAS
- Resolution up to 1080p
- Bidirectional audio
- Communication 4G and GPS positioning
Dashcam with two video channels front and interior of the vehicle. ADAS and DSM compatible.
- Streamax
- Dashcam camera
- Double camera: front (Dashcam) and cab (DSM)
- Resolution up to 1080p
- Recording on microSD card- WiFi communication and 4G
- GPS Positioning
- Integrated microphone
Specifications
| Video | 2 CH: Dashcam+ DSM, Cockpit camera (Embedded) |
| Operating system | Embedded Linux |
| Languages | Chinese, English, Spanish, Portuguese, French, Russian, Japanese, Russian, Japanese |
| Encryption | AES256 |
| Data transmission | TLS1.3 |
| Sensor | Dashcam: 1/2.9" CMOS Booth: 1/2.9" CMOS |
| Resolution | Dashcam: 2 Mpx Booth: 2Mpx |
| Audio | Noise-canceling microphone and speaker for two-way communication 3W of loudspeaker power |
| Input Resolution | Dashcam: 1080P @ 20FPS Booth: 1080P @ 20FPS |
| Recording resolution | Main stream: 1080P@20 FPS(Dashcam)+1080P@20 FPS(Cabin) Sub-stream: 2 × CIF@30 FPS |
| Audio compression | ADPCM/G.711/G.726 |
| Lens | Dashcam: 4 mm (H: 89º, V: 46º) Booth: 2.2 mm (H: 151º, V: 84º) |
| Lighting | Dashcam - Colour: 0.05Lux/F1.2 with BLC Signal to noise ratio >48dB Booth - WDR with BLC Signal to noise ratio >45dB Integrated IR |
| Summary of Functions | Live viewing, video recording, video playback, network streaming and GPS positioning. ADAS and DSM functions. |
| ADAS | LDW (lane change without turn signal) HMW (closeness to the front vehicle) FCW (collision) |
| DSM | Camera obstruction Tiredness (yawning) Cell phone use Smoking Distraction Driverless with vehicle in motion Unbelted |
| 4G Communication | 1x SIM Slot: SIM card slot LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
| Wi-Fi communication | 2.4 GHz (IEEE Std.802.11a/IEEE Std.802.11b/ IEEE Std.802.11g /IEEE Std.802.11n) |
| Bluetooth communication | Supported |
| Image enhancement | Brightness, Chroma, Contrast, Saturation, Sharpness, BLC and DWDR adjustment |
| Video compression | H.265 / H.264 |
| Positioning | GPS L1 1575.42MHz GALILEO E1B/C1 GLONASS L1OF 1602MHz SBAS: WAAS, EGNOS, MSAS, GAGAN |
| Sensors | Accelerometer: 6 axes (collision detection, hard cornering, hard braking) Twilight sensor for day/night switching of cabin cameras 1x RS232 1x CAN |
| Alarms | 2 Inputs, 1 output |
| CAN Bus | Supported |
| USB | x1 mini USB connector |
| Button | Double-tap to switch between client and AP mode |
| Network Protocols | HTTP, TCP, ARP, UDP, UDP, FTP, DHCP, DNS, IPV4, NTP |

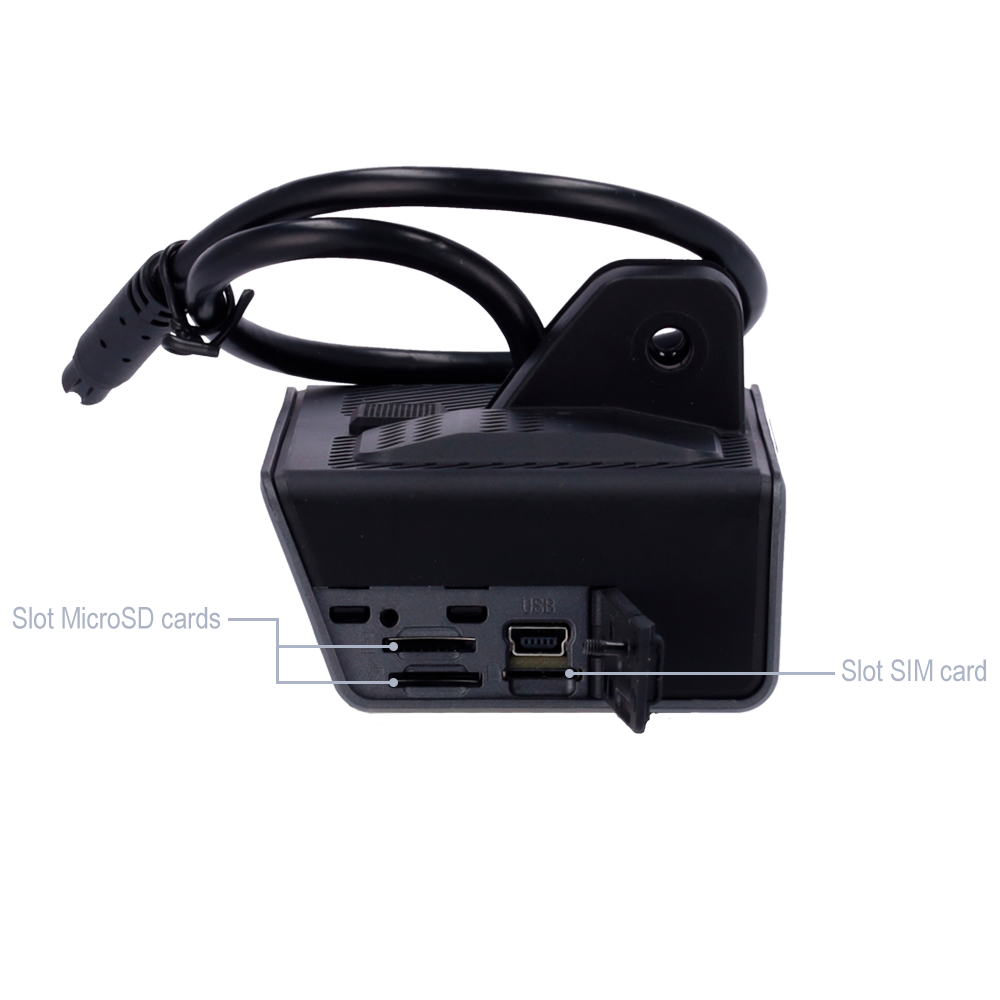

| Storage | 2x MicroSD card slots up to 512GB per slot, requires class 10 |
| Management Software | CEIBA II or FTCLOUD centralized server |
| Working temperature | -40ºC to 70ºC |
| Storing temperature | -40℃~+85℃ |
| Relative humidity | 15% - 95% no condensation |
| Protection | IP30 |
| Power | DC 9-24V, Max. 11.5W |
| Certificates | Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon |
| Installation | On windshield |
| LED indicators | Power Alarm indicator GPS indicator Network indicator Wifi indicator Recording indicator |
| Dimensions | 116.5 × 67.8 × 110.42 |
| Weight | 313g |
In the box
- Dashcam C6-Lite-V2
- Installation bracket
- Fixing screw
- Power supply cable
