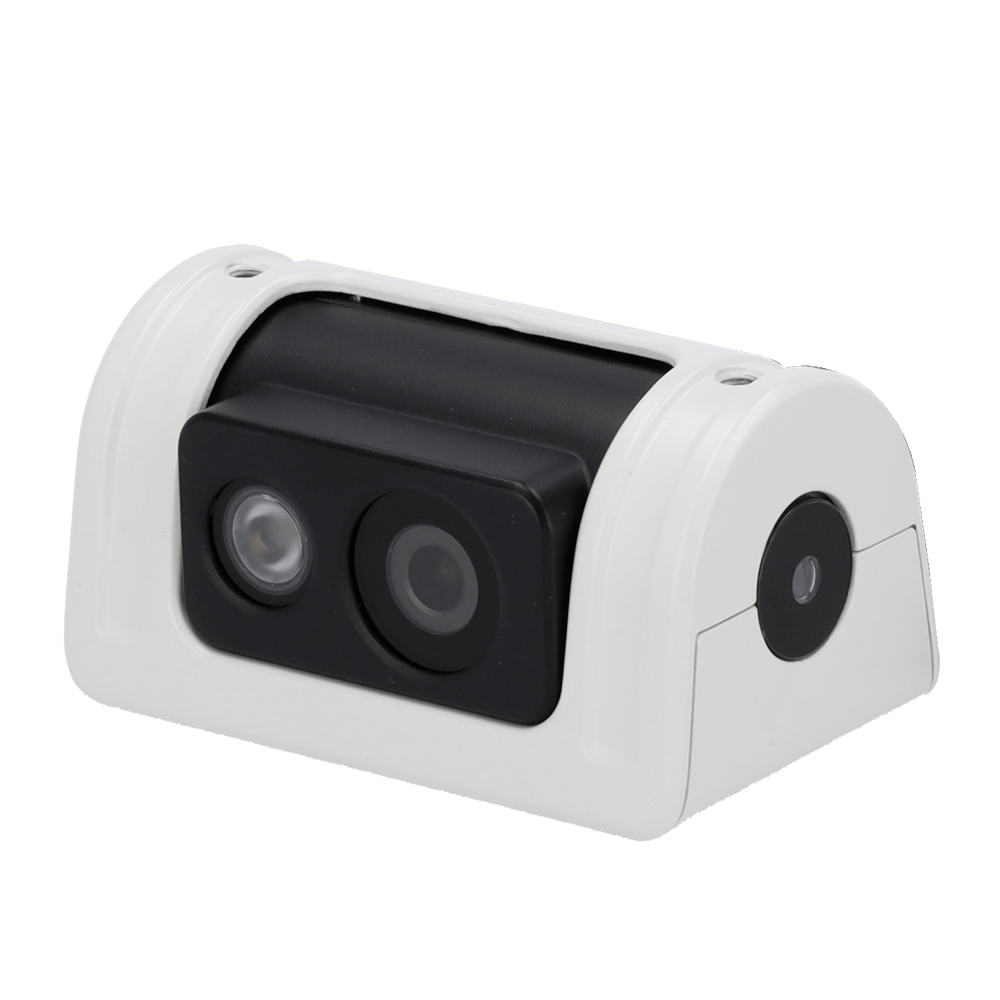

ST-946C24M-A
Ga direct naar de productinformatie
ST-946C24M-A
- Streamax
- IP camera
- 1/2.8" Progressive Scan CMOS 1080P
- 2.8 mm Lens
- IP67 & IK08
- Outdoor installation
- Streamax
- Outdoor camera
- Resolution 1080P
- 2.8 mm Lens
- 0.05Lux
- IR up to 20m
- PON (9-16V)
- Degree of protection IP67/IK08
Specifications
| Brand | Streamax |
| Camera type | IP |
| Image sensor | 1/2.8" Progressive Scan CMOS sensor |
| Resolution | 1080p (1920x1080) |
| Lens | 2.8 mm |
| Minimum illumination | 0.05Lux (color) |
| IR | 20m |
| Lens adjustment | HFOV: 104º, VFOV: 55º |
| Shutter | 1/30 s -1/10000s |
| Audio | Does not have |
| Smart Features | Does not have |
| Power | PON DC 9-16V |

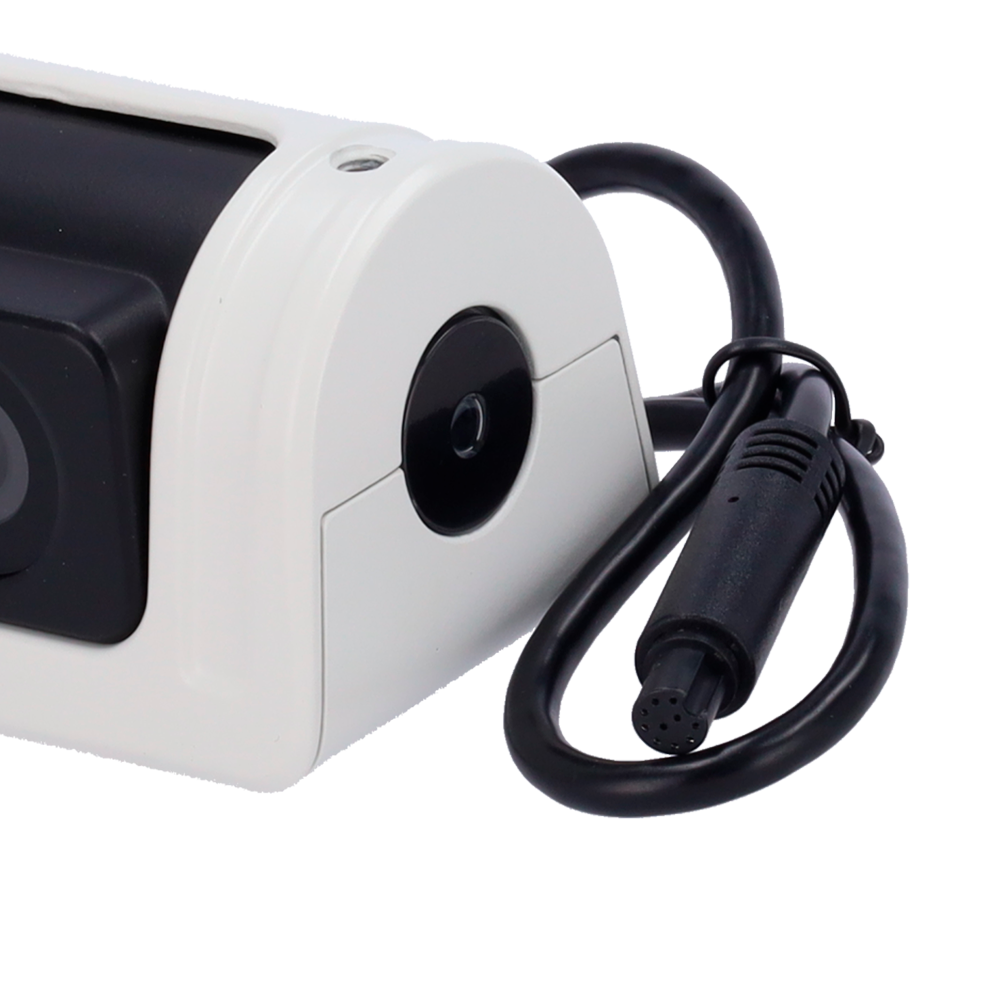

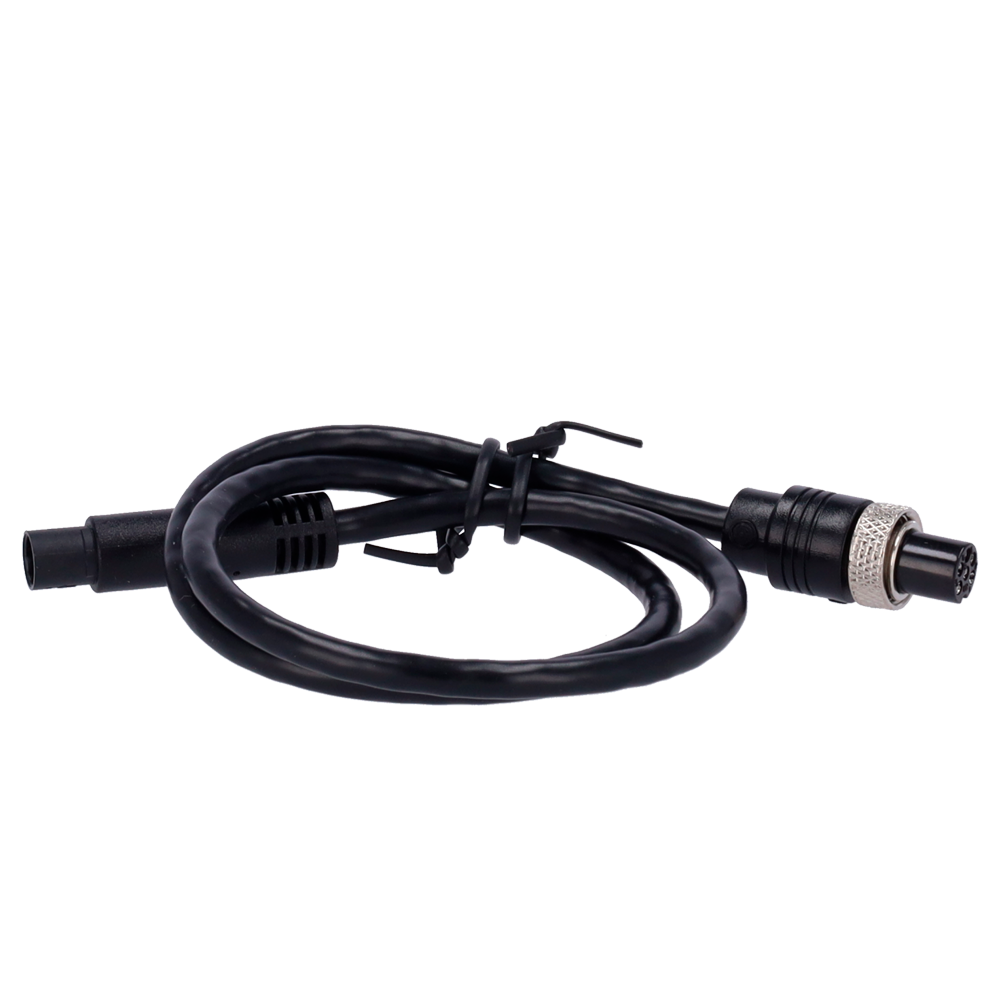

| Connector type | M12 6pines |
| Protection | IP 67 /IK08 |
| Temp. operation | -40º C ~ +70º C |
| Dimensions | 95.6 (D) ×57.8 (W) × 50.8 (H) mm |
In the box
- Camera ST-C24-C
- Installation material
- Installation quick guide
