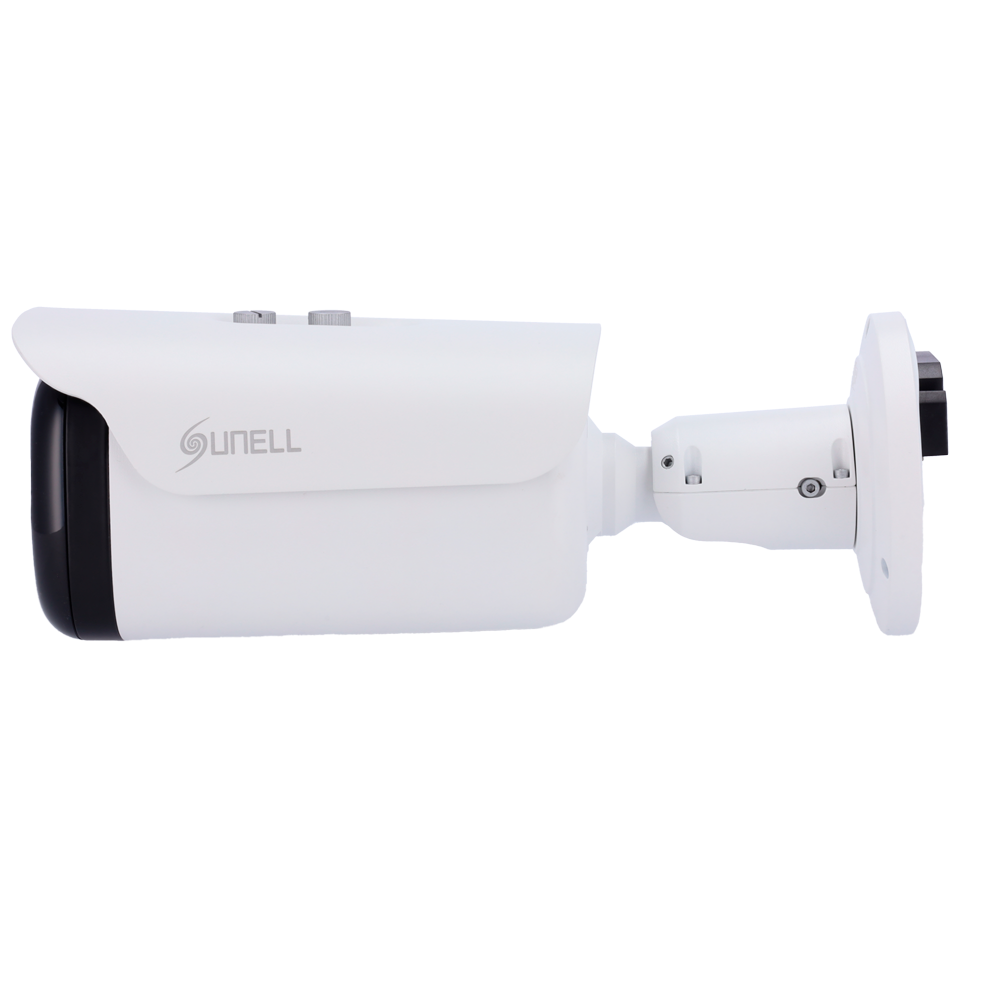

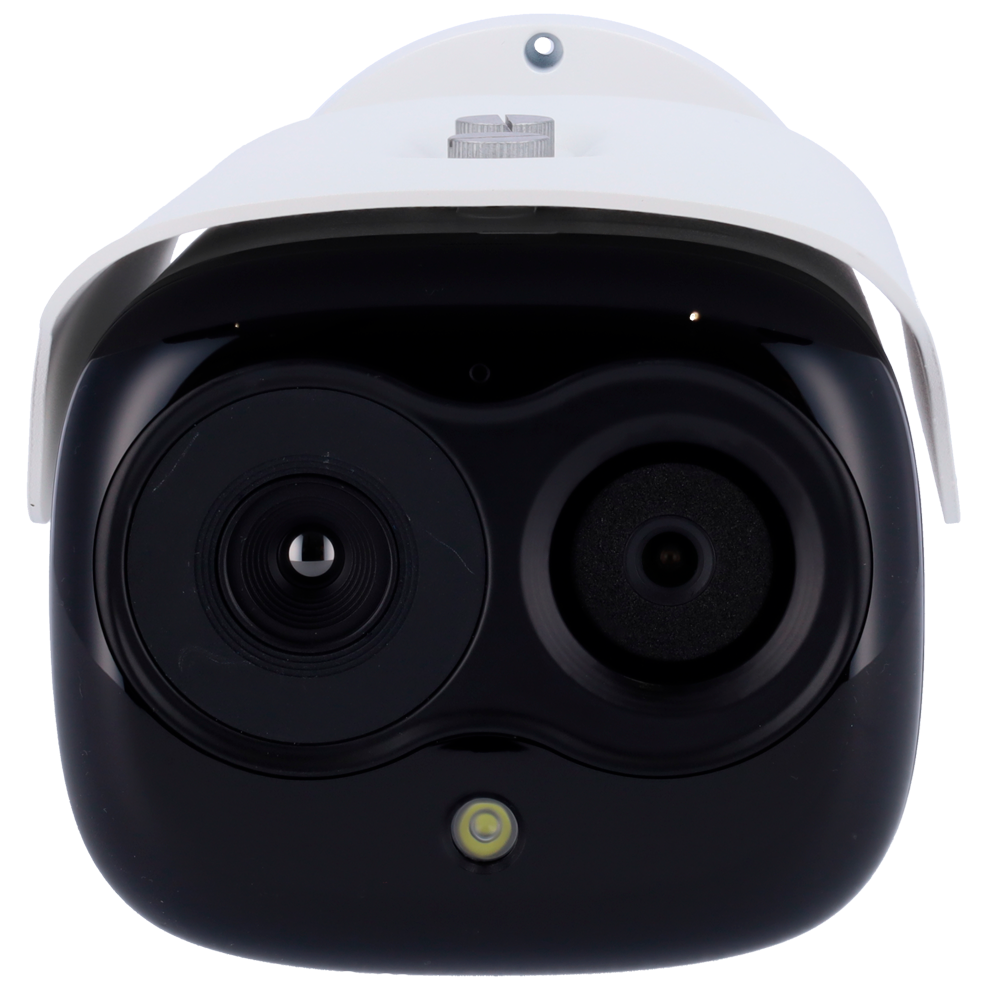

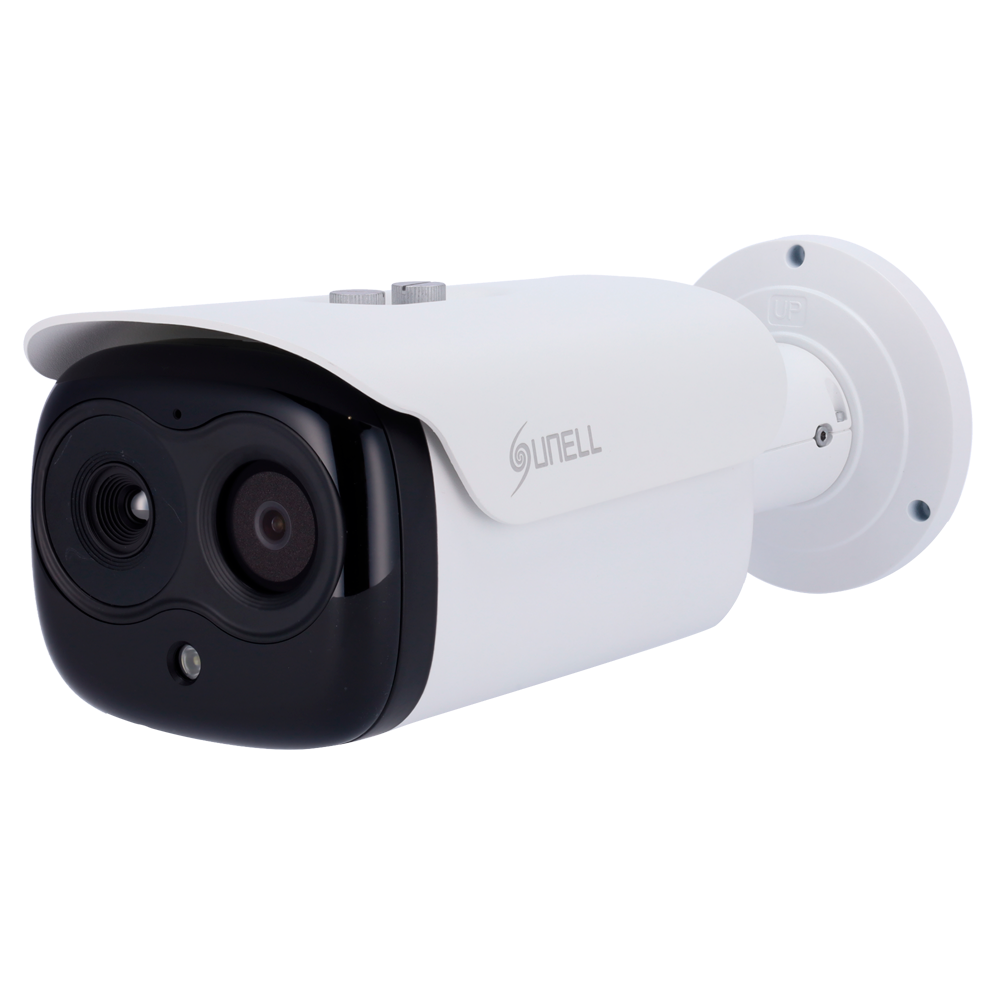

SN-TPC4157DLT-F15-NE
- Sunell IP thermal camera TPC4157DLT series
- VOx FPA thermal sensor 384x288 12μm | 15mm Lens
- Visible 1/1.8" CMOS sensor 4Mpx Lens 6mm
- Temperature measurement range -20~150ºC/±2ºC or ±2%
- Protection IP66 - NEMA 4X
- NDAA and TAA compliant
- Sunell
- Biespectro Thermal Bullet IP Camera
- Thermal sensor 384x288 VOx FPA uncooled
- Pixel size 12μm
- 15mm lens
- Temperature measurement range -20ºC~150ºC (±2ºC or ±2%)
- Thermal sensitivity ≤40mK
- Visible sensor 2688x1520 1/1.8" CMOS
- 6mm lens
- H.265/H.264
- RJ-45 10/100 BaseT
- RS485
- DC 12V/AC 24V/ PoE+ IEEE802.3at
- Max. 25W
- 2D/3D NR
- Alarms
- Audio
- Mic & Speaker
- Preventive fire and intrusion detection

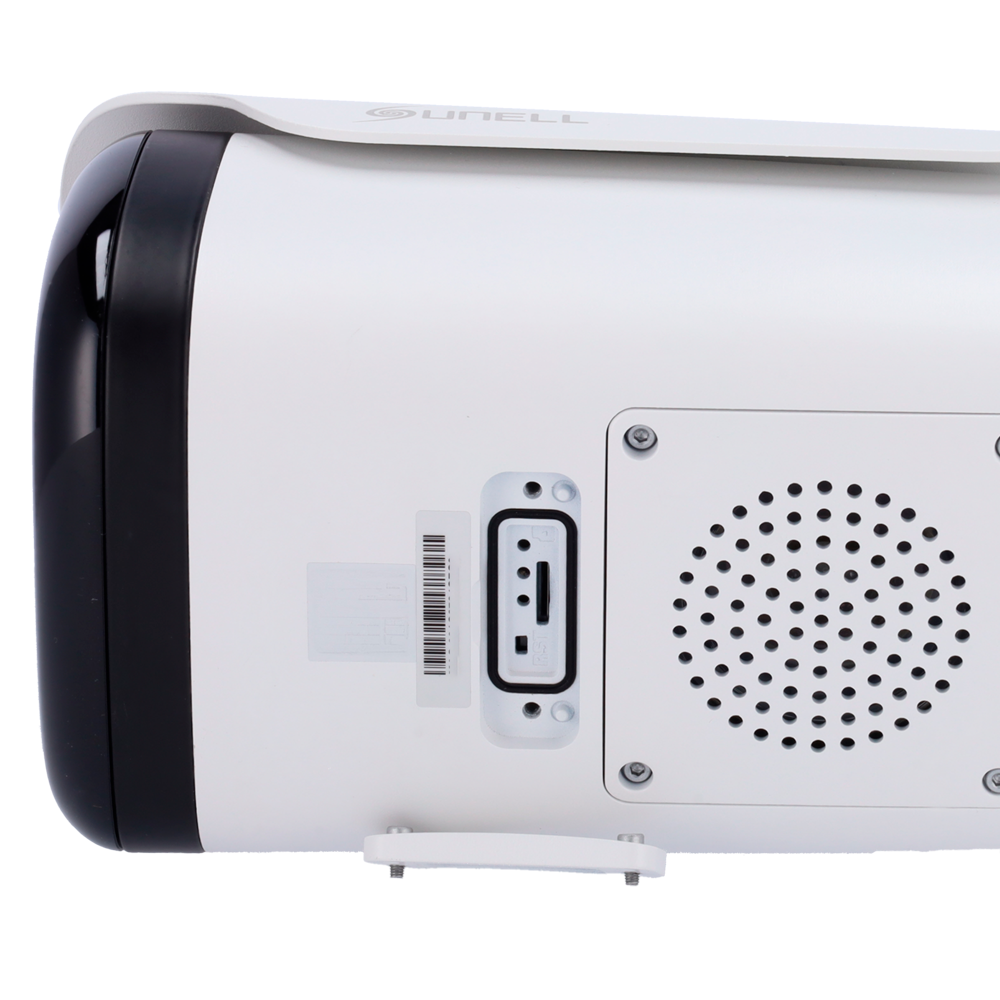

- SD card slot up to 1TB
- WEB, VMS (SunView) and NVR interface
- ONVIF Compatible
- NDAA Certification
- Weatherproof IP66
- NEMA Protection 4X
- Multidirectional adjustment ball joint

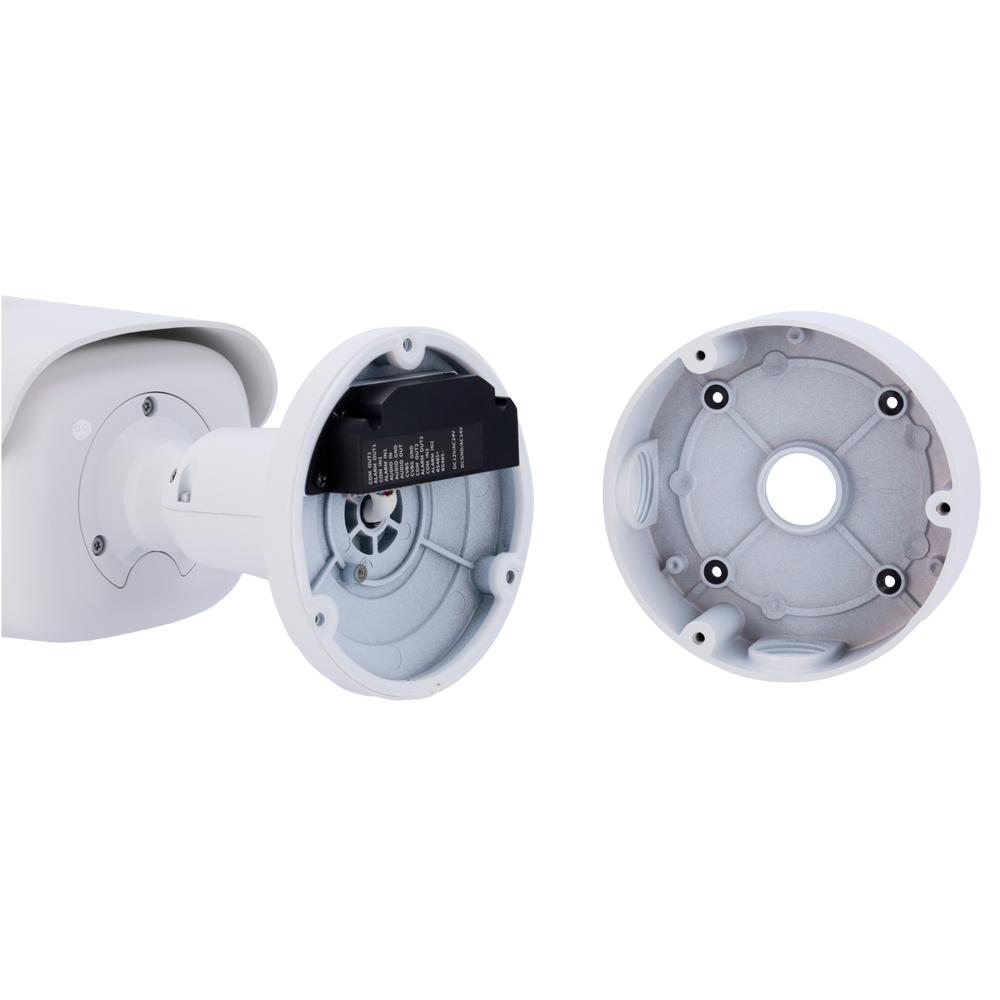

- Junction box included
Specifications
| Brand | Sunell |
| Range | TPC4157DLT |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 384 x 288 |
| Pixel pitch | 12μm |
| Thermal lens | 15mm |
| Thermal sensitivity | ≤40mK |
| Thermal measurement range | -20~150ºC / ±2ºC or ±2% |
| Spectral range | LWIR 8~14μm |
| Thermal viewing angle | 28° (H) x 21° (V) |
| Visible sensor | 1/1.8" CMOS |
| Visible sensor resolution | 2688 x 1520 (4Mpx) |
| Visible lens | 6mm |
| Visible viewing angle | 55° (H) x 30° (V) |
| Infrared illuminator | 80m. maximum |
| White light illuminator | Strobe light |
| Bi-spectrum vision parameters | Fusion |
| Main Stream rate | Thermal: 1280×1720, 704 x 576, 384 x 288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps |
| Sub Stream Rate | Thermal: D1, 384 x 288, 352 x 240 @25fps Visible: D1, 640×360, CIF @25/30fps |
| Compression | H.265 / H.264 |
| DRI | Human: 441m (D), 110m (R), 55m (I) Vehicle: 1353m (D), 338m (R), 169m (I) |
| Smart Analysis Thermal Ranges | Human: 86m Vehicle: 180m Temperature Measurement (object 1x1m)): 176m Temperature Measurement (object 0.2x0.2m)): 35m Fire detection (object 1x1m): 441m Fire detection (object 0.2x0.2m): 88m |
| IVS | Temperature measurement, human and vehicle classification |
| Intelligent analysis | Intrusion, line crossing, double line crossing, loitering, misdirection, area entry, area exit, intelligent motion detection (all support accurate person/vehicle detection), people counting |
| Advanced intelligent analysis | Smoker detection, smoke and flame detection, fire detection |
| Temperature rules | Full window, point, line and region (up to 20 rules simultaneously) |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Built-in microphone | Supported |
| Built-in speaker | Supported, alarm sound transmission up to 150m (wooded environment) |
| Internal memory | SD card slot up to 1TB |
| Reset button | Supported |
| Network interface | 1 x RJ45 Ethernet 10/100 port [%VAR%] BaseT, auto-adaptive |
| Serial communication | RS-485 |
| Remote access | Web Browser, PC VMS Software (SunView) |
| Interoperability | ONVIF (profile S/T/G/G/M), CGI, SDK |
| Power | 12VDC / 24VAC / PoE+ (802.3at) |
| Consumption | max. 25W |
| Temp. operation | -40ºC~+60ºC, < 90% RH |
| Degree of protection | Weatherproof IP66 NEMA 4X |
| Certifications | CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
| Dimensions | 327.4mm ×140.04mm × 12.89mm |
| Weight | 2.0Kg with lens 50mm |
In the box
- Sunell dual IP thermal camera TPC4157DLT series
- Installation material
- User instructions
