SN-TPC4107KV-F35-NE
- Sunell IP Thermal Camera
- 384x288 VOx | 35mm Lens
- Thermal sensitivity ≤40mK
- Accuracy ±8ºC
- Temperature, person and vehicle detection
- NDAA - NEMA 4X
- Sunell
- IP thermal camera
- Thermal sensor 384x288 VOx
- 35mm lens
- Temperature measurement range -20ºC~150ºC
- Accuracy ±8ºC
- Thermal sensitivity ≤40mK
- H.265 / H.264
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Audio
- Alarms
- Advanced fire detection and alarm
- SD card recording
- WEB interface, CMS (SunView), Smartphone and NVR
- ONVIF Compatible
- NDAA Compliance
- NEMA Protection 4X
- Multidirectional adjustment ball joint

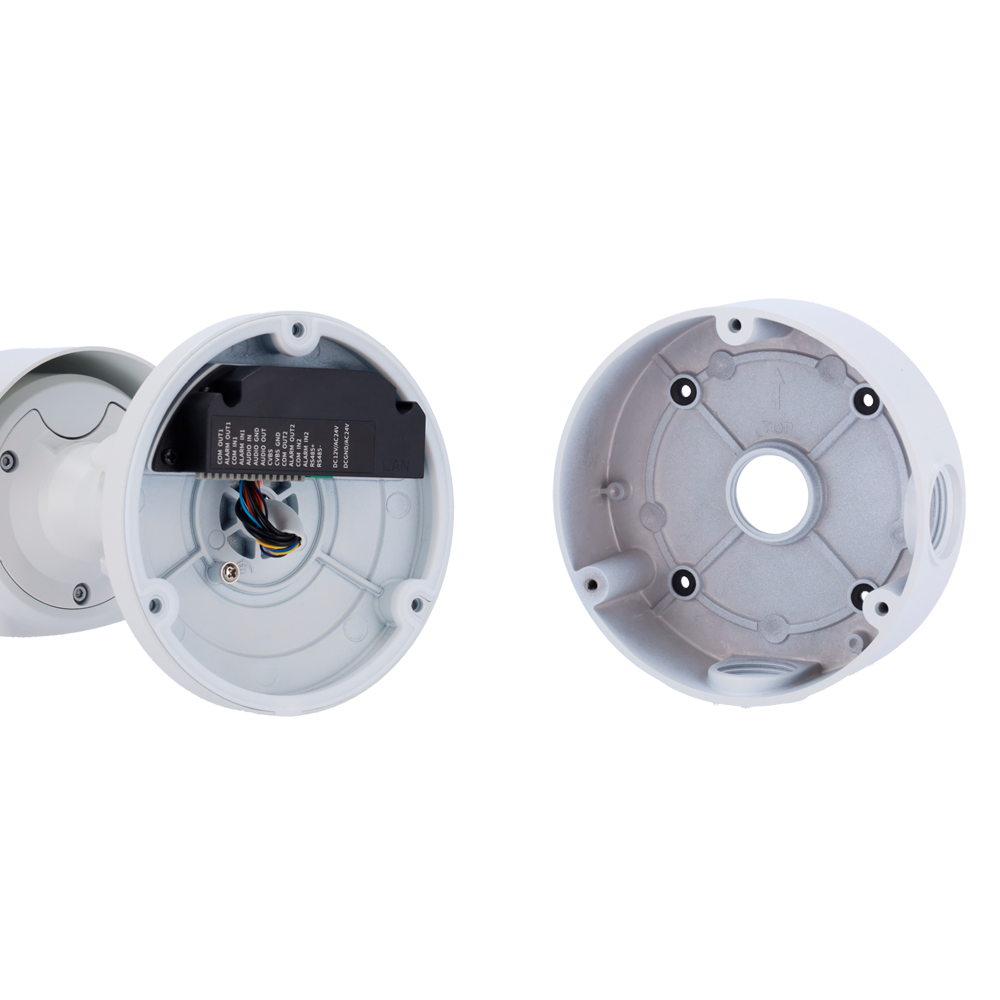

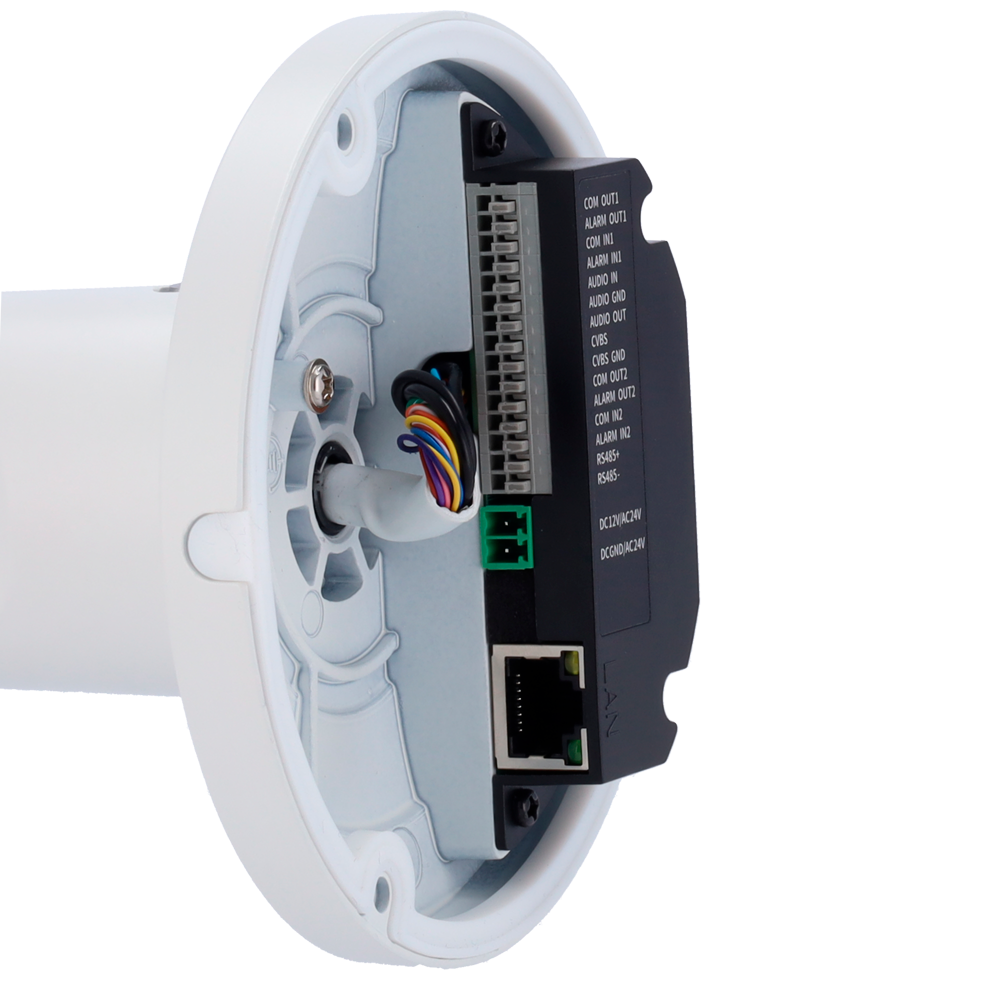

- Junction box included
Specifications
| Brand | Sunell |
| Range | TPC4107KV-NE |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 384x288 |
| Pixel Size | 17µm |
| Lens | 35mm |
| Thermal sensitivity | ≤40mK |
| Range of Detectable Temperatures | -20ºC up to 150ºC |
| Temperature Accuracy | ±8ºC |
| Spectral range | LWIR 8~14µm |
| Compression | H.265 / H.264 / MJPEG |
| Viewing angle | 10º x 8º |
| Focus | Fixed lens, no focus |
| Intelligent functions | Temperature detection and alarm, human detection and vehicle detection |
| Temperature Measurement | Supports 3 rule types (Point, Area and Line) |
| DRI Ranges | Human: 1029m (D), 257m (R), 129m (I) Vehicle: 3157m (D), 789m (R), 395m (I) |
| VCA ranges | Person detection: 350m Vehicle detection: 400m Fire detection (object 1x1m): 1029m Fire detection (object 0.2x0.2m): 206m Temperature Measurement (object 0.2x0.2m)): 82m Temperature Measurement (object 1x1m)): 412m |
| Audio | 1 In / 1 Out |
| Alarm | 2 In / 2 Out |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10M/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF & Private Protocol |
| Power | 12VDC/4.5W, PoE IEEE802.3af |
| Temp. operation | -40ºC~+60ºC |
| Degree of protection | Weatherproof IP66 NEMA 4X |
| Material | Metallic |
| Dimensions | Ø120.5mm × 315.9mm ~ 352.6mm |
| Weight | 1620 g |
| Certificates | NDAA / CE / FCC |
In the box
- Sunell IP Thermal Camera
- Installation material
- User instructions
- Junction box
