SF-VIDISP08-7WIP-A
Ga direct naar de productinformatie
SF-VIDISP08-7WIP-A

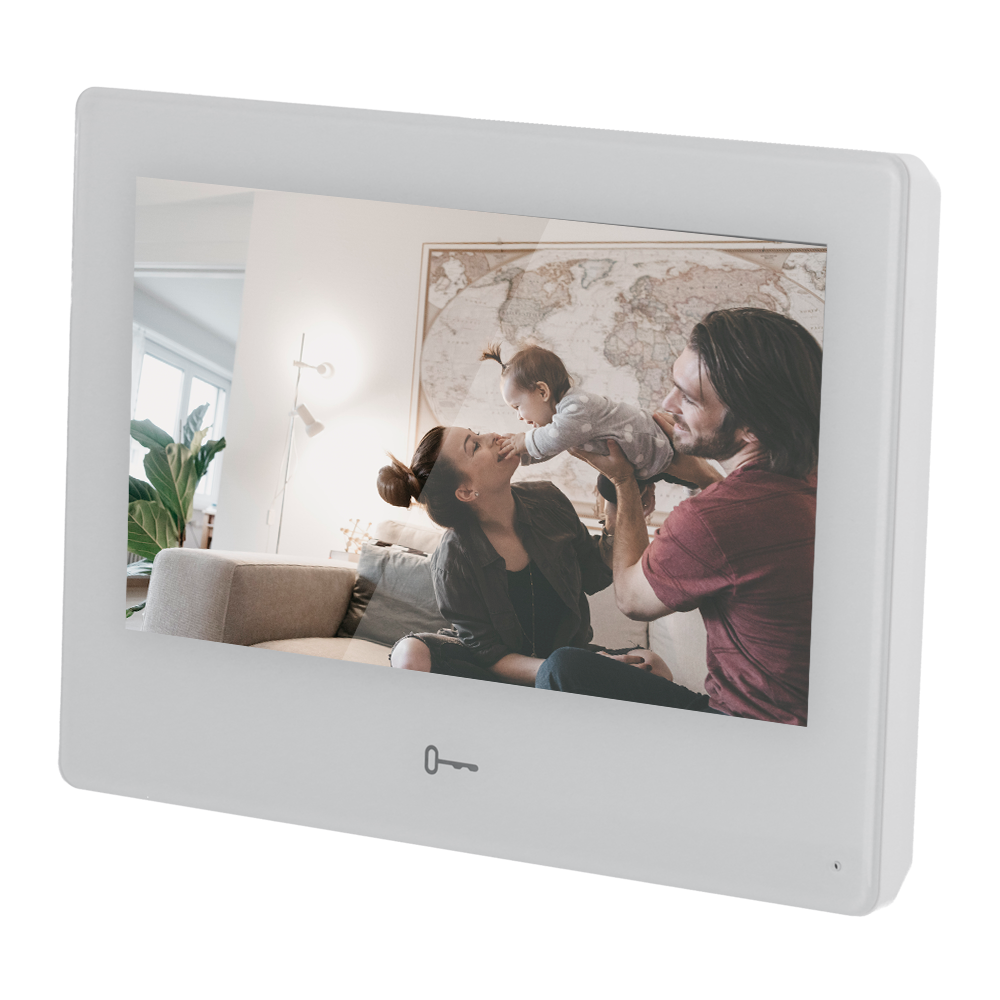

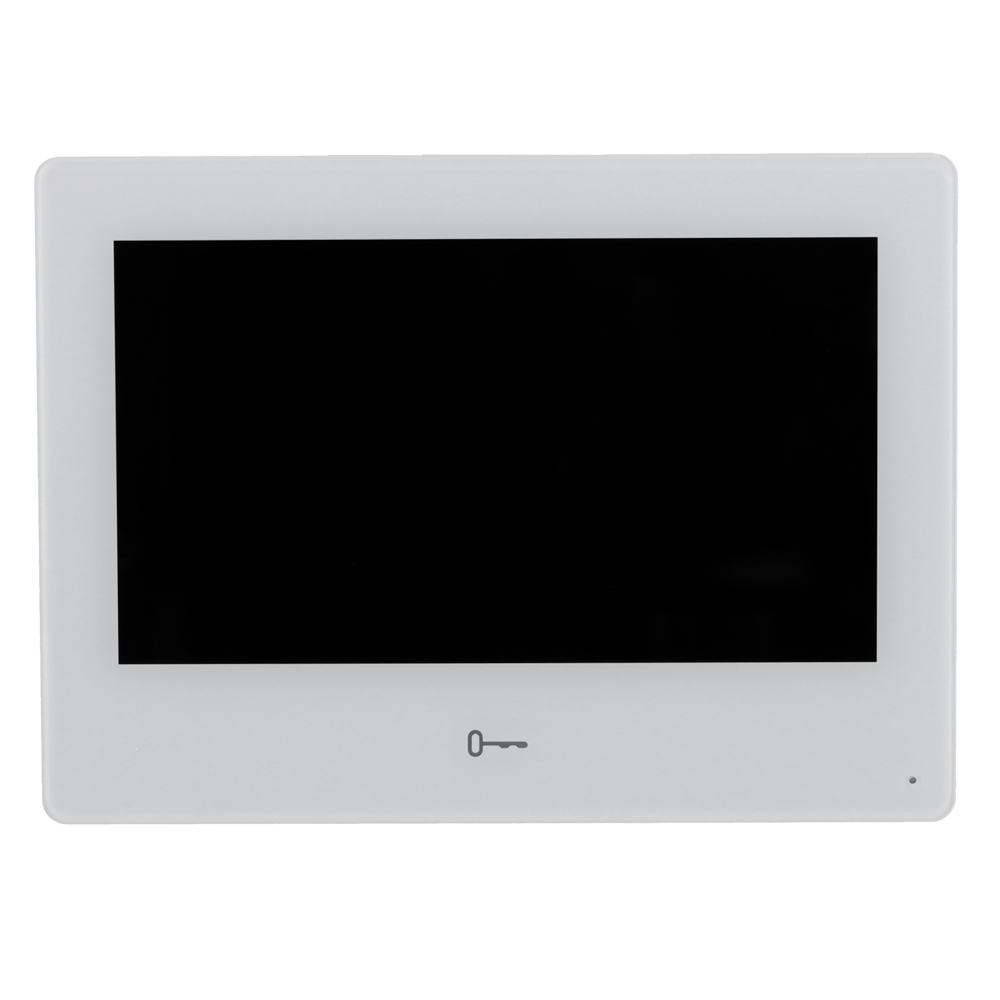

- Video door entry monitor
- TFT Monitor 7"
- Bidirectional audio
- TCP/IP, WiFi and SIP
- Installing 2 Android applications
- Surface mounting
- Safire
- Video door entry monitor
- 7" TFT Screen
- Supports installation of Android applications
- Built-in microphone and speaker
- Bidirectional audio
- 8 alarm inputs
- 1 relay output and 1 alarm output
- MicroSD slot
- Image capture and recording
- Multiple screen extensions
- TCP/IP and WiFi
- PoE IEEE802.3af
- Internal calls between devices
- Surface mounting
- Push notifications through App
- White colour
- It is not possible to use Safire's Linux SF-VIDISP01 and SF-VIDISP02 monitors as slaves
Specifications
| Brand | Safire |
| Model | SF-VIDISP08-7WIP-A |
| Operating system | Android 10 optimized for Safire Video Door Station |
| Applications | Supports up to 2 Android applications (.apk) |
| Application installation | Downloadable on the monitor via direct download link Installing .apk files via Safire Control Center |
| Integration | Safire Connect integrated (without notifications) |
| Screen type | 7" touch-screen TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 configurable alarm inputs |
| Outputs | 1 alarm output, 1 relay output |
| Audio | Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation |
| Memory | Internal memory (ROM): 8 GB RAM memory: 2 GB Slot for MicroSD card up to 32 GB |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP / WiFi 802.11 b/g/n (only for connection to App via P2P) / RS485 |
| Remote access | Software: Safire Control Center Mobile application: Safire Connect |
| Compatibility | Slave monitors only with Android monitors type SF-VIDISPxx-xWIP-A |
| Power | DC 12 V / 1 A max. Standard PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 187 (H) x 137 (W) x 25.7 (D) mm |
| Weight | 420 g |
In the box
- Safire indoor video intercom monitor
- Installation material
- User instructions
