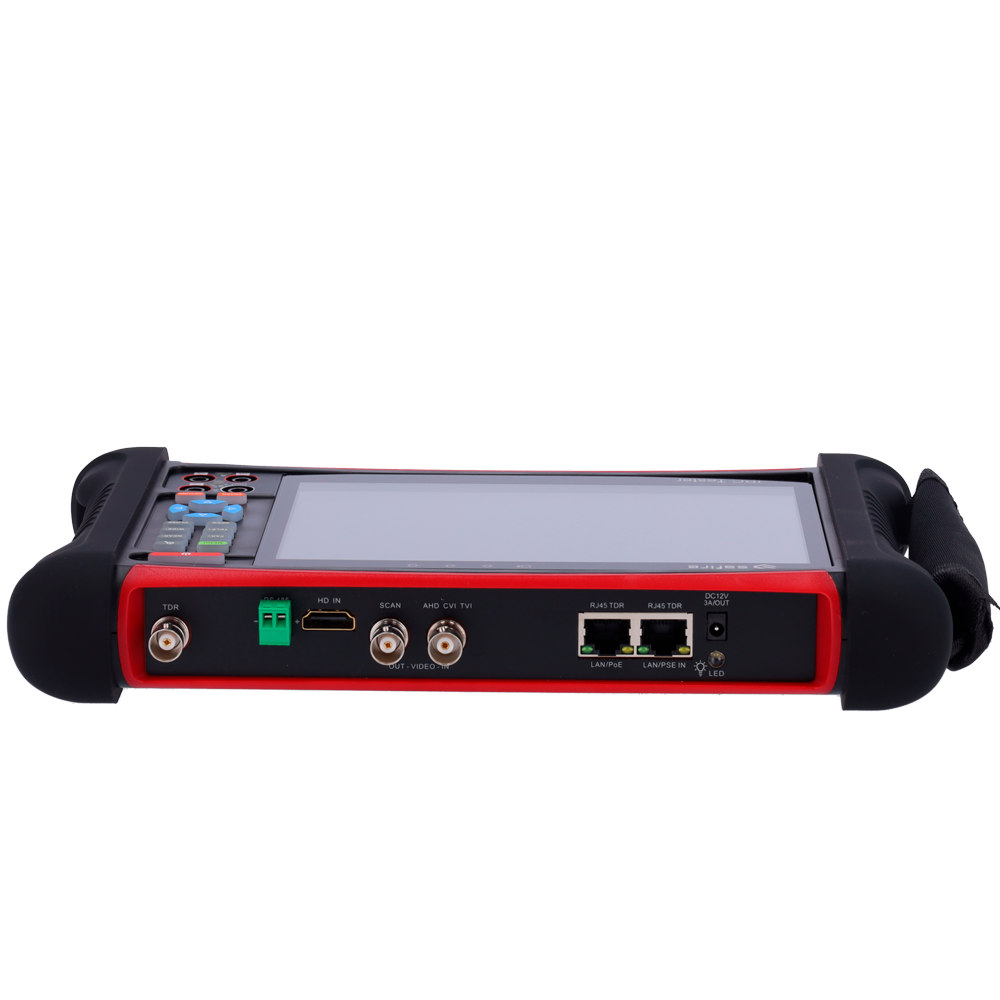

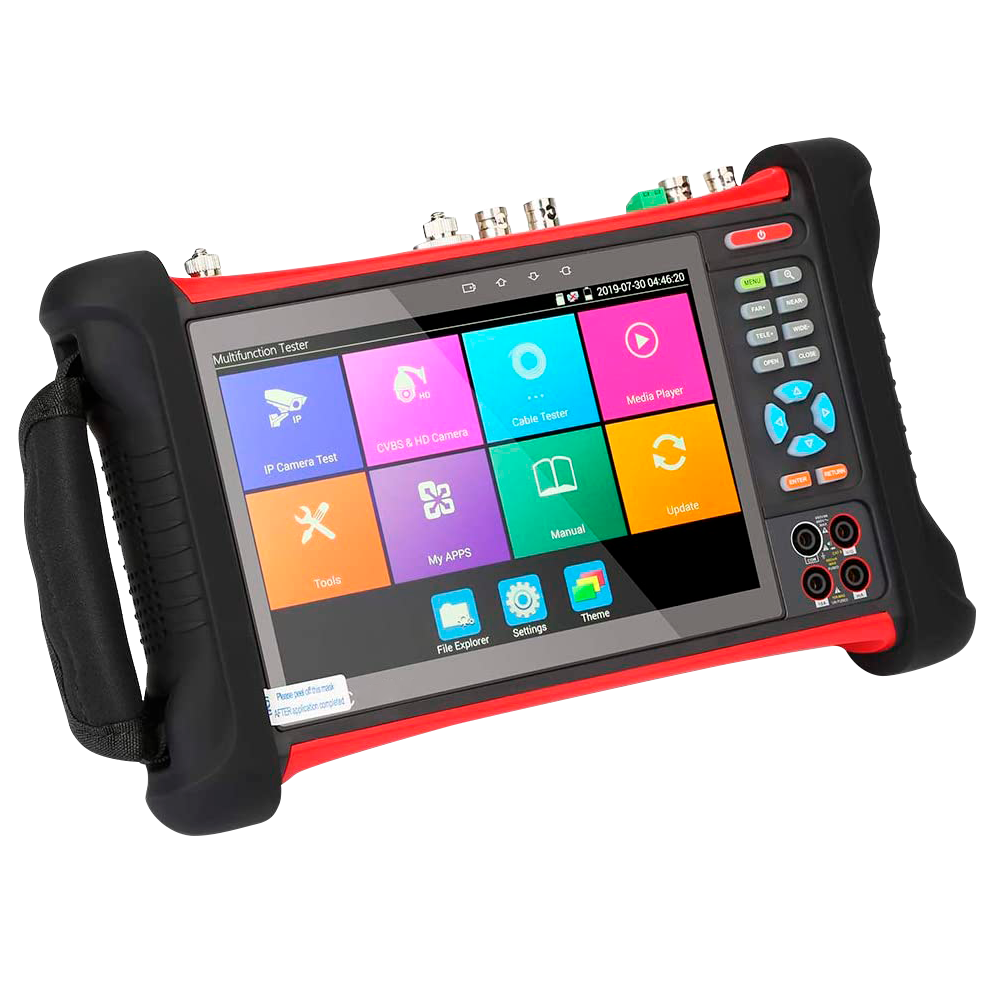

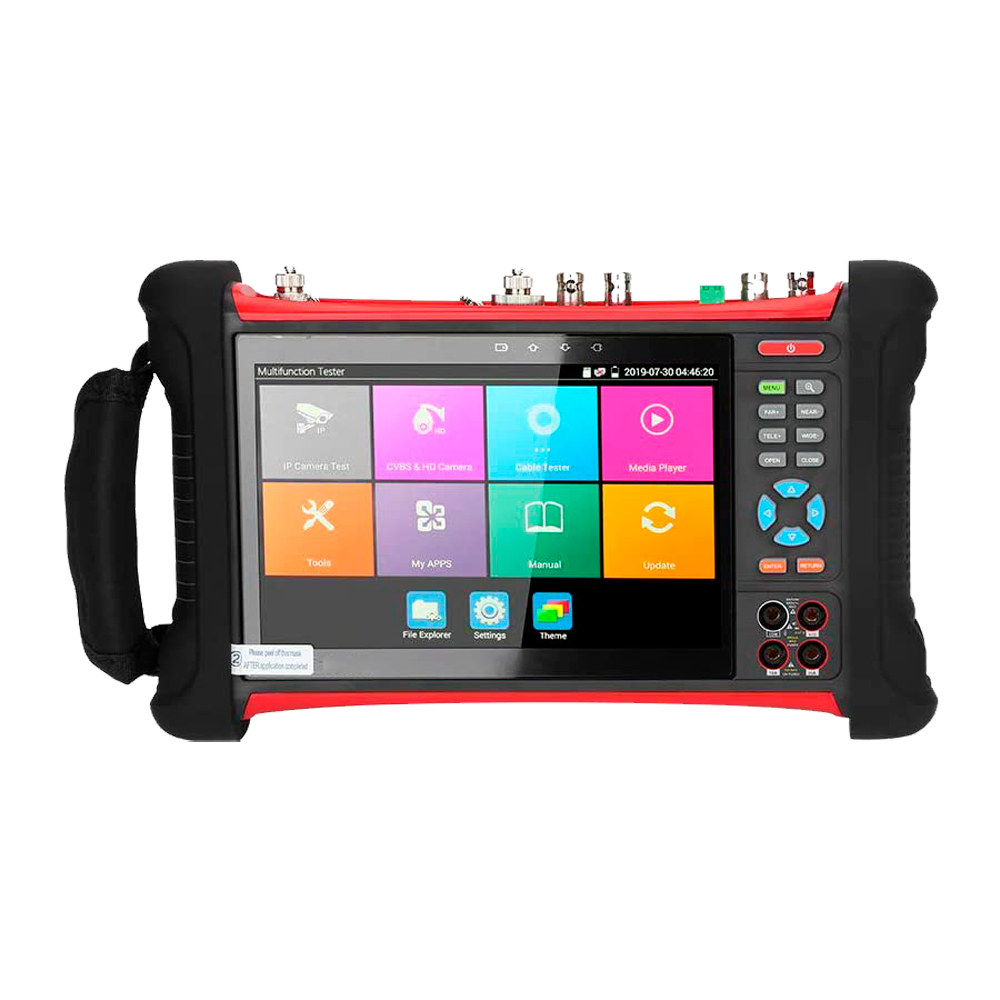

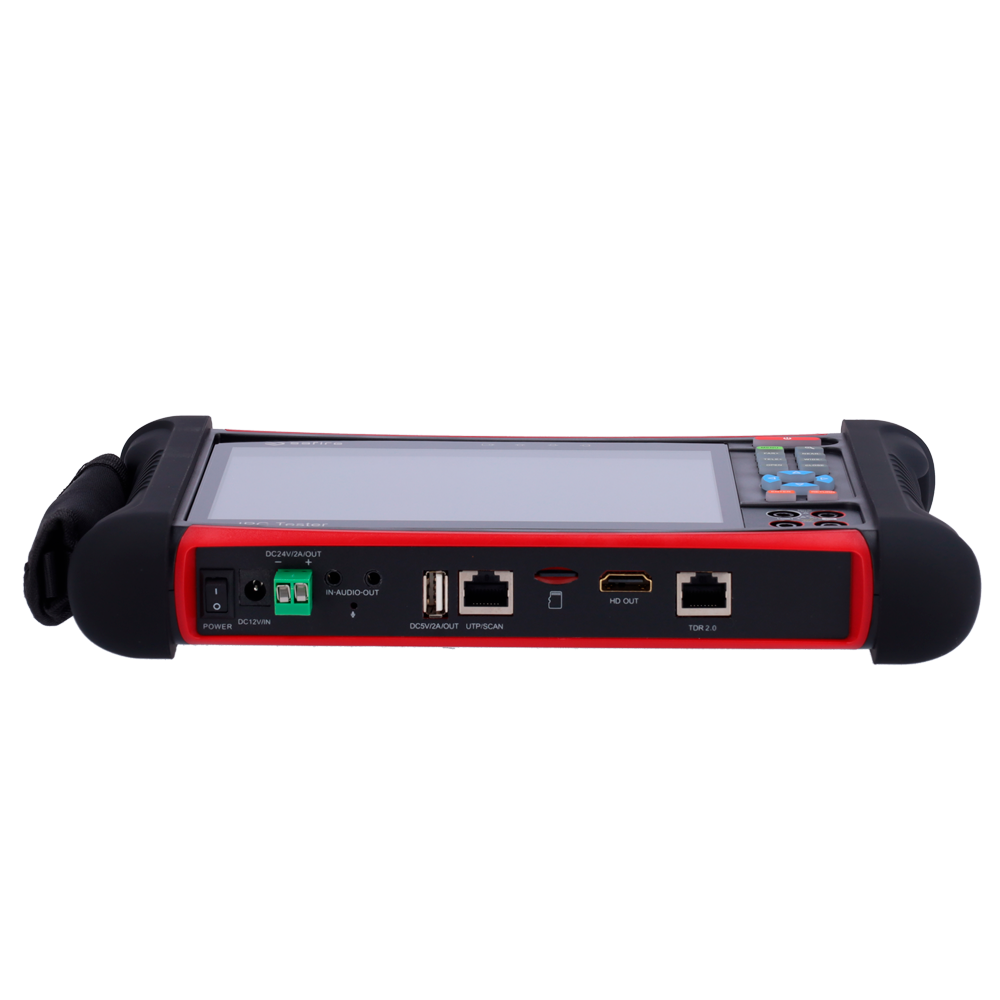

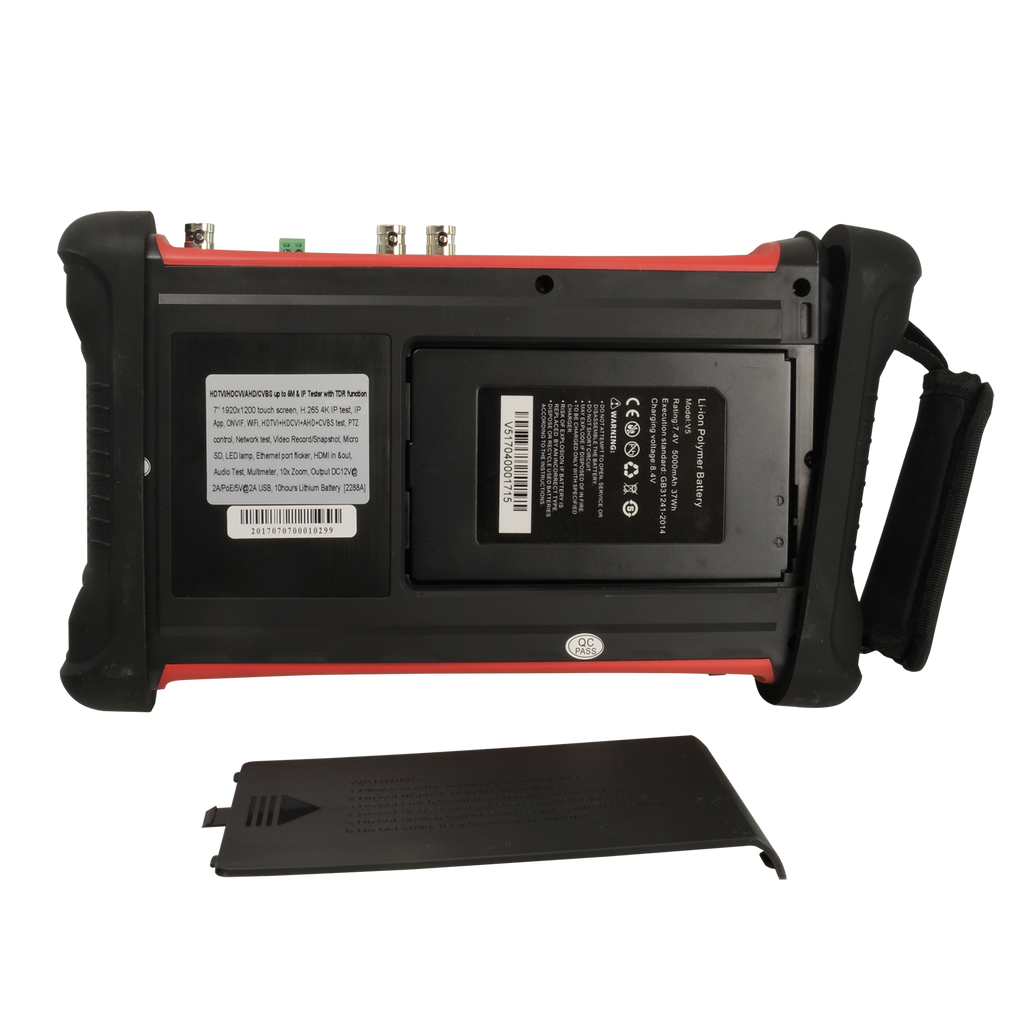

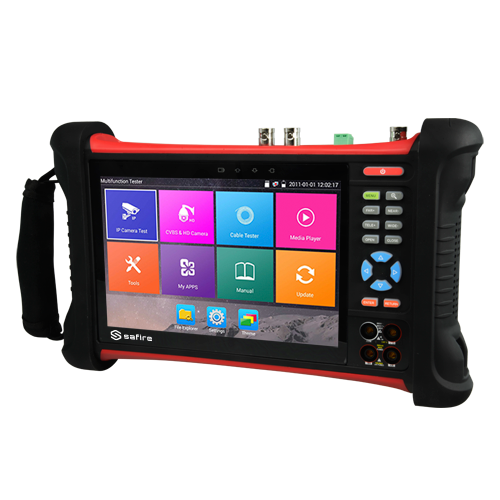

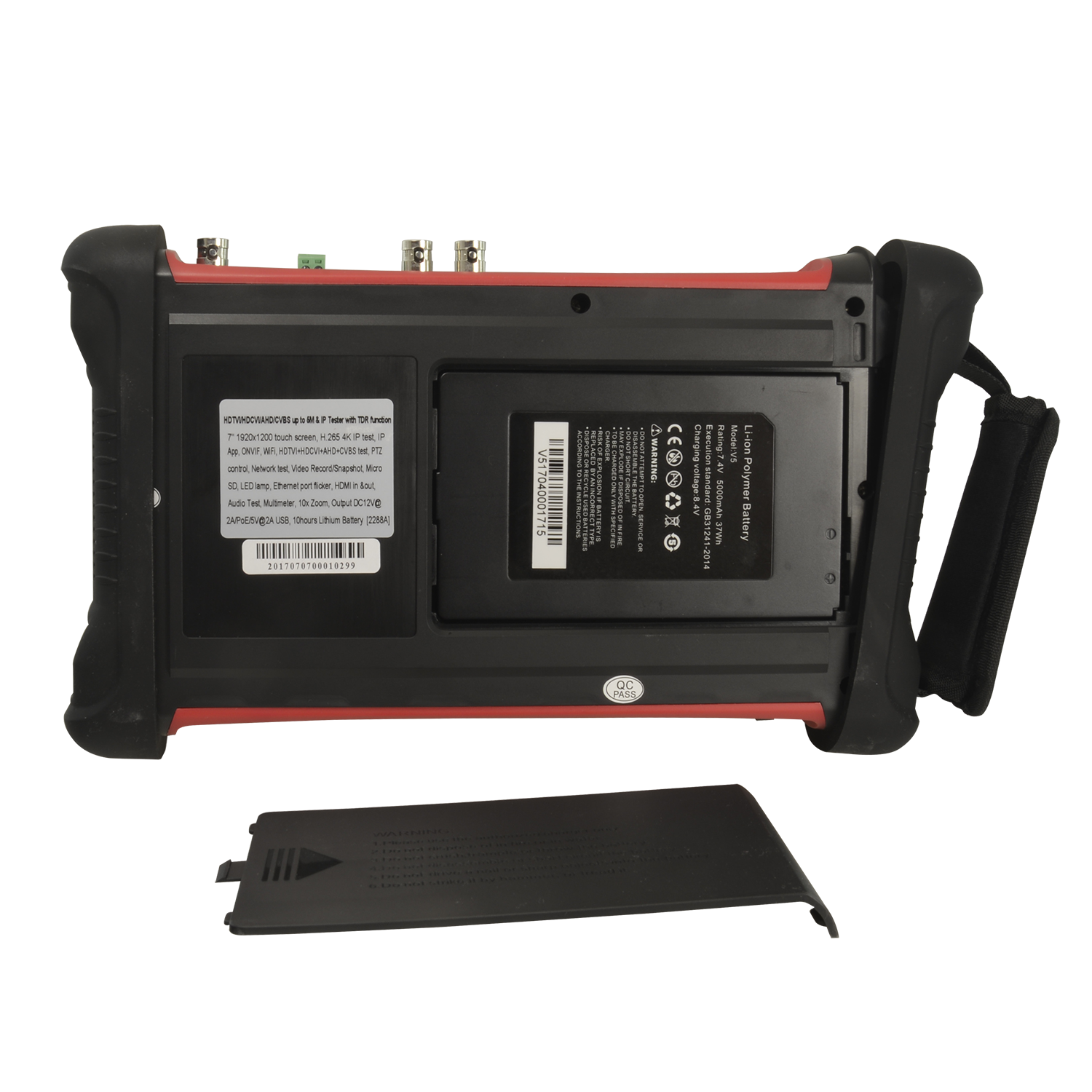

SF-TESTER7-5N1-4K
- Multifunctional CCTV Tester
- Supports HDTVI, HDCVI, AHD, CVBS and IP cameras (4K)
- Colour LCD display 7"
- Test of video, audio, UTP and TDR cables
- Built-in battery 5000 mAh
- WiFi connection / Digital multimeter
- Safire
- Multi-functional CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
- LCD 7" touch screen
- Resolution 1920x1200
- Decodes camera image up to 4K (HDTVI / HDCVI / AHD / IP)
- Built-in WiFi
- Audio Input/Output
- PTZ analyser and controller. Supports multiple protocols
- UTP Cable Tester
- Digital multimeter
- Micro SD card of 8 GB for recording
- Rechargeable lithium battery 7.4V 5Ah
- DC power supply outputs 12 V and PoE power supply
- Multi-language menu
- BNC and HDMI video Input/Output
- TDR function that can detect cable faults and the distance at which the fault is located
Specifications
| Brand | SAFIRE |
| Screen | TFT-LCD 7” resolution 1920x1200 |
| Formats | HDTVI / HDCVI / AHD / Analog CVBS / IP (4K) |
| Video settings | Brightness, contrast and saturation |
| Inputs | BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI (4K 30fps), Audio |
| Outputs | BNC, DC12V 3A, HDMI, Audio |
| PTZ | RS485 |
| Communication | WiFi, RJ45 10/100/1000M |
| Speaker | Incorporated |
| Digital multimeter | Voltage, current, resistance, diode and capacity |
| Video generator | Multicolour bar |
| Cable Tester | Independent accessory |
| TDR | Double TDR: UTP and Coaxial cable, to detect cable faults and the distance at which the fault is located |
| Power | Lithium Battery 7.4 V 5000 mAh |
| Charger | DC 12V 2A |
| Temp. operation | -10º C ~ +50º C |
| Dimensions / Weight | 255 mm x 160 mm x 46 mm / 950 g |
In the box
- SAFIRE multifunction CCTV Test Tool
- Carrying case
- Adapter AC/DC 12V / 2.0 A
- Probes for tester
- Cables and connectors for tester
- User instructions
