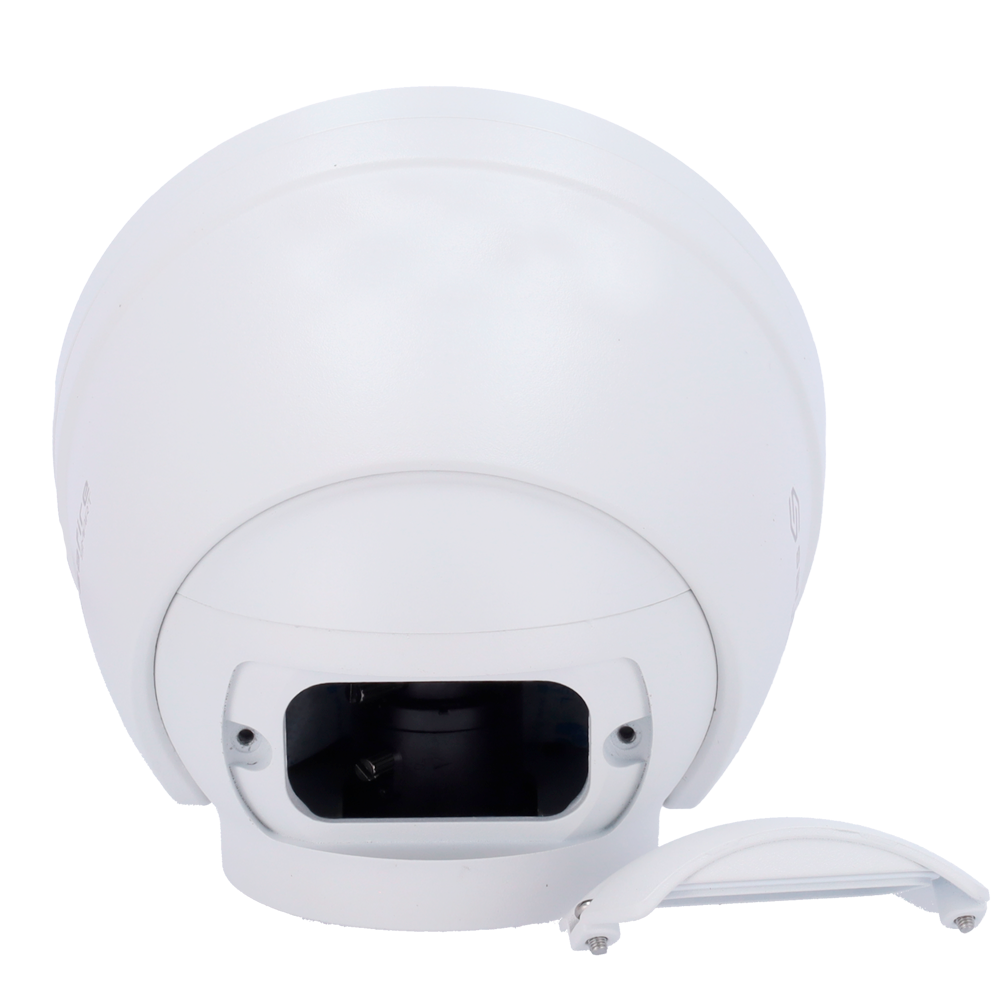

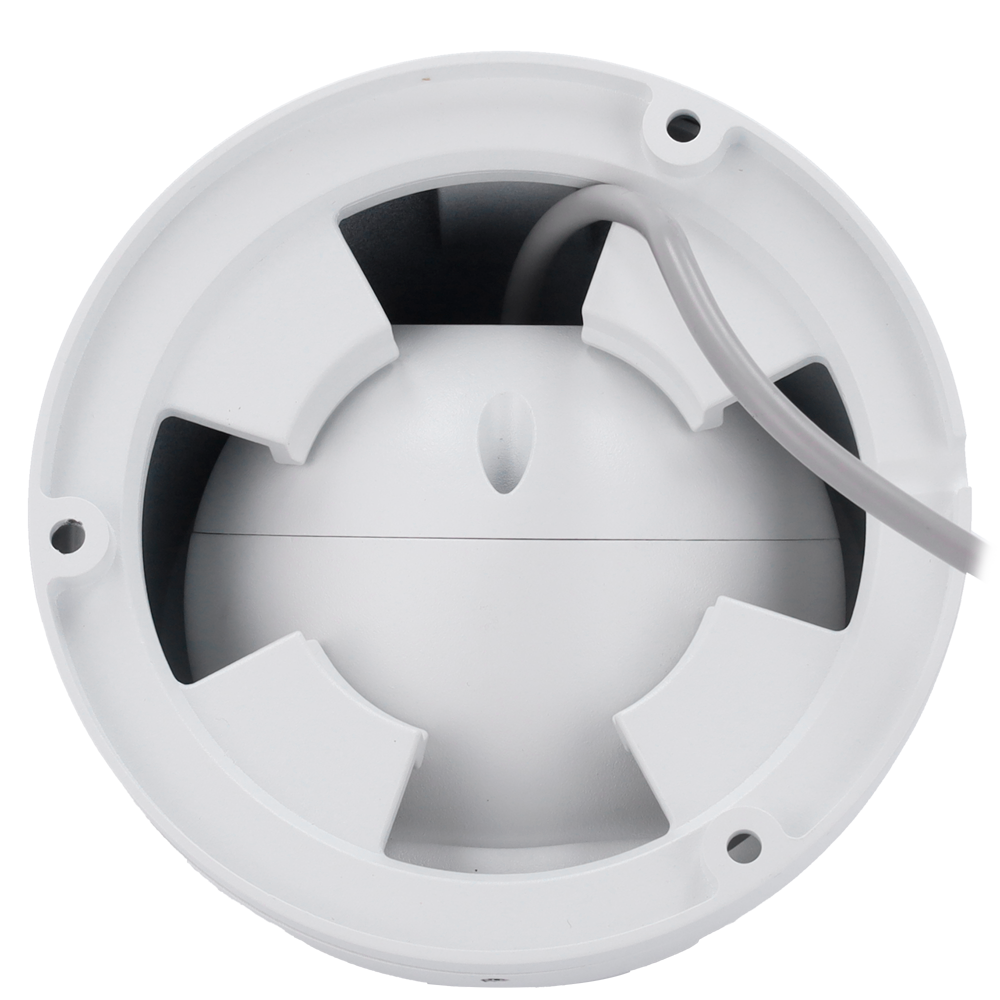

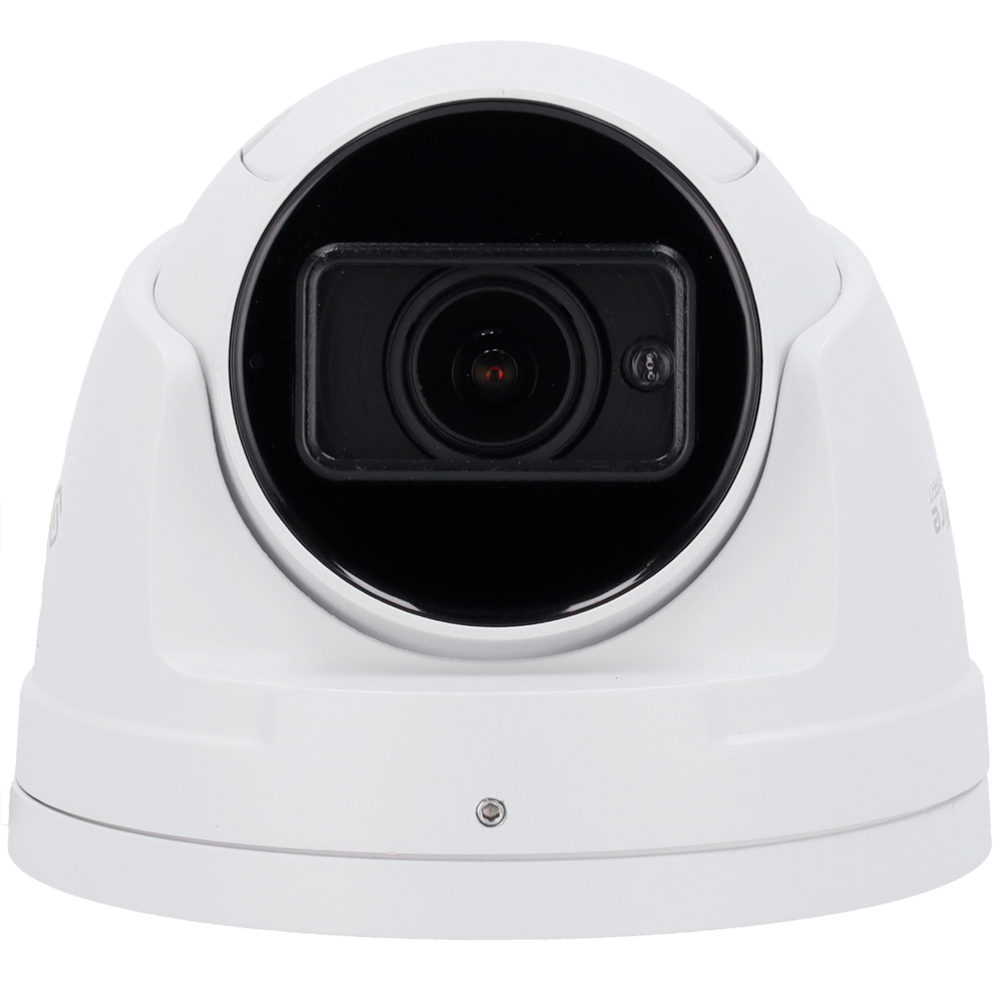

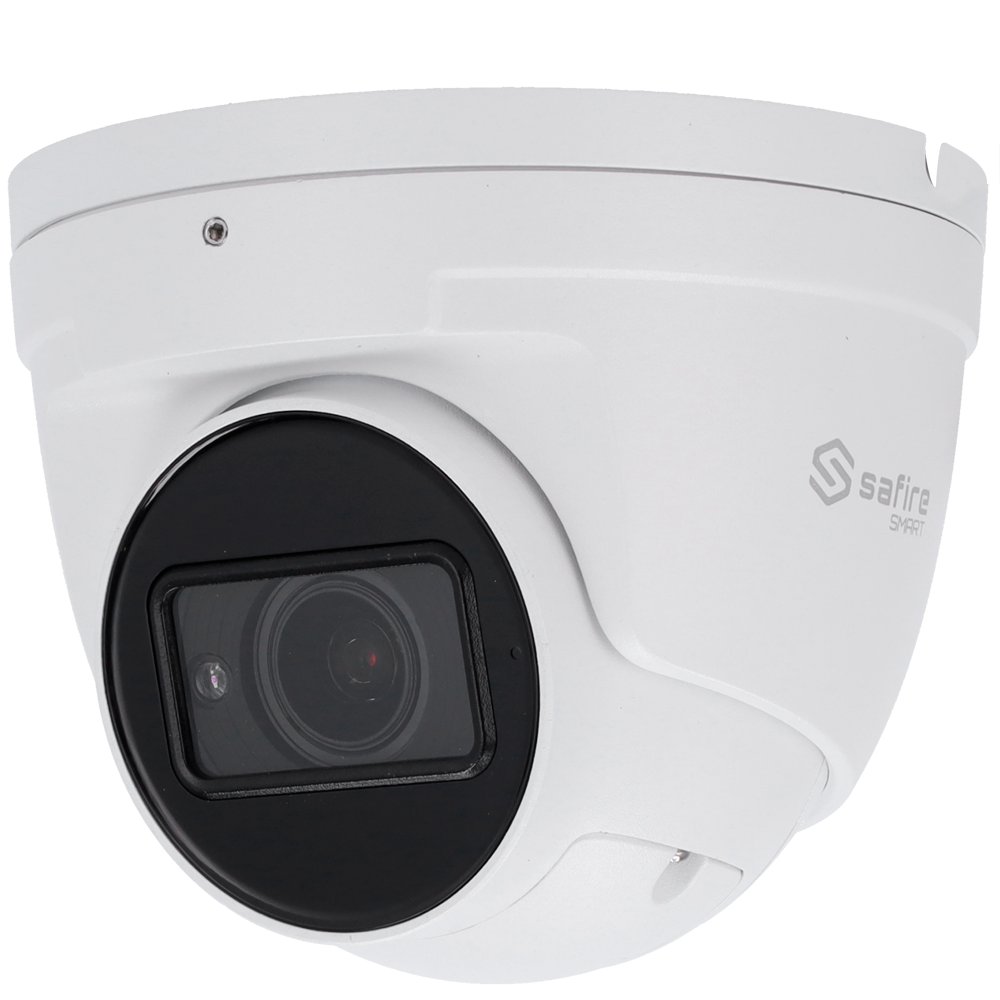

SF-T520Z-5E1
Ga direct naar de productinformatie
SF-T520Z-5E1
- Safire Smart
- Turret camera 4 in 1 Range E1
- 5 Mpx (2560x1936) , 1/2.7" CMOS
- motorized lens 2.8~12 mm | IR alcance50 m
- DWDR, HLC, BLC, AGC
- Weatherproof IP67
- Safire Smart
- E1 Professional high quality and performance range
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.7"
- 5Mpx (2560x1936)
- Output 4in1
- 2.8~12mm Motorised Lens
- 0 Lux
- IR Range 50 m
- 3D DNR
- IR Cut
- Mirror
- HLC, BLC, AGC, DWDR
- Weatherproof IP67
Specifications
| Brand | Safire Smart |
| Range | E1 High-quality, high-performance professional |
| Image sensor | 1/2.7" CMOS |
| Maximum resolution | 5 Mpx (2560x1936) |
| Resolution | 5Mpx (20fps) |
| Lens | Motorized 2.8~12 mm (H): 90.5º~32.9º, V: 74.3º~25º, D: 103º~40.5º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR range up to 50 m (ICR) |
| Day / Night | Auto / Colour / BW (Black and White) |

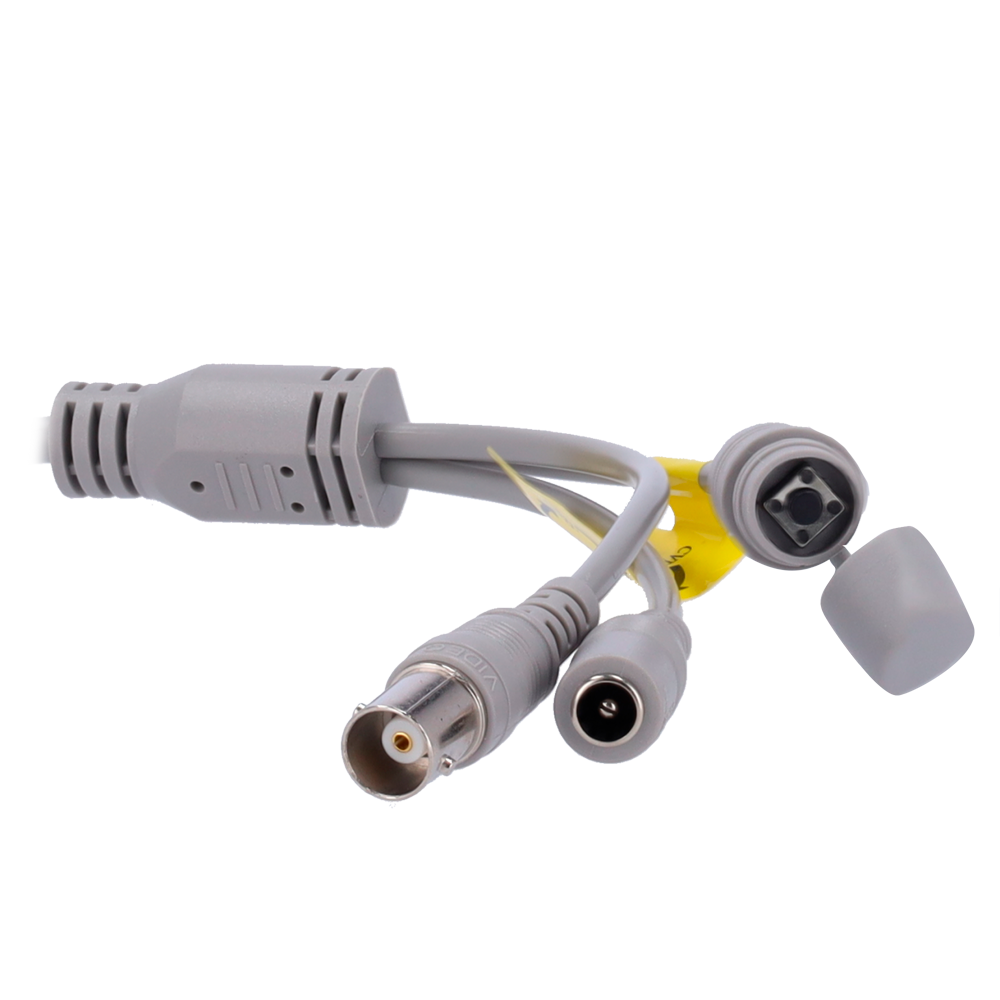

| Video output | 1x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | By DVR (HDTVI by default) |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 500 mA, 6W max |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic bracket |
| Dimensions | 110 (H) x 130 (Ø) mm |
| Weight | 650 g |
In the box
- Safire Smart turret camera
- 3 plugs and 3 screws for mounting
- Quick assembly guide
- Installation template
