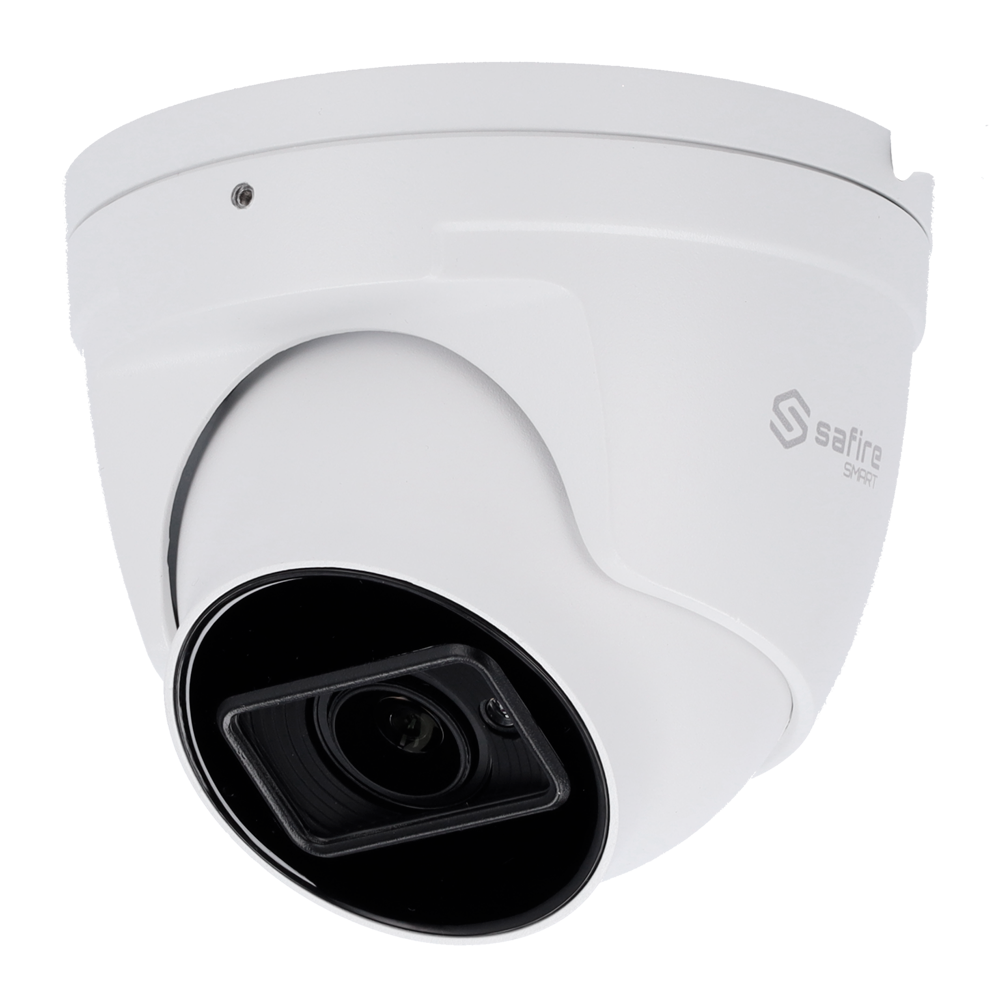

SF-T520Z-3KE1
Ga direct naar de productinformatie
SF-T520Z-3KE1
- Safire Smart
- Turret camera 4 in 1 Range E1
- 3K (2944x1656, 5Mpx 16:9), 1/2.5" CMOS
- 2.8 motorised lens - 12 mm | IR range 50 m
- DWDR, HLC, BLC, AGC
- Weatherproof IP67
- Safire Smart
- E1 Professional range of high quality and performance
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.5"
- 3K (2944x1656, 5Mpx 16:9)
- Output 4in1
- 2.8-12mm motorised lens
- 0 Lux
- IR Range 50 m
- 2DNR
- IR Cut
- HLC, BLC, AGC, DWDR image enhancements
- Weatherproof IP67
Specifications
| Brand | Safire Smart |
| Range | E1 High-quality, high-performance professional |
| Image sensor | 1/2.5" CMOS |
| Maximum resolution | 3K (2944x1656, 5Mpx 16:9) |
| Resolution | TVI: 2944×1656@20fps, 2560×1440@25fps/30fps CVI:2560×1440@25fps/30fps AHD: 2944×1656@20fps, 2560×1440@25fps/30fps CVBS: PAL/NTSC |
| Lens | Motorized 2.8 - 12 mm |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR range up to 30 m (ICR) |
| Day / Night | Auto / Colour / BW (Black and White) |
| Video output | 1x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video switching | By DVR (HDTVI by default) |
| Audio | Does not have |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2DNR, AWB, ATW, BLC, AGC, Smart IR |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 500 mA, 4W max |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body |
| Dimensions | 132 (Ø) x 103 (h) mm |
| Weight | 570 g |
In the box
- Safire Smart Turret Camera
- 3 plugs and 3 screws for mounting
- Quick assembly guide
- Installation template
