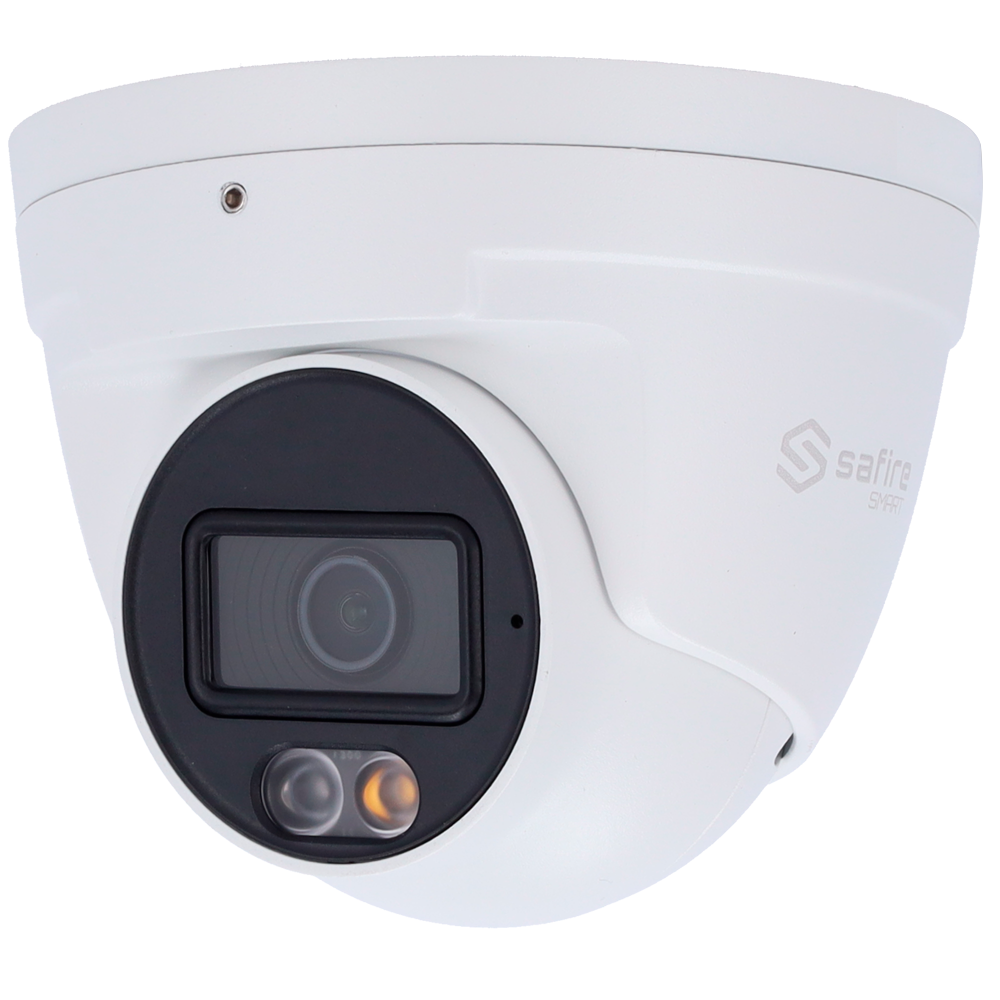

SF-T020A-2B1-DL
Ga direct naar de productinformatie
SF-T020A-2B1-DL
- Safire Smart
- Turret camera 4 in 1 Range B1 with dual light
- 2 Mpx (1920x1080) , 1/3" CMOS
- Lens 2.8mm | DWDR, HLC, BLC, AGC
- Dual Light (IR + white LED up to 30 m)
- Weatherproof IP67
- Safire Smart
- Range B1 Economical
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/3"
- 2Mpx (1920x1080)
- Output 4in1
- 2.8mm lens
- 0 Lux
- Dual Light: IR and white led up to 30 m
- 2D/3D DNR
- IR Cut
- Mirror
- HLC, BLC, AGC, DWDR
- Weatherproof IP67
Specifications
| Brand | Safire Smart |
| Range | B1 Economic |
| Image sensor | 1/3" CMOS |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | 2Mpx (25fps) |
| Lens | 2.8 mm (H: 93º, V: 53º, D: 107º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| Lighting | IR range up to 30 m White LED range up to 20 m |
| Day / Night | Auto / Colour / BW (Black and White) |
| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via OSD menu |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D/3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 250 mA, 3W max |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic bracket |
| Dimensions | 82.8 (H) x 94.6 (Ø) mm |
| Weight | 390 g |
In the box
- Safire Smart turret camera
- 3 plugs and 3 screws for mounting
- Quick assembly guide
- Installation template
