SF-T010A-5B1-0360
Ga direct naar de productinformatie

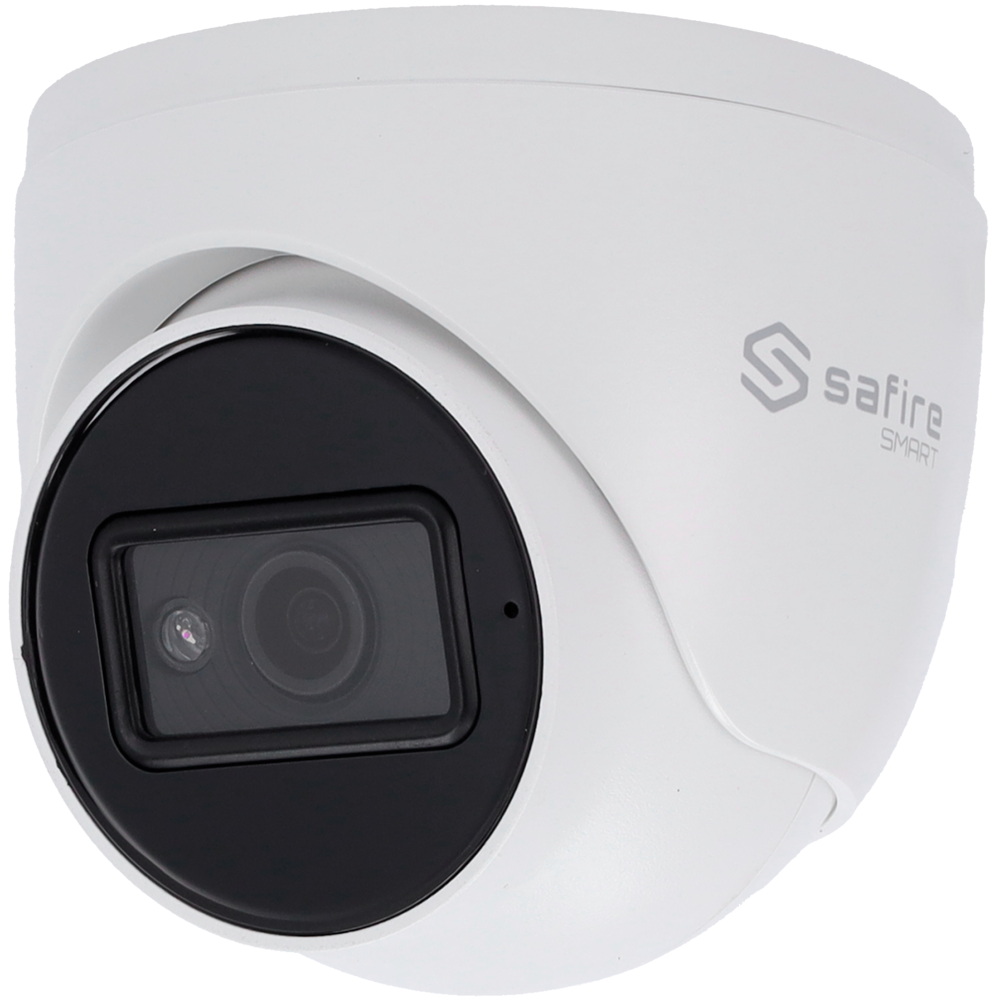

SF-T010A-5B1-0360
- Safire Smart
- Turret camera 4 in 1 Range B1
- 5 Mpx ( (2560x1936) , 1/2.5" CMOS
- lens 3.6 | IR range 20 m
- DWDR, HLC, BLC, AGC
- Weatherproof IP67
- Safire Smart
- Range B1 Economical
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.5"
- 5Mpx (2560x1936)
- Output 4in1
- 3.6mm lens
- 0 Lux
- IR Range 20 m
- 2D DNR
- IR Cut
- Mirror
- HLC, BLC, AGC, DWDR
- Built-in microphone, audio over coaxial
- Weatherproof IP67
Specifications
| Brand | Safire Smart |
| Range | B1 Economic |
| Image sensor | 1/2.5" CMOS |
| Maximum resolution | 5 Mpx (2560x1936) |
| Resolution | 5MP@20fps /4MP@30fps |
| Lens | 3.6 mm (H: 88.6º, V: 72.4º, D: 101.3º) |
| Minimum illumination | 0.01 Lux @(F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR range up to 20 m (ICR) |
| Day / Night | Auto / Colour / BW (Black and White) |

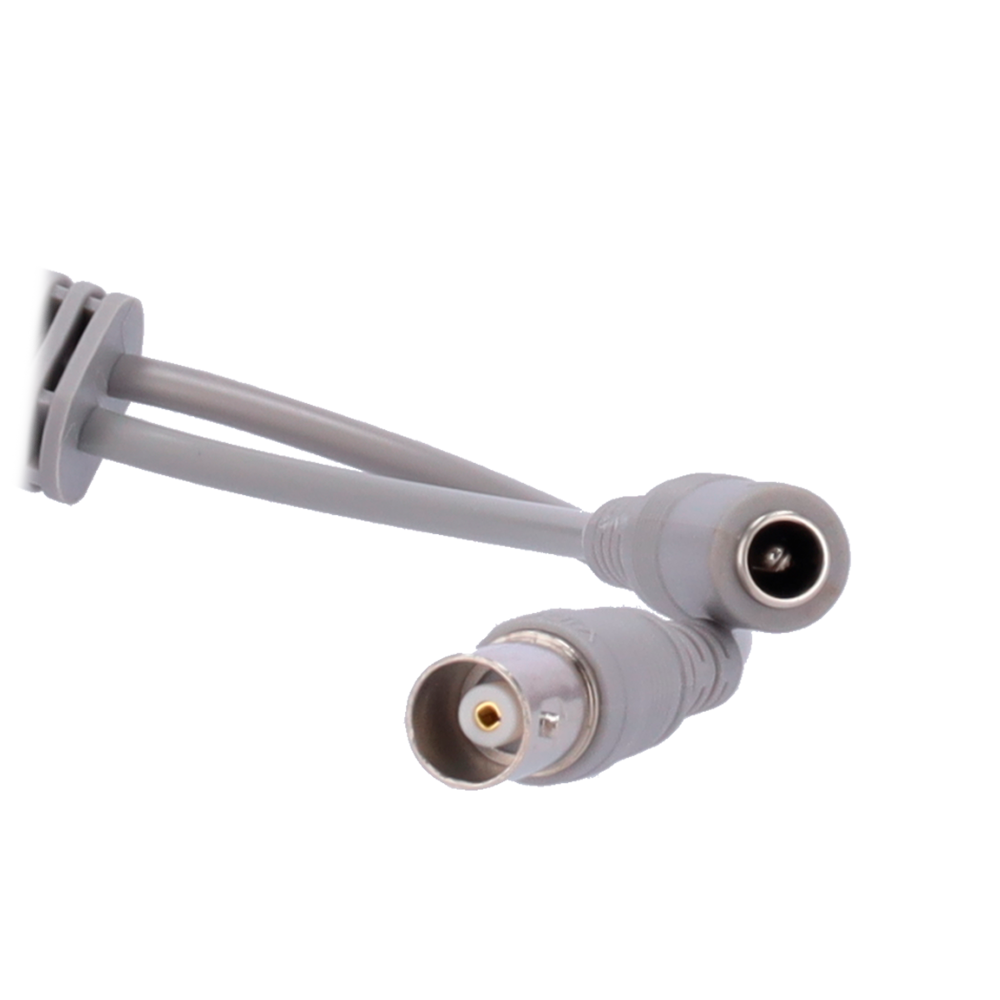

| Video output | 1x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | By DVR (HDTVI by default) |
| Audio | Built-in microphone, audio over coaxial |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 250 mA, 3W max |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic bracket |
| Dimensions | 82.8 (H) x 94.8 (Ø) mm |
| Weight | 200 g |
In the box
- Safire Smart turret camera
- 3 plugs and 3 screws for mounting
- Quick assembly guide
- Installation template
