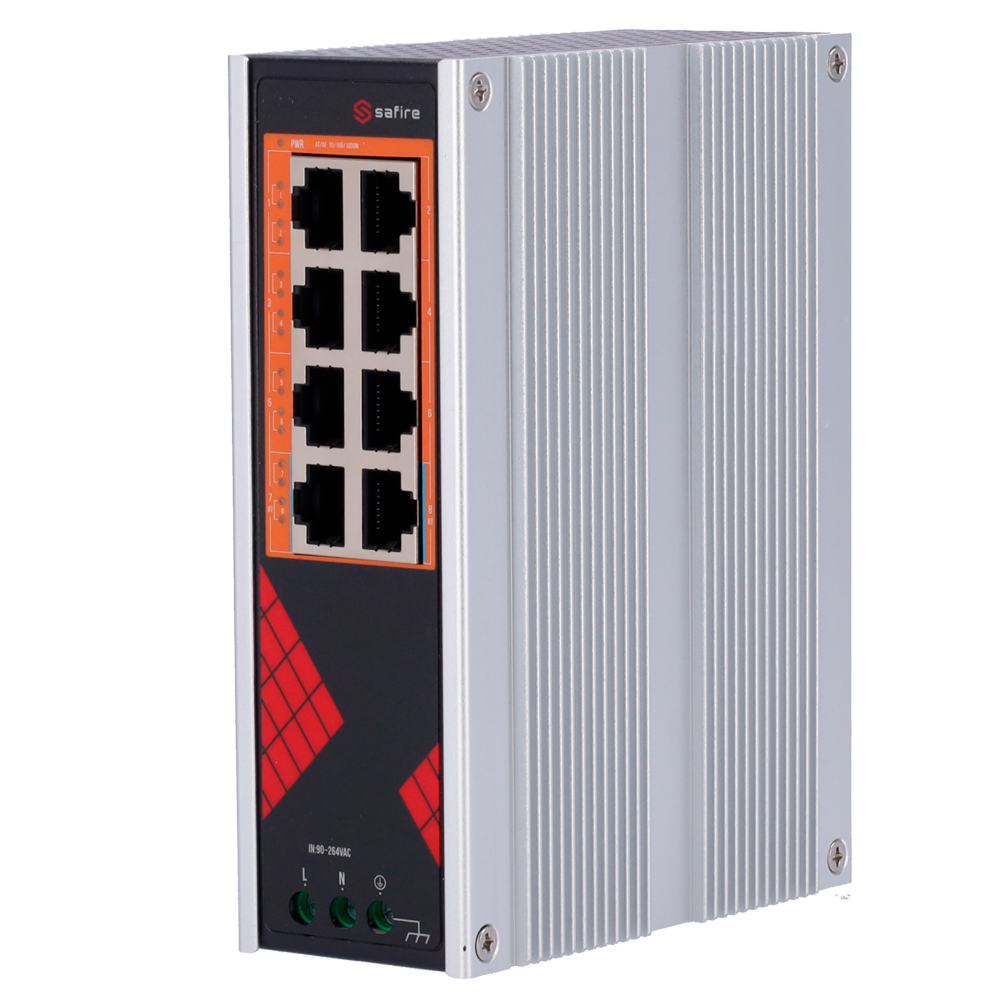

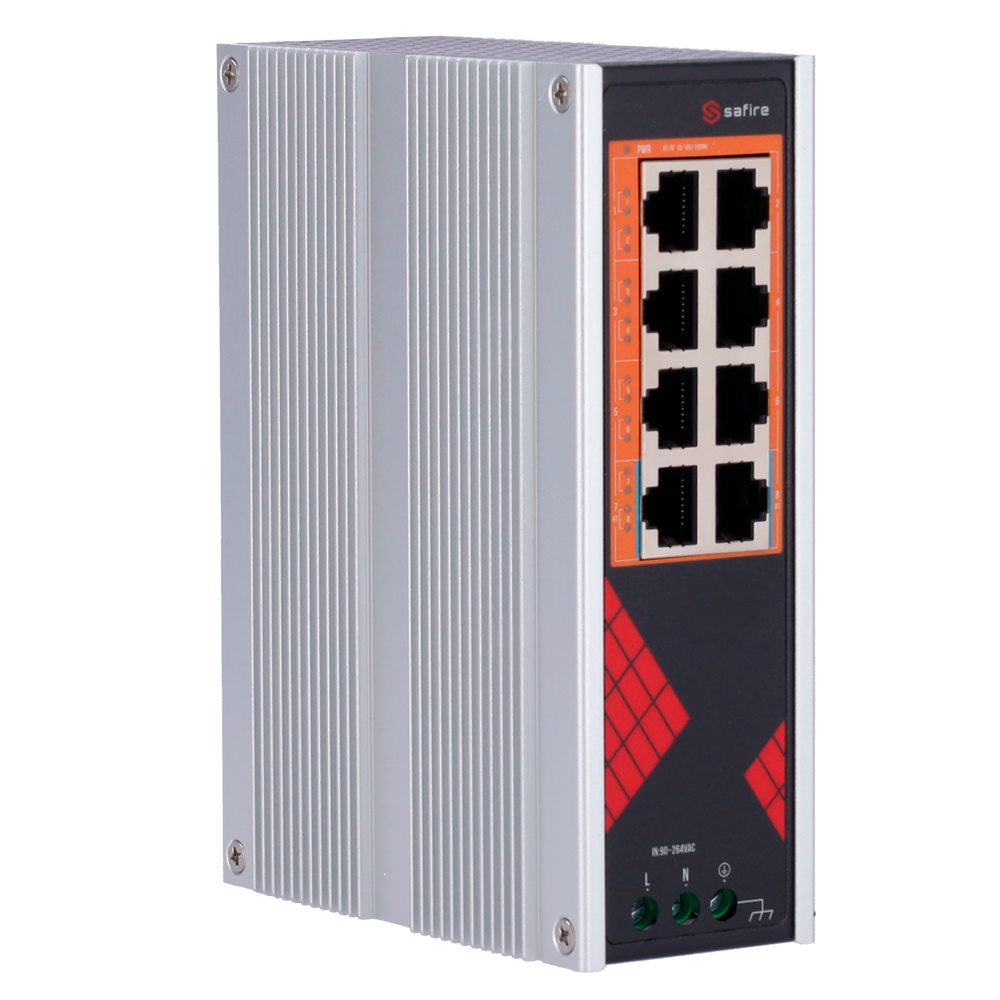

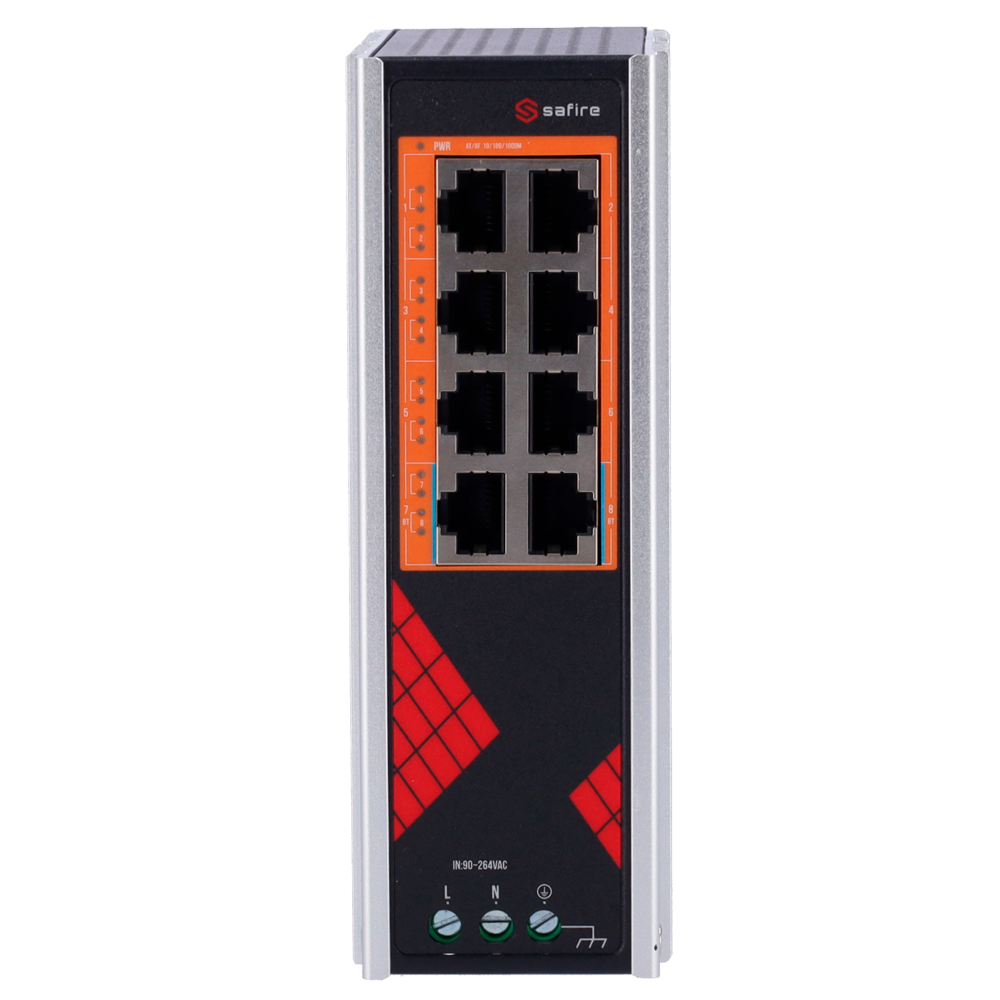

SF-SWI08HIPOE-G-AC-130-DIN
Ga direct naar de productinformatie
SF-SWI08HIPOE-G-AC-130-DIN
- Safire Industrial Switch Industrial AC Power 90~264V
- 8 ports Gigabit 10/100/1000Mbps
- 6 PoE+ Ports 30W + 2 Hi-PoE Ports 60W
- PoE Watchdog
- Up to 130W Total PoE Power

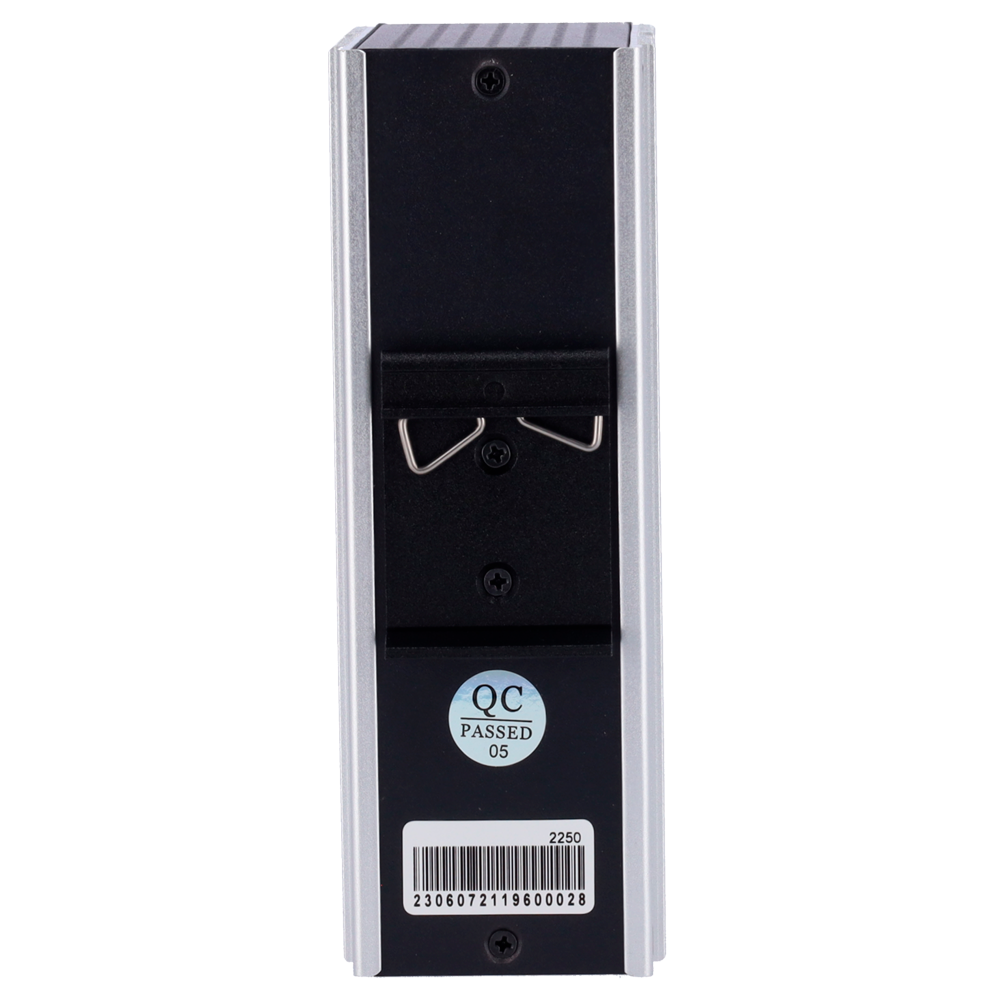

- DIN rail installation
- IP40 Industrial Switch
- AC power supply
- 8 PoE ports RJ45 Gigabit 10/100/1000 Mbps
- 6 PoE+ ports 30W 802.3af/at + 2 Hi-PoE ports 60W 802.3bt
- Supports PoE power supply up up 130W in total for all ports
- AI Watchdog
- Extended temperature range -40ºC to 70ºC
- DIN-rail installation
Specifications
| Interfaces | 8 ports RJ45 PoE |
| Port speed RJ45 | 8x RJ45 Gigabit 10/100/1000Mbps |
| PoE features | Up to 130W in total for all ports Ports 1~6 PoE+ Up to 30W 802.3af/at Port 7~8 Hi-PoE Up to 60W 802.3af/at/bt |
| Transmission distance | 130 meters |
| Bandwidth | 16Gbps |
| Reshipment Rate | 11,9Mbps |
| MAC Table | 8K |
| Latency | 10 to 100MBps <16μs (utilizando 64 byte de tamaño de paquete) |
| AI PoE | PoE Watchdog Puertos 1~8 - Reinicio automático de la alimentación de un puerto PoE cuando se detecta un posible fallo. |
| Alimentación | AC 90~264V |
| Protecciones | 6KV contra Rayos 8KV Protección ESD IP40 |
| Temperatura de funcionamiento | -40° C - 70° C |
| Dimensiones | 145 x 110 x 51mm |
| Peso | 0,72 Kg |
In the box
- Switch Hi-PoE
- Instrucciones de uso
