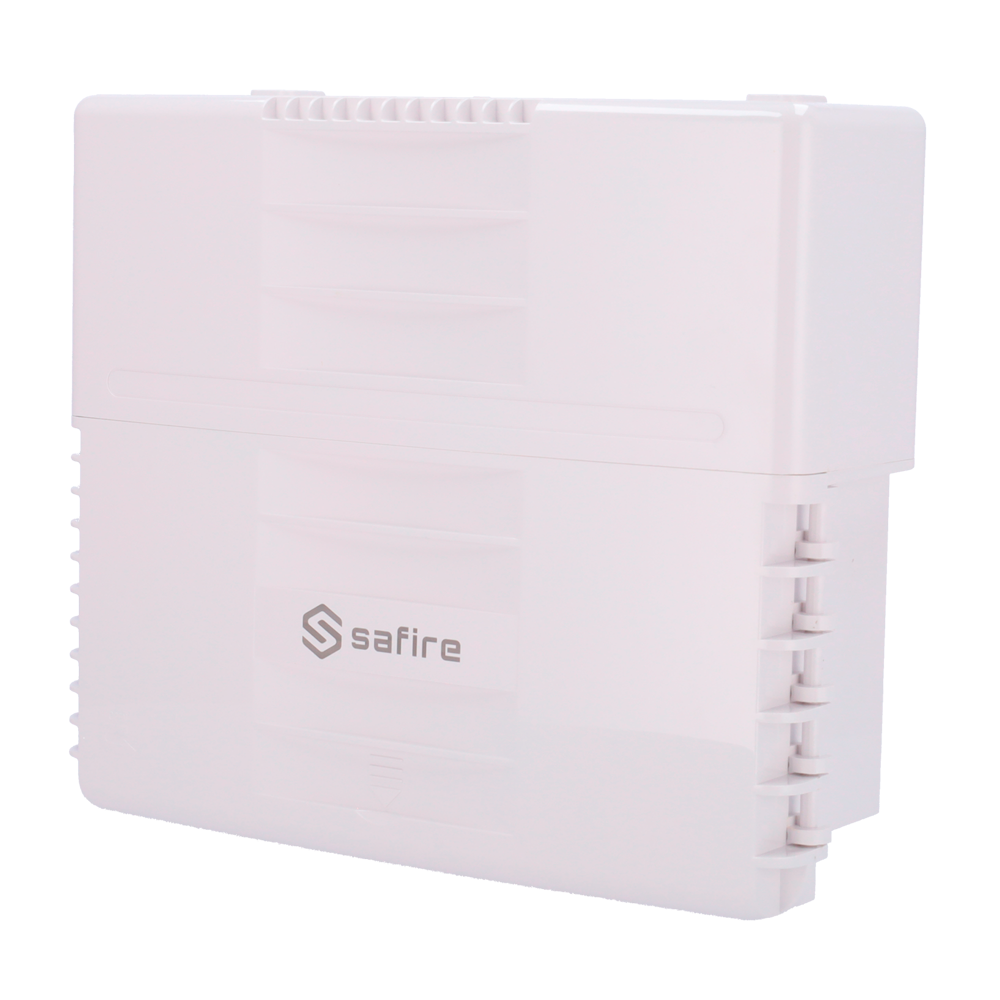

SF-SW1916HIPOE-HF-300-0UT
Ga direct naar de productinformatie
SF-SW1916HIPOE-HF-300-0UT
- Safire Outdoor Hi-PoE Switch
- 16 PoE ports + 1 SFP + 2 RJ45
- Gigabit port speed 10/100/1000 Mbps
- 14 PoE+ Ports 30W + 2 Hi-PoE Ports 60W
- PoE Watchdog
- Up to 300W Total PoE Power
- Safire outdoor switch
- 14 PoE+ ports 30W RJ45 10/100 Mbps
- 2 Hi-PoE ports 60W 802.3bt 10/100 Mbps + 1 Uplink SFP ports 10/100/1000Mbps
- 2 Uplink Ports RJ45 10/100/1000Mbps
- Supports PoE power supply up up 300W in total for all ports
- AI Watchdog
Specifications
| Interface | 16 PoE ports + 1 Uplink SFP + 2 Uplink RJ45 |
| Port speed RJ45 | 16x 10/100Mbps 2x 10/100/1000Mbps 1x SFP 10/100/1000Mbps |
| PoE features | Up to 300W in total for all ports Ports 1~14 PoE+ Up to 30W 802.3af/at Port 15~16 Hi-PoE Up to 60W 802.3af/at/bt |
| Transmission distance | Up to 130 meters |
| AI PoE | PoE Watchdog Ports 1~16 - Automatic restart of the power supply to a PoE port when a possible failure is detected. |
| Installation | Outdoor |
| Power | Front Take 90~240V |
| Protections | 6KV against Rays 8KV ESD Protection |
| Operating temperature | -30° C ~ 60° C |
| Dimensions | 310 x 260 x 100 mm |
| Weight | 1.6 Kg |
In the box
- HiPoE Switch
- AC cable
- User instructions
