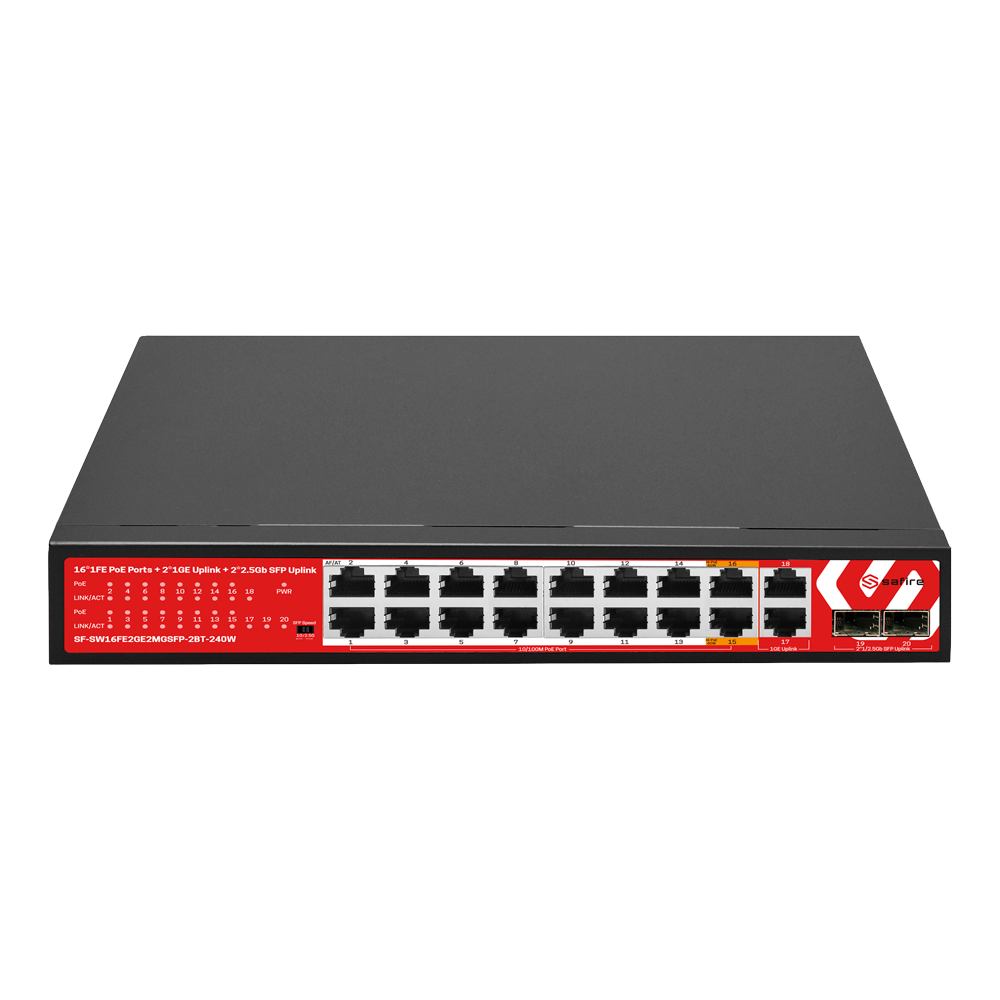

SF-SW16FE2GE2MGSFP-2BT-240W

• Safire Switch Hi-PoE
• 16 FE PoE ports + 2 RJ45 uplink + 2x2.5GE SFP
• Port speed 10/100/1000/2500 Mbps
• 14 PoE+ Ports 30W + 2 Hi-PoE Ports 60W
• PoE Watchdog
• Up to 240W Total PoE Power

The SF‑SW16FE2GE2MGSFP‑2BT‑240W is a high-density, high-performance PoE switch designed for enterprise environments, video surveillance systems, and networks that require centralized PoE power. It features 16 Fast Ethernet PoE ports (10/100 Mbps),, of which 15‑16 ports support up to 60 W of high-power PoE, while the 1‑14 offer up to 30 W per port. In addition, it features 2 Gigabit uplink ports and 2 SFP ports (1 G/2.5 G) for fiber links, allowing for flexible network expansion and maintaining high-speed connections with other switches or servers. All ports support IEEE 802.3af/at/bt,, providing compatibility with most modern PoE devices.

This switch offers plug-and-play functionality, with auto-negotiation and auto MDI/MDIX on all ports, ensuring quick and easy installation. With a total bandwidth of 17,2 Gbps,, a latency of <16 µs, and a MAC table capacity of 8 K addresses, it ensures stable performance even under heavy traffic. Its robust design allows it to operate in temperature ranges from −30 °C to 60 °C and humidity from 10 % to 90 % without condensation, with lightning protection of 6 kV and ESD protection of 8 kV. With a maximum power consumption of 240 W,, a metal housing of 270 × 170 × 45 mm, and rack-mountable 19".

• Desktop Switch
• 14 PoE+ports 30W RJ45 10/100 Mbps + 2 Hi-PoE+ ports 60W 802.3bt 10/100 Mbps + 2 Uplink SFP 10/100/1000/2500Mbps + 2 Uplink RJ45 10/100/1000Mbps
• Supports PoE power supply up up 240W in total for all ports
• AI Watchdog

Specifications

In the box

• HiPoE Switch
• AC cable
• User instructions
