SF-SOLARKIT-BATT-1280WH

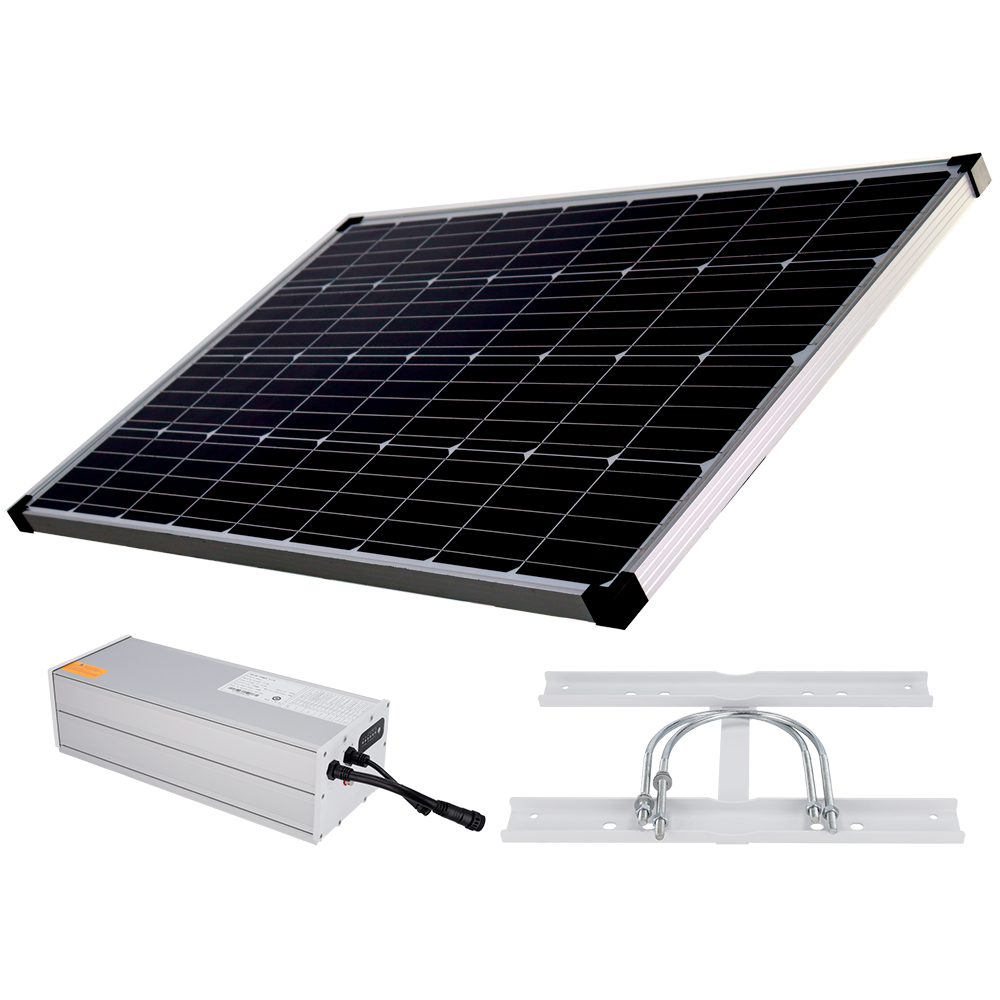

- Stand-alone power supply system for CCTV
- Solar panel of 200W
- LiFePo4 1280Wh (100Ah) Lithium battery
- Integrated MPPT regulator
- Support for mast anchorage
- RS-485 for communication
SAFIRE's autonomous power supply systems are the best solution for CCTV in off-grid environments, such as construction site surveillance, photovoltaic parks or any type of installation.
These all-in-one kits consist of solar panel, lithium battery with integrated MPPT regulator (to optimize the power of the solar panel) and bracket for installation on a mast. This makes installation simple and construction time short. Communication with third parties via RS485 protocol is also possible.
They are available in a wide range of capacities (from 256Wh to 2560Wh) to serve different energy needs, depending on the equipment located and the location of the installation.
- Stand-alone power supply system for CCTV
- Solar panel up to 200W
- Battery LiFePo4 of 1280Wh with 2000 charge and discharge cycles
- Integrated MPPT regulator
- Output 12/24 VDC
- 80W Maximum output power
- Communication RS485 for third-party integration
- Mast support included
- Degree of protection IP67
Specifications

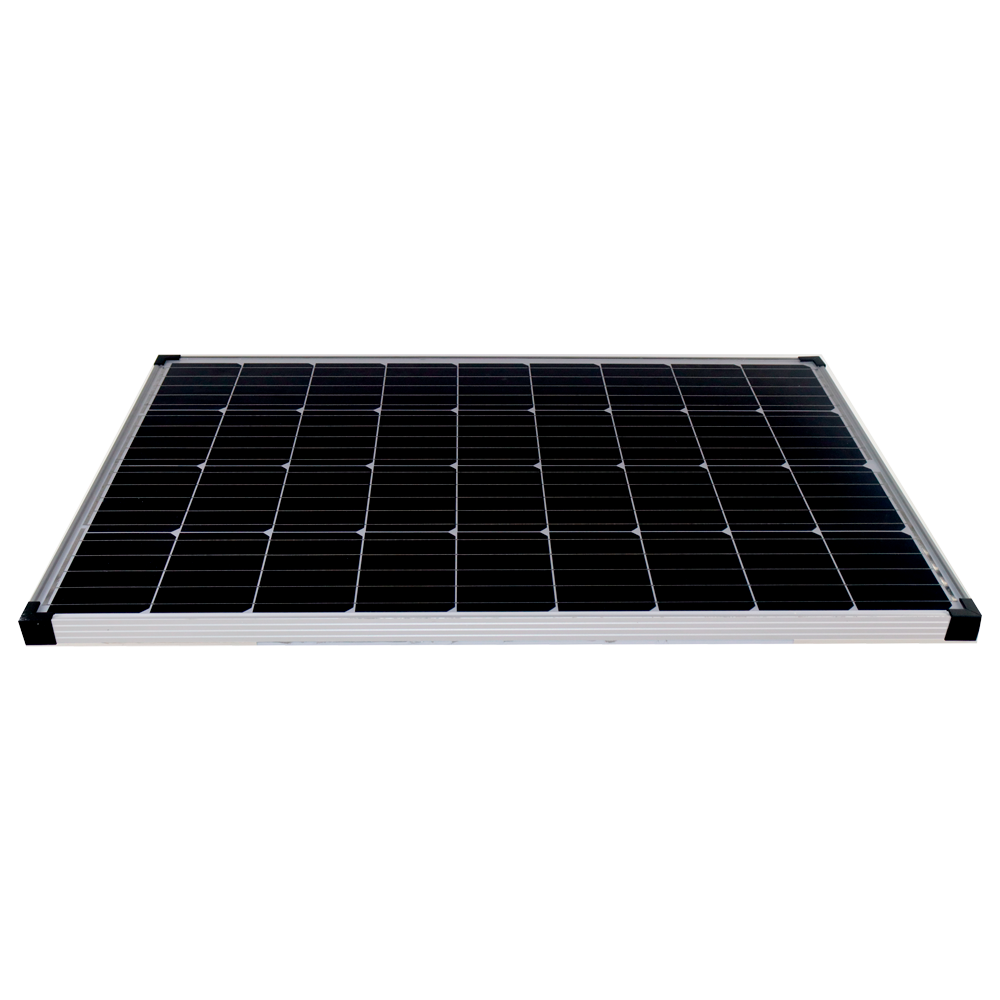

Solar Panel |
|
| Power | 200 W |
| Power tolerance (W) | ±3% |
| Cells | 166 monocrystalline |
| Short circuit current | 11.11A |
| Open circuit voltage | 21.24V |
| Efficiency | 21.8% |
| Glass thickness | 3.2mm |
| Maximum load capacity | 60 m/s (5Kg/sg.m) |
| Maximum hail load | 23m/s, 7.53g |
| Temperature range | -40ºC ~ 85ºC |
| Module dimensions | 1560 (W) x 670 (H) x 30 (D) mm |
| Weight | 25Kg (panel) + 8,7Kg (bracket) |
| Degree of protection | IP67 |
| Maximum diameter of pole/pole (not included) | 200mm |

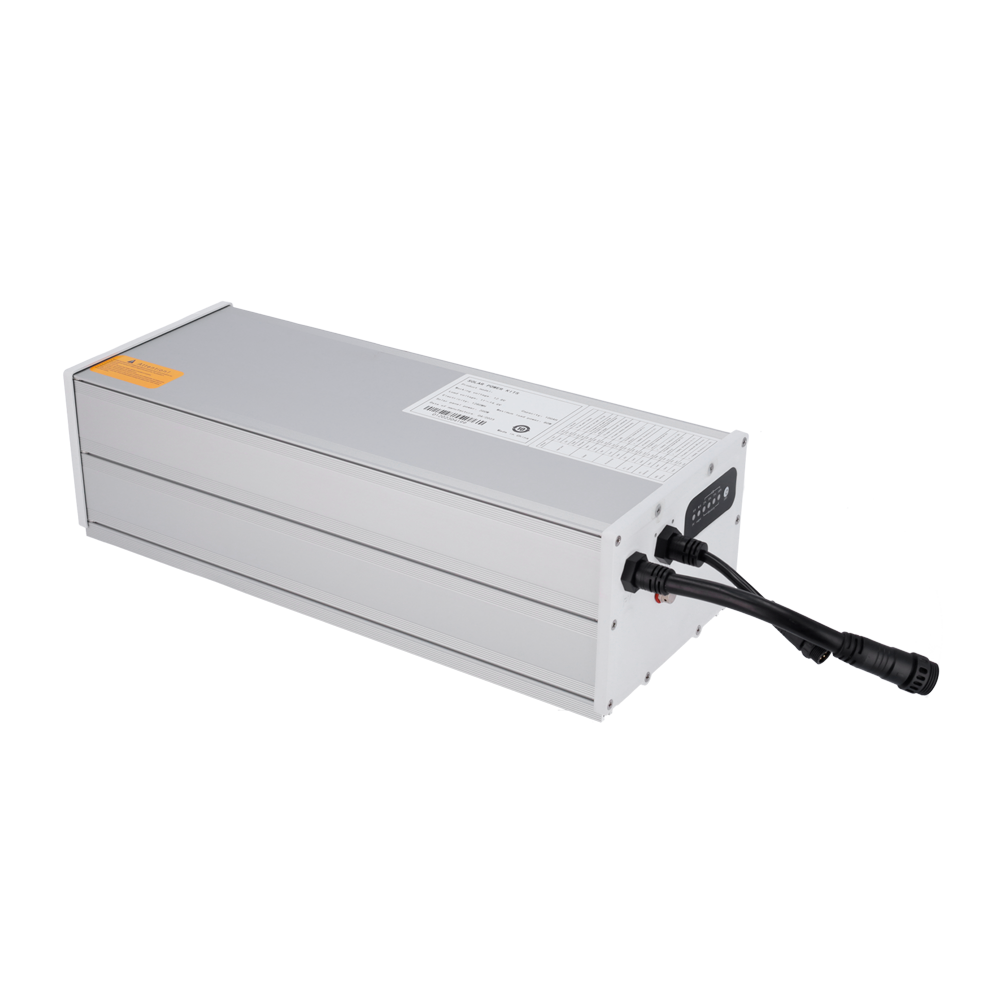

Battery | |
| Material | Lithium LiFePo4 |
| Capacity | 1280Wh (100Ah) |
| Regulator | Integrated MPPT |
| Cycles | >2000 |
| Solar input voltage | 18V |
| Load voltage | 10V-14.6V |
| Output Voltage | 12VDC / 24 VDC |
| Maximum charge current | 20A |
| Operating temperature | Charge: 0 °C to 60 °C Discharge: -30 °C to 60 °C |
| Degree of protection | IP67 |
| Maximum output power | 80W |
| Maximum input power | 300W |
| Dimensions | 596 (W) x 171 (H) x 130 (D) mm |
| Weight | 11.6Kg |
| Degree of protection | IP67 |
| Communication | RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption |

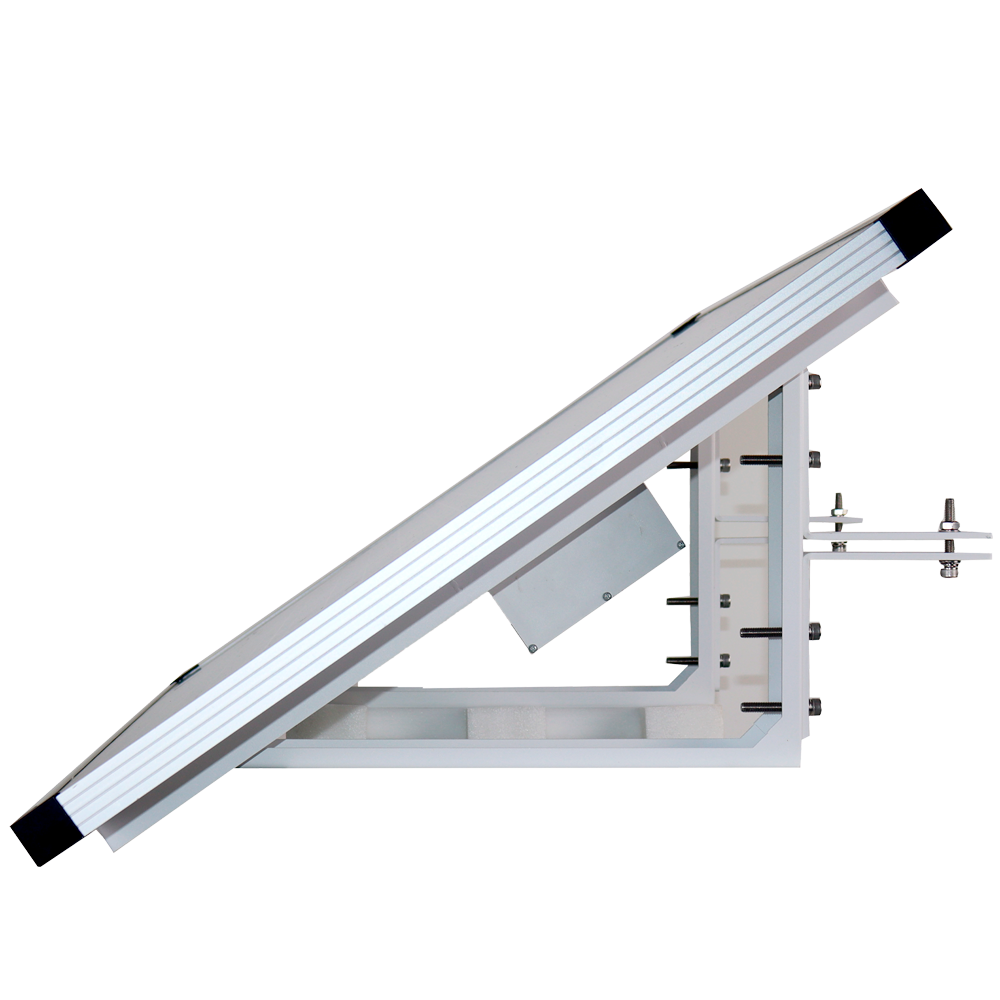

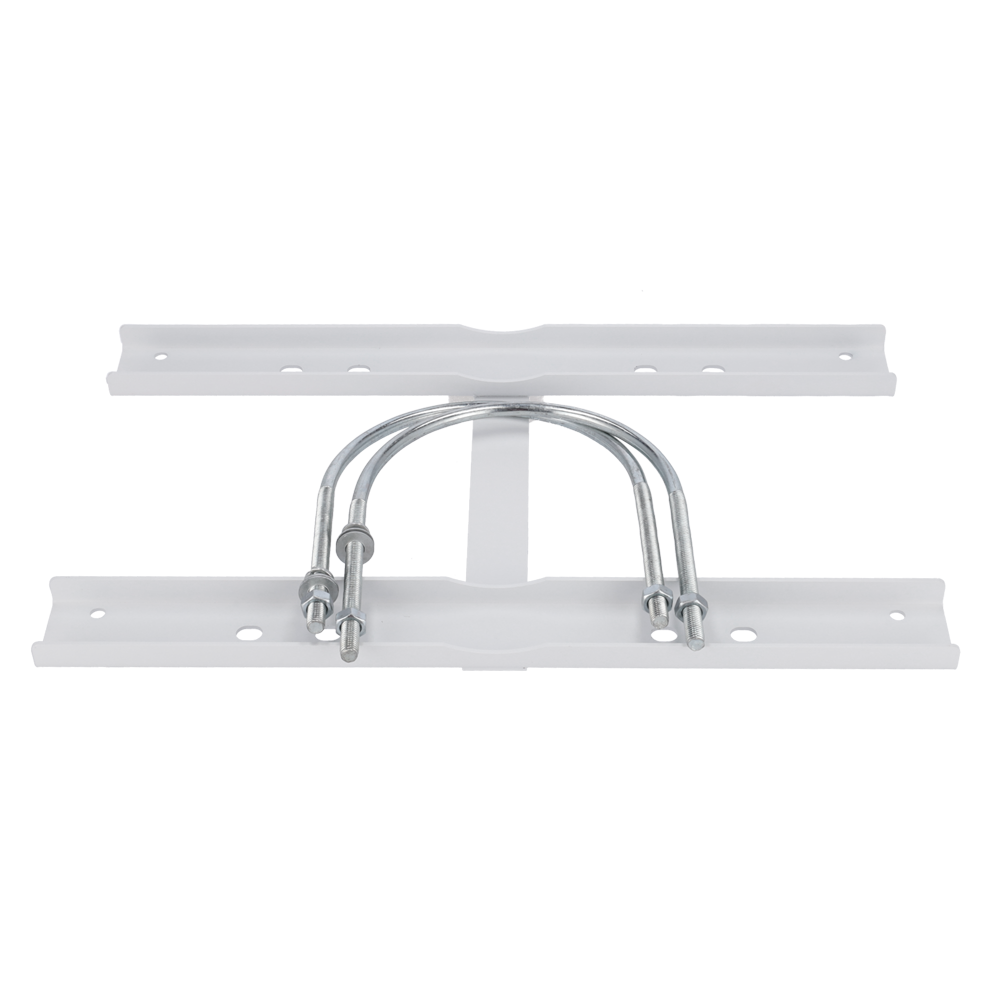

| Bracket | Anchoring to a mast or vertical infrastructure |
| Maximum diameter of pole/pole (not included) | 200mm |

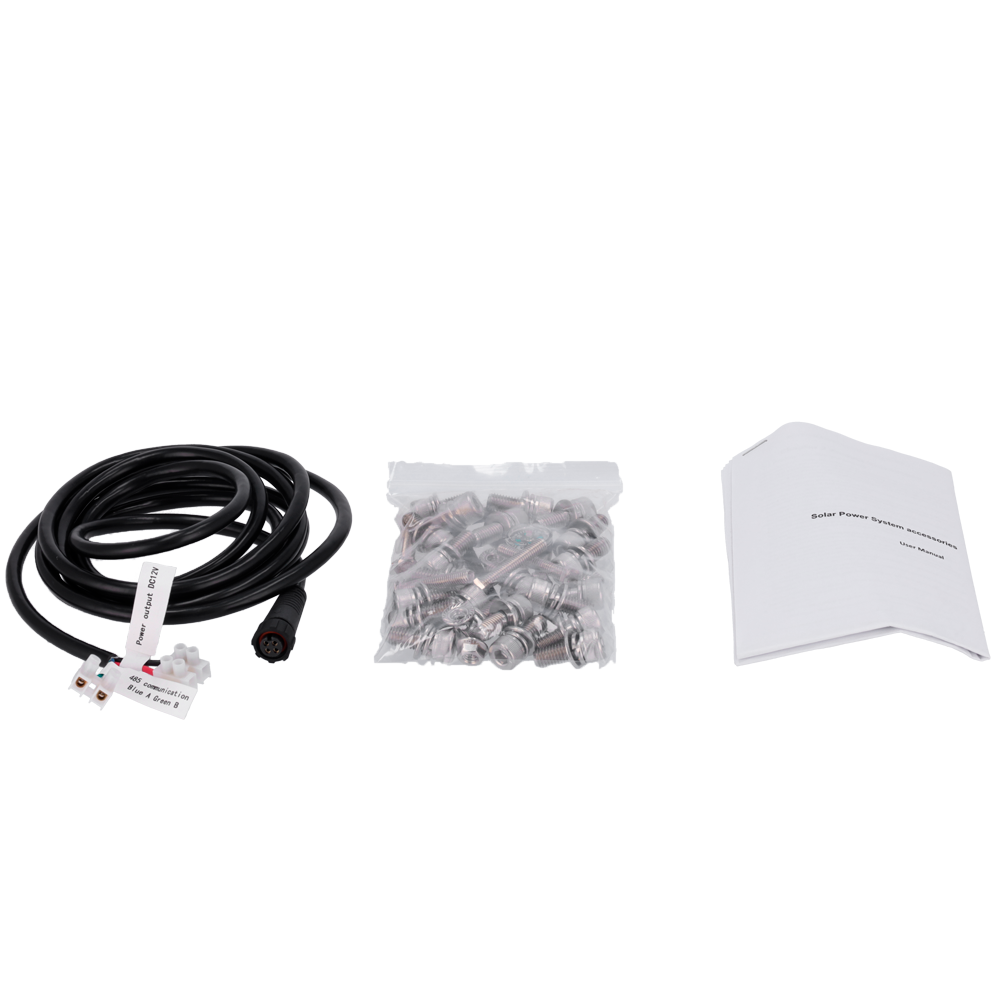

In the box
- Solar panel 400W
- Battery LiFePo4 1280Wh
- Mast support
- Mounting accessories
- Assembly instructions
- Compass for orientation
