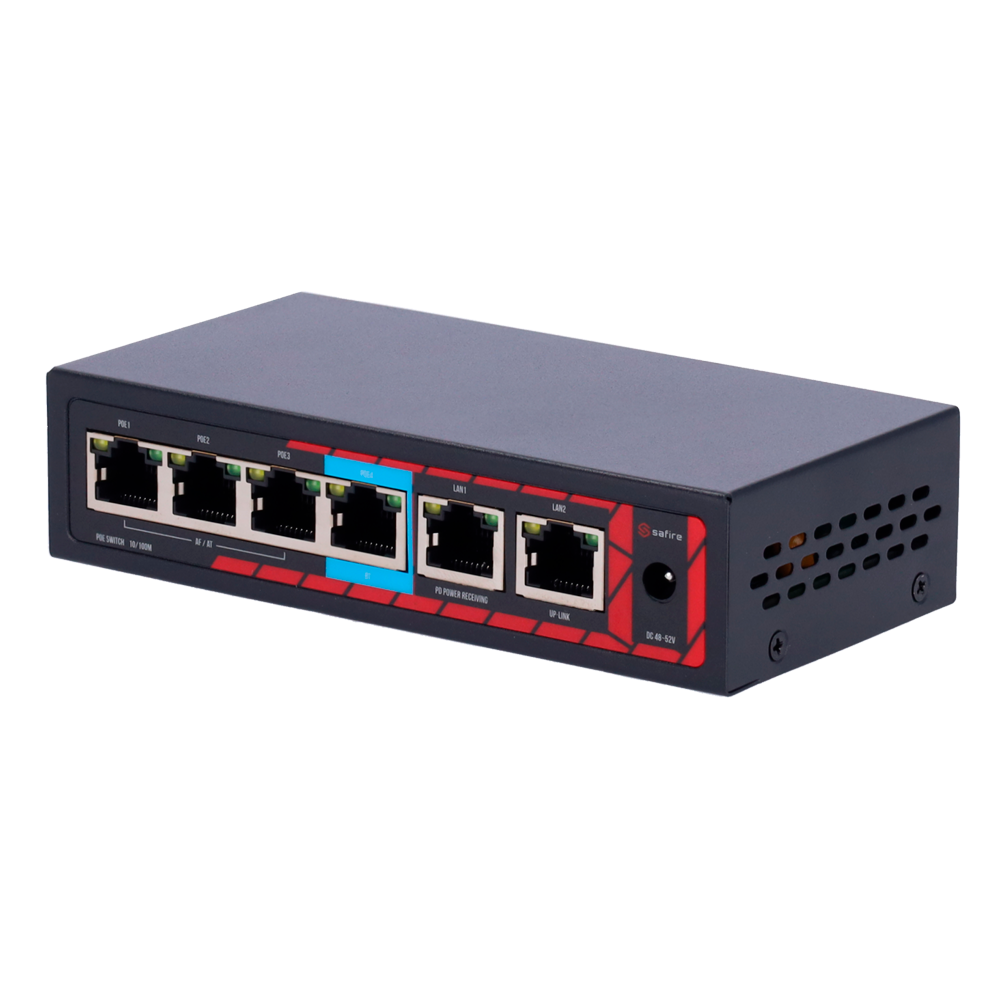

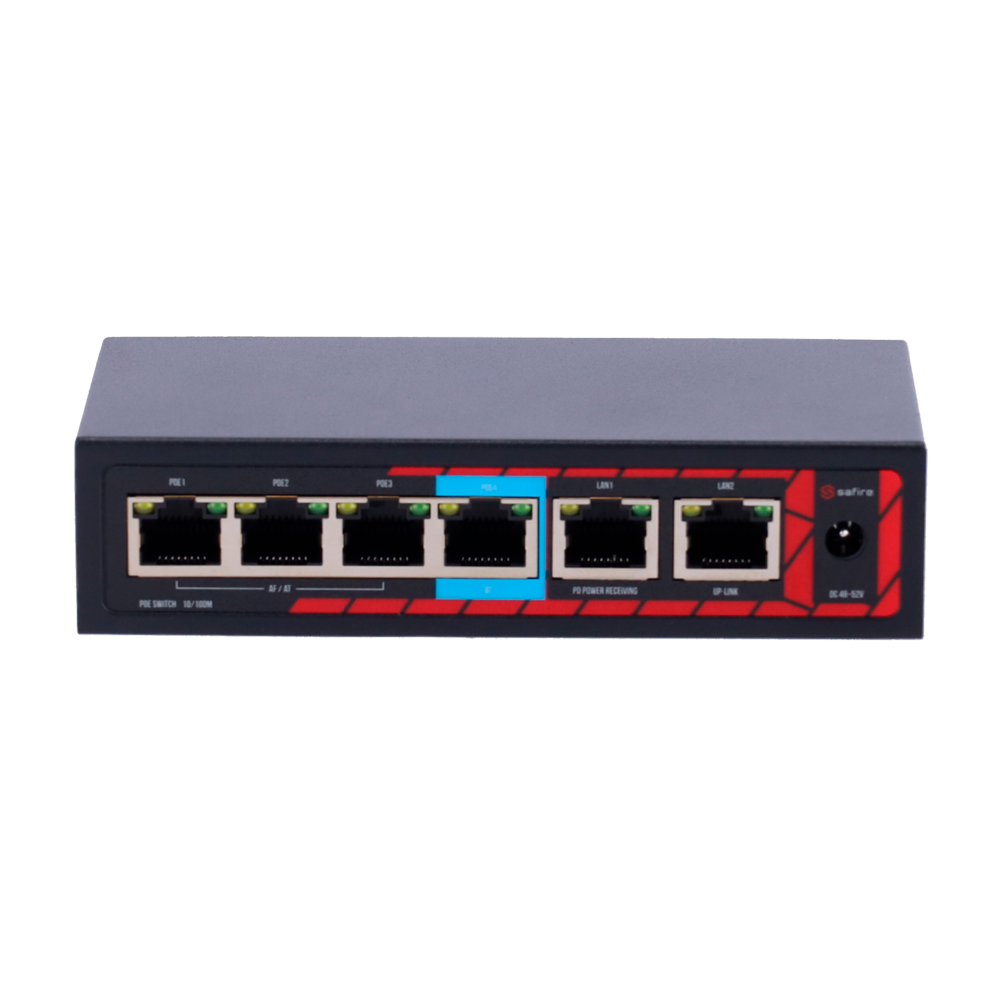

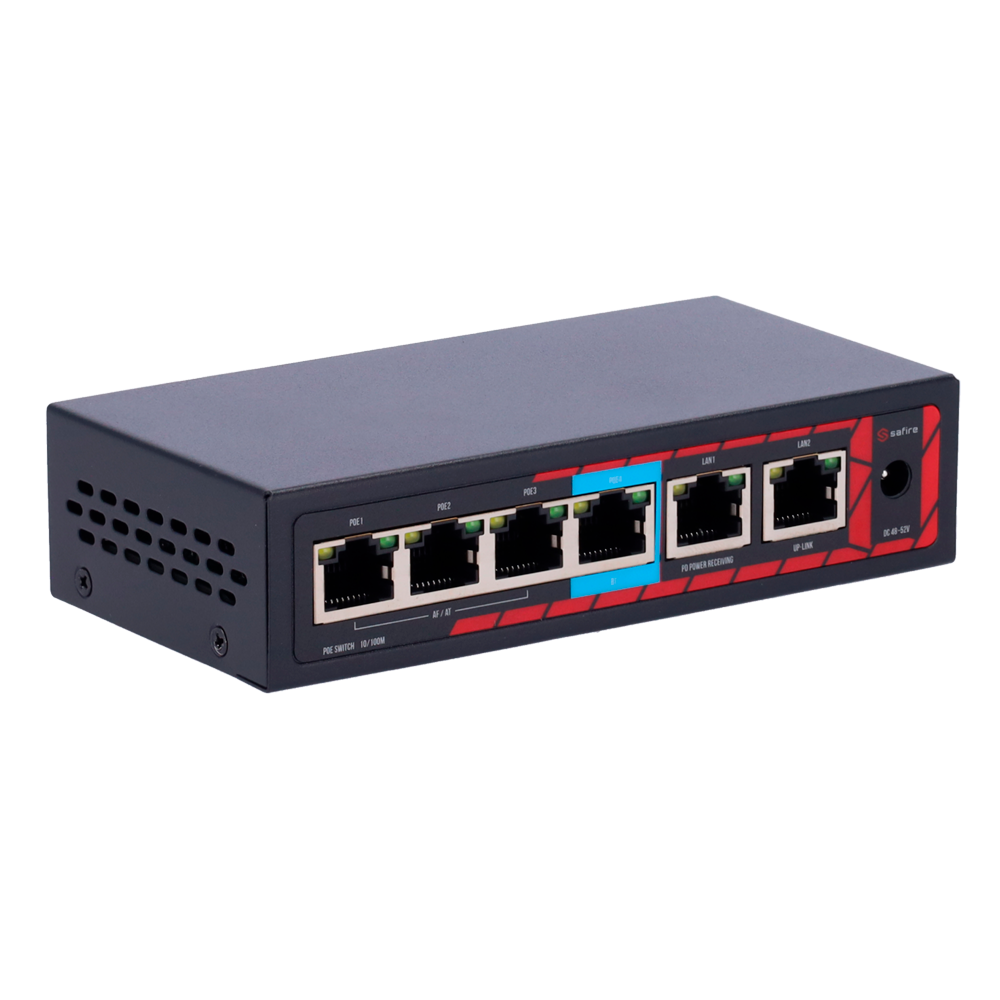

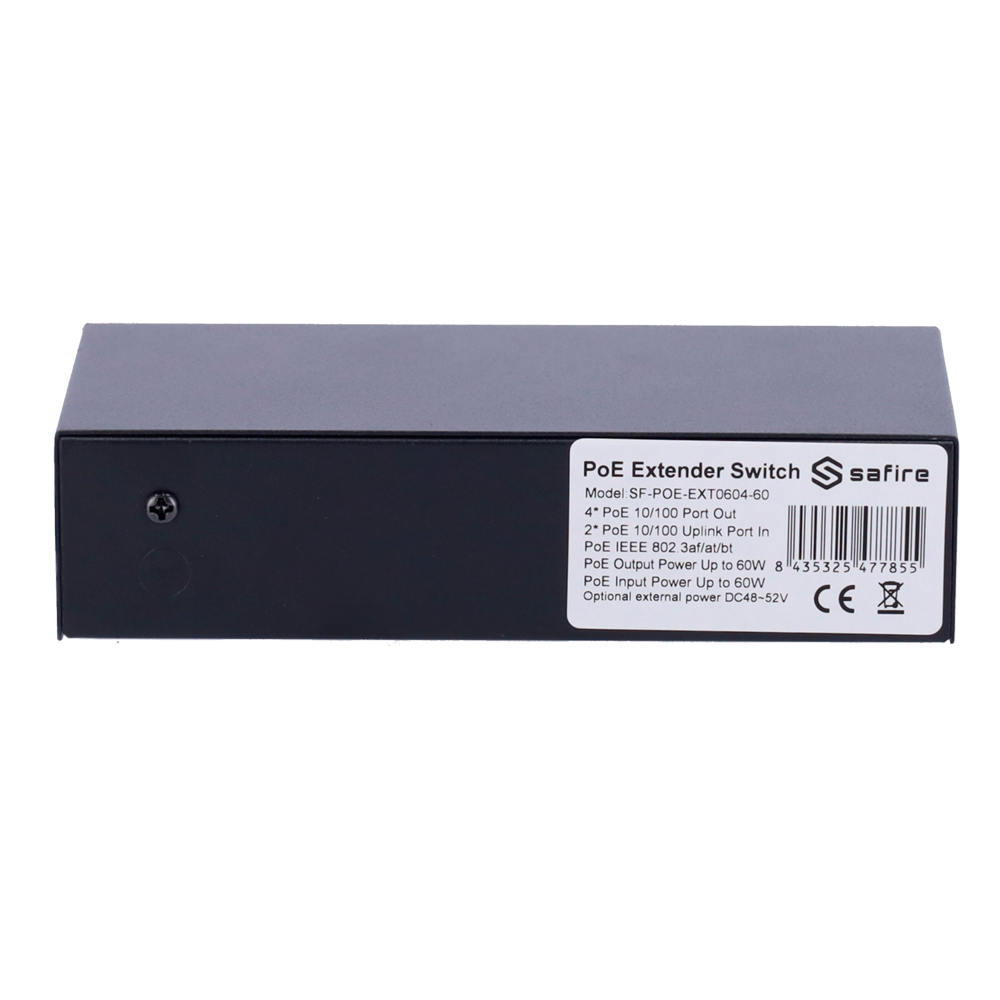

SF-POE-EXT0604-60
- Safire Indoor Hi-PoE Extender Switch
- Extends PoE power supply range
- 4 PoE port(s) + 2 Up-link port(s)
- IEEE 802.3 af/at/bt
- Maximum output power 60 W
- 10/100Mbps ports
- Safire PoE Extender Switch
- Allows to extend the range of the POE power supply to 6 RJ45 ports 100 Mbps (2 uplink + 4 POE from 60W )-) IEEE 802.3 af/at/bt
- Transmission distance up to 130 meters using UTP cable of 5 categories
- Output power up to 60W
Specifications
| Brand | Safire |
| Interface | 4 PoE ports - 2 uplink |
| Port speed | 6x 10/100 Mbps |
| Power supply | 60W |
| PoE features | According to IEEE 802.3at / IEEE 802.3af / IEEE 802.3bt PoE Standard Port 1~3 IEEE 802.3af/at To 30W Port 4 IEEE 802.3af/at/bt To 60W |
| Power | Input: DC 48~52V; PoE Total ≤ 60W PoE Watchdog: Ports 1~4 Output: PoE 1~3 Ports 1/2(+52V),3/6(GND)≤30W |
| Dimensions | 130x 65x 31mm |
| Temp. Functioning | -10℃ ~55℃ |
In the box
- Safire Indoor PoE extender Switch
- User instructions
