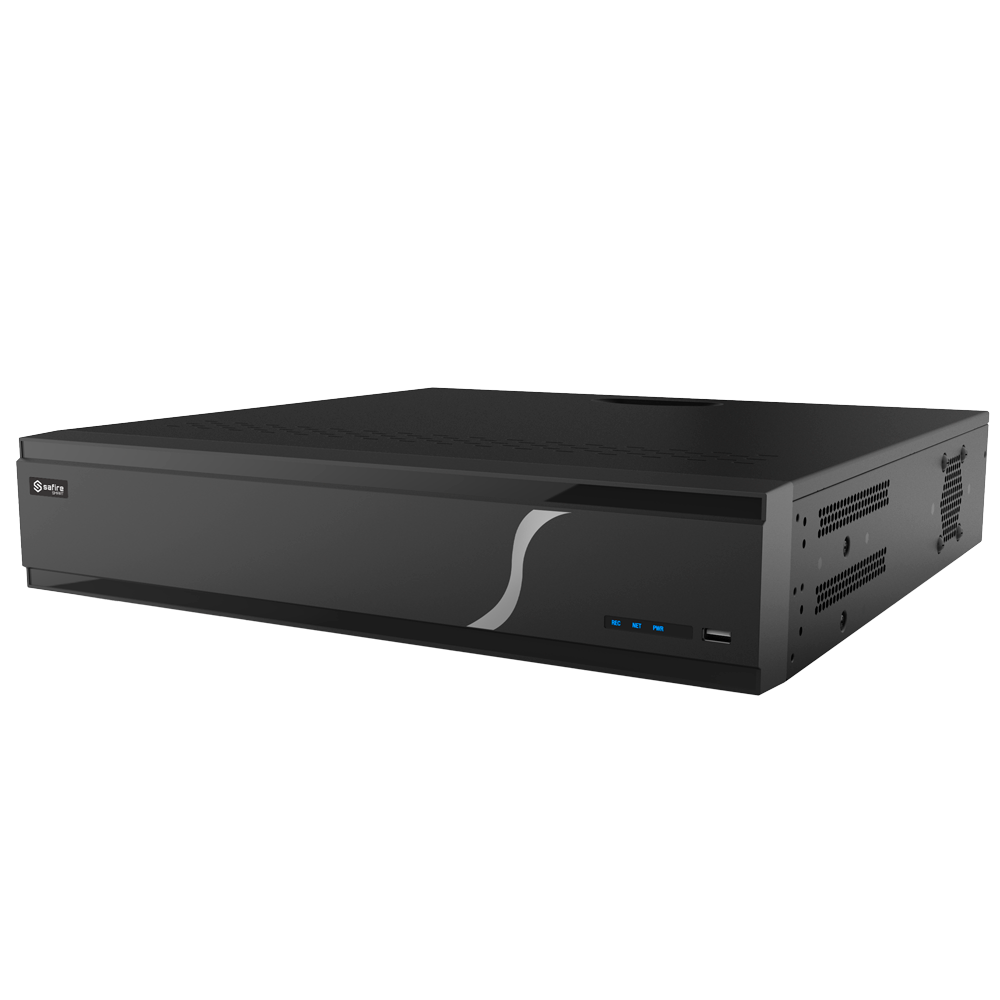

SF-NVR8832A-A3
Ga direct naar de productinformatie
SF-NVR8832A-A3
- Safire Smart
- NVR recorder for IP cameras - A3 range
- 32CH video / H.265S Compression / 8HDD
- Up to 16Mpx Resolution / 320 Mbps Bandwidth
- 2 x HDMI 4K and VGA / Dewarping Fisheye
- Facial recognition, Video metadata
- Safire Smart
- A3
- NVR for IP cameras
- 32 CH
- 320 Mbps bandwidth supported
- Maximum resolution 16 Megapixel
- Compression H.265S/H.265+/H.265/H.264
- 1 HDMI output 4K, 1 HDMI Full HD output and 1 VGA output
- POS Function
- Intelligent searches of humans, vehicles and two-wheelers
- Facial recognition
- Face tracking on map
- Dewarping for Fisheye cameras
- Arming / Disarming from the mobile APP
- IP Dual Stream Access
- RCA Audio
- Alarms
- Space for 8 HDD
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications
| Brand | Safire Smart |
| Range | A3 |
| Inputs for IP cameras | 32CH IP |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Main Stream recording | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF |
| Decoding capacity | No AI Mode: 4×16MP@30fps, 9×6MP@30fps, 16×4MP@30fps AI mode: 4×12MP@30fps, 9×5MP@30fps, 16×3MP@30fps |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 320 Mbps downstream / 256 Mbps upstream |
| Video outputs | 2 HDMI 4K / 1 VGA |
| Display resolution | HDMI1: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768 HDMI2: 3840×2160@60 3840×2160@30 1920×1080 1280×1024 1024×768 VGA×1: 1920×1080 1280×1024 1024×768 *VGA and HDMI 1 are simultaneous |
| Yesmultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | Main output: : 1/4/6/8/9/13/16/25/32/36 Secondary output: 1/4/6/8/9/13/16 |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| POS Function | Si |
| Perimeter Protection | Artificial Intelligence based on the classification of humans and vehicles on the basis of: - Area intrusion - Line crossover - Region entry - Exit region Detailed searches for intelligent events |
| Facial recognition | Face detection with Safire Smart cameras 4I1 or 8I2 up to 32CH (All channels) Face detection by the NVR itself with any camera up to 4CH Facial recognition up to 16CH max Computation of up to 36 images / second 32 Libraries and up to 10000 face images Image searches via recorder, APP and PC software Face tracking on map or plan Statistical information on face results by day, week, month or customized period |
| Video metadata | Need to use Safire Smart 4I1 or 8I2 cameras Human and vehicle feature extraction |
| License plate recognition | Yes (Safire Smart license plate camera required) |
| Dewarping | Supports Fisheye camera dewarping |
| Alarms | 16 Inputs / 4 Outputs |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 8x 3.5" HDD SATA3.0 up to 10 TB (not included) |
| E-SATA interface | 2 x e-SATA |
| RAID | RAID0, RAID1, RAID5, RAID6 and RAID10 |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | ATX200 ≤ 30W (Without hard disk) |
| Operating temperature | -10ºC ~50ºC, Humidity 10~90% |
| Dimensions / Weight | 90 (H) x 445 (W) x 436 (D) mm / 1.18 Kg |
In the box
- Safire Smart NVR Recorder B2
- Mouse
- Ethernet Cable
- Quick Guide
