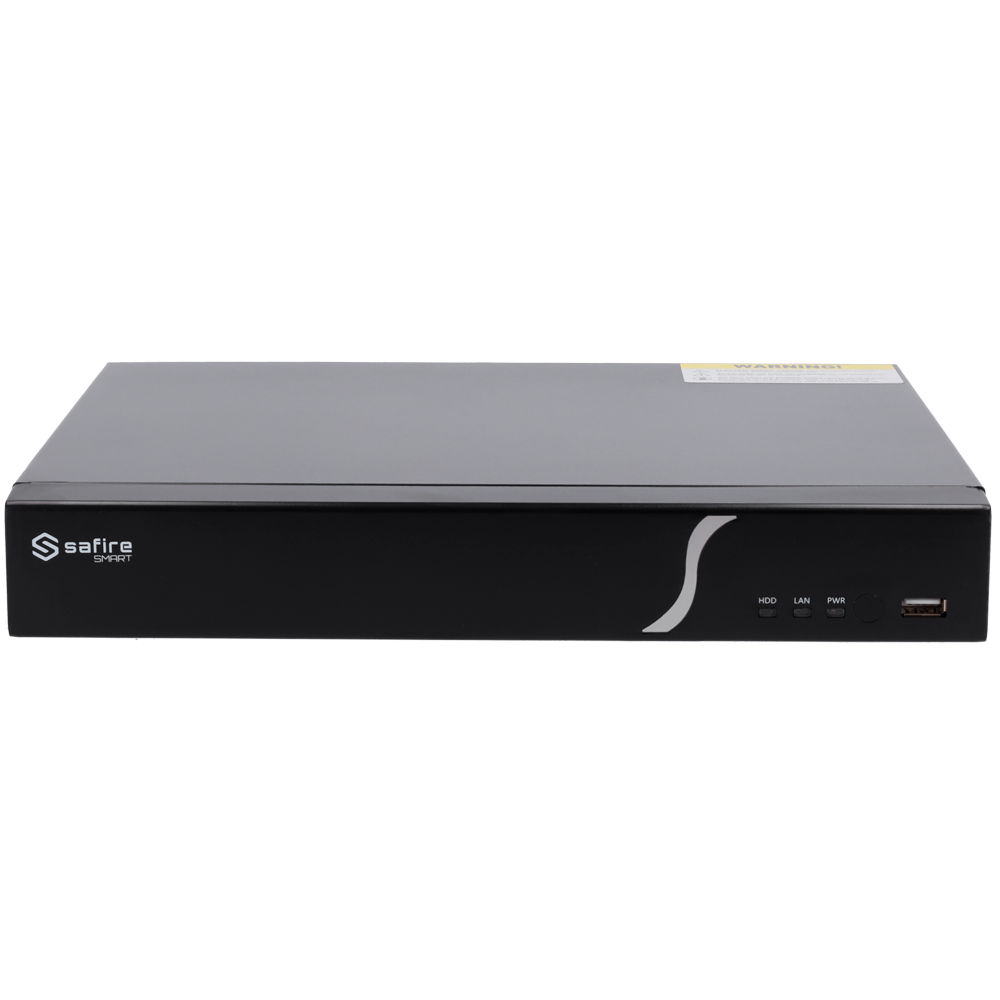

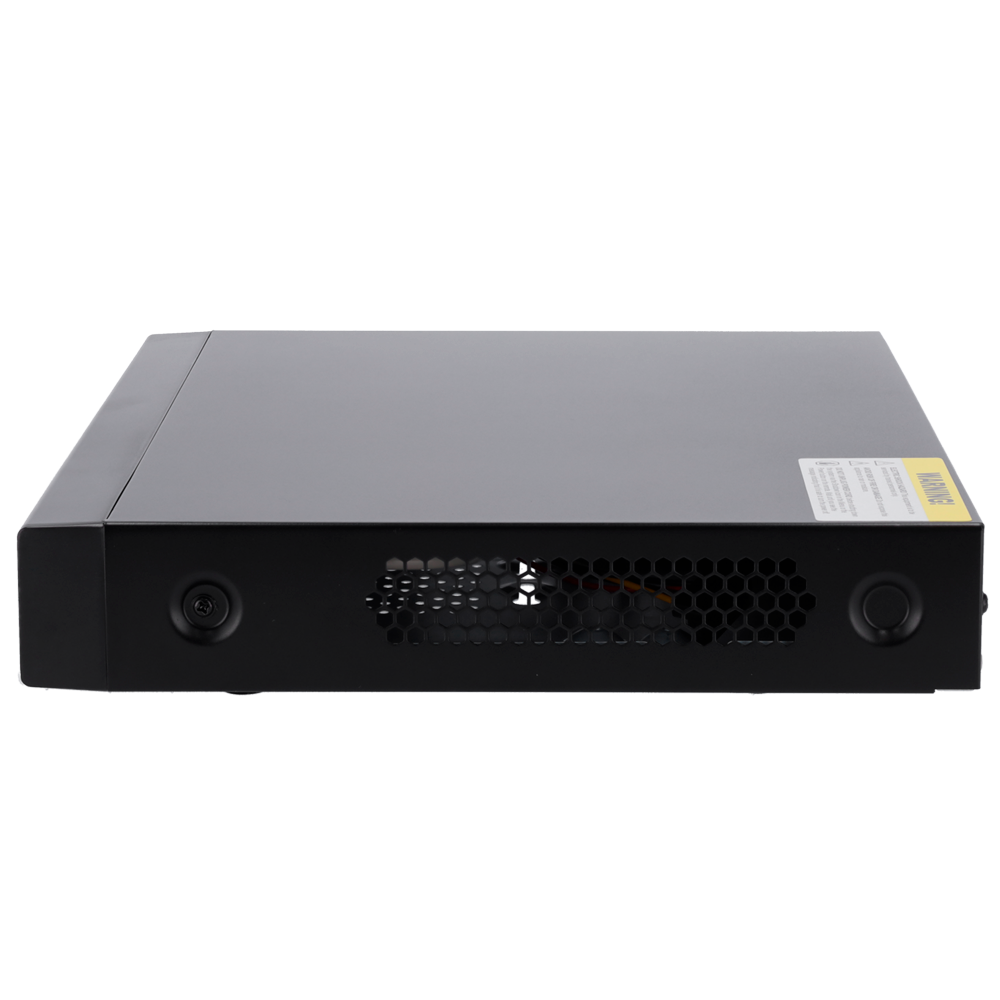

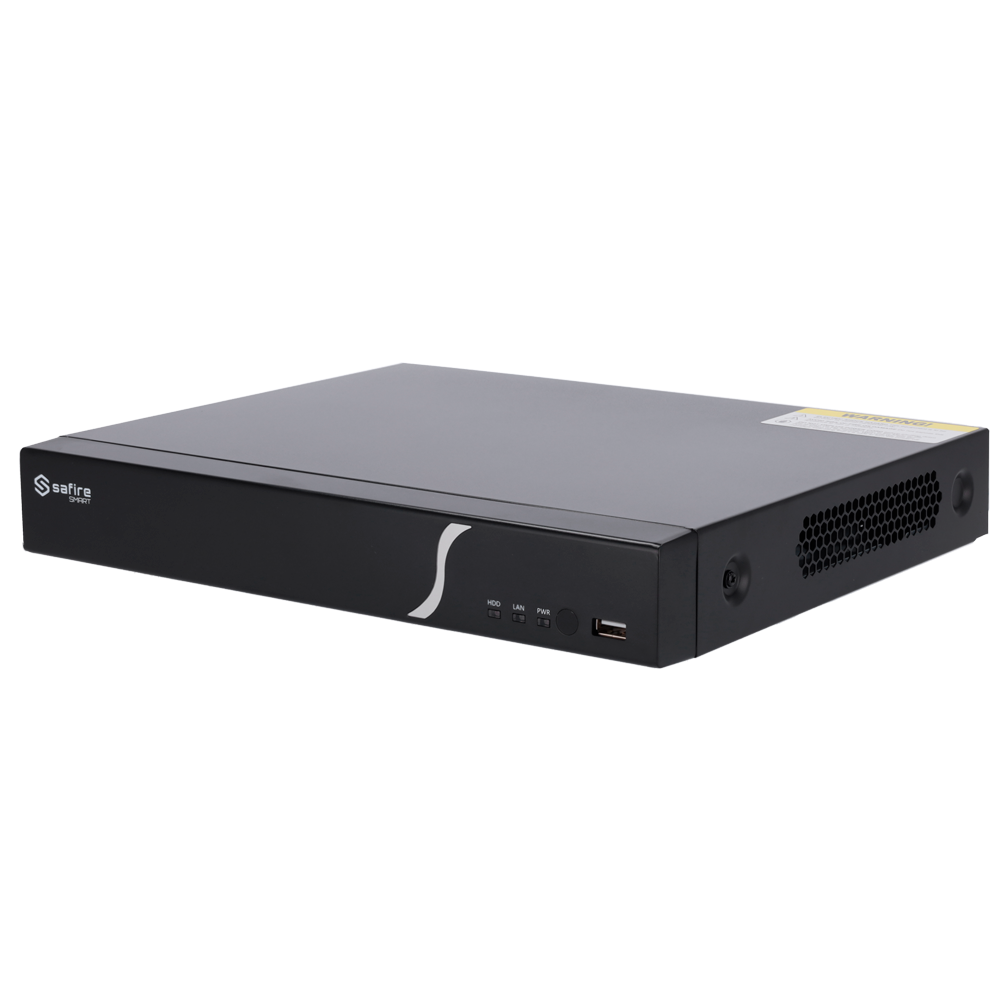

SF-NVR6116-B2
Ga direct naar de productinformatie
SF-NVR6116-B2
- Safire Smart
- NVR recorder for IP cameras - B2 range
- 16CH video / H.265+ Compression
- Up to 8Mpx resolution / 160Mbps Bandwidth
- HDMI 4K and VGA / 1HDD output
- Face detection / Intelligent search
- Safire Smart
- B2
- NVR for IP cameras
- 16 CH
- 160 Mbps bandwidth supported
- Maximum resolution 8 Megapixel (3840x2160)
- Compression H.265+/H.265/H.264+/H.264
- Outputs 4K HDMI & VGA
- POS Function
- Face detection
- IP Dual Stream Access
- Mouse
- RCA Audio
- Camera Alarms
- Space for 1 HDD
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications
| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 16 CH IP |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |

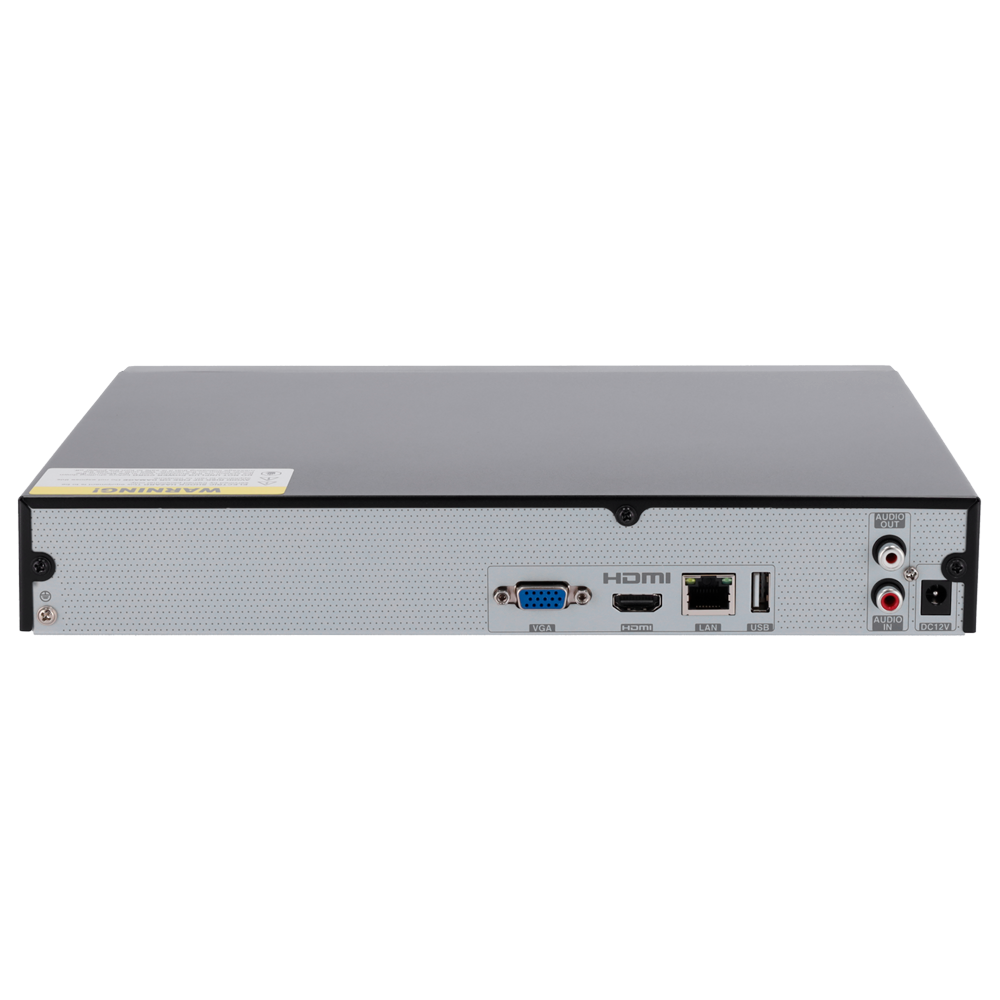

| Video outputs | 1 HDMI 4K, 1 VGA |
| Main Stream recording | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Decoding capacity | 1CH 8Mpx 6CH 1080P |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 160 Mbps downstream / 160 Mbps upstream |
| Display resolution | HDMI: 3840x2160@60FPS/30FPS, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 |
| Audio | Two-way RCA Audio / Provides audio through camera |
| Alarms | Camera alarms are available |
| POS Function | Yes |
| Intelligent functions | Face detection up to 16CH per camera Face detection up to 2CH per NVR Image searches via recorder, APP and software Statistical information on face results. Smart event searches by human and vehicle in 16CH per camera Intelligent event searches by human and vehicle in 2CH per NVR Metadata extraction per camera |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| External Backup | USB memory stick / USB HDD / USB CD-RW / USB DVR-RW / |

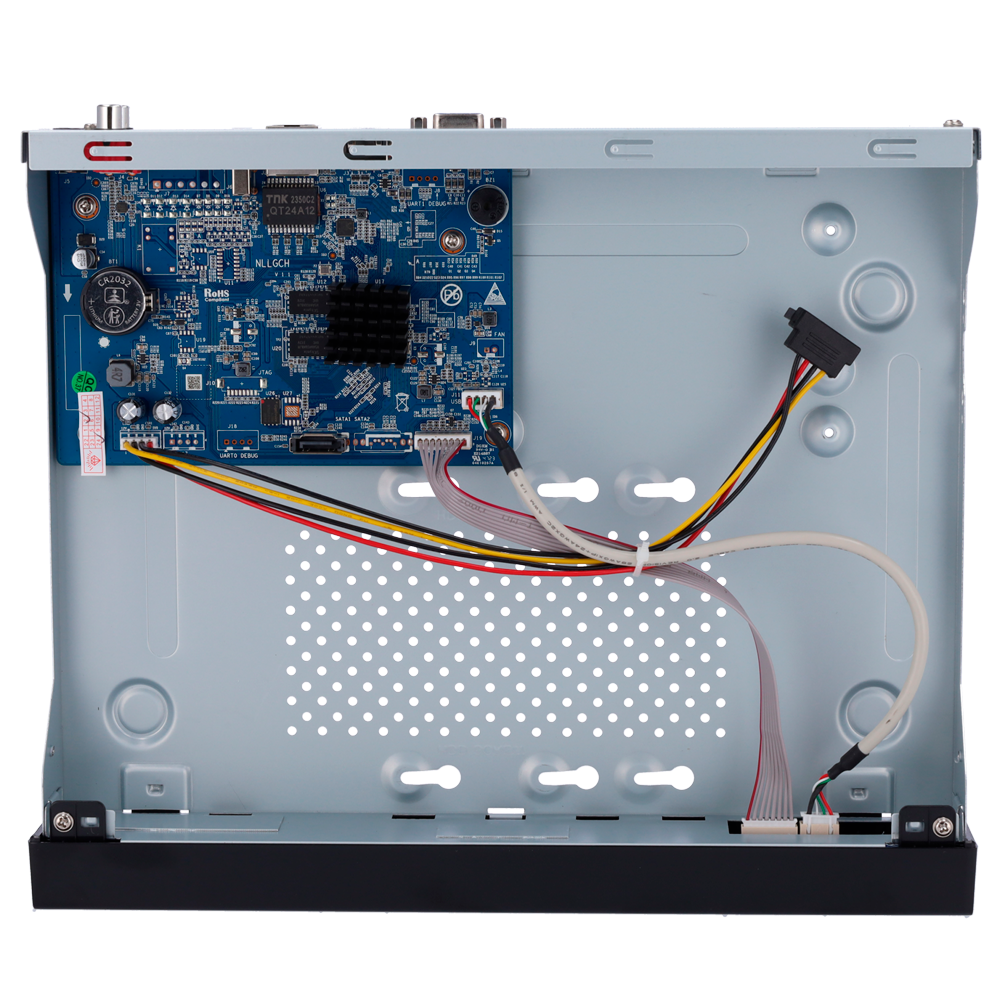

| Internal memory | 1x 3.5" HDD SATA3.0 up to 10 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | DC 12V / 1.5A (No hard disk) |
| Operating temperature | -10ºC ~50ºC, Humidity 10~90% |
| Dimensions / Weight | 45(H) x 300(W) x 249(D)mm / 1Kg |
In the box
- Safire Smart NVR Recorder
- Mouse
- Ethernet Cable
- Power supply 12V DC
- Quick Guide
